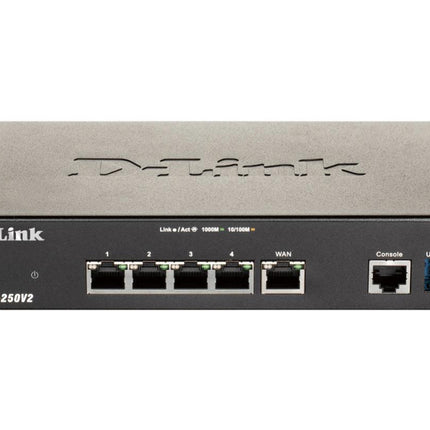

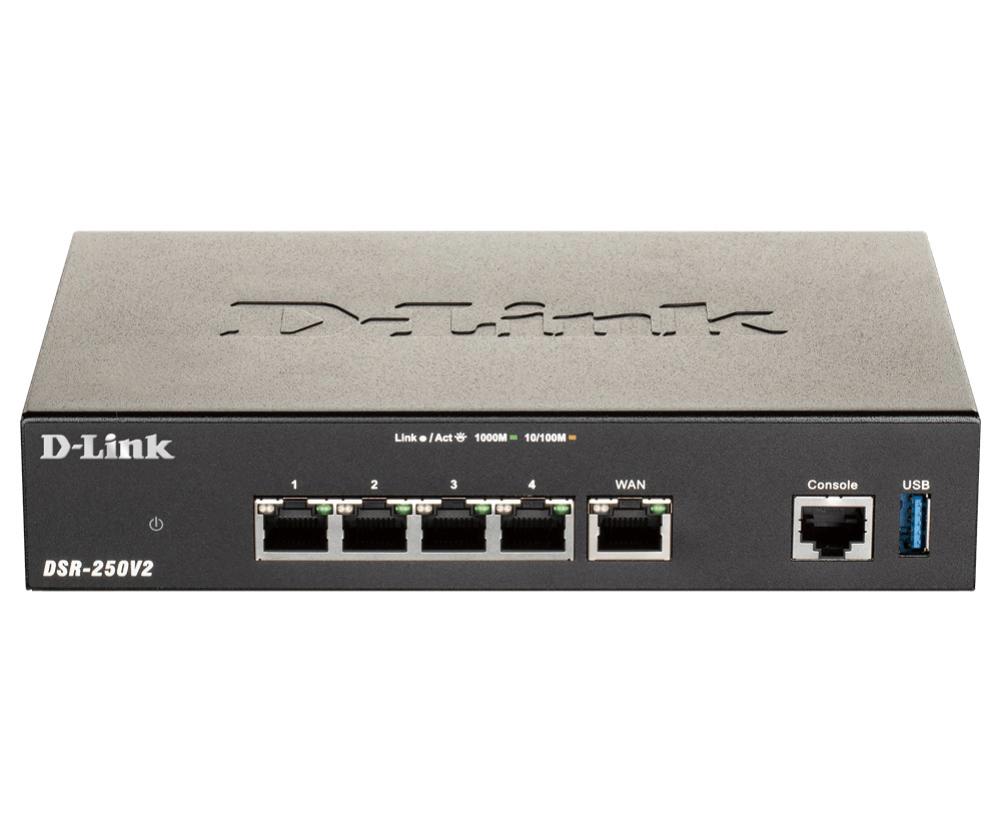

D-Link DSR-250V2 Unified Services VPN Router
The D-Link DSR-250V2 is a high-performance Unified Services VPN Router designed for small to medium-sized businesses requiring secure remote access, dual WAN failover, and enterprise-grade network protection. With support for up to 75 VPN tunnels, 950 Mbps firewall throughput, and 200 Mbps VPN throughput, this router delivers robust connectivity for office networks, branch locations, and remote workers.
Why Choose the DSR-250V2?
Built for reliability and security, the DSR-250V2 offers dual Gigabit WAN ports for high availability and load balancing, ensuring your business stays connected even if one internet connection fails. Advanced VPN support including IPSec, PPTP, L2TP, GRE, and OpenVPN provides flexible, secure connections for mobile employees and site-to-site networking.
Key Features
-
Dual WAN Support: Two Gigabit WAN ports with automatic failover and load balancing for uninterrupted connectivity
-
Enterprise VPN Security: Up to 75 VPN tunnels with 50 IPSec tunnels, supporting DES, 3DES, and AES encryption
-
High-Performance Firewall: 950 Mbps firewall throughput and 50,000 concurrent sessions for robust network protection
-
Web Content Filtering: Static and dynamic filtering to manage and control employee internet usage
-
Application Control: Prioritise or restrict traffic for specific applications to optimise network performance
-
Captive Portal: Authenticate employees and guests via customisable landing pages with RADIUS, LDAP, or Active Directory support
Versatile Connectivity Options
The DSR-250V2 is equipped with 1 × Gigabit WAN port, 3 × Gigabit LAN ports, and 1 × configurable Gigabit LAN/WAN port, providing flexible networking options for diverse setups. The integrated USB 3.0 port supports 3G/4G/5G dongles for mobile broadband failover, adding an extra layer of redundancy for critical applications.
Advanced Security & Management
Featuring comprehensive firewall capabilities with 300 firewall policies, 16 VLANs, and RIPv1/v2/OSPF dynamic routing, the DSR-250V2 gives network administrators powerful tools to segment and secure their network. Remote management via CLI, HTTP, and HTTPS ensures convenient monitoring and configuration from anywhere.
Ideal for Business & Remote Work
Perfect for businesses with remote or hybrid workers, the DSR-250V2 can be deployed as a dedicated hardware VPN at home offices for always-on corporate network access, or configured for client-based VPN to support travelling employees. Its TAA/NDAA compliance makes it suitable for government and regulated industries.
What's in the Box
- 1 × DSR-250V2 Unified Services Router
- 1 × 12V/1.5A Power Adapter
- 1 × Console Cable (RJ45-to-DB9)
- 1 × Ethernet Cable (CAT5 UTP)
- Quick Installation Guide
Full Specifications
Network Interfaces
| WAN Ports |
1 × 10/100/1000 Mbps Gigabit Ethernet |
| LAN Ports |
3 × 10/100/1000 Mbps Gigabit Ethernet |
| Configurable Port |
1 × 10/100/1000 Mbps (LAN/WAN) |
| USB Port |
1 × USB 3.0 |
| Console Port |
RJ45 |
Performance
| Firewall Throughput |
950 Mbps |
| VPN Throughput (3DES) |
200 Mbps |
| Concurrent Sessions |
50,000 |
| New Sessions per Second |
2,000 |
| VPN Tunnels (Total) |
Up to 75 |
| IPSec VPN Tunnels |
Up to 50 |
| SSL VPN Tunnels |
Up to 20 |
| Firewall Policies |
300 |
| VLANs |
16 |
VPN Protocols
| Supported VPN Types |
IPSec, PPTP, L2TP, GRE, OpenVPN |
| Encryption |
DES, 3DES, AES |
| Authentication |
SSL, TLS |
Routing & Network Features
| Static/Dynamic IP |
Yes |
| PPPoE/L2TP/PPTP |
Yes |
| Dynamic Routing |
RIP v1/v2, OSPF, OSPFv3 |
| Dynamic DNS |
Yes |
| NAT/PAT |
Yes |
| WAN Failover & Load Balancing |
Yes |
| Inter-VLAN Routing |
Yes |
Security Features
| Firewall |
Stateful Packet Inspection (SPI) |
| Web Content Filtering |
Static & Dynamic (requires subscription) |
| Application Control |
Yes |
| Captive Portal |
Yes (RADIUS, LDAP, Active Directory, POP3) |
| DoS Protection |
Yes |
Physical Specifications
| Dimensions (L × W × H) |
190 × 120 × 38 mm |
| Power Input |
12V/1.5A DC |
| Max. Power Consumption |
14.4 W |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-20°C to 70°C |
| Operating Humidity |
5% to 95% non-condensing |
Certifications & Compliance
| EMI/EMC |
FCC Class B, CE Class B, RCM, IC, VCCI |
| Safety |
LVD (EN62368) |
| Compliance |
TAA/NDAA |
| MTBF |
1,230,157.85 hours |
Warranty
| Warranty |
Limited Lifetime Warranty |
Specifications are sourced from the manufacturer product page and may be updated.
