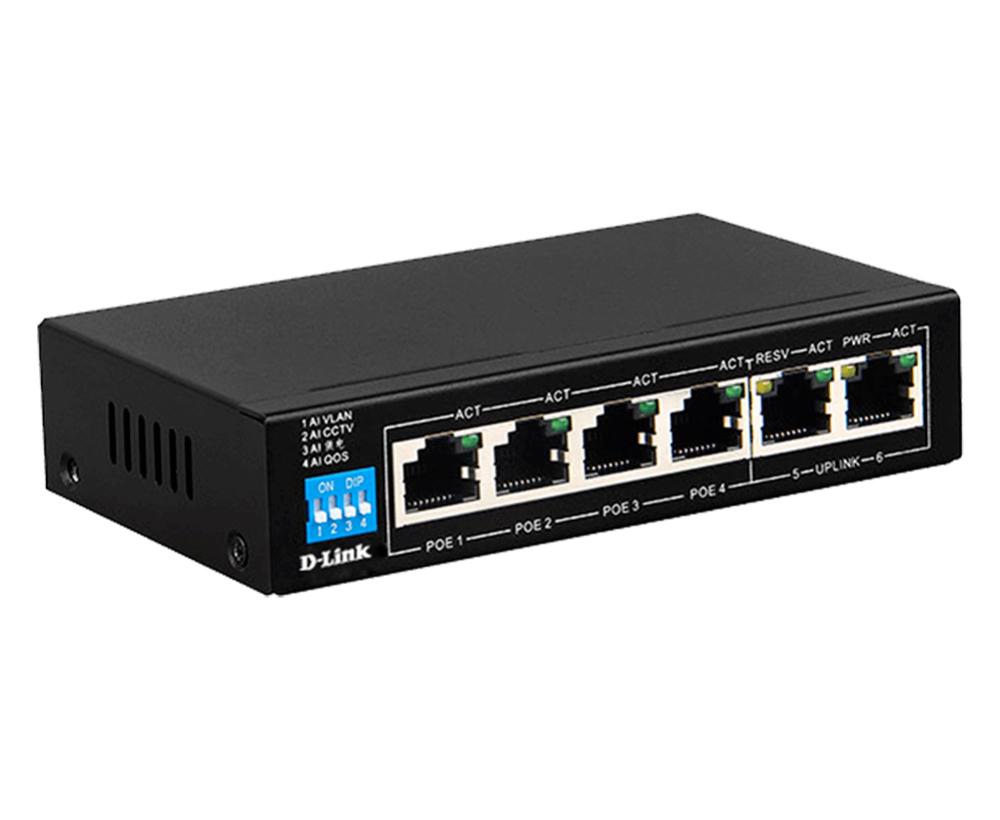

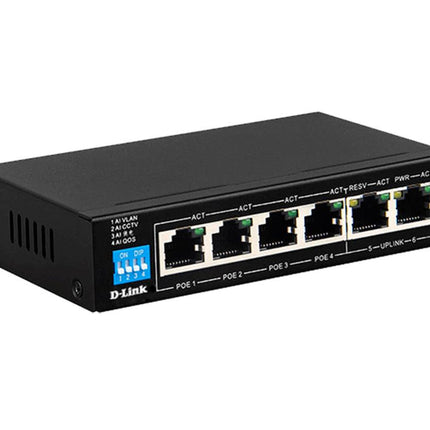

D-Link DSS-100E-6P 6-Port Unmanaged PoE Switch with 55W Power Budget
The D-Link DSS-100E-6P is a compact 6-port Fast Ethernet unmanaged PoE switch designed for surveillance and IP camera installations. With 4 PoE ports, 2 uplink ports, and a 55W power budget, this plug-and-play switch delivers power and data to your PoE-enabled devices up to an impressive 250 metres away. Perfect for small business security systems, schools, retail stores, and home surveillance networks, the DSS-100E-6P eliminates the need for separate power adapters and simplifies your installation.
Key Features
-
Extended PoE Range: Powers devices up to 250m away, ideal for long-range camera deployments
-
55W Total PoE Power Budget: Supports multiple IP cameras and PoE devices simultaneously
-
6kV Surge Protection: Protects your equipment from lightning strikes and power surges
-
Plug & Play Operation: No configuration needed, just connect and go
-
Energy Efficient: IEEE 802.3az compliant, automatically powers down unused ports
-
Compact 11-inch Design: Perfect for desktop or rack mounting in tight spaces
Perfect for IP Camera Surveillance Systems
The DSS-100E-6P is purpose-built for video surveillance deployments. Connect up to 4 IP cameras or other PoE devices through the PoE-enabled ports, while the 2 uplink ports provide Fast Ethernet connectivity back to your Network Video Recorder (NVR) or core network switch. The extended 250-metre PoE range means you can position cameras virtually anywhere without worrying about power outlet availability or the need for expensive PoE extenders.
Plug & Play Simplicity
Forget complex network configurations. The DSS-100E-6P features true plug-and-play operation with automatic device detection. Simply connect your IP cameras, wireless access points, IP phones, or other PoE devices, and the switch automatically detects and configures optimal settings. The switch intelligently manages power delivery and adjusts performance based on connected devices, making it ideal for users who want a powerful surveillance network without the management overhead.
Built-in Surge Protection
Australian conditions can be harsh on electronic equipment. The DSS-100E-6P is equipped with 6kV surge protection on all ports, safeguarding your switch and connected devices against lightning strikes, power fluctuations, and electrical surges. This robust protection ensures your critical surveillance system continues operating without interruption, even during severe weather events.
Energy Efficient Design
Save on operating costs with IEEE 802.3az Energy Efficient Ethernet support. The switch automatically detects network traffic patterns and powers down ports when not in use, reducing energy consumption without compromising performance. Good for your budget and better for the environment.
Versatile Connectivity Options
-
4 × 10/100 Mbps PoE Ports: Connect and power IP cameras, wireless APs, and VoIP phones
-
2 × 10/100 Mbps Uplink Ports: Connect to your NVR or core network infrastructure
-
55W Total PoE Power Budget: Sufficient for multiple standard PoE devices
-
Compatible with Cat.5e and Cat.6 Cabling: Works with your existing network infrastructure
What's in the Box
- D-Link DSS-100E-6P 6-Port Unmanaged PoE Switch
- Power adapter
- Quick Installation Guide
Full Specifications
| Model |
DSS-100E-6P |
| Hardware Version |
B1 |
| Size |
11-inch standard rack width, 1U height |
| PoE Ports |
4 × 10/100Base-T PoE ports |
| Uplink Ports |
2 × 10/100Base-T ports |
| Total PoE Power Budget |
55W |
| Extended PoE Range |
Up to 250 metres |
| Surge Protection |
6kV on all PoE ports |
| Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at, IEEE 802.3az |
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-40°C to 70°C |
| Operating Humidity |
0% to 95% non-condensing |
| Storage Humidity |
0% to 95% non-condensing |
| Certifications |
CE, RoHS, LVD |
Specifications are sourced from the manufacturer product page and may be updated.
