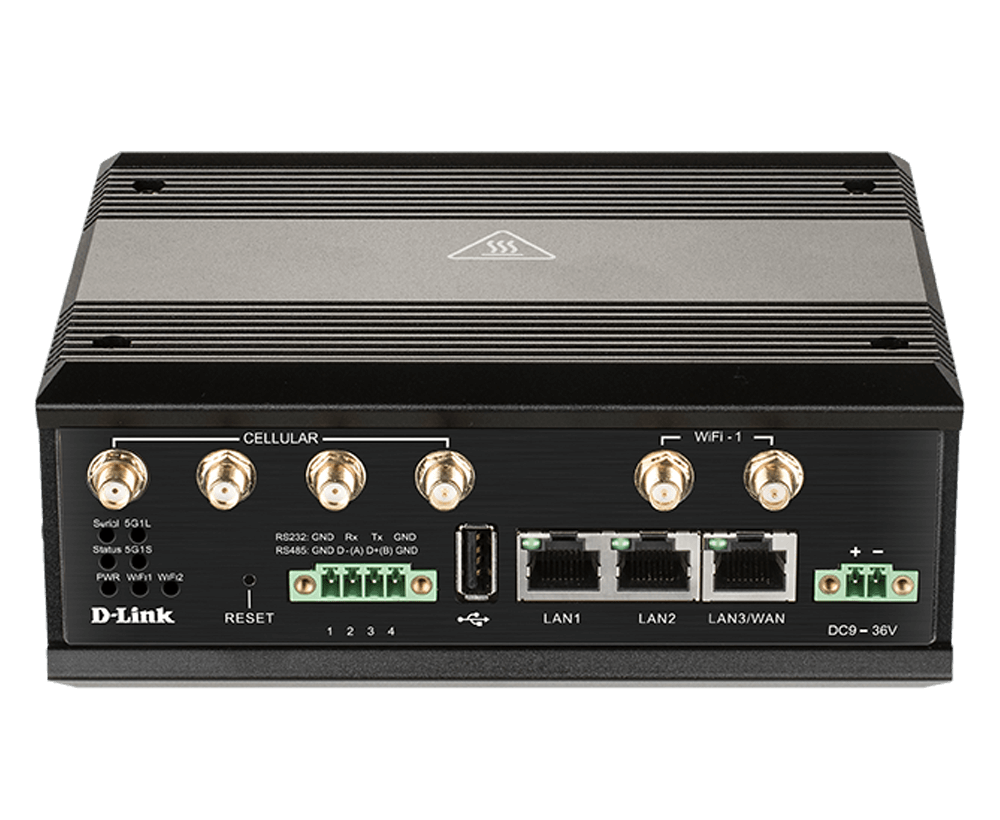

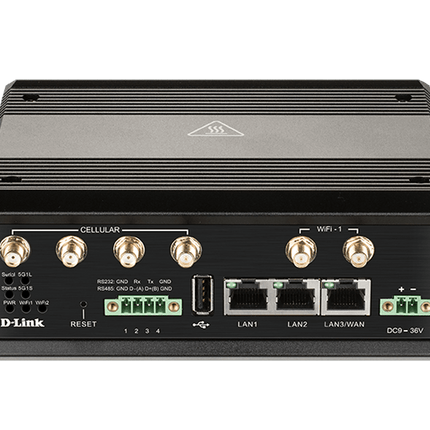

D-Link DWM-3010 5G NR Industrial M2M Gateway with Dual SIM & Wi-Fi
The D-Link DWM-3010 is an industrial-grade 5G NR M2M gateway designed to deliver exceptional broadband connectivity for IoT-dense environments and Industry 4.0 applications. With Gigabit-plus 5G speeds up to 1 Gbps, ultra-low latency, and a rugged design rated for -30°C to 60°C operation, this gateway is perfect for smart factories, warehouses, transportation fleets, EV charging stations, mining, agriculture, and cold storage facilities across Australia and New Zealand.
Why Choose the D-Link DWM-3010?
-
5G NR Connectivity: Lightning-fast downloads up to 1 Gbps with ultra-low latency and reduced congestion for real-time M2M communications
-
Dual SIM Slots: Seamless cellular failover between two carriers eliminates dead zones and ensures uninterrupted connectivity
-
Rugged Industrial Design: Operates reliably in extreme temperatures from -30°C to 60°C, perfect for harsh Australian industrial environments
-
Dual-Band AC1200 Wi-Fi: 866 Mbps on 5 GHz + 300 Mbps on 2.4 GHz supports up to 50 devices simultaneously
-
IoT Protocol Support: Virtual COM, Modbus TCP/RTU/ASCII, and MQTT for seamless device-to-device communication
-
Advanced VPN Security: IPSec, OpenVPN, PPTP, L2TP, and GRE with up to 16 VPN tunnels
High-Speed 5G and Gigabit Connectivity
The DWM-3010 harnesses the power of 5G NR and 4G LTE Cat.16 for download speeds up to 1 Gbps, making it ideal for bandwidth-intensive applications like video surveillance, digital signage, point-of-sale systems, and real-time industrial monitoring. Three Gigabit Ethernet ports (1 × WAN/LAN configurable, 2 × LAN) provide high-speed wired connectivity, while dual-band Wi-Fi 5 (802.11ac) ensures optimal wireless performance across your site.
Built for Industry 4.0 and Smart Industrial Applications
Industry 4.0 demands large-scale deployment of sensors, monitors, and connected devices throughout smart factories, warehouses, and industrial settings. The DWM-3010 facilitates private network deployments with low latency for near-instantaneous machine-to-machine communications. Field communication protocols including Virtual COM (RFC2217), Modbus Gateway, and MQTT enable an extensive range of IoT devices to communicate efficiently.
With RS-232 and RS-485 serial ports plus digital and analog I/O, the gateway integrates seamlessly with legacy industrial equipment, PLCs, sensors, and actuators.
Unmatched Reliability and Failover Protection
Mission-critical applications are downtime intolerant. The DWM-3010 features dual SIM slots with automatic failover between SIM A and SIM B, supporting all major 5G networks in Australia and New Zealand. Combined with Ethernet WAN failover, your network maintains connectivity even when one connection drops. Automated network task services alleviate administrators of routine tasks, allowing more time for network monitoring and preventive maintenance.
Remote Management with D-Link Edge Cloud Solution (D-ECS)
Manage your DWM-3010 gateways remotely from anywhere via the D-Link Edge Cloud Solution (D-ECS), a multi-tenant web portal designed for 4G/5G M2M device management. Features include map display of network nodes, GPS location and route history, event filtering, searchable event logs, and automated failure detection with alerts to resolve network issues quickly and efficiently.
Enterprise-Grade Security
Security is paramount for industrial networks. The DWM-3010 supports multiple VPN protocols including IPSec (up to 16 tunnels), OpenVPN, PPTP, L2TP, and GRE for secure site-to-site and host-to-site communications. Additional security features include SPI firewall with stealth mode, IPS, packet filtering, URL blocking, MAC filtering, and WPA2/802.1x Wi-Fi encryption.
Connectivity & Interfaces
-
Cellular: Dual SIM slots (Micro-SIM 3FF), 5G NR / 4G LTE Cat.16, 3GPP compliant
-
Ethernet: 1 × 10/100/1000 Mbps WAN/LAN port (configurable), 2 × 10/100/1000 Mbps LAN ports
-
Wi-Fi: Dual-band 802.11ac/n/g/b (AC1200: 866 Mbps @ 5 GHz + 300 Mbps @ 2.4 GHz)
-
Serial: RS-232/RS-485 with TCP Client/Server, Modbus Gateway, Virtual COM (RFC2217)
-
I/O: 2 × Digital I/O, Analog I/O
-
External Antenna: Cellular and Wi-Fi antenna connectors
-
GPS: Built-in GPS for location tracking and route history
-
Power: DC 9V/2A to 36V/0.7A ±5%
What's in the Box
- D-Link DWM-3010 5G NR M2M Gateway
- Power adapter (DC 9-36V)
- Ethernet cable
- Mounting accessories (DIN-rail and wall mount)
- Quick installation guide
- Warranty card
Full Specifications
Wireless WAN
| Cellular Technology |
5G NR / 4G LTE (3GPP compliant), Cat.16 |
| Maximum Download Speed |
Up to 1 Gbps (5G NR) |
| SIM Slots |
Dual SIM (Micro-SIM 3FF) with automatic failover |
| Supported Bands |
All major 5G networks in Australia and New Zealand |
Wi-Fi
| Wi-Fi Standard |
802.11ac/n/g/b (Wi-Fi 5) |
| Frequency Bands |
2.4 GHz + 5 GHz (dual-band) |
| Maximum Speed |
AC1200 (866 Mbps @ 5 GHz + 300 Mbps @ 2.4 GHz) |
| Mode |
AP router, WDS, WDS hybrid |
| Security |
WEP, WPA, WPA2, WPA-PSK, WPA2-PSK, 802.1x |
| Features |
Multi-SSID, WMM, Captive Portal |
| Maximum Clients |
Up to 50 devices |
Ethernet & Networking
| Ethernet Ports |
1 × 10/100/1000 Mbps WAN/LAN (configurable), 2 × 10/100/1000 Mbps LAN |
| LAN Default IP |
192.168.0.1 |
| WAN Types |
Cellular, Ethernet (Dynamic IP, Static IP, PPPoE, PPTP, L2TP) |
| Failover |
Dual SIM cellular failover, Ethernet WAN failover |
| IPv6 Support |
Dual stack IPv4/IPv6 |
| VLAN |
Port/tag based VLAN |
| Routing |
Static, Dynamic (RIP1/RIP2, OSPF, BGP) |
| QoS |
Policy-based, 802.1q and TOS priority queues |
Security & VPN
| VPN Protocols |
IPSec, OpenVPN, PPTP, L2TP, GRE |
| VPN Tunnels |
Up to 16 IPSec tunnels |
| Firewall |
SPI firewall with stealth mode, IPS |
| Access Control |
Packet filter, URL blocking, MAC filter |
IoT/M2M Protocols
| Virtual COM |
RFC2217, TCP client, TCP server, UDP |
| Modbus |
Gateway for Modbus TCP/RTU/ASCII Master/Slave access |
| MQTT |
Supported |
| Serial Ports |
RS-232/RS-485 |
| I/O |
2 × Digital I/O, Analog I/O |
Management
| Configuration |
Web UI, CLI, Command Script, D-ECS (D-Link Edge Cloud Solution) |
| Monitoring |
SNMPv3, Syslog, Network Monitor (ICMP/DNS Query) |
| Event Handling |
SMS, email, syslog, SNMP trap, Modbus, I/O triggers |
| Diagnostics |
Packet analyzer, diagnostic tools |
| GPS |
Location tracking and route history |
Physical & Environmental
| Dimensions |
62 × 125 × 160 mm |
| Mounting |
Desktop, wall mount, DIN-rail |
| Operating Temperature |
-30°C to 60°C |
| Housing |
Rugged industrial-grade design |
Power
| Power Input |
DC 9V/2A to 36V/0.7A ±5% |
| Power Consumption |
Max 25W |
Warranty
| Warranty Period |
Limited Lifetime Warranty |
What's in the Box
| Package Contents |
DWM-3010 Gateway, Power adapter, Ethernet cable, Mounting accessories, Quick installation guide, Warranty card |
Specifications are sourced from the manufacturer product page and may be updated.
