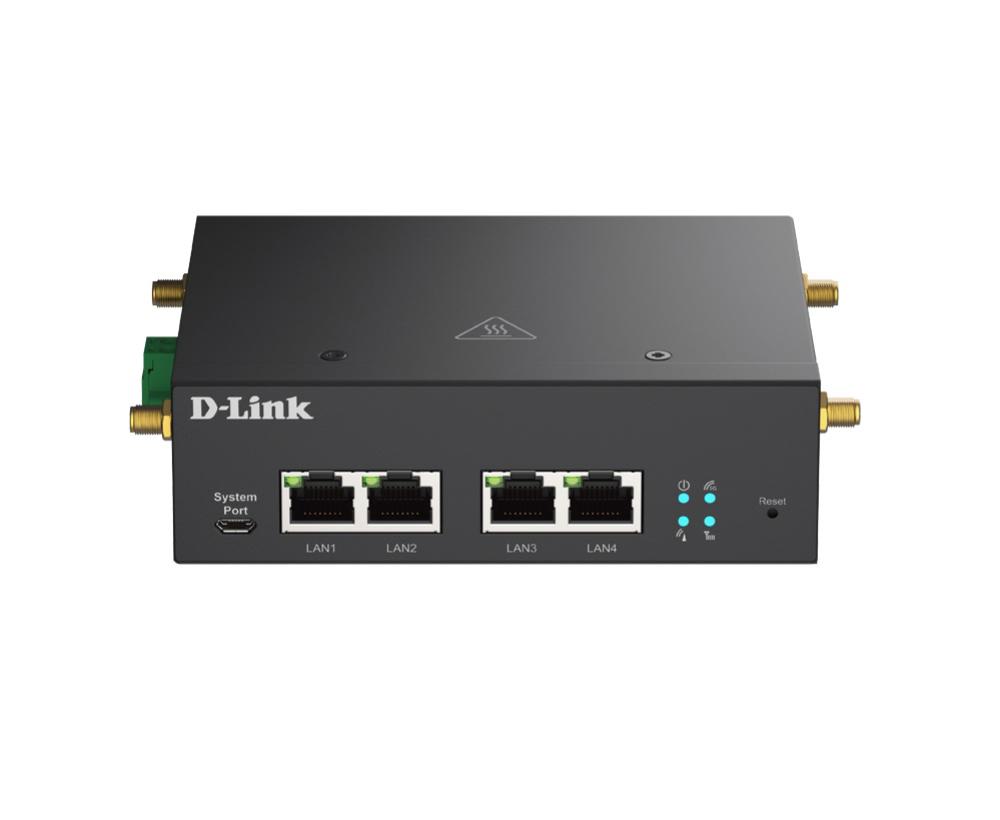

D-Link DWM-314-G 5G Multi-Connect Industrial Modem
The D-Link DWM-314-G is a rugged 5G/4G LTE industrial modem designed for mission-critical M2M and IoT applications. With dual SIM slots offering automatic failover, four Gigabit Ethernet ports, and 5G speeds up to 3.4 Gbps, this modem delivers uninterrupted connectivity for smart infrastructure, ATMs, kiosks, EV chargers, vending machines, surveillance systems, and remote monitoring. Its plug-and-play design, industrial-grade housing, and secure VPN capabilities make it the ideal choice for demanding Australian businesses and installers.
Key Features
-
Ultra-Fast 5G Connectivity: 5G SA speeds up to 2.4 Gbps (DL) / 900 Mbps (UL) and 5G NSA speeds up to 3.4 Gbps (DL) / 550 Mbps (UL), with seamless 4G/5G switching
-
Dual SIM with Auto-Failover: Two Micro-SIM (3FF) slots ensure uninterrupted cellular WAN connectivity with carrier-level redundancy
-
Four Gigabit Ethernet Ports: Built-in 4-port GbE switch simplifies setup and eliminates the need for additional networking equipment
-
Industrial-Grade Durability: Corrosion-resistant zinc-plated steel casing, wide operating temperature range (-30°C to 70°C), and high humidity tolerance (10% to 95% non-condensing)
-
Secure VPN Support: OpenVPN and WireGuard client mode support protects sensitive data transmission
-
D-ECS Cloud Management: Conveniently manage and monitor devices remotely from anywhere via the D-Link Edge Cloud System platform (optional)
Built for Mission-Critical M2M Applications
The DWM-314-G harnesses 5G technology to accelerate ultra-fast speeds, reduce latency, and ensure reliable connectivity with automatic failover redundancy. Ideal for smart parking systems, digital signage, ATMs, kiosks, POS terminals, vending machines, EV charging stations, NVRs, and smart lockers, this modem supports real-time data transfer and remote management in the most demanding environments.
Plug-and-Play Simplicity
The DWM-314-G offers effortless integration with its 4G/5G cellular and Ethernet interfaces, providing instant, driverless access for Ethernet-enabled devices without any need for pre-configuration or special software. Simply insert two Micro-SIM cards (3FF) and the modem is ready to connect your M2M devices to the high-speed 5G cellular network with failover redundancy. For tailored configurations, the user-friendly web interface can be configured through any standard web browser.
Rugged Design for Extreme Environments
Measuring just 4.8 × 3.7 × 1.3 inches (123 × 95 × 33 mm), its compact size and rugged housing allow for easy integration into space-constrained environments. Wall-mount and DIN-rail mounting options offer added flexibility. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance means the DWM-314-G is ready for the most demanding M2M applications in virtually any environment, including outdoor enclosures, industrial systems, and public access points.
Flexible Power and Connectivity
Conveniently powered through 9-36V DC or with the included 12V/1A power adapter, the DWM-314-G is engineered to safely accept wide input voltage fluctuations, providing more flexibility and convenience when selecting a suitable power source. This makes your M2M installations significantly more reliable and much easier to deploy.
Applications
- Smart parking lots and parking meters
- ATMs and banking services with secure remote monitoring
- Kiosks and self-service stations
- EV charging stations with real-time monitoring
- Vending machines with remote inventory management
- Digital signage and advertising displays
- NVRs and surveillance camera systems
- Smart poles and smart city infrastructure
- Smart lockers and access control systems
What's in the Box
- DWM-314-G 5G Multi-Connect Modem
- 4 × Cellular Antennas
- 1 × RJ45 Ethernet Cable
- 1 × 2-Pin Terminal Block
- 1 × Power Adapter (12V/1A)
- 1 × DIN-Rail Bracket with mounting screws
- User Manual
Full Specifications
Cellular Connectivity
| 5G Technology |
5G NR (SA and NSA modes) |
| 4G LTE Technology |
LTE Cat 19, LTE FDD, WCDMA |
| 5G SA Speeds |
Up to 2.4 Gbps (DL) / 900 Mbps (UL) |
| 5G NSA Speeds |
Up to 3.4 Gbps (DL) / 550 Mbps (UL) |
| LTE FDD Speeds |
Up to 1.6 Gbps (DL) / 200 Mbps (UL) |
| WCDMA Speeds |
Up to 42 Mbps (DL) / 5.76 Mbps (UL) |
| SIM Slots |
2 × Micro-SIM (3FF) with auto-failover redundancy |
| Antennas |
4 × External detachable cellular antennas |
Ethernet Connectivity
| LAN Ports |
4 × 10/100/1000 Mbps Gigabit Ethernet (RJ45) |
| Built-in Switch |
4-port Gigabit Ethernet switch |
Security & Management
| VPN Support |
OpenVPN, WireGuard (client mode) |
| Remote Management |
D-Link Edge Cloud System (D-ECS) - optional, SMS management |
| Configuration |
Web-based GUI (accessible via any standard web browser) |
Physical & Environmental
| Dimensions |
4.8 × 3.7 × 1.3 inches (123 × 95 × 33 mm) |
| Mounting |
Wall-mount, DIN-rail mount (bracket and screws included) |
| Casing Material |
Industrial-grade zinc-plated steel (corrosion-resistant) |
| Operating Temperature |
-30°C to 70°C (-22°F to 158°F) |
| Humidity Tolerance |
10% to 95% (non-condensing) |
| IP Rating |
IP30 |
Power
| Input Voltage |
9-36V DC (via 2-pin terminal block) |
| Included Adapter |
12V/1A power adapter |
Specifications are sourced from the manufacturer product page and may be updated.
