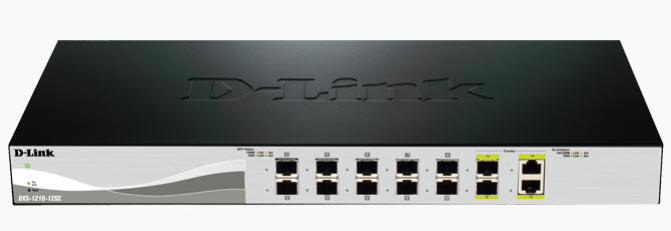

D-Link DXS-1210-12SC 10 Gigabit Smart Managed Fiber Switch
The D-Link DXS-1210-12SC is a powerful 10 Gigabit Ethernet Smart Managed Switch designed for businesses that demand high-speed, low-latency networking. Featuring 10 x 10G SFP+ ports and 2 x 10GBASE-T/SFP+ combo ports, this versatile switch delivers flexible connectivity for both fiber and copper infrastructure, making it ideal for SMBs, data centers, server rooms, and enterprise networks requiring reliable 10GbE performance. With advanced Layer 2/Layer 3 Lite features, comprehensive security, and energy-efficient D-Link Green technology, the DXS-1210-12SC provides a cost-effective solution for virtualization, cloud services, and server-to-server applications.
Why You'll Love the DXS-1210-12SC
-
High-Speed 10GbE Connectivity: 10 dedicated SFP+ ports plus 2 combo ports (10GBASE-T/SFP+) deliver exceptional bandwidth and flexibility for fiber and copper connections
-
Blazing Switching Performance: 240 Gbps switching capacity and 178.56 Mpps forwarding rate handle demanding workloads with ease
-
Flexible Network Integration: Combo ports support both 10G fiber (SFP+) and 10G copper (10GBASE-T) for seamless integration into existing infrastructure
-
Advanced Layer 3 Lite Features: Supports static routing, VLANs, IGMP Snooping, and inter-VLAN routing for efficient traffic management
-
Energy-Efficient Design: D-Link Green technology with smart fan control, link status detection, and port sleep mode reduces power consumption and noise
-
Robust Security: 802.1X authentication, ACLs, ARP spoofing prevention, and D-Link Safeguard Engine protect your network from attacks
Professional 10 Gigabit Fiber Connectivity
The DXS-1210-12SC delivers professional-grade networking with 10 x 10G SFP+ fiber ports capable of supporting multimode and single-mode fiber optic cabling, as well as low-cost Direct Attach Copper (DAC) cables. The 2 combo ports offer the choice between 10GBASE-T copper (supporting CAT6a/CAT7 up to 100m, or CAT6 up to 30m) and 10G SFP+ fiber, giving network administrators maximum flexibility when designing or expanding their infrastructure. This makes the switch perfect for upstream server connections, backbone links, and high-bandwidth applications in business environments.
Advanced Layer 2 & Layer 3 Lite Features
Equipped with a comprehensive suite of Layer 2 features, the DXS-1210-12SC includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP) for enhanced redundancy and bandwidth. Layer 3 Lite capabilities provide IPv4/IPv6 static routing, ARP, and inter-VLAN routing, reducing the load on routers and improving overall network efficiency. The switch also supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, making it ideal for video surveillance and VoIP deployments without the need for dedicated hardware.
Enterprise-Grade Security & Network Protection
Security is a top priority with the DXS-1210-12SC. The switch features 802.1X port-based and host-based authentication, allowing network clients to be authenticated through external RADIUS servers. D-Link Safeguard Engine protects against traffic flooding caused by malicious attacks, while ARP spoofing prevention blocks fake ARP messages. Additional security measures include Access Control Lists (ACL) for filtering traffic, DHCP server screening to prevent rogue DHCP servers, and port security for MAC address-based access control.
Energy-Efficient & Reliable Operation
D-Link Green technology makes the DXS-1210-12SC an eco-friendly choice for businesses. Smart fans with internal heat sensors adjust fan speed based on temperature, reducing power consumption and noise during low-temperature operation. Link status detection automatically puts inactive ports into sleep mode, and cable length detection applies just enough power for each connection, lowering total cost of ownership. The switch operates efficiently with a maximum power consumption of 43.81W and a standby consumption of just 25.22W.
Flexible Management & Monitoring
The DXS-1210-12SC offers versatile management options including a web-based GUI, full CLI, and support for D-Link Network Assistant (DNA) utility for simplified device discovery and configuration. The switch is also compatible with D-View 8 and the Nuclias Network Controller for centralized management of multiple devices. Network maintenance is simplified with loopback detection, cable diagnostics, and comprehensive LED indicators for link/activity/speed, power, console, and fan error monitoring.
Ideal for Australian Businesses
Whether you're building a high-performance server room, upgrading your office network to 10 Gigabit speeds, deploying IP surveillance systems, or managing cloud and virtualization infrastructure, the D-Link DXS-1210-12SC provides the speed, flexibility, and reliability Australian businesses demand. Its combination of fiber and copper connectivity, advanced features, and energy efficiency make it an excellent choice for growing networks.
What's in the Box
- DXS-1210-12SC 10 Gigabit Smart Managed Switch
- Internal power supply (100-240V AC)
- Rack-mounting kit
- Quick Installation Guide
- Power cord
Full Specifications
Hardware
| Ports |
10 × 10G SFP+ ports, 2 × 10GBASE-T/SFP+ combo ports |
| Console Port |
Yes |
| Switching Capacity |
240 Gbps |
| Maximum Packet Forwarding Rate |
178.56 Mpps |
| Transmission Method |
Store-and-forward |
| MAC Address Table |
Up to 16,000 entries (up to 32,000 on some configurations) |
Connectivity
| 10GBASE-T Copper Support |
CAT6a/CAT7 (100m), CAT6 (30m) |
| Fiber Support |
10G SFP+ (multimode, single-mode, DAC cables) |
| 1 Gigabit Support |
CAT5/5e cables on combo ports |
| Auto MDI/MDIX |
Yes (all twisted-pair ports) |
Layer 2 Features
| VLAN |
IEEE 802.1Q VLAN, Port-based VLAN, Auto Surveillance VLAN, Auto Voice VLAN |
| Spanning Tree |
Spanning Tree Protocol (STP), Ethernet Ring Protection Switching (ERPS) |
| Link Aggregation |
Link Aggregation Control Protocol (LACP), IEEE 802.3ad |
| Multicast |
IGMP Snooping, MLD Snooping |
| Port Mirroring |
Yes |
Layer 3 Lite Features
| Static Routing |
IPv4/IPv6 static routing |
| Inter-VLAN Routing |
Yes |
| IP Interfaces |
ARP, IPv6 Neighbor Discovery (ND) |
Security
| Authentication |
802.1X port-based and host-based authentication, RADIUS |
| Access Control |
Access Control Lists (ACL), Port Security |
| Attack Prevention |
D-Link Safeguard Engine, ARP Spoofing Prevention, DoS Prevention |
| DHCP Security |
DHCP Server Screening |
Quality of Service
| Priority Queues |
8 queues per port |
| Traffic Prioritization |
DSCP marking, Bandwidth Control |
Management
| Web Interface |
Multi-language web-based GUI |
| Command Line |
Full CLI support |
| Network Management |
D-Link Network Assistant (DNA), D-View 8, Nuclias Network Controller |
| Monitoring |
LED indicators (Link/Activity/Speed, Power, Console, Fan Error) |
| Diagnostics |
Loopback detection, Cable diagnostics |
Power & Environment
| Power Input |
Internal power supply, 100-240V AC, 50/60 Hz |
| Maximum Power Consumption |
43.81W |
| Standby Power Consumption |
25.22W |
| Operating Temperature |
-5°C to 50°C |
| Fan Control |
Smart fan with temperature-sensitive speed control |
Physical
| Dimensions (W × D × H) |
17.3" × 8.3" × 1.7" (440 mm × 210 mm × 44 mm) |
| Weight |
Approximately 6.02 lb (2.73 kg) |
| Form Factor |
1U rack-mountable (desktop placement also supported) |
Standards Compliance
| Ethernet Standards |
IEEE 802.3u (100BASE-TX), IEEE 802.3ab (1000BASE-T), IEEE 802.3z (1000BASE-X), IEEE 802.3an (10GBASE-T), IEEE 802.3ae (10GbE over fiber), IEEE 802.3az (Energy Efficient Ethernet) |
Warranty
| Warranty |
Limited Lifetime Warranty with Next Business Day (NBD) hardware replacement (region-dependent) |
Specifications are sourced from the manufacturer product page and may be updated.
