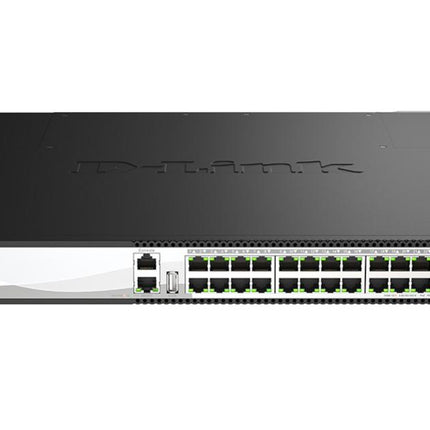

D-Link DXS-1210-28T 28-Port 10 Gigabit Smart Managed Network Switch
The D-Link DXS-1210-28T is a cost-effective 10 Gigabit Ethernet smart managed switch designed for small to medium-sized businesses and enterprise aggregation applications. Featuring 24 x 10GBase-T ports and 4 x 10/25G SFP28 ports, this versatile switch delivers high-performance, low-latency connectivity ideal for virtualisation, cloud services, server-to-server applications, and network expansion. With comprehensive Layer 2 and Layer 3 Lite management, advanced security features, and energy-efficient D-Link Green technology, the DXS-1210-28T provides enterprise-grade performance in a compact 1U rack-mountable design.
Key Features
-
24 x 10GBase-T Ports: High-speed 10 Gigabit copper connectivity for demanding network environments
-
4 x 10/25G SFP28 Ports: Flexible fiber uplinks supporting 10G or 25G speeds for scalable expansion
-
Layer 2 & Layer 3 Lite: Port mirroring, Spanning Tree Protocol (STP), LACP, static routing, and inter-VLAN routing
-
Auto Surveillance & Voice VLAN: Automatically prioritises video surveillance and VoIP traffic for uninterrupted performance
-
D-Link Safeguard Engine: Protects against traffic flooding, ARP spoofing, and malicious attacks
-
Energy-Efficient Design: Smart fans, automatic port sleep mode, and green chipset reduce power consumption
-
Lifetime Warranty: D-Link Limited Lifetime Warranty after registration
High-Performance 10 Gigabit Connectivity
The DXS-1210-28T delivers 10 Gigabit Ethernet bandwidth across all 24 copper ports, ensuring low latency and high throughput for mission-critical applications. The additional four SFP28 ports support speeds up to 25 Gbps, making this switch ideal for core network deployment in SMBs or as an aggregation switch in larger enterprise environments. With support for both Cat 6 twisted pair and fiber connections, network administrators can flexibly design upstream and downstream server connections.
Advanced Network Management
Equipped with comprehensive Layer 2 features including port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP), the DXS-1210-28T simplifies network management. Layer 3 Lite capabilities such as IP interfaces, ARP, IPv6 Neighbor Discovery, default routing, and static routing enable inter-VLAN routing, reducing the load on routers and improving overall network efficiency. Management is accessible via an intuitive multi-language web GUI, industry-standard CLI through Telnet, console port, or D-View 7 network management system.
Enhanced Security & QoS
The DXS-1210-28T incorporates D-Link's Safeguard Engine to protect against traffic flooding caused by virus attacks and malicious threats. Additional security features include ARP spoofing prevention, 802.1X port-based and host-based authentication via external RADIUS servers, Access Control Lists (ACL) for permission-based network access, and DHCP server screening to prevent unauthorised IP assignments. Quality of Service (QoS) controls including bandwidth management and DSCP markings ensure that critical traffic reaches its destination with priority.
Auto Surveillance & VoIP Optimisation
The switch supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN features, which automatically detect and prioritise surveillance video and VoIP traffic. This eliminates the need for dedicated network infrastructure and guarantees smooth, uninterrupted video monitoring and crystal-clear voice calls, even during peak network hours. These features make the DXS-1210-28T ideal for security installations, office environments, and educational institutions.
Green Technology & Energy Efficiency
By incorporating D-Link Green technology, the DXS-1210-28T reduces power consumption without sacrificing performance. Features include smart fans with internal heat sensors that adjust fan speeds based on temperature, link status detection that automatically puts inactive ports into sleep mode, and an advanced energy-efficient chipset. This results in lower operating costs and a reduced environmental footprint.
Flexible Installation Options
With a compact 1U rack-mountable design measuring 1.7 inches (44 mm) high × 17.4 inches (441 mm) wide × 8.2 inches deep, the DXS-1210-28T fits seamlessly into server racks and network cabinets. The switch can also be deployed on a desktop, offering flexible installation options for various network environments.
What's in the Box
- DXS-1210-28T Smart Managed Switch
- Power Cord
- Console Cable
- Rack-mount Kit
- Quick Installation Guide
- CD (Documentation)
Full Specifications
Hardware
| Total Ports |
28 ports |
| 10GBase-T Ports |
24 x 10GBASE-T RJ-45 |
| SFP28 Ports |
4 x 10/25G SFP28 (ports 25-28) |
| Console Port |
1 x RJ-45 |
| Form Factor |
1U rack-mountable / desktop |
| Dimensions (H × W × D) |
1.7 in × 17.4 in × 8.2 in (44 mm × 441 mm × 208 mm) |
| Weight |
Approximately 6.77 lb (3.07 kg) |
Performance
| Layer Support |
Layer 2 / Layer 3 Lite |
| Switching Capacity |
High-performance, low-latency switching |
| Media Type Supported |
Twisted Pair (Cat 6), Optical Fiber |
| Jumbo Frame Size |
Up to 12,288 bytes |
Management & Features
| Management |
Web GUI, CLI (Telnet), Console Port, D-View 7, D-Link Network Assistant |
| Layer 2 Features |
Port Mirroring, STP, MSTP, LACP, VLAN, IGMP Snooping, MLD Snooping, LLDP, LLDP-MED |
| Layer 3 Lite Features |
IP Interfaces, ARP, IPv6 Neighbor Discovery (ND), Static Routing, Default Routing |
| Auto Surveillance VLAN |
Yes |
| Auto Voice VLAN |
Yes |
| QoS |
Bandwidth Control, DSCP Markings, Priority Queuing |
Security
| D-Link Safeguard Engine |
Yes |
| 802.1X Authentication |
Port-based and Host-based |
| ARP Spoofing Prevention |
Yes |
| Access Control Lists (ACL) |
Yes |
| DHCP Server Screening |
Yes |
| RADIUS Support |
Yes |
Power & Environment
| Power Consumption |
Maximum 66.5 W |
| Input Voltage |
100-240 VAC, 50/60 Hz |
| Green Technology |
Smart Fans, Link Status Detection, Energy-Efficient Chipset |
| Operating Temperature |
32°F to 122°F (0°C to 50°C) |
| Storage Temperature |
-40°F to 158°F (-40°C to 70°C) |
| Operating Humidity |
10% to 90% (non-condensing) |
Warranty & Compliance
| Warranty |
D-Link Limited Lifetime Warranty (after registration) |
| Standards Compliance |
IEEE 802.3, 802.3ab, 802.3an, 802.3az, 802.1X, 802.1Q, 802.1p, 802.1D, 802.1w, 802.1s |
Specifications are sourced from the manufacturer product page and may be updated.
