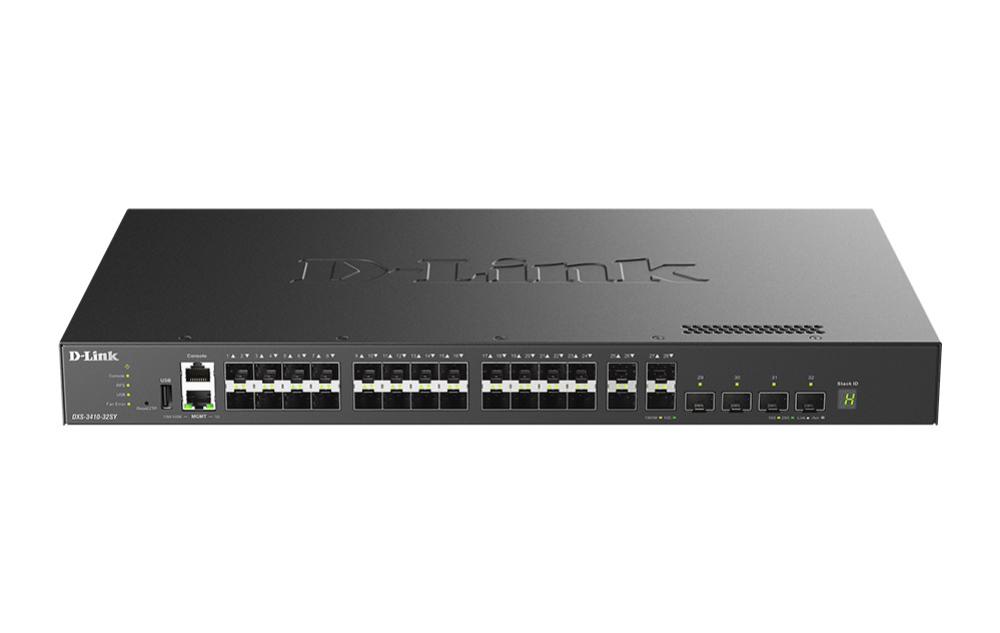

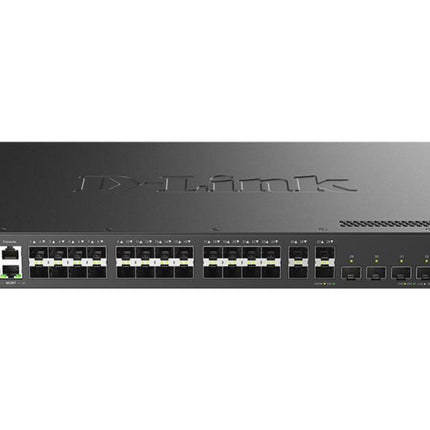

D-Link DXS-3410-32SY 10 Gigabit Layer 3 Stackable Managed Switch
The D-Link DXS-3410-32SY is a high-performance 10G Layer 3 stackable managed switch designed for secure enterprise and metro Ethernet networks. Featuring 28 SFP+ 10G ports and 4 SFP28 25G uplink ports, this switch delivers blazing-fast connectivity with a 760 Gbps switching capacity and advanced Layer 2 and Layer 3 routing capabilities. Ideal for SMBs, campuses, and data centres requiring maximum uptime, scalability, and comprehensive security.
High-Speed 10G/25G Connectivity for Demanding Networks
The DXS-3410-32SY delivers enterprise-grade performance with 28 x 10G SFP+ fiber ports for high-speed downlink connections and 4 x 10/25G SFP28 ports for uplink and stacking. With a switching capacity of 760 Gbps and forwarding rate of 565.44 Mpps, this switch eliminates bottlenecks and ensures smooth data flow even during peak network usage. The 10G fiber connectivity is perfect for connecting servers, storage, and aggregation switches across medium to large enterprise networks.
Scalable Physical and Virtual Stacking
Scale your network effortlessly by stacking up to 9 units physically or 32 units virtually into a single logical switch. The DXS-3410-32SY supports 200 Gbps stacking bandwidth and enables long-distance stacking over fiber, providing unmatched flexibility for growing networks. Manage your entire stack through a single IP address, simplifying administration and enhancing redundancy with automatic failover capabilities.
Advanced Layer 2 and Layer 3 Features
Packed with professional-grade networking features, the DXS-3410-32SY supports advanced Layer 3 routing protocols including:
-
Static Routing, RIP/RIPng, OSPFv2/v3: Route traffic intelligently across VLANs and network segments
-
VRRP: Virtual Router Redundancy Protocol for high availability
-
Up to 256 IP Interfaces: Extensive routing capabilities for complex networks
-
IGMP v1/v2/v3 and MLD v1/v2: Efficient multicast management for IPTV and video streaming
-
QinQ (802.1ad): VLAN stacking for metro Ethernet and service provider applications
Layer 2 features include Ethernet Ring Protection Switching (ERPS) with 50ms recovery time, Spanning Tree Protocols (STP/RSTP/MSTP), Link Aggregation (LACP), Flow Mirroring, and Loopback Detection.
Enterprise-Grade Security and Access Control
Protect your network with D-Link's exclusive Safeguard Engine and comprehensive security features:
-
802.1X, Web-based Access Control (WAC), MAC-based Access Control: Strict user authentication and access policies
-
IP-MAC-Port Binding (IMPB): Bind IP and MAC addresses to specific ports for enhanced control
-
DHCP Snooping: Automatically learn and validate IP/MAC pairs
-
Multi-layer ACLs: Packet-level filtering and traffic control
-
Storm Control: Prevent broadcast and multicast flooding attacks
Quality of Service for Mission-Critical Applications
The DXS-3410-32SY implements advanced QoS/CoS policies to prioritise critical network traffic such as VoIP, video conferencing, IPTV, and IP surveillance. Traffic Shaping guarantees bandwidth for time-sensitive applications, while IEEE 802.1Qbb Priority-based Flow Control (PFC) ensures intelligent lossless networking for data centre bridging environments.
Zero Touch Provisioning and Flexible Management
Deploy switches effortlessly with Zero Touch Provisioning (ZTP), reducing setup time and complexity for IT administrators. The switch features multiple management options including:
-
Industry-standard CLI: Command-line interface for advanced configuration
-
Web-based GUI: Intuitive graphical management interface
-
SNMP, Telnet, SSH: Remote management protocols
-
USB 2.0 port: Boot images, upload configurations, and save syslog files directly to USB storage
-
Out-of-band management port: Dedicated 10/100/1000BASE-T RJ-45 management interface
-
Console port: RJ-45 console for local CLI access
Reliability and Redundancy
Ensure maximum uptime with support for optional redundant power supplies (DPS-500A AC or DPS-500DC). The switch incorporates 802.3ah OAM, 802.1ag CFM, and Y.1731 OAM for proactive fault management. Store multiple firmware images and configurations for risk-free testing and rollback.
Ideal Applications
-
SMB/SME core networks: High-performance backbone for growing businesses
-
Enterprise aggregation layer: Connect access switches and distribute traffic efficiently
-
Campus networks: Scalable solution for educational institutions and large office buildings
-
Metro Ethernet edge: Service provider access and aggregation
-
Data centres: Low-latency, lossless networking with DCB support
What's in the Box
- DXS-3410-32SY Switch
- AC power cord
- Rack-mounting kit
- Console cable
- Quick Installation Guide
Full Specifications
Ports and Interfaces
| SFP+ Ports |
28 x 10G SFP+ (1/10 Gbps) |
| SFP28 Uplink Ports |
4 x 10/25G SFP28 |
| Console Port |
RJ-45 for out-of-band CLI management |
| Management Port |
10/100/1000BASE-T RJ-45 for out-of-band IP management |
| Stacking Ports |
4 (using SFP28 ports) |
| USB Ports |
1 x USB 2.0 Type A |
Performance
| Switching Capacity |
760 Gbps |
| Forwarding Rate |
565.44 Mpps (64-byte packets) |
| Packet Buffer Memory |
4 MB |
| MAC Address Table |
Up to 288K entries (1K static MAC addresses) |
| Stacking Bandwidth |
200 Gbps per device |
| Physical Stacking |
Up to 9 units (252 x 10G ports max) |
| Virtual Stacking |
Up to 32 units |
Layer 2 Features
| VLANs |
4K VLAN groups, Port-based, 802.1Q Tag-based, Private VLAN, Voice VLAN, Auto Surveillance VLAN |
| Spanning Tree |
STP, RSTP, MSTP, Loopback Detection |
| Link Aggregation |
802.3ad LACP, Static trunk |
| ERPS |
G.8032 Ethernet Ring Protection Switching (50ms recovery) |
| Multicast |
IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping, Multicast VLAN Registration |
| Flow Control |
IEEE 802.3x, IEEE 802.1Qbb Priority-based Flow Control (PFC) |
Layer 3 Features
| IP Interfaces |
Up to 256 |
| Routing Protocols |
Static Routing, RIP v1/v2, RIPng, OSPFv2, OSPFv3 |
| Multicast Routing |
IGMP v1/v2/v3, PIM-SM, PIM-DM |
| VRRP |
Virtual Router Redundancy Protocol |
| Advanced Features |
QinQ (802.1ad), Policy-based Routing |
Security
| Access Control |
802.1X Port-based, Web-based (WAC), MAC-based |
| ACLs |
L2/L3/L4 packet filtering, Time-based ACLs |
| Port Security |
IP-MAC-Port Binding (IMPB), DHCP Snooping, Dynamic ARP Inspection, IP Source Guard |
| Storm Control |
Broadcast, Multicast, Unknown Unicast |
| Other Security |
D-Link Safeguard Engine, SSH v2, SSL v3, Port Security, RADIUS, TACACS+ |
Quality of Service
| QoS Queues |
8 priority queues per port |
| Scheduling |
Strict Priority, WRR, Deficit WRR |
| Classification |
802.1p CoS, DSCP, IP Precedence, Port-based |
| Traffic Shaping |
Per-port rate limiting, Per-queue shaping |
Management
| Management Interfaces |
CLI, Web GUI, SNMP v1/v2c/v3, Telnet, SSH, RMON |
| OAM |
802.3ah Ethernet OAM, 802.1ag CFM, Y.1731 |
| Provisioning |
Zero Touch Provisioning (ZTP), Auto Configuration, Auto Firmware/Config Backup |
| Diagnostics |
Cable Diagnostics, Ping, Traceroute, sFlow |
Physical Specifications
| Dimensions (W x D x H) |
441 mm x 250 mm x 44 mm (17.36" x 9.84" x 1.73") |
| Weight |
3.88 kg |
| Mounting |
19-inch rack-mountable (1U) |
| MTBF |
437,675.04 hours |
Power and Environment
| Power Input |
100 to 240 VAC, 50 to 60 Hz |
| Power Consumption |
104 W (maximum) |
| Heat Dissipation |
354.86 BTU/h |
| Redundant Power Supply |
Optional DPS-500A (AC) or DPS-500DC (DC) |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| Acoustics |
Maximum: 53.3 dB, Minimum: 24.8 dB |
| Fans |
Variable-speed temperature-controlled |
Standards Compliance
| IEEE Standards |
802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3x, 802.3ad, 802.1D, 802.1w, 802.1s, 802.1Q, 802.1p, 802.1X, 802.1ab, 802.3ah, 802.1ag, 802.1Qbb |
Specifications are sourced from the manufacturer product page and may be updated.
