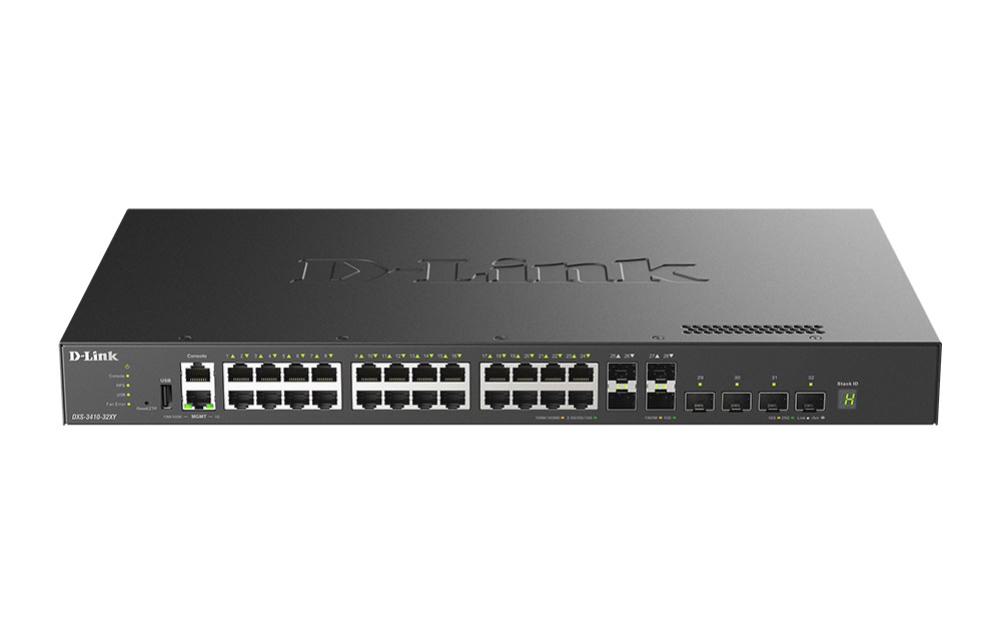

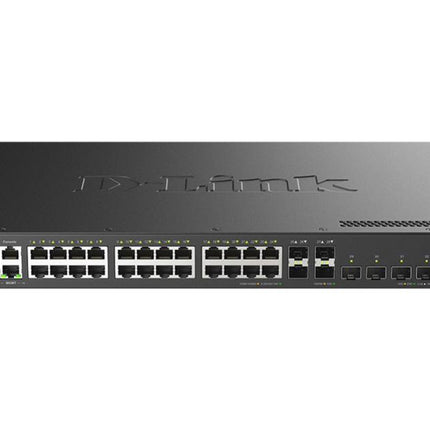

D-Link DXS-3410-32XY 10 Gigabit Layer 3 Stackable Managed Switch
The D-Link DXS-3410-32XY is a high-performance 10 Gigabit Layer 3 Stackable Managed Switch designed for enterprise and campus networks that demand exceptional speed, security, and scalability. Featuring 24 multi-gigabit 10GBASE-T ports, 4 x 10Gb SFP+ ports, and 4 x 10/25Gb SFP28 ports, this switch delivers 760 Gbps switching capacity to handle data-intensive applications with ease. Ideal for SMB/SME core network infrastructure, data centres, and high-traffic environments, the DXS-3410-32XY ensures maximum uptime and reliable connectivity for growing businesses.
Key Features
-
Multi-Gigabit Connectivity: 24 ports supporting 100M/1/2.5/5/10GBASE-T for flexible high-speed connections
-
High-Speed Uplinks: 4 x 10Gb SFP+ ports and 4 x 10/25Gb SFP28 ports for fibre uplink and stacking
-
Physical Stacking: Stack up to 9 units for a total of 252 10 Gigabit ports with 200 Gbps stacking bandwidth
-
Advanced Layer 3 Routing: Full L3 routing with OSPF, RIP/RIPng, VRRP, static routing, and 256 IP interfaces
-
Enterprise Security: Multi-layer ACL, Storm Control, IP-MAC-Port Binding, DHCP Snooping, and 802.1X authentication
-
Zero Touch Provisioning: Effortless deployment with automatic configuration for rapid network rollout
Unmatched Performance and Scalability
With a switching capacity of 760 Gbps and support for up to 288K MAC address entries, the DXS-3410-32XY is engineered to eliminate bottlenecks even during peak network traffic. The switch supports physical stacking up to 9 units or virtual stacking up to 32 units, allowing you to scale your network seamlessly as your business grows. Stacking simplifies management by treating multiple switches as a single device with one IP address, enhancing redundancy and reducing complexity.
Advanced Layer 2 and Layer 3 Capabilities
The DXS-3410-32XY offers powerful Layer 2 features including Link Aggregation, Spanning Tree Protocols, Ethernet Ring Protection Switching (ERPS) with 50ms recovery time, Loopback Detection, and IGMP/MLD Snooping. Layer 3 routing enables traffic to be routed between VLANs and switches, with support for up to 256 IP interfaces, static routing, RIPng, OSPF, IGMP, and PIM-SM. This makes it ideal for complex enterprise networks requiring both switching and routing functionality.
Robust Security and Access Control
Security is paramount with the DXS-3410 Series. The switch features D-Link's exclusive Safeguard Engine to prevent traffic flooding from malicious attacks, plus advanced security tools including Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB) with DHCP Snooping. Multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control ensure strict access control and easy deployment. After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host.
Quality of Service and Traffic Management
The DXS-3410-32XY implements a comprehensive set of multi-layer QoS/CoS features to prioritise critical network services such as VoIP, video conferencing, IPTV, and IP surveillance. With robust features including Traffic Shaping, L2 Multicast, Host-based IGMP/MLD Snooping, and ISM VLAN, administrators gain precise control over traffic management. The switch also supports IEEE 802.1Qbb Priority-based Flow Control (PFC) for intelligent lossless networking and data centre bridging, ensuring zero packet loss during network congestion.
High Availability and Redundancy
Built for maximum uptime, the DXS-3410 Series includes G.8032 Ethernet Ring Protection Switching (ERPS) with recovery times as fast as 50 ms. The switch supports an optional external redundant power supply (DPS-500A) to ensure continuous operation in critical environments. With dual image and configuration support, firmware upgrades and configuration testing can be performed risk-free without impacting live network operations.
Universal Connectivity and Management
- 24 x 100M/1/2.5/5/10GBASE-T RJ45 ports (auto-negotiation)
- 4 x 10Gb SFP+ ports for fibre connectivity
- 4 x 10/25Gb SFP28 ports for uplink and stacking
- 1 x Gigabit Ethernet out-of-band management port
- 1 x USB 2.0 port for configuration backup and syslog storage
- 1 x Console port (RJ45)
Management and Monitoring
The DXS-3410-32XY offers flexible management options including SNMP, Telnet, SSH, Web UI, and industry-standard CLI. The switch supports 802.3ah OAM, 802.1ag CFM, and Y.1731 OAM for comprehensive fault management and performance monitoring. Zero Touch Provisioning enables effortless deployment, while the USB 2.0 port allows for convenient storage of boot images, configuration files, and syslog data.
What's in the Box
- D-Link DXS-3410-32XY Switch
- AC Power Cord
- Rack Mounting Kit
- Console Cable
- Quick Installation Guide
Full Specifications
Performance
| Switching Capacity |
760 Gbps |
| Forwarding Rate |
Up to 565 Mpps |
| MAC Address Table |
Up to 288K entries (1K static MAC addresses) |
| Physical Stacking |
Up to 9 units |
| Virtual Stacking |
Up to 32 units |
| Stacking Bandwidth |
200 Gbps per device |
| Stacking Topology |
Duplex Ring and Duplex Chain |
Port Configuration
| 10GBASE-T Ports |
24 x 100M/1/2.5/5/10GBASE-T RJ45 ports |
| SFP+ Ports |
4 x 10Gb SFP+ ports |
| SFP28 Ports |
4 x 10/25Gb SFP28 ports |
| Management Port |
1 x Gigabit Ethernet (out-of-band) |
| Console Port |
1 x RJ45 |
| USB Port |
1 x USB 2.0 |
Layer 2 Features
| VLAN |
Up to 4K VLANs, Port-based, 802.1Q Tagged, Private VLAN, QinQ |
| Spanning Tree |
STP, RSTP, MSTP, Loopback Detection |
| Link Aggregation |
IEEE 802.3ad LACP, Static Trunk |
| Multicast |
IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping |
| Ring Protection |
G.8032 ERPS (50ms recovery time) |
| Flow Control |
IEEE 802.3x, IEEE 802.1Qbb Priority-based Flow Control (PFC) |
Layer 3 Features
| IP Interfaces |
Up to 256 |
| Static Routing |
IPv4/IPv6 |
| Dynamic Routing |
RIP/RIPng, OSPFv2/v3 |
| IP Multicast |
IGMP v1/v2/v3, PIM-SM |
| Redundancy |
VRRP |
Security
| Access Control |
802.1X, Web-based Access Control (WAC), MAC-based Access Control |
| ACL |
Multi-layer and Packet Content ACL (L2/L3/L4) |
| Storm Control |
Broadcast, Multicast, Unicast |
| IP-MAC-Port Binding |
IMPB with DHCP Snooping |
| Other Security |
D-Link Safeguard Engine, Port Security, RADIUS, TACACS+ |
Quality of Service
| QoS Type |
L2/L3/L4 CoS/QoS |
| Priority Queues |
8 queues per port |
| Scheduling |
SP, WRR, Hybrid (SP+WRR) |
| Bandwidth Control |
Per-port and flow-based rate limiting |
Management
| Management Interface |
Web UI, CLI (Telnet/SSH), SNMP v1/v2c/v3 |
| OAM |
802.3ah, 802.1ag CFM, Y.1731 |
| Zero Touch Provisioning |
Yes |
| Configuration Backup |
USB 2.0 port for config/syslog storage |
| Firmware |
Dual image and dual configuration support |
Power and Environment
| Power Input |
100-240V AC, 50-60Hz |
| Maximum Power Consumption |
120W |
| Redundant Power Supply |
Optional (DPS-500A) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% (non-condensing) |
Physical Specifications
| Dimensions (W x D x H) |
441 mm x 250 mm x 44 mm |
| Weight |
Approx. 3.5 kg |
| Mounting |
19-inch rack-mountable (1U) |
| Cooling |
4 smart fans with automatic speed adjustment |
Standards and Compliance
| IEEE Standards |
802.3, 802.3u, 802.3ab, 802.3z, 802.3ae, 802.3an, 802.3bz, 802.3by, 802.3x, 802.3ad, 802.1p, 802.1Q, 802.1X, 802.1w, 802.1s, 802.1ag, 802.3ah |
| Safety |
CE, FCC, RoHS |
Warranty
| Warranty Period |
5 years (limited warranty) |
Specifications are sourced from the manufacturer product page and may be updated.
