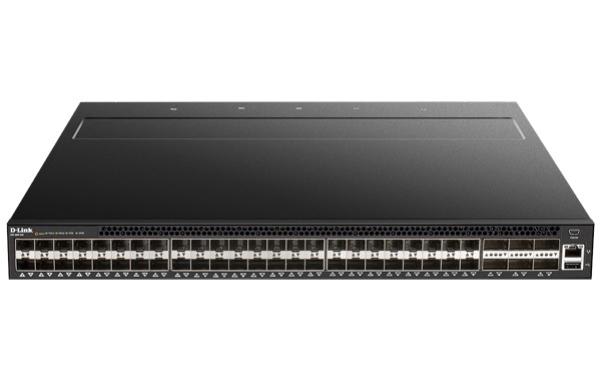

D-Link DXS-5000-54S 54-Port 10G/40G Data Center Switch
The D-Link DXS-5000-54S is a high-performance 10 Gigabit Ethernet open network switch engineered for demanding data center environments and enterprise networks. With 48 x 10G SFP+ ports and 6 x 40G QSFP+ ports, this compact 1U rack-mountable switch delivers 1.44 Tbps switching capacity and ultra-low latency at Layer 2 or Layer 3. Ideal for Top-of-Rack (ToR), leaf-spine architectures, and enterprise core deployments, the DXS-5000-54S combines flexibility, scalability, and advanced SDN capabilities to future-proof your network infrastructure.
Why Choose the DXS-5000-54S?
-
High-Density Connectivity: 48 x 10GbE SFP+ ports plus 6 x 40GbE QSFP+ ports for maximum bandwidth and server density
-
Wire-Speed Performance: 1.44 Tbps switching capacity and 1,071 Mpps forwarding rate ensure ultra-low latency and zero bottlenecks
-
Open Networking Ready: Ships with ONIE (Open Network Install Environment) pre-loaded, with optional D-Link OS or third-party NOS support
-
SDN-Enabled: OpenFlow 1.3 support for software-defined networking environments
-
Enterprise-Grade Reliability: Hot-swappable dual power supplies and modular N+1 fan design for maximum uptime
-
Limited Lifetime Warranty: Industry-leading warranty coverage for long-term confidence
High-Performance 10GbE and 40GbE Connectivity
The DXS-5000-54S features 48 SFP+ ports supporting 10 Gigabit Ethernet (10GBASE-SR, 10GBASE-LR, or Direct Attach Copper), all backward compatible with 1GbE SFPs. Six additional QSFP+ ports deliver 40 Gigabit Ethernet (40GBASE-SR or 40GBASE-LR) for high-speed uplinks. Using optional DAC breakout cables, the switch can support up to 72 x 10GbE ports, providing exceptional flexibility for growing data center environments.
Open Networking and SDN Flexibility
As a bare metal switch, the DXS-5000-54S ships pre-loaded with the Open Network Install Environment (ONIE), allowing IT professionals to install their preferred network operating system as part of the data center provisioning process. This open architecture lowers costs by separating software from hardware, increases network agility, and simplifies scalability. The switch also supports OpenFlow 1.3 for seamless integration with SDN controllers and software-defined networking environments including Cumulus Networks and Pluribus Netvisor OS.
Maximum Uptime and Reliability
Designed for mission-critical applications, the DXS-5000-54S features a modular fan and power supply design for high availability. Both fans and power supplies are hot-swappable, allowing replacements without affecting switch operation. The switch includes two 550W AC power supply modules with 1+1 redundancy and load sharing to evenly distribute power and maximize reliability. With an MTBF of 205,000 hours, this switch is built for continuous 24/7 operation.
Advanced Layer 2 and Layer 3 Features
The DXS-5000-54S offers a comprehensive L2 and L3 feature set to meet the demands of enterprise and data center applications. Layer 2 features include L2 switching, L2 multicast, advanced Quality of Service (QoS), and robust security features. Layer 3 capabilities include advanced routing with OSPF, BGP, Graceful Restart, Bidirectional Forwarding Detection (BFD), and L3 multicast. The switch also supports MLAG, MLD Snooping, VXLAN, and data center bridging standards including IEEE 802.1Qbb, 802.1Qaz, and 802.1Qau.
Energy-Efficient Design
The DXS-5000-54S supports front-to-back airflow (and back-to-front models are available), optimizing air circulation inside the rack, supporting hot and cold aisle configurations in data centers, and increasing energy efficiency. Smart fans with internal heat sensors monitor temperature changes and adjust fan speeds accordingly. At lower temperatures, fans run slower, reducing power consumption and noise levels.
Ideal Applications
-
Data Center Top-of-Rack (ToR): High-density server aggregation with 10G and 40G uplinks
-
Leaf-Spine Architecture: Scalable 10GbE/40GbE leaf-spine deployments for modern data centers
-
Enterprise Core Switching: High-capacity backbone switching for campus and enterprise networks
-
Cloud and Virtualization: SDN-ready infrastructure for virtualized environments and cloud services
Management and Control
- Mini-USB console port for initial configuration
- RJ-45 dedicated management port
- USB 2.0 port for firmware updates and configuration backup
- Industry-standard full CLI for advanced management
- OpenFlow 1.0/1.3 support for SDN integration
What's in the Box
- DXS-5000-54S 54-Port 10G/40G Switch
- Two (2) 550W hot-swappable AC power supply modules
- Four (4) hot-swappable modular fan modules
- Rack-mounting kit
- Power cord(s)
- Console cable
- Quick installation guide
Full Specifications
Ports and Interfaces
| 10G SFP+ Ports |
48 x 10GBASE-SR/LR SFP+ (1GbE backward compatible) |
| 40G QSFP+ Ports |
6 x 40GBASE-SR/LR QSFP+ |
| Management Port |
1 x RJ-45 10/100/1000 Mbps |
| Console Port |
1 x Mini-USB |
| USB Port |
1 x USB 2.0 |
Performance
| Switching Capacity |
1.44 Tbps (1,440 Gbps) |
| Forwarding Rate |
1,071 Mpps (million packets per second) |
| Latency |
Ultra-low latency |
| MAC Address Table |
128,000 entries |
| Jumbo Frame Support |
Up to 9,216 bytes |
Layer 2 Features
| VLANs |
4,096 VLAN IDs, VXLAN support |
| Spanning Tree |
STP, RSTP, MSTP |
| Link Aggregation |
IEEE 802.3ad LACP, static trunking |
| Quality of Service |
802.1p priority queuing, DSCP, ACL-based QoS |
| Multicast |
IGMP v1/v2/v3 Snooping, MLD Snooping |
| Data Center Bridging |
IEEE 802.1Qbb (PFC), 802.1Qaz (ETS), 802.1Qau (QCN) |
Layer 3 Features
| Routing Protocols |
OSPF, BGP, RIP, Static Routing |
| IP Interfaces |
Up to 128 |
| IPv6 Support |
IPv6 routing, OSPFv3, BGP4+ |
| Multicast Routing |
PIM-DM, DVMRP v3 |
| High Availability |
VRRP, Graceful Restart, BFD, MLAG |
SDN and Open Networking
| Open Network Support |
ONIE pre-loaded (Open Network Install Environment) |
| Network OS Options |
D-Link OS (optional license), Pluribus Netvisor OS, Cumulus Linux, and other third-party NOS |
| SDN Protocol |
OpenFlow 1.0, OpenFlow 1.3 |
Power and Environment
| Power Supply |
2 x 550W hot-swappable AC power modules (1+1 redundancy) |
| Input Voltage |
100 to 240 VAC, 50/60 Hz |
| Maximum Power Consumption |
295 W |
| Standby Power |
140 W |
| Airflow |
Front-to-back (back-to-front models also available) |
| Fans |
4 x hot-swappable modular N+1 fan modules with smart speed control |
| Operating Temperature |
0°C to 45°C (32°F to 113°F) |
| Storage Temperature |
-40°C to 70°C (-40°F to 158°F) |
| Operating Humidity |
10% to 90% non-condensing |
| MTBF |
205,000 hours |
Physical Specifications
| Form Factor |
1U rack-mountable |
| Dimensions (W x D x H) |
440 x 450 x 44 mm (17.3 x 17.7 x 1.7 inches) |
| Weight |
Approximately 8 kg (17.6 lbs) with power supplies and fans |
Warranty and Support
| Warranty |
Limited Lifetime Warranty |
| Technical Support |
Advance hardware replacement and 24/7 technical support available |
Specifications are sourced from the manufacturer product page and may be updated.
