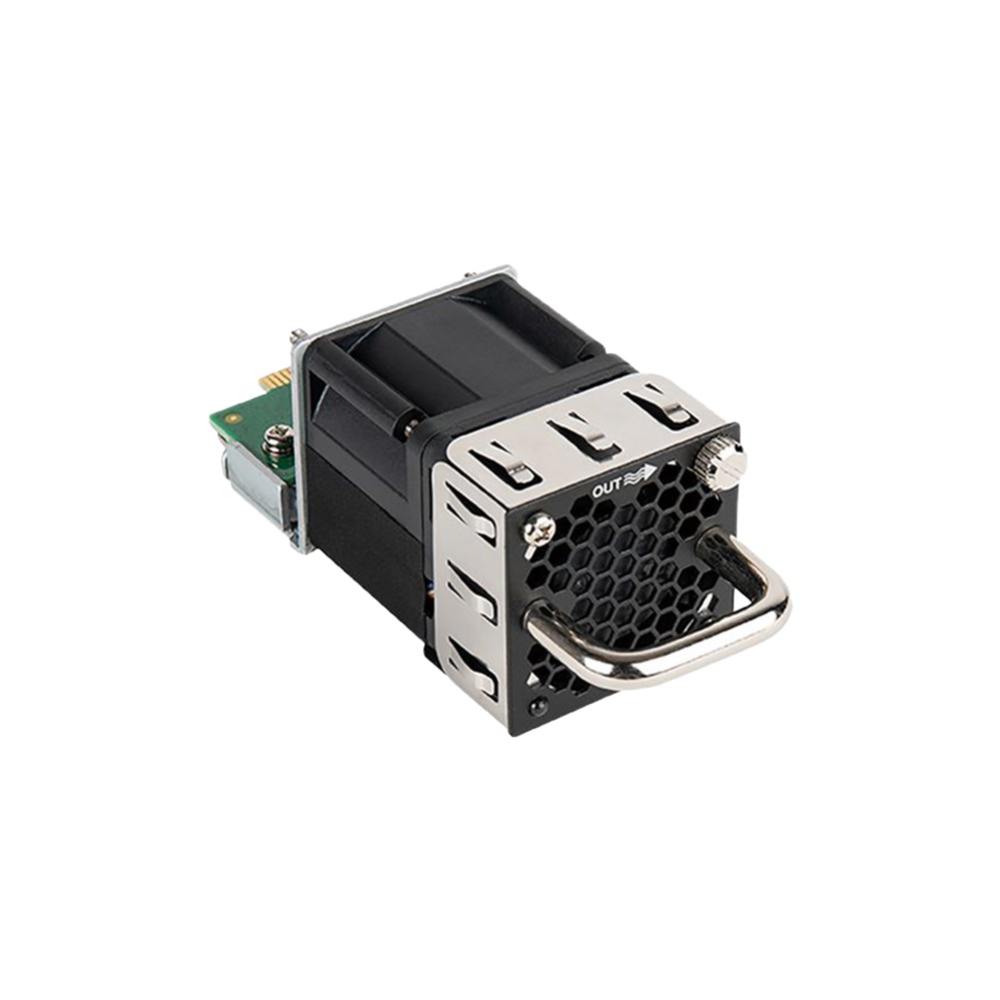

D-Link DXS-FAN200 Hot-Swappable Redundant Fan Module for DXS-3610 Switches
The D-Link DXS-FAN200 is a hot-swappable replacement fan module designed specifically for the DXS-3610 Series Layer 3 Stackable 10G/100G Managed Switches. With front-to-back airflow, this cooling module ensures optimal thermal management for your mission-critical datacenter, enterprise, and campus networking infrastructure. The DXS-3610 switches support five hot-swappable, redundant (4+1) fan modules, where four modules are active and the fifth remains passive until one of the active modules fails, providing n+1 redundancy and minimizing downtime.
Key Features
-
Hot-Swappable Design: Replace failed fan modules without powering down the switch, ensuring continuous uptime for critical network operations
-
Front-to-Back Airflow: Optimized cooling path designed for standard datacenter rack environments
-
N+1 Redundancy: Works as part of a 4+1 redundant fan configuration to protect against single fan failures
-
Compact & Lightweight: At just 6 oz and measuring 1.6 in × 4.6 in × 1.7 in, it's easy to install and replace
-
Wide Operating Range: Functions reliably in temperatures from 32°F to 113°F (0°C to 45°C) with up to 95% non-condensing humidity
-
Compatible with DXS-3610-54S and DXS-3610-54T: Designed exclusively for D-Link's DXS-3610 Series switches
Designed for High-Performance Network Environments
The DXS-FAN200 is engineered to maintain stable operating temperatures in high-density 10G and 100G switching environments. Whether deployed in datacenters, enterprise aggregation layers, or campus core networks, this fan module ensures your DXS-3610 switches deliver wire-speed, ultra-low latency switching performance without thermal throttling. Hot-swappable PSU and fan modules with load sharing capabilities significantly reduce network downtime and power consumption.
Airflow Direction Options
D-Link offers two fan module variants to match your datacenter's airflow requirements:
-
DXS-FAN200: Front-to-back airflow (this model)
-
DXS-FAN200-B: Back-to-front airflow
Ensure all fan modules installed in your switch use the same airflow direction for optimal cooling efficiency.
What's in the Box
- 1 × DXS-FAN200 Fan Module
Full Specifications
| Model |
DXS-FAN200 |
| Compatibility |
DXS-3610-54S, DXS-3610-54T |
| Airflow Direction |
Front-to-Back |
| Redundancy |
4+1 (n+1) |
| Hot-Swappable |
Yes |
| Dimensions (W × D × H) |
1.6 in × 4.6 in × 1.7 in (40.6 mm × 116.8 mm × 43.2 mm) |
| Weight |
6 oz (170 g) |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) |
| Humidity Range (Operating) |
0 - 95% (non-condensing) |
| MTBF |
518 hours |
Specifications are sourced from the manufacturer product page and may be updated.
