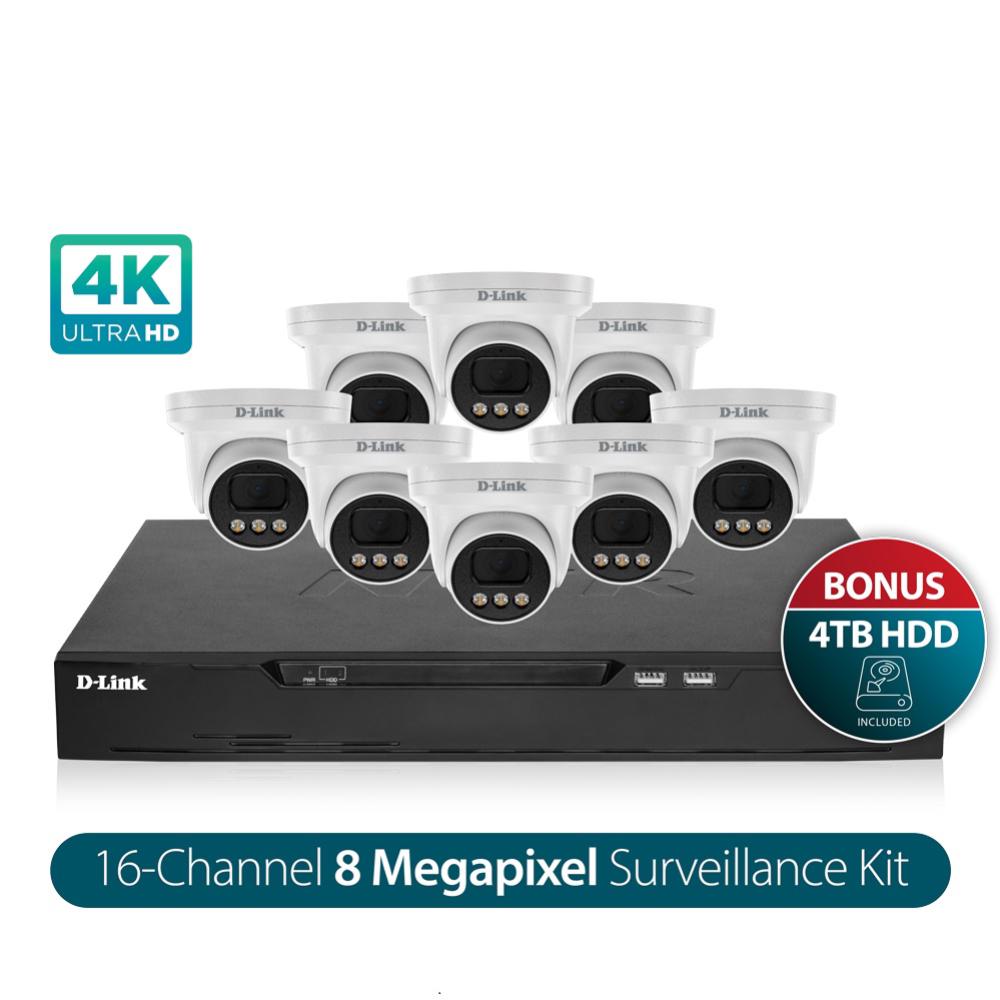

D-Link Vigilance 16-Channel NVR Kit with 8 x 8MP 4K Turret Cameras and 4TB HDD
The D-Link DNR16P-8MP-4TB Vigilance Surveillance Kit is a complete professional-grade security solution for Australian businesses. This comprehensive system includes a 16-channel AI-enabled NVR with 16 built-in PoE ports, 8 x DCS-F4808E 8MP outdoor turret cameras, and a 4TB hard drive pre-installed for immediate recording. Designed for small, medium, and large enterprises, this plug-and-play kit delivers crystal-clear 4K video surveillance with advanced AI detection to keep your premises secure day and night.
Why Choose This Surveillance Kit
-
Complete Plug-and-Play Solution: Everything you need in one box - NVR, 8 cameras, and 4TB storage ready to go
-
Crystal-Clear 4K Recording: 8MP resolution (3840 × 2160 @ 30fps) captures every detail
-
AI-Powered Smart Detection: Advanced motion, human, and vehicle detection minimizes false alarms
-
Day & Night Monitoring: Built-in IR LED illuminators with 20m night vision range
-
Weatherproof & Vandal-Resistant: IP66-rated cameras handle dust, rain, sleet, and snow
-
Easy Installation: 16 built-in PoE ports deliver power and data over a single cable
Professional 8MP 4K Turret Cameras
Each of the eight included DCS-F4808E turret cameras uses a high-sensitivity 1/2.7-inch 8-megapixel progressive CMOS sensor to deliver superior video quality in all lighting conditions. The compact turret design with 2.8mm fixed lens provides a wide 105-degree horizontal field of view, perfect for monitoring entrances, car parks, warehouses, retail stores, and office spaces.
The cameras support H.265, H.264, and MJPEG video compression with HEVC (High-Efficiency Video Coding) to optimize network bandwidth while maintaining exceptional visual quality. True WDR (Wide Dynamic Range) enhances image quality in challenging lighting conditions, restoring details in bright and shadowed areas.
AI-Enabled Smart Surveillance
Powered by the latest AI technology, the Vigilance cameras deliver accurate people and vehicle detection to minimize false alarms from moving trees, animals, or weather. Customize alarm triggers for:
-
Intrusion Detection: Alert when someone enters a restricted area
-
Tripwire: Detect crossing of virtual boundary lines
-
Loitering: Identify suspicious activity in defined zones
-
Wrong-Way Detection: Monitor directional violations
-
Illegal Parking Detection: Track unauthorized vehicle parking
-
People Counting: Monitor foot traffic and occupancy
-
Smart Spotlight on Human Detection: Illuminate targets automatically
16-Channel AI-Enabled Network Video Recorder
The included DNR-F4216-16P NVR is a powerful standalone recorder that supports up to 16 network cameras with H.265 and H.264 recording. With 16 built-in PoE (802.3af) ports, installation is simple - just connect each camera with a single network cable for both power and data.
The NVR supports recording at resolutions up to 12MP and comes with two HDD bays supporting up to 24TB total storage (4TB HDD pre-installed). Configure continuous, scheduled, or event-based recording with automatic overwrite to ensure uninterrupted surveillance coverage.
Advanced Night Vision Technology
Built-in Smart IR LED illuminators automatically activate based on lighting conditions, providing clear video even in complete darkness. With a 20-meter IR range, the cameras capture sharp grayscale video in low-light and no-light environments. The IR-Cut Filter automatically switches between day and night modes for optimal image quality around the clock.
Professional Management Software Included
The D-Link DCMS+ Software provides comprehensive management for multiple NVRs and cameras. Features include:
- Real-time surveillance monitoring
- PTZ control for compatible cameras
- Smart footage search and playback
- Video downloading and backup
- Alarm management and notifications
- Face recognition capabilities
- Remote access via mobile app
Built to Last in Australian Conditions
Each camera features a rugged IP66 weatherproof housing engineered to handle extreme Australian weather conditions including dust storms, heavy rain, and temperature ranges from -40°C to 60°C. The vandal-proof design with glare-reducing sun shield ensures reliable operation in tough outdoor environments without additional accessories.
NDAA Compliant for Peace of Mind
D-Link Vigilance products are NDAA compliant, meaning they do not contain components from banned companies that present security threats. All components are carefully selected and stringently tested to meet the highest security and quality standards.
Flexible Connectivity & Remote Access
The system supports ONVIF compliance for integration with third-party cameras and video management systems. Access your cameras remotely via the D-Link mobile app from anywhere in Australia or overseas. The NVR includes HDMI and VGA outputs for local display, plus USB ports for easy video backup.
Perfect for Australian Businesses
This surveillance kit is ideal for:
- Retail stores and shopping centers
- Warehouses and distribution facilities
- Office buildings and corporate campuses
- Schools and educational institutions
- Hotels and hospitality venues
- Car parks and transport hubs
- Manufacturing and industrial sites
What's in the Box
- 1 × DNR-F4216-16P 16-Channel NVR with 16 PoE ports
- 8 × DCS-F4808E 8MP Turret Cameras
- 1 × 4TB Hard Disk Drive (pre-installed)
- 8 × Camera mounting kits and hardware
- Power adapter for NVR
- HDMI cable
- Network cables
- Quick Installation Guide
- D-Link Limited Lifetime Warranty
Full Specifications
NVR Specifications
| Model |
DNR-F4216-16P |
| Video Channels |
16 channels |
| Recording Resolution |
Up to 12MP |
| Video Compression |
H.265, H.264, MJPEG |
| PoE Ports |
16 × 802.3af compliant (10/100 Mbps) |
| Total PoE Power Budget |
117W (max 25.5W per port) |
| HDD Bays |
2 × SATA (3.5-inch) |
| Maximum Storage |
24TB (12TB per bay) |
| Included Storage |
4TB HDD pre-installed |
| Video Output |
HDMI (up to 4K), VGA (1920 × 1080) |
| Network Interface |
1 × RJ-45 Gigabit Ethernet |
| USB Ports |
2 × USB 2.0 |
| Recording Modes |
Continuous, Scheduled, Event-based |
Camera Specifications (DCS-F4808E)
| Housing Type |
Turret (Dome) |
| Image Sensor |
1/2.7-inch Progressive CMOS |
| Resolution |
8 Megapixels (3840 × 2160) |
| Frame Rate |
30 fps @ 3840 × 2160 |
| Lens Type |
Fixed 2.8mm |
| Horizontal Field of View |
105 degrees |
| Video Compression |
H.265, H.264, MJPEG |
| Day/Night Function |
IR-Cut Filter (ICR) |
| Night Vision |
Built-in IR LEDs, 20m range |
| Image Enhancement |
True WDR, BLC, 3D Filter, AES, AGC, AWB |
| AI Detection |
Motion, Human, Vehicle |
| Smart Functions |
Intrusion, Tripwire, Loitering, Wrong-way, Illegal Parking, People Counting |
| Audio |
Built-in microphone |
| Power |
PoE (802.3af) or optional 12V DC adapter |
| Weatherproof Rating |
IP66 (dust-tight and water-resistant) |
| Operating Temperature |
-40°C to 60°C |
| Dimensions (each camera) |
118 × 118 × 94 mm |
| Weight (each camera) |
550 g |
| Memory Card Slot |
MicroSD (for local backup) |
| Protocol Support |
ONVIF compliant, SDK, CGI |
| Signal-to-Noise Ratio |
55 dB |
System & Software
| Management Software |
D-Link DCMS+ (included free) |
| Mobile App |
D-Link Surveillance App (iOS/Android) |
| Protocols |
ONVIF Profile S/G/T, RTSP, HTTP, DHCP, NTP, DDNS |
| Email Notification |
Yes |
| Motion Detection |
Yes (AI-enhanced) |
| Compliance |
NDAA Compliant, CE, FCC, RCM |
| Warranty |
D-Link Limited Lifetime Warranty |
Specifications are sourced from the manufacturer product page and may be updated. Feature set depends on the camera being used with the NVR.
