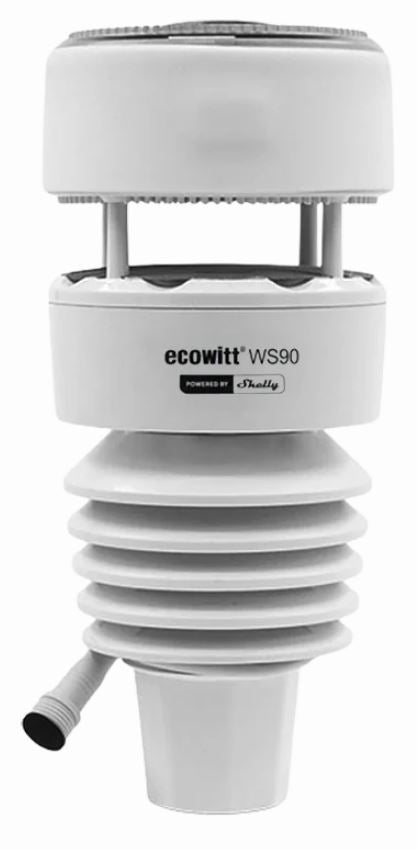

Ecowitt WS90 7-in-1 Smart Weather Station with Bluetooth & Zigbee
The Ecowitt WS90 is a cutting-edge 7-in-1 wireless weather station designed for smart home enthusiasts and weather monitoring professionals. Track wind speed and direction, rain, temperature, humidity, UV index, solar radiation, and barometric pressure all in one compact, solar-powered device. With dual Bluetooth and Zigbee connectivity, the WS90 integrates seamlessly with Shelly smart home systems and other Zigbee 3.0 compatible hubs, giving you real-time weather insights to automate your home and stay ahead of changing conditions.
Why Choose the Ecowitt WS90?
-
7-in-1 Wireless Sensor Array: Measures wind (ultrasonic), rain (haptic piezoelectric), temperature, humidity, UV, solar radiation, and pressure in a single unit
-
Dual Connectivity: Bluetooth 5.0 and Zigbee 3.0 run simultaneously for flexible integration with Shelly devices and other smart home hubs
-
Solar Powered with Battery Backup: Built-in 6.5V solar panel with 2 × AA battery backup ensures continuous operation year-round
-
High-Precision Sensors: Temperature range of -40°C to +60°C (±1°C accuracy) and humidity 1% to 99% RH (±5% RH accuracy)
-
Low-Maintenance Design: Solid-state ultrasonic wind sensor and haptic rain sensor with no moving parts for long-lasting reliability
-
IPX5 Weatherproof Rating: Built to withstand harsh outdoor conditions with durable ASA+PC plastic construction
Advanced Weather Monitoring Technology
Unlike traditional weather stations with mechanical components that wear out, the WS90 uses ultrasonic wind measurement and a piezoelectric haptic rain sensor for accurate, maintenance-free operation. The device reports data every 8.8 seconds, giving you near-real-time weather updates. Perfect for home automation, garden irrigation control, outdoor event planning, or simply staying informed about your local microclimate.
Smart Home Integration & Multi-Gateway Support
The WS90 can report to multiple gateways simultaneously, making it ideal for complex smart home setups. Use it with Shelly BLU Gateway, Shelly Plus, Pro, or Gen3/Gen4 devices via Bluetooth, or connect to any Zigbee 3.0 hub for broader integration with platforms like Home Assistant, SmartThings, and more. View pressure trend alerts in the Shelly Smart Control app to know when weather is improving or worsening, and create automations based on wind speed, rainfall, temperature changes, and more.
Built-In Heater for Winter Reliability
The WS90 includes a built-in heating plate that can be activated with an optional 12V power supply (sold separately) to melt snow and ice on the wind sensor during winter months, ensuring accurate measurements even in freezing conditions. The heating function is especially recommended for areas with temperatures below 0°C (32°F).
Easy Installation & Calibration
Mount the WS90 on any standard 25mm (1 inch) diameter pole (not included) using the included mounting ring. The device features a north direction alignment indicator for accurate wind direction readings. Device offset settings in the Shelly app ensure measurements aren't skewed by surroundings like walls or heat sources. Long-range wireless transmission up to 150m (500 ft) with obstacles or up to 300m (1,000 ft) in open space means flexible placement options around your property.
What's in the Box
- 1 × Ecowitt WS90 7-in-1 Weather Station
- 1 × User Manual
Note: 2 × AA batteries and mounting pole not included. Optional 12V/1A power extension cord and bird spikes sold separately.
Full Specifications
Physical Specifications
| Dimensions (H × W × D) |
208 × 93 × 93 mm (8.19 × 3.66 × 3.66 inches) |
| Weight |
459 g (16.2 oz) without batteries / 507 g (17.88 oz) with batteries |
| Shell Material |
ASA+PC, PC Plastic |
| Mounting |
25 mm (1 inch) diameter pole |
| Weatherproof Rating |
IPX5 |
Sensor Specifications
| Temperature Range |
-40°C to +60°C (-40°F to +140°F) |
| Temperature Accuracy |
±1°C (±1.8°F) |
| Temperature Resolution |
0.1°C (0.2°F) |
| Humidity Range |
1% to 99% RH |
| Humidity Accuracy |
±5% RH |
| Humidity Resolution |
1% RH |
| Rainfall Range |
0 mm to 9999 mm |
| Rainfall Accuracy |
±20% (<5 mm/h & >50 mm/h); ±10% (5 mm/h to 50 mm/h) |
| Rainfall Resolution |
0.1 mm |
| Wind Speed Range |
0 m/s to 40 m/s |
| Wind Speed Accuracy |
±1 m/s (<10 m/s); ±10% (≥10 m/s) |
| Wind Sensor Type |
Ultrasonic (no moving parts) |
| Rain Sensor Type |
Haptic Piezoelectric |
| Additional Sensors |
UV Index, Solar Radiation/Illuminance, Barometric Pressure |
Power & Connectivity
| Power Source |
Built-in solar panel (6.5V/4mA) |
| Backup Battery |
2 × AA 1.5V (not included) |
| Optional Heater Power |
12V DC / 1A (power supply sold separately) |
| Wireless Connectivity |
Bluetooth 5.0 and Zigbee 3.0 (simultaneous dual connectivity) |
| RF Frequency |
433/868/915/920 MHz (depending on region) |
| Transmission Distance |
150 m (500 ft) with obstacles / 300 m (1,000 ft) in open field |
| Reporting Interval |
8.8 seconds |
Compatibility
| Shelly Integration |
Requires Shelly BLU Gateway or Shelly Plus/Pro/Gen3/Gen4 device (excluding sensors) |
| Zigbee Integration |
Compatible with Zigbee 3.0 hubs and controllers |
| App Support |
Shelly Smart Control app, Ecowitt app, WS View Plus |
Specifications are sourced from the official manufacturer product page and may be updated. This is the Shelly-compatible version (WS90 Powered by Shelly) with dual Bluetooth and Zigbee connectivity.
