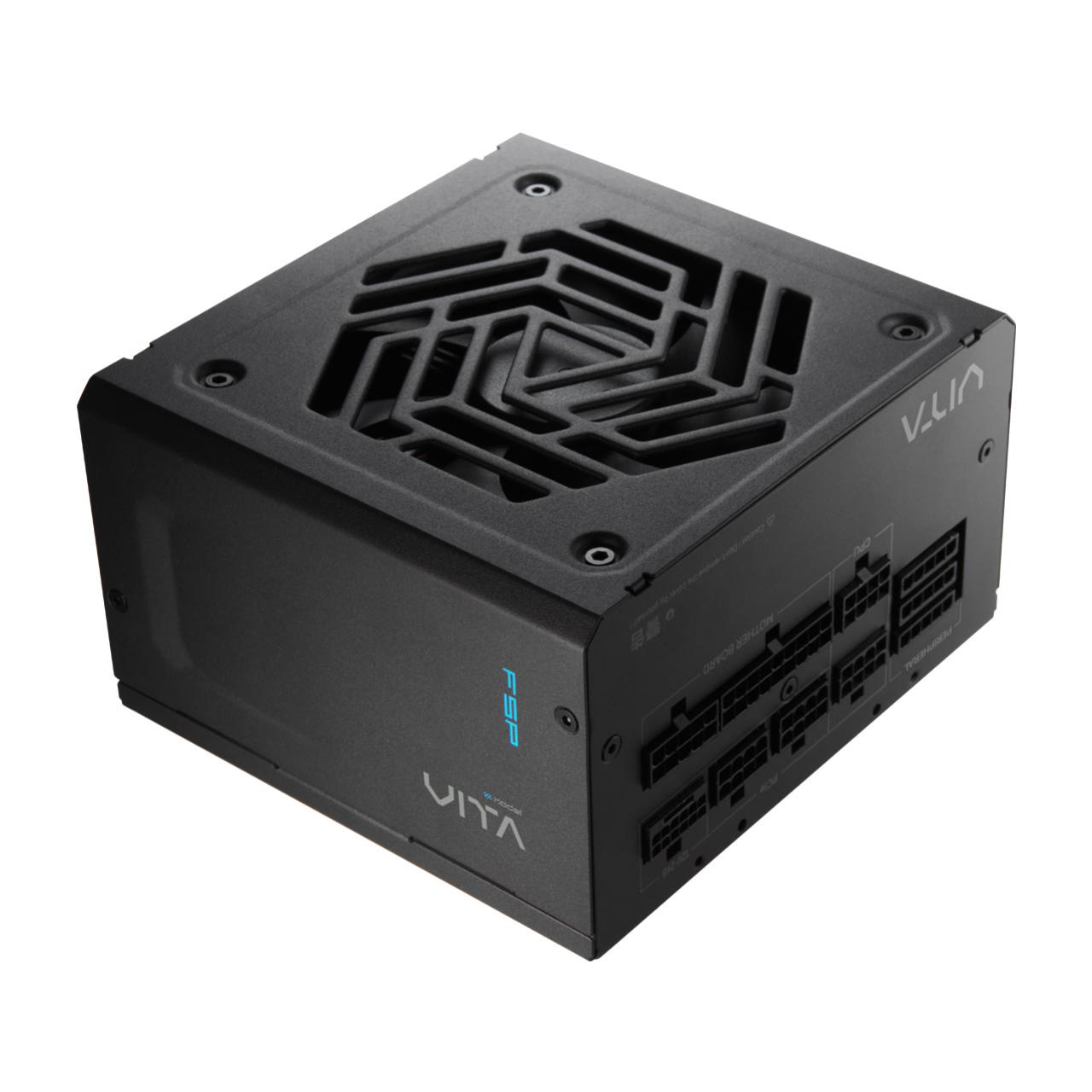

FSP VITA GM 750W 80 Plus Gold ATX 3.1 Fully Modular Gaming PSU
The FSP VITA GM 750W is a high-performance, fully modular power supply engineered for gamers and power users who demand reliability, efficiency, and future-proof compatibility. Compliant with Intel ATX 3.1 and PCIe Gen 5.1 specifications, this PSU features a native 12V-2x6 connector to support the latest high-performance graphics cards with total power excursion capabilities. With 80 PLUS Gold certification and platinum-level efficiency at typical loads, the VITA GM 750W minimises power loss, reduces heat, and operates whisper-quiet. At just 140mm in length, it's one of the most compact ATX power supplies available, making it ideal for small form factor builds and space-constrained PC cases without compromising on power delivery or performance.
Key Features
-
ATX 3.1 & PCIe Gen 5.1 Compliant: Native 12V-2x6 connector supports the latest GPU power standards with 200% total power excursion capability for demanding hardware
-
80 PLUS Gold Certified: Achieves platinum-level efficiency (over 90%) at typical loads for lower power consumption, reduced electricity costs, and cooler operation
-
Fully Modular Design: Use only the cables you need for cleaner builds, improved airflow, and easier installation
-
Ultra-Compact 140mm Depth: Perfect for mini-ITX and compact ATX cases where space is at a premium
-
Premium Japanese Capacitors: 105°C-rated electrolytic capacitors ensure maximum reliability, longevity, and stable performance under load
-
Advanced LLC Topology: Synchronous rectification and DC-DC conversion for superior voltage regulation and system stability
-
Quiet 120mm HYB Fan: Hydraulic bearing fan delivers efficient cooling with minimal noise, even under heavy gaming loads
-
Comprehensive Protection Suite: OVP (Over Voltage), OCP (Over Current), OPP (Over Power), OTP (Over Temperature), SCP (Short Circuit), UVP (Under Voltage), SIP (Surge Inrush), and NLO (No Load Operation) protect your valuable components
-
10-Year Warranty: Industry-leading warranty coverage for complete peace of mind
Built for Next-Gen Gaming & High-Performance PCs
The FSP VITA GM 750W is purpose-built for modern gaming rigs and content creation workstations. The native PCIe 5.1 connector supports the latest RTX 40-series and future graphics cards, while dual EPS 4+4 pin connectors provide stable power for high-core-count CPUs and overclocking. With four PCIe 6+2 pin connectors, eight SATA connectors, and four Molex connectors, you'll have all the power connectivity you need for multi-GPU setups, plenty of storage drives, RGB lighting, and custom water cooling systems.
Efficiency That Saves Money & Runs Cooler
Certified 80 PLUS Gold and achieving Cybenetics Platinum efficiency, the VITA GM 750W delivers over 90% efficiency at typical loads. This means less wasted energy as heat, lower electricity bills, and quieter operation thanks to reduced thermal output. The advanced LLC resonant converter topology with synchronous rectification keeps switching losses to a minimum, while the +5V and +3.3V DC-DC circuit design ensures rock-solid voltage stability across all rails, even during demanding gaming sessions or heavy rendering workloads.
Compact Size, Full ATX Power
At just 140mm in depth, the VITA GM 750W is significantly shorter than standard ATX power supplies (typically 160mm or longer). This makes it an excellent choice for compact and mini-ITX builds, small form factor cases, and HTPCs where every millimetre counts. Despite its small footprint, it delivers a full 750 watts of continuous power with a single +12V rail rated at 62.5A, providing plenty of headroom for high-end gaming systems.
Universal Connectivity
-
Motherboard: 1 x 20+4 pin ATX connector
-
CPU: 2 x 4+4 pin EPS12V connectors
-
PCIe Graphics: 1 x 12V-2x6 (16-pin) native connector + 4 x PCIe 6+2 pin connectors
-
Storage: 8 x SATA connectors
-
Peripherals: 4 x 4-pin Molex connectors
-
Input: 100-240V AC, 50-60Hz (universal voltage with active PFC)
What's in the Box
- FSP VITA GM 750W Power Supply Unit
- Fully modular cable set (all-black premium cables)
- AC power cable (region-specific, may vary by retailer)
- Cable ties and mounting screws
- User manual and warranty card
Full Specifications
Power Output
| Total Power |
750W |
| +3.3V Rail |
20A / 100W (combined with +5V) |
| +5V Rail |
20A / 100W (combined with +3.3V) |
| +12V Rail |
62.5A / 750W (single rail) |
| -12V Rail |
0.3A / 3.6W |
| +5Vsb Rail |
3A / 15W |
Compliance & Efficiency
| ATX Version |
ATX 3.1 |
| PCIe Version |
PCIe Gen 5.1 |
| Efficiency Certification |
80 PLUS Gold (Cybenetics Platinum) |
| Efficiency at Typical Load |
≥90% |
| Active PFC |
Yes (>0.9) |
Connectors
| Motherboard (20+4 pin) |
1 |
| CPU (4+4 pin EPS) |
2 |
| PCIe 12V-2x6 (16-pin) |
1 |
| PCIe (6+2 pin) |
4 |
| SATA |
8 |
| Molex (4-pin) |
4 |
Cooling & Acoustics
| Fan Size |
120mm HYB (Hydraulic Bearing) |
| Fan Control |
PWM-controlled (always-on, variable speed) |
| Semi-Passive Mode |
No |
Protection Features
| Protections |
OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
Physical
| Dimensions (W x H x D) |
150 x 86 x 140mm |
| Form Factor |
ATX |
| Cable Management |
Fully Modular |
| Net Weight |
2.45kg |
| Gross Weight |
3.05kg |
Electrical Input
| Input Voltage |
100-240V AC |
| Input Frequency |
50-60Hz |
| Input Current |
10-5A |
Warranty & Compliance
| Warranty Period |
10 years |
| Certification |
80 PLUS Gold, Cybenetics Platinum |
Specifications are sourced from the manufacturer product page and may be updated.
