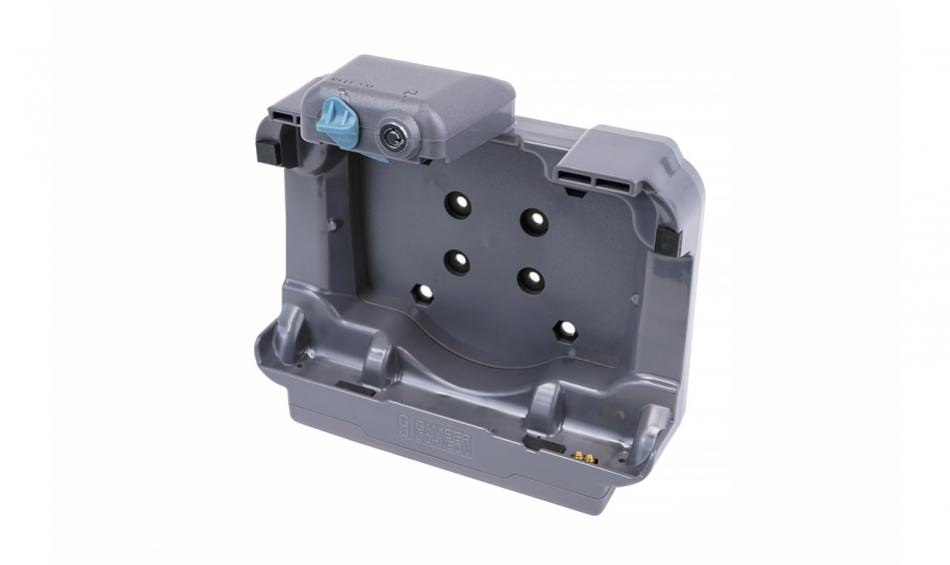

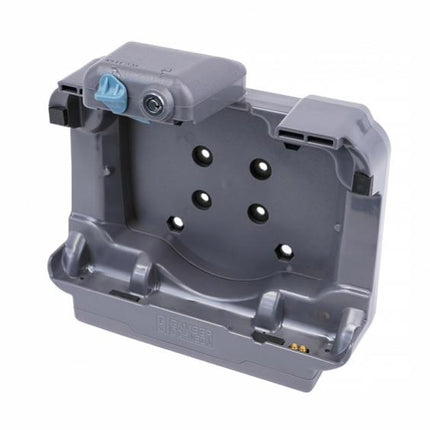

Gamber-Johnson Panasonic Toughbook S1/L1 Dual RF Vehicle Docking Station
The Gamber-Johnson Panasonic Toughbook S1/L1 Dual RF Docking Station is the perfect vehicle mounting solution for your FZ-S1/L1 tablet when you require RF antenna pass-through and need to accommodate the tablet's rotating hand strap. This thick model docking station is designed specifically for demanding mobile work environments in utility, public safety, logistics, and field service applications across Australia.
Key Features
-
Dual RF Pass-Through: Enables antenna connectivity for uninterrupted wireless communications while docked
-
Accommodates Hand Strap & Large Battery: Extra room allows the rotating hand strap to fit into the back of the dock in any orientation, plus supports large battery and barcode reader
-
One-Handed Operation: Easy to dock and undock - simply insert the bottom of the tablet, push against the latch button until engaged, then push the latch button with your thumb to release
-
VESA 75mm Mounting Pattern: Universal compatibility with Gamber-Johnson motion attachments and mounting solutions
-
Rugged Design: Cycle tested to 30,000 docking cycles and environmentally tested for high/low temperature, thermal shock, and demanding field conditions
-
Integrated Connectivity: Features USB 2.0 port and power supply input port for convenient peripheral connection
Built for Mobile Professionals
This docking station transforms your Panasonic Toughbook S1/L1 tablet into a fully functional mobile workstation inside your vehicle. The thick design provides the necessary clearance for tablets configured with the rotating hand strap, extended battery, or barcode reader attachment, making it ideal for field workers who need maximum tablet functionality and flexibility on the go.
Easy Installation & Secure Mounting
The docking station features rear hooks and guide pins that ensure proper alignment and reliable docking connectivity every time. The VESA 75mm mounting pattern on the back allows you to attach the dock to a wide range of Gamber-Johnson vehicle mounting solutions, including motion arms, pedestal mounts, and console mounts. The integrated cable management system keeps power and peripheral cables organised and protected.
Engineered for Australian Conditions
Designed and tested to rugged environmental standards, this docking station withstands the harsh conditions encountered in Australian field work environments. It has passed rigorous testing including high/low temperature operational and storage testing, thermal shock, and 30,000-cycle durability testing of the docking connector, latching, and locking mechanisms.
What's in the Box
- Gamber-Johnson Panasonic Toughbook S1/L1 Dual RF Docking Station (Thick Model)
- Mounting hardware
- Installation guide
Full Specifications
| Compatible Devices |
Panasonic Toughbook FZ-S1, FZ-L1 tablets |
| Model Type |
Thick (accommodates hand strap) |
| RF Pass-Through |
Dual RF antenna pass-through |
| Ports |
USB 2.0, Power supply input |
| Mounting Pattern |
VESA 75mm |
| Accommodates |
Rotating hand strap, large battery, barcode reader |
| Docking Mechanism |
One-handed latch operation |
| Construction |
Rugged composite/steel with black powder coat finish |
| Cycle Testing |
30,000 docking cycles |
| Environmental Testing |
High/Low temperature, thermal shock |
| Mounting Options |
Horizontal or vertical position |
| Manufacturer |
Gamber-Johnson |
| Part Number |
7160-1314-02 |
| Product Status |
End of Life (contact for service inquiries) |
Specifications are sourced from the manufacturer product page and may be updated. Note: This product is End of Life. Please contact us for availability and service options.
