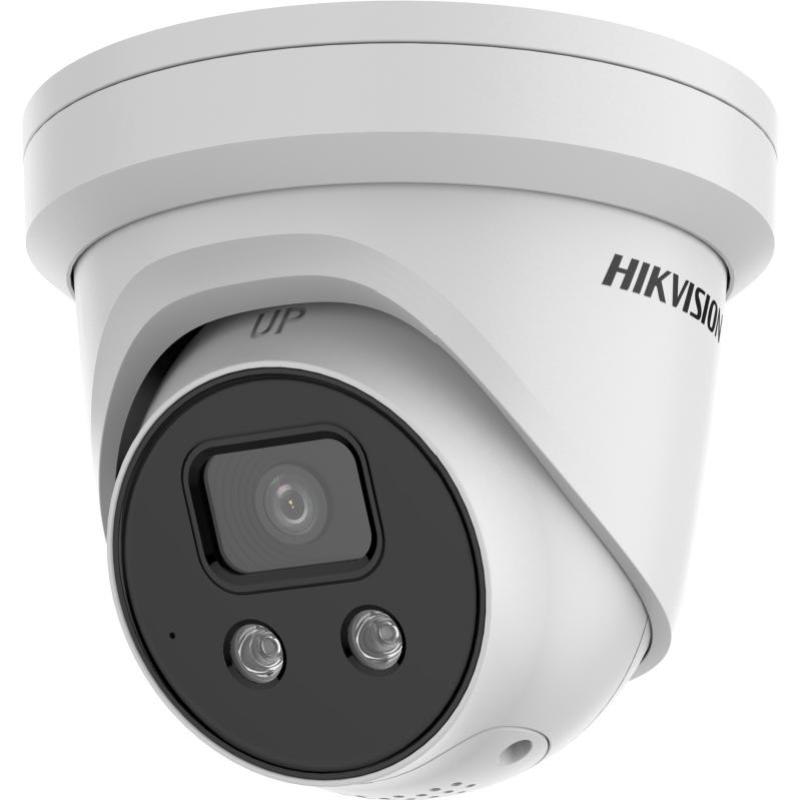

Hikvision DS-2CD2386G2-I 4K 8MP AcuSense Turret IP Camera with IR
The Hikvision DS-2CD2386G2-I is an advanced 8 MP (4K) Fixed Turret Network Camera designed to deliver superior surveillance with intelligent human and vehicle classification. Powered by AcuSense technology, this camera uses deep learning algorithms to dramatically reduce false alarms by distinguishing people and vehicles from other moving objects. With DarkFighter low-light technology, 120 dB true WDR, and efficient H.265+ compression, the DS-2CD2386G2-I offers crystal-clear imaging in challenging lighting conditions while minimizing bandwidth and storage requirements.
AcuSense Technology
Hikvision's AcuSense technology embeds deep learning algorithms directly into the camera to classify human and vehicle targets in real time. This intelligent discrimination greatly improves alarm efficiency by filtering out irrelevant motion triggers such as animals, foliage, or weather conditions, ensuring you focus on genuine security threats.
-
Human and Vehicle Classification: Precise target identification reduces false alarms
-
Perimeter Protection: Line crossing, intrusion, region entrance, and region exiting detection
-
Deep Learning Algorithms: Advanced AI-powered analytics built into the camera
Exceptional Image Quality
Capture every detail with the 8 MP resolution (3840 × 2160) sensor that delivers 4K UHD imaging. The camera features powered-by-DarkFighter technology for excellent low-light performance with a minimum illumination of just 0.003 Lux in color mode, and 0 Lux with IR. The 120 dB true WDR ensures clear imaging even against strong backlighting conditions.
-
Resolution: 8 MP (3840 × 2160) at 20 fps
-
Image Sensor: 1/1.8" Progressive Scan CMOS
-
Low-Light Performance: Color: 0.003 Lux, B/W: 0 Lux with IR
-
Wide Dynamic Range: 120 dB true WDR for balanced exposure
-
IR Range: Up to 30 meters infrared illumination
Flexible Lens Options
The DS-2CD2386G2-I is available with three fixed focal lens options to suit various monitoring scenarios:
-
2.8 mm: Horizontal FOV 111°, Vertical FOV 59°, Diagonal FOV 131°
-
4 mm: Horizontal FOV 87°, Vertical FOV 47°, Diagonal FOV 102°
-
6 mm: Horizontal FOV 51°, Vertical FOV 28°, Diagonal FOV 60°
Efficient Compression & Storage
The camera supports H.265+, H.265, H.264+, and H.264 video compression formats, enabling significant bandwidth and storage savings without compromising image quality. Local storage is supported via MicroSD/SDHC/SDXC card up to 256 GB, with additional network storage options including NAS (NFS, SMB/CIFS) and auto network replenishment (ANR).
Network & Connectivity
The DS-2CD2386G2-I features a single RJ45 Ethernet port supporting 10/100 Mbps connectivity. It supports a comprehensive range of network protocols and is ONVIF compliant for seamless integration with third-party systems.
-
Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
-
Security: Password protection, HTTPS encryption, IP address filter, TLS 1.1/1.2, WSSE authentication
-
Users: Up to 32 simultaneous users with 3 access levels
Durability & Environmental Protection
Built for demanding environments, the camera features an IP67-rated weatherproof housing that provides protection against dust and water ingress. The turret design allows for flexible installation with pan (0° to 360°), tilt (0° to 75°), and rotate (0° to 360°) angle adjustment.
-
Ingress Protection: IP67 (IEC 60529-2013)
-
Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)
-
Operating Humidity: 95% or less (non-condensing)
Power Options
The DS-2CD2386G2-I supports dual power options for flexible installation:
-
12 VDC: ±25%, 0.48 A, max. 5.8 W
-
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, max. 7 W
What's in the Box
- DS-2CD2386G2-I Turret Network Camera
- Mounting accessories
- Quick start guide
- Documentation
Full Specifications
Camera
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 (8 MP) |
| Frame Rate |
Max. 20 fps at 3840 × 2160 |
| Min. Illumination |
Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Wide Dynamic Range |
120 dB |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
Lens
| Lens Type |
Fixed focal lens, 2.8 mm, 4 mm, and 6 mm optional |
| Lens Mount |
M12 |
| Aperture |
F1.6 |
| Field of View (2.8 mm) |
Horizontal: 111°, Vertical: 59°, Diagonal: 131° |
| Field of View (4 mm) |
Horizontal: 87°, Vertical: 47°, Diagonal: 102° |
| Field of View (6 mm) |
Horizontal: 51°, Vertical: 28°, Diagonal: 60° |
Illuminator
| Supplement Light Type |
IR |
| IR Range |
Up to 30 m |
| Wavelength |
850 nm |
Video
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| H.265+ Type |
Main stream supports |
| H.264+ Type |
Main stream supports |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| Dual Stream |
Yes |
Smart Features
| Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting (human and vehicle classification) |
| Basic Event |
Motion detection (human and vehicle classification), video tampering, exception, scene change detection |
| Linkage Method |
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
Network
| Network Interface |
1 RJ45 10M/100M Ethernet |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Security |
Password protection, HTTPS encryption, IP address filter, TLS 1.1/1.2 |
| Simultaneous Live View |
Up to 32 users |
| API |
Open Network Video Interface (ONVIF), ISAPI, SDK |
Storage
| On-Board Storage |
Built-in MicroSD/SDHC/SDXC slot, up to 256 GB |
| Network Storage |
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
Interface
| Communication Interface |
1 RJ45 10M/100M Ethernet |
Power & Environment
| Power Supply |
12 VDC ±25%, 0.48 A, max. 5.8 W; PoE: 802.3af, Class 3, 36 V to 57 V, max. 7 W |
| Power Connector |
Ø5.5 mm coaxial power plug, reverse polarity protection |
| Operating Temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
| Operating Humidity |
95% or less (non-condensing) |
| Ingress Protection |
IP67 (IEC 60529-2013) |
Physical
| Dimensions |
Ø127.3 mm × 95.9 mm (Ø5.01" × 3.78") |
| Weight |
Approx. 740 g (1.63 lb.) |
| Package Weight |
Approx. 1020 g (2.2 lb.) |
Certifications
| EMC |
FCC (47 CFR Part 15, Subpart B), CE-EMC, RCM, IC, KC |
| Safety |
UL (UL 60950-1), CB (IEC 60950-1), CE-LVD, BIS |
| Environmental |
CE-RoHS, WEEE, Reach |
Specifications are sourced from the manufacturer product page and may be updated.
