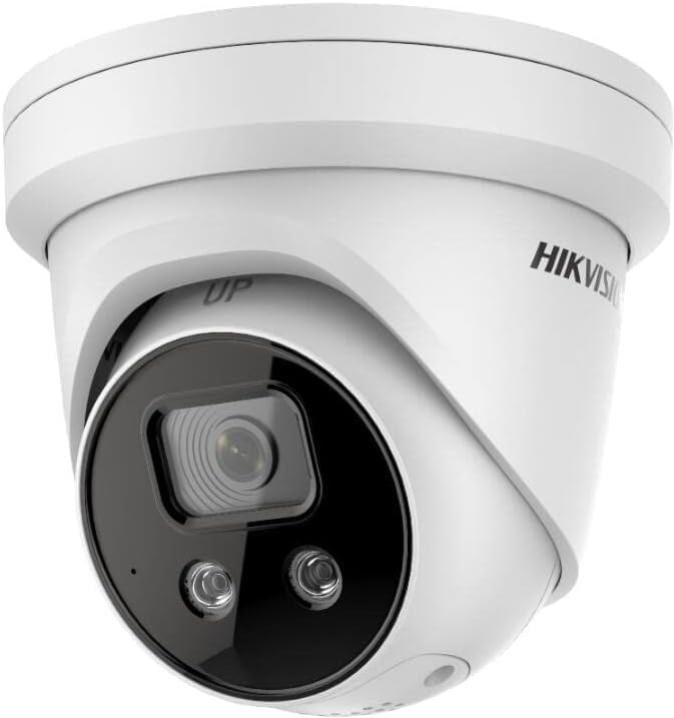

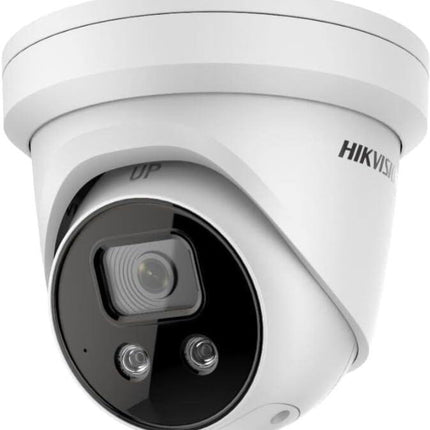

Hikvision DS-2CD2386G2-I 8MP AcuSense Turret Camera with Night Vision
The Hikvision DS-2CD2386G2-I delivers 8 megapixel 4K UHD resolution (3840 × 2160) for exceptional detail and clarity. Powered by DarkFighter technology, this turret camera provides excellent low-light performance with infrared night vision up to 30 metres. AcuSense deep learning technology accurately distinguishes human and vehicle targets from other motion, reducing false alarms by up to 95% and improving monitoring efficiency.
AcuSense Technology for Intelligent Detection
Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle target classification to the camera. The system focuses on real threats while vastly reducing false alarms triggered by animals, rain, or moving shadows. AcuSense generates easily searchable alarm events during playback, saving significant time and eliminating the need to review irrelevant footage.
-
Human and vehicle classification: Accurate detection based on deep learning
-
False alarm reduction: Up to 95% fewer irrelevant alerts
-
Searchable events: Quickly find motion triggered by people or vehicles
Superior Image Quality in All Conditions
The DS-2CD2386G2-I features a 1/1.8" Progressive Scan CMOS sensor with an F1.6 aperture for outstanding low-light sensitivity. 120 dB true Wide Dynamic Range (WDR) delivers clear imaging even against strong backlight, ensuring balanced exposure in challenging scenes. Advanced image processing including 3D Digital Noise Reduction (DNR) produces clean, professional-quality video.
-
8 MP resolution: 3840 × 2160 @ 20fps
-
DarkFighter technology: 0.003 Lux colour, 0 Lux B/W with IR
-
120 dB true WDR: Clear imaging in high-contrast scenes
-
IR range: Up to 30 metres for night vision
Efficient Video Compression and Storage
The camera supports H.265+, H.265, H.264+, and H.264 video compression codecs to optimise bandwidth usage and storage efficiency. A built-in microSD/SDHC/SDXC card slot supports local storage up to 256 GB. The -IU variant includes a built-in microphone for real-time audio security.
Flexible Lens Options and Field of View
Available with three fixed focal length options to suit different monitoring requirements:
-
2.8 mm lens: 111° horizontal FOV, 59° vertical FOV, 131° diagonal FOV
-
4 mm lens: 87° horizontal FOV, 47° vertical FOV, 102° diagonal FOV
-
6 mm lens: 51° horizontal FOV, 28° vertical FOV, 60° diagonal FOV
Rugged Weatherproof Design
Built for reliable outdoor performance, the turret camera features IP67 weatherproof protection against water and dust. The 3-axis adjustment (pan 0° to 360°, tilt 0° to 75°, rotate 0° to 360°) allows precise positioning during installation. Operating temperature range of -40°C to +60°C ensures dependable operation in extreme conditions.
Power and Connectivity
-
Power supply: 12 VDC ± 25% or PoE (802.3af, Class 3)
-
Power consumption: 5.5 W typical (PoE), 6.5 W max (with IR)
-
Network interface: RJ45 10M/100M self-adaptive Ethernet
-
Protocols: IPv4/IPv6, TCP/IP, HTTP, DHCP, DNS, RTSP, ONVIF
What's in the Box
- Hikvision DS-2CD2386G2-I Turret Camera
- Installation accessories
- Quick start guide
- Warranty card
Full Specifications
Camera
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 (8 MP) |
| Frame Rate |
20fps @ 3840 × 2160 |
| Min. Illumination |
Colour: 0.003 Lux @ F1.6, B/W: 0 Lux with IR |
| Shutter Time |
1/3 s to 1/100,000 s |
| Wide Dynamic Range |
120 dB true WDR |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
Lens
| Lens Type |
Fixed focal lens |
| Focal Length Options |
2.8 mm, 4 mm, 6 mm |
| Aperture |
F1.6 |
| Lens Mount |
M12 |
| Iris Type |
Fixed |
Video
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| Dual Stream |
Yes |
Image Enhancement
| WDR |
120 dB |
| 3D DNR |
Yes |
| Defog |
Yes |
| BLC/HLC |
Yes |
Smart Features
| AcuSense |
Human and vehicle classification based on deep learning |
| Behaviour Analysis |
Line crossing, intrusion, region entrance, region exiting |
| Exception Detection |
Scene change, defocus, network disconnect, storage anomaly |
Audio
| Built-in Microphone |
Yes (-IU models only) |
| Audio Compression |
G.711, G.722.1, G.726, MP2L2 |
Network & Storage
| Network Interface |
1 RJ45 10M/100M Ethernet |
| Protocols |
IPv4/IPv6, HTTP, HTTPS, RTSP, ONVIF, ISAPI |
| Local Storage |
Built-in microSD/SDHC/SDXC slot, up to 256 GB |
| Network Storage |
NAS (NFS, SMB/CIFS), ANR |
Power & Environment
| Power Supply |
12 VDC ± 25%, PoE (802.3af, Class 3) |
| Power Consumption |
Max. 6.5 W |
| Operating Temperature |
-40°C to +60°C |
| Operating Humidity |
95% or less (non-condensing) |
| Ingress Protection |
IP67 |
Physical
| Product Type |
Turret Network Camera |
| Dimensions |
Ø 122 mm × 88.9 mm |
| Weight |
Approx. 740 g |
| Material |
Metal |
| Colour |
White |
Certifications
| EMC |
FCC, CE-EMC, RCM, IC, KC |
| Safety |
UL, CB, CE-LVD, BIS, LOA |
| Environmental |
CE-RoHS, WEEE, Reach |
Specifications are sourced from the manufacturer product page and may be updated.
