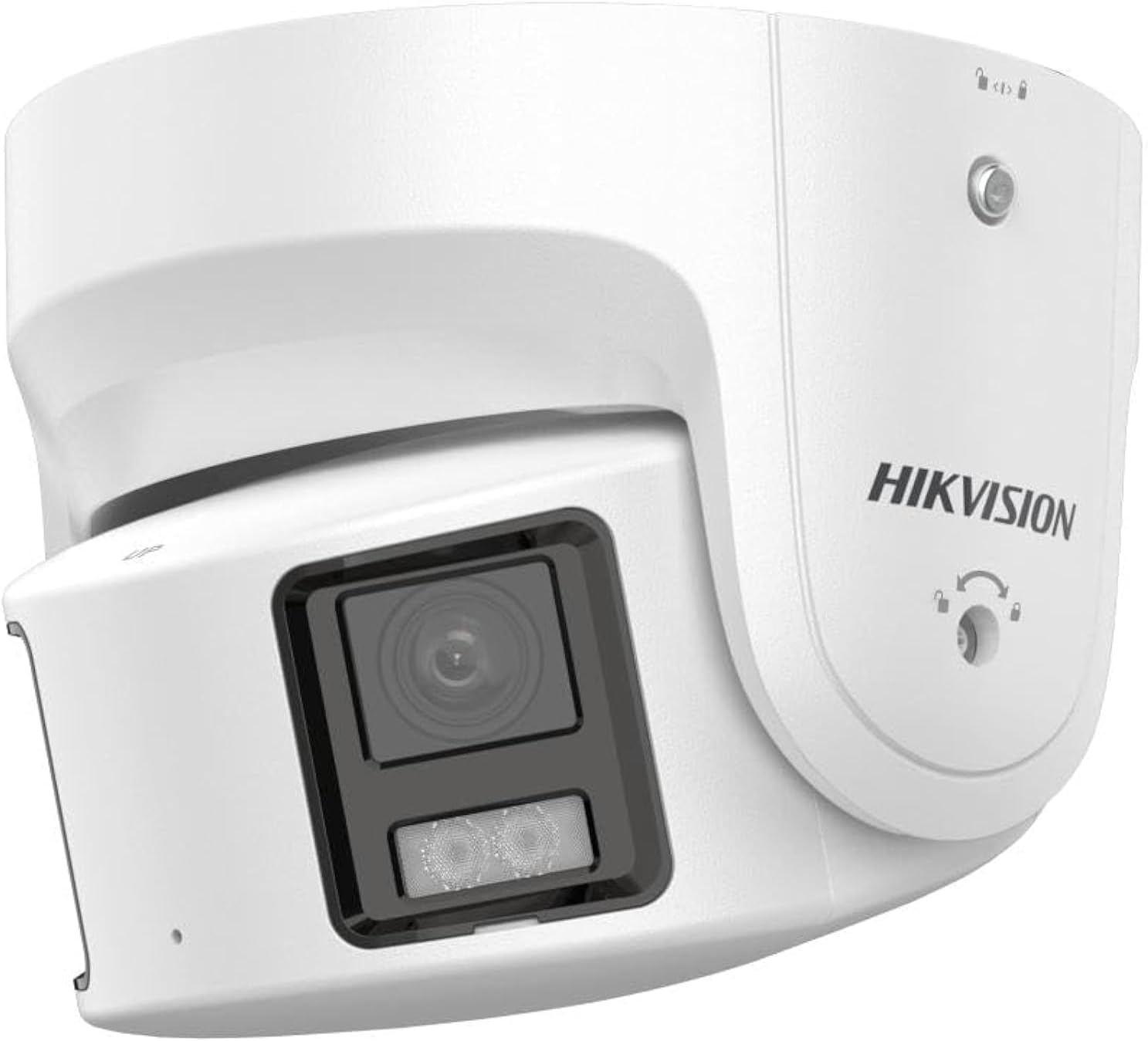

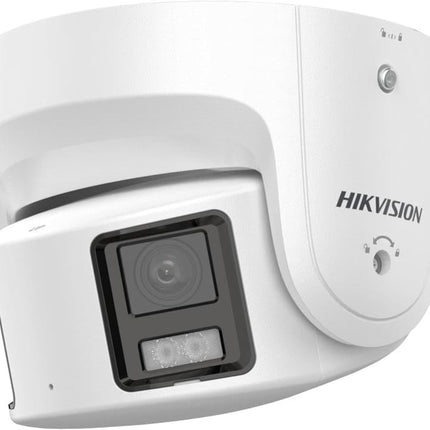

Hikvision DS-2CD2387G2P-LSU/SL 8MP Panoramic ColorVu Fixed Turret Network Camera
The Hikvision DS-2CD2387G2P-LSU/SL delivers 8 megapixel (5120 × 1440) panoramic surveillance with 24/7 full-color imaging using advanced ColorVu technology. Equipped with dual 4mm fixed lenses and two 1/1.8" progressive scan CMOS sensors, this turret camera captures a 180° horizontal field of view in a single seamless image, eliminating blind spots and reducing the need for multiple cameras.
24/7 ColorVu Technology
Hikvision's ColorVu technology provides vivid, full-color imagery around the clock, even in low-light conditions. With an F1.0 super-aperture that collects more light and advanced sensor technology, this camera delivers colorful, detailed video at just 0.0005 Lux (with AGC ON) or 0 Lux with supplemental white light up to 30m (98 feet). Unlike traditional infrared cameras that produce monochrome images at night, ColorVu ensures rich color detail 24/7.

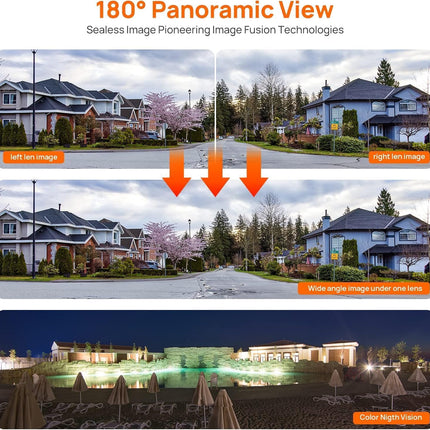

Panoramic Wide-Area Coverage
The dual-lens design captures an expansive 180° horizontal panoramic view with seamless image fusion, covering extensive areas with a single camera installation. This wide-area viewing capability is ideal for monitoring parking lots, building perimeters, retail spaces, and other locations where comprehensive coverage is essential.
Smart Detection & Active Deterrence
Powered by deep learning algorithms, the camera focuses on human and vehicle classification, reducing false alarms from irrelevant motion. Smart perimeter protection functions include:
-
Line crossing detection: Alerts when objects cross a defined boundary
-
Intrusion detection: Detects unauthorized entries into specified areas
-
Region entrance/exit detection: Monitors entry and exit from zones
-
Active strobe light and audio alarm: Warns intruders off with visual and audible alerts
Two-Way Audio & Real-Time Communication
Built-in speaker and microphone enable two-way audio communication, with additional audio input and output interfaces. Respond to events in real-time, communicate with visitors, or issue warnings remotely.
Advanced Imaging Features
-
130 dB Wide Dynamic Range (WDR): Clear imaging against strong backlight for balanced exposure in challenging lighting
-
3D DNR (Digital Noise Reduction): Reduces image noise for cleaner video
-
H.265+ compression: Efficient video encoding reduces bandwidth and storage requirements by up to 50% while maintaining high quality
-
Up to 20 fps at 5120 × 1440 (when WDR is off)
Durable & Weather-Resistant Design
The camera features IP67-rated protection against dust and water, ensuring reliable operation in harsh outdoor environments. Operating temperature range of -30°C to 60°C makes it suitable for year-round deployment in diverse climates.
Flexible Connectivity & Storage
-
Power over Ethernet (PoE): IEEE 802.3af standard simplifies installation with power and data over a single cable
- 10/100 Mbps Ethernet interface
-
Built-in microSD card slot: Supports up to 512GB for local storage and edge recording
-
ONVIF compliant: Profiles G, S, and T for compatibility with third-party systems

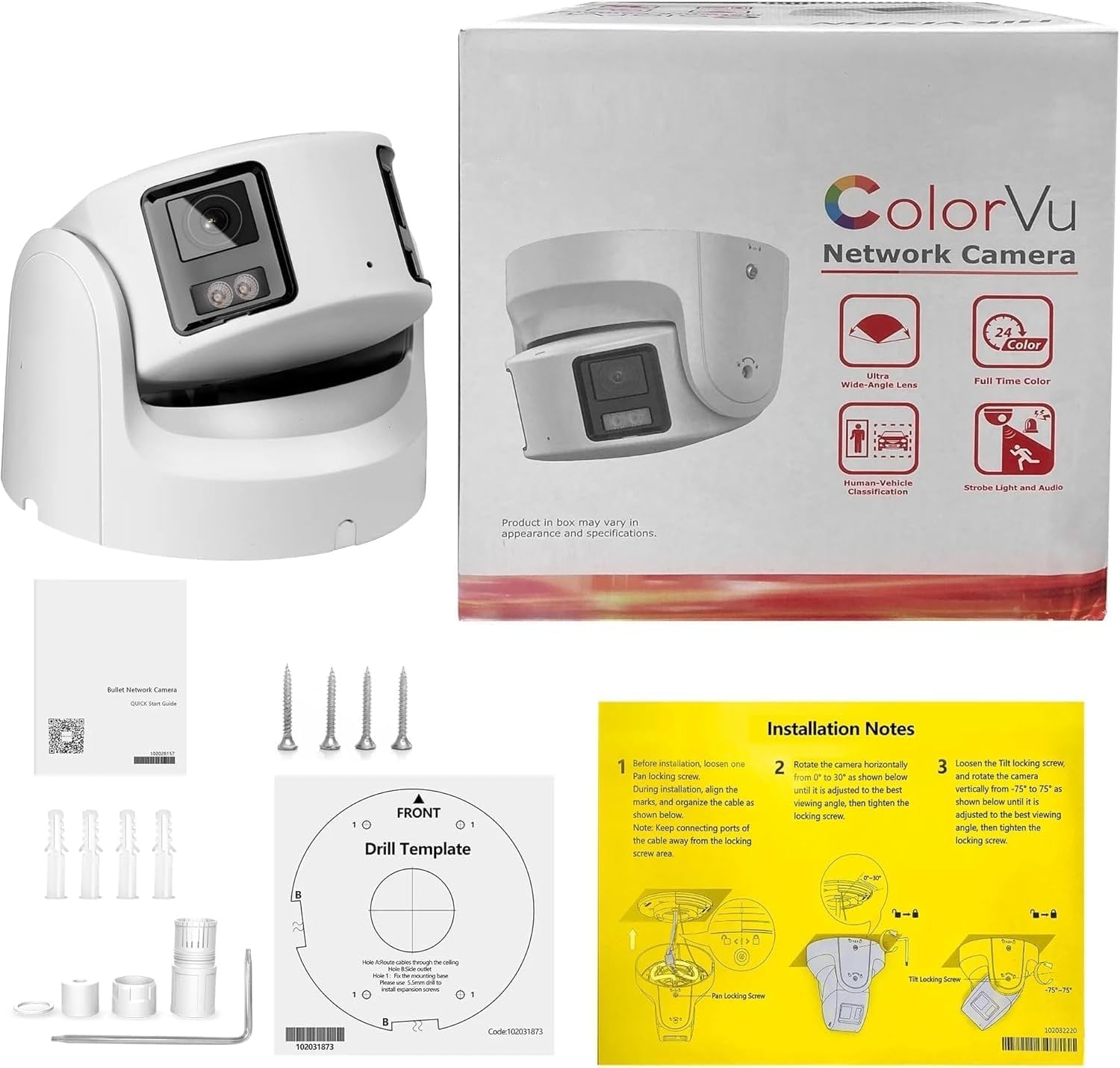

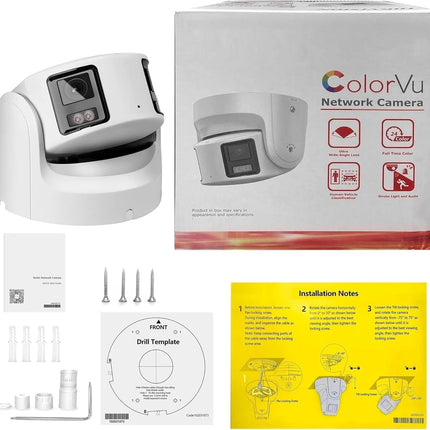

What's in the Box
- DS-2CD2387G2P-LSU/SL Panoramic Turret Camera
- Quick Start Guide
- Mounting template and hardware
- Cable management accessories
Full Specifications
Camera
| Image Sensor |
2 × 1/1.8" Progressive Scan CMOS |
| Maximum Resolution |
5120 × 1440 (8 MP) |
| Minimum Illumination |
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter Time |
1/3 s to 1/100,000 s |
| Angle Adjustment |
Pan: 0° to 30°, Tilt: -75° to 75° |
| Day/Night |
Color |
| Wide Dynamic Range |
130 dB |
Lens
| Lens Type |
Fixed focal lens, Dual lens |
| Focal Length |
4 mm × 2 |
| Field of View |
Horizontal: 180°, Vertical: 44° |
| Aperture |
F1.0 |
| Supplemental Light Range |
Up to 30 m (98 ft) |
Video
| Main Stream (WDR Off) |
50 Hz: 20 fps (5120 × 1440)
60 Hz: 20 fps (5120 × 1440) |
| Main Stream (WDR On) |
50 Hz: 12.5 fps (5120 × 1440)
60 Hz: 15 fps (5120 × 1440) |
| Video Compression |
Main stream: H.265+, H.265, H.264+, H.264
Sub-stream: H.265, H.264, MJPEG |
Audio
| Built-in Audio |
Built-in speaker and microphone |
| Audio Input/Output |
1 input, 1 output |
| Audio Compression |
G.711, G.722.1, G.726, MP2L2, MP3, AAC-LC |
| Audio Bit Rate |
64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz, 16 kHz, 32 kHz, 44.1 kHz, 48 kHz |
Smart Features
| Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting (supports human and vehicle target filtering) |
| Motion Detection |
Human and vehicle target classification |
| Active Deterrence |
Strobe light and audio alarm |
Network & Interfaces
| Ethernet Interface |
1 RJ45 10/100 Mbps self-adaptive |
| On-board Storage |
Built-in microSD card slot, up to 512 GB |
| Alarm Input/Output |
1 input, 1 output |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ISUP, ARP, WebSocket, WebSockets |
| Standards Compliance |
ONVIF (Profile G, S, T) |
Power & Environment
| Power Supply |
12 VDC ± 25%, 0.88 A, max. 10.5 W
PoE: IEEE 802.3af, Class 3, 36-57 VDC, 0.35-0.22 A, max. 12.5 W |
| Power Consumption |
Max. 12.5 W |
| Operating Temperature |
-30°C to 60°C (-22°F to 140°F) |
| Operating Humidity |
95% or less (non-condensing) |
| Ingress Protection |
IP67 |
Physical
| Weight |
Approx. 1110 g (2.4 lb) |
| Weight with Package |
Approx. 1900 g (4.2 lb) |
| Language Support |
33 languages including English, Spanish, French, German, Italian, Portuguese, Russian, Japanese, Korean, Chinese, and more |
Specifications are sourced from the manufacturer product page and may be updated.
