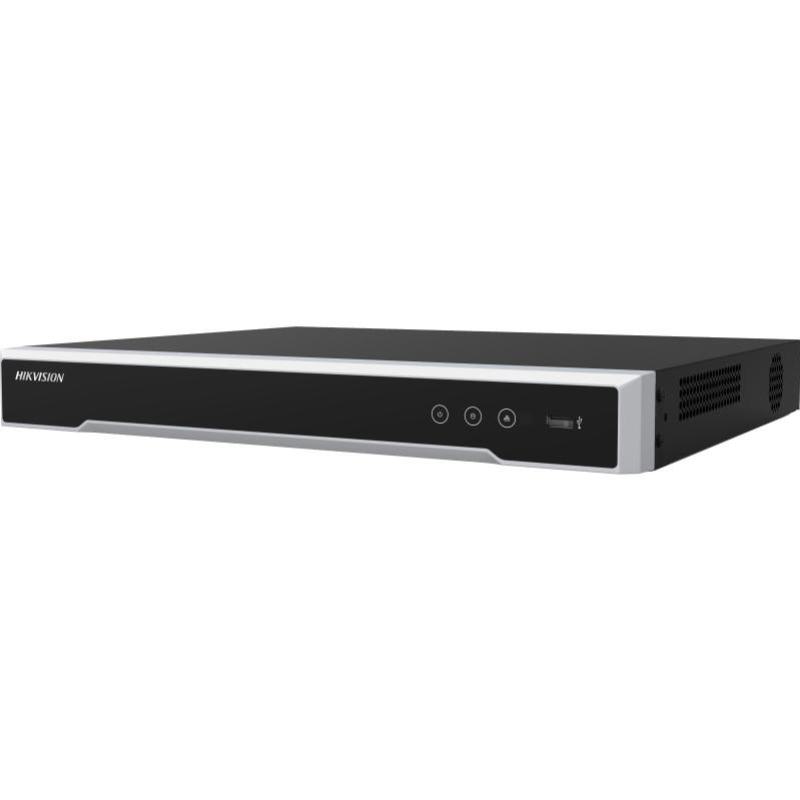

Hikvision DS-7608NI-M2/8P 8 Channel M-Series 8K Network Video Recorder with 4TB HDD
The Hikvision DS-7608NI-M2/8P is a high-performance 8-channel Network Video Recorder from Hikvision's M-Series range, featuring 8K video output, 32MP recording resolution, and 4TB of pre-installed storage. This NVR combines embedded plug-and-play technology with advanced compression formats including H.265+, H.265, H.264+, and H.264, reducing bandwidth and storage requirements by up to 75%. With 8 built-in PoE ports, setup is quick and easy, making it ideal for both domestic and commercial surveillance installations requiring ultra-high-definition video recording.
Professional Performance and Reliability
Built for modern security applications, the DS-7608NI-M2/8P supports up to 8 IP camera inputs with recording resolutions up to 32MP. The NVR features 128Mbps incoming bandwidth and 256Mbps outgoing bandwidth, ensuring smooth streaming and playback even with multiple high-resolution cameras. It offers 8K (7680 × 4320) video output via HDMI and 1080p output via VGA, delivering exceptional image clarity for monitoring and review.
-
Recording Resolution: Supports 32MP, 24MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, and lower resolutions
-
Decoding Capacity: Up to 2-ch@32MP (30fps) + 2-ch@8MP (30fps) or 10-ch@8MP (30fps)
-
H.265+ Compression: Reduces storage space by up to 75% while maintaining video quality
-
Dual-Stream Recording: Simultaneous high and low-resolution streams for flexible monitoring
Plug-and-Play PoE Connectivity
The NVR features 8 independent PoE network interfaces, allowing you to power and connect IP cameras directly without additional power supplies. This embedded plug-and-play functionality simplifies installation and reduces cable clutter, making it perfect for professional installers and DIY users alike.
-
8 PoE Ports: Power and data transmission over a single cable
-
Network Interface: 1 × RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
-
Network Protocols: TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, HTTP, HTTPS, ONVIF 2.2, and more
Expandable Storage and Smart Features
This model includes a 4TB hard drive pre-installed and features 2 SATA interfaces that support HDDs up to 16TB each, for a maximum storage capacity of 32TB. The NVR also supports configurable smart camera functions including VCA detection (motion, line crossing, intrusion), heat mapping, ANPR (Automatic Number Plate Recognition), and people counting for advanced surveillance analytics.
-
Pre-installed Storage: 4TB HDD included
-
Maximum Capacity: 32TB (2 × 16TB HDDs)
-
Video Content Analytics: Motion detection, line crossing, intrusion detection, and more
-
Two-Way Audio: Supports audio communication through connected cameras
High-Resolution Video Output
Experience crystal-clear monitoring with dual video outputs supporting resolutions up to 8K via HDMI and Full HD 1080p via VGA. The NVR supports simultaneous HDMI and VGA output, allowing you to connect multiple displays for comprehensive surveillance coverage.
-
HDMI Output: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
-
VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
-
Synchronous Playback: 8-channel simultaneous playback
What's in the Box
- Hikvision DS-7608NI-M2/8P Network Video Recorder
- 4TB Hard Drive (Pre-installed)
- Power Adapter
- Ethernet Cable
- Mouse
- Quick Start Guide
- Documentation
Full Specifications
Video and Audio
| IP Video Input |
8 channels, up to 32MP resolution |
| Recording Resolution |
32MP/24MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Decoding Capacity |
2-ch@32MP (30fps) + 2-ch@8MP (30fps) / 10-ch@8MP (30fps) / 20-ch@4MP (30fps) / 40-ch@1080p (30fps) |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Two-Way Audio |
Yes |
Network
| Incoming Bandwidth |
128 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| Network Interface |
1 × RJ-45 10/100/1000Mbps Ethernet |
| PoE Ports |
8 independent PoE interfaces (IEEE 802.3af/at) |
| Network Protocols |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS, ONVIF 2.2, OTAP |
Video Output
| HDMI Output |
1 × HDMI: 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| VGA Output |
1 × VGA: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Simultaneous Output |
HDMI and VGA simultaneous output |
Storage
| Pre-installed HDD |
4TB |
| SATA Interfaces |
2 × SATA (up to 16TB per HDD) |
| Maximum Capacity |
32TB (2 × 16TB) |
Smart Features
| VCA Detection |
Motion detection, line crossing, intrusion detection |
| Advanced Analytics |
Heat map, ANPR, people counting |
| POS Support |
POS information overlay, POS-triggered recording and alarm |
Power and Environment
| Power Consumption |
< 15W (without HDD and PoE off) |
| Power Supply |
100 to 240V AC, 50/60Hz |
| Working Temperature |
-10°C to 55°C (14°F to 131°F) |
| Working Humidity |
10% to 90% (non-condensing) |
Physical
| Dimensions (W × D × H) |
385 × 315 × 52 mm (15.2" × 12.4" × 2.0") |
| Weight |
< 3 kg (without HDD) |
| Form Factor |
1U rack-mountable |
Warranty
| Manufacturer Warranty |
3 years |
Specifications are sourced from the manufacturer product page and may be updated.
