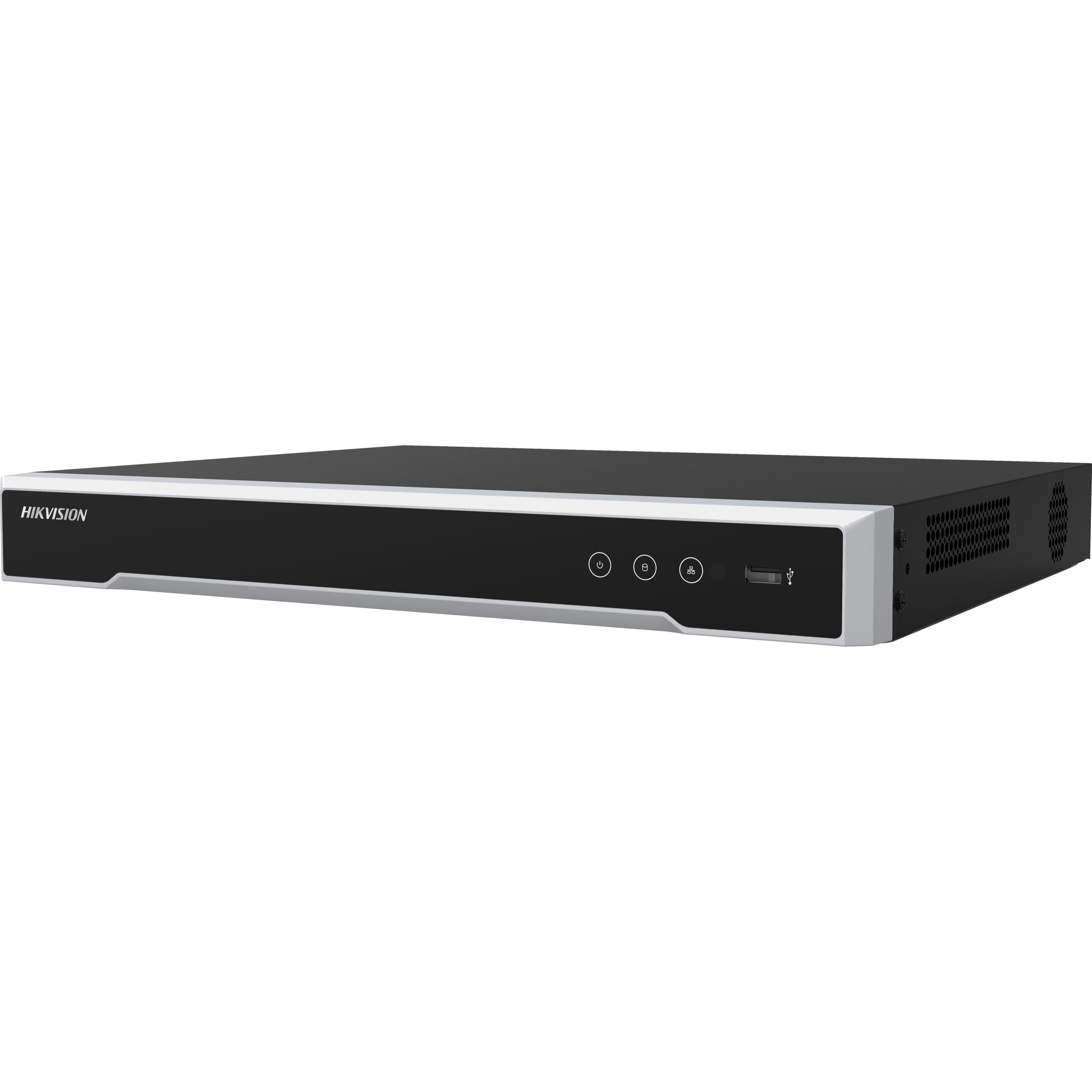

Hikvision DS-7616NI-M2/16P 16-Channel 8K NVR with PoE and 4TB HDD

    Description

    Hikvision DS-7616NI-M2/16P M Series 16-Channel 8K Network Video Recorder with 4TB HDD

    The Hikvision DS-7616NI-M2/16P M Series NVR delivers professional-grade surveillance recording with cutting-edge 8K video output capability and support for up to 32 MP camera resolution. With 16 IP camera channels and built-in 16-port PoE switch, this network video recorder provides a comprehensive plug-and-play solution for commercial and professional security installations. The unit comes equipped with a 4TB hard drive pre-installed for immediate deployment.

    High-Resolution Recording & Display

    • 8K HDMI Output: Display ultra-high-definition video at 7680 × 4320 resolution at 30Hz for exceptional detail
    • Up to 32 MP Recording: Supports recording from cameras up to 32 megapixels (8-channel maximum at ultra-HD resolution)
    • 16-Channel Capacity: Connect and manage up to 16 IP cameras simultaneously
    • Dual Display Options: Independent HDMI and VGA outputs for flexible monitoring configurations

    Advanced Video Compression & Smart Features

    • H.265+ Compression: Reduces storage requirements by up to 75% while maintaining video quality
    • 256 Mbps Bandwidth: High incoming and outgoing bandwidth for smooth streaming and playback
    • 16-Channel Synchronous Playback: Review footage from all cameras simultaneously
    • VCA Detection: Configurable smart functions including motion detection, line crossing, intrusion detection, heat mapping, ANPR (automatic number plate recognition), and people counting
    • Stream over TLS Encryption: Secure stream transmission for enhanced data protection
    • Double Verification: Enhanced security for playback and downloading operations

    Power-over-Ethernet & Connectivity

    • 16 x PoE Ports: Built-in Power-over-Ethernet switch eliminates need for separate camera power supplies
    • Plug & Play: Automatic camera detection and configuration for rapid deployment
    • Two-Way Audio: Support for audio communication via RCA connection
    • Network Interface: RJ45 10/100/1000 Mbps self-adaptive Ethernet
    • USB Ports: Multiple USB interfaces for backup and peripheral connectivity
    • RS-485/RS-232: Serial interfaces for PTZ camera control and external devices

    Storage & Expandability

    • 4TB Pre-installed HDD: Ready to record out of the box
    • Two SATA Interfaces: Supports up to two hard drives for expanded storage capacity
    • Up to 6TB per Drive: Maximum storage expansion capability
    • ANR Technology: Automatic Network Replenishment ensures recording continuity when network is interrupted

    Professional Installation & Management

    • 1U Rack-Mountable Design: Professional chassis suitable for server rack installation
    • Remote Access: Monitor and manage your system via Hik-Connect mobile app or web browser
    • Alarm I/O: 16 alarm inputs and 4 alarm outputs for integration with security systems
    • ONVIF Compliant: Compatible with third-party IP cameras and systems

    What's in the Box

    • DS-7616NI-M2/16P Network Video Recorder
    • 4TB Hard Drive (pre-installed)
    • Power Cable
    • SATA Cable
    • Quick Start Guide
    • Mounting Accessories

    Full Specifications

    Video and Audio

    IP Video Input 16 channels, up to 32 MP resolution
    Incoming Bandwidth 256 Mbps
    Outgoing Bandwidth 256 Mbps
    Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
    HDMI Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
    VGA Output 1920 × 1080/60Hz
    CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω)
    Audio Output 1-ch, RCA (Linear, 1 KΩ)
    Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)

    Decoding

    Decoding Format H.265+/H.265/H.264+/H.264
    Synchronous Playback 16 channels
    Decoding Capability 16-ch@4MP

    Network

    Network Interface 1 × RJ45 10/100/1000 Mbps self-adaptive
    PoE Interface 16 × 10/100 Mbps self-adaptive
    Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

    Storage

    SATA Interfaces 2 × SATA interfaces
    Capacity per HDD Up to 6TB
    Pre-installed HDD 4TB

    External Interfaces

    Serial Interface 1 × RS-485, 1 × RS-232
    USB Interface 2 × front panel, 1 × rear panel
    Alarm In/Out 16 inputs / 4 outputs

    Physical Specifications

    Form Factor 1U rack-mountable
    Weight ≤ 3 kg (without HDD)
    Power Supply 100 to 240 VAC, 50 to 60 Hz
    Power Consumption ≤ 200W (with 16 PoE cameras connected)
    Operating Temperature -10°C to +55°C (14°F to 131°F)
    Operating Humidity 10% to 90% RH (non-condensing)

    Specifications are sourced from the manufacturer product page and may be updated.

    Product form

    Hikvision DS-7616NI-M2/16P 16-Channel 8K NVR with PoE and 4TB HDD

      $1,287.95

        • Guaranteed secure & safe checkout.

          paypal
        • Free shipping on all orders

        Description

        Hikvision DS-7616NI-M2/16P M Series 16-Channel 8K Network Video Recorder with 4TB HDD

        The Hikvision DS-7616NI-M2/16P M Series NVR delivers professional-grade surveillance recording with cutting-edge 8K video output capability and support for up to 32 MP camera resolution. With 16 IP camera channels and built-in 16-port PoE switch, this network video recorder provides a comprehensive plug-and-play solution for commercial and professional security installations. The unit comes equipped with a 4TB hard drive pre-installed for immediate deployment.

        High-Resolution Recording & Display

        • 8K HDMI Output: Display ultra-high-definition video at 7680 × 4320 resolution at 30Hz for exceptional detail
        • Up to 32 MP Recording: Supports recording from cameras up to 32 megapixels (8-channel maximum at ultra-HD resolution)
        • 16-Channel Capacity: Connect and manage up to 16 IP cameras simultaneously
        • Dual Display Options: Independent HDMI and VGA outputs for flexible monitoring configurations

        Advanced Video Compression & Smart Features

        • H.265+ Compression: Reduces storage requirements by up to 75% while maintaining video quality
        • 256 Mbps Bandwidth: High incoming and outgoing bandwidth for smooth streaming and playback
        • 16-Channel Synchronous Playback: Review footage from all cameras simultaneously
        • VCA Detection: Configurable smart functions including motion detection, line crossing, intrusion detection, heat mapping, ANPR (automatic number plate recognition), and people counting
        • Stream over TLS Encryption: Secure stream transmission for enhanced data protection
        • Double Verification: Enhanced security for playback and downloading operations

        Power-over-Ethernet & Connectivity

        • 16 x PoE Ports: Built-in Power-over-Ethernet switch eliminates need for separate camera power supplies
        • Plug & Play: Automatic camera detection and configuration for rapid deployment
        • Two-Way Audio: Support for audio communication via RCA connection
        • Network Interface: RJ45 10/100/1000 Mbps self-adaptive Ethernet
        • USB Ports: Multiple USB interfaces for backup and peripheral connectivity
        • RS-485/RS-232: Serial interfaces for PTZ camera control and external devices

        Storage & Expandability

        • 4TB Pre-installed HDD: Ready to record out of the box
        • Two SATA Interfaces: Supports up to two hard drives for expanded storage capacity
        • Up to 6TB per Drive: Maximum storage expansion capability
        • ANR Technology: Automatic Network Replenishment ensures recording continuity when network is interrupted

        Professional Installation & Management

        • 1U Rack-Mountable Design: Professional chassis suitable for server rack installation
        • Remote Access: Monitor and manage your system via Hik-Connect mobile app or web browser
        • Alarm I/O: 16 alarm inputs and 4 alarm outputs for integration with security systems
        • ONVIF Compliant: Compatible with third-party IP cameras and systems

        What's in the Box

        • DS-7616NI-M2/16P Network Video Recorder
        • 4TB Hard Drive (pre-installed)
        • Power Cable
        • SATA Cable
        • Quick Start Guide
        • Mounting Accessories

        Full Specifications

        Video and Audio

        IP Video Input 16 channels, up to 32 MP resolution
        Incoming Bandwidth 256 Mbps
        Outgoing Bandwidth 256 Mbps
        Recording Resolution 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
        HDMI Output 8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz
        VGA Output 1920 × 1080/60Hz
        CVBS Output 1-ch, BNC (1.0 Vp-p, 75 Ω)
        Audio Output 1-ch, RCA (Linear, 1 KΩ)
        Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ)

        Decoding

        Decoding Format H.265+/H.265/H.264+/H.264
        Synchronous Playback 16 channels
        Decoding Capability 16-ch@4MP

        Network

        Network Interface 1 × RJ45 10/100/1000 Mbps self-adaptive
        PoE Interface 16 × 10/100 Mbps self-adaptive
        Network Protocol TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, RTSP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS

        Storage

        SATA Interfaces 2 × SATA interfaces
        Capacity per HDD Up to 6TB
        Pre-installed HDD 4TB

        External Interfaces

        Serial Interface 1 × RS-485, 1 × RS-232
        USB Interface 2 × front panel, 1 × rear panel
        Alarm In/Out 16 inputs / 4 outputs

        Physical Specifications

        Form Factor 1U rack-mountable
        Weight ≤ 3 kg (without HDD)
        Power Supply 100 to 240 VAC, 50 to 60 Hz
        Power Consumption ≤ 200W (with 16 PoE cameras connected)
        Operating Temperature -10°C to +55°C (14°F to 131°F)
        Operating Humidity 10% to 90% RH (non-condensing)

        Specifications are sourced from the manufacturer product page and may be updated.
