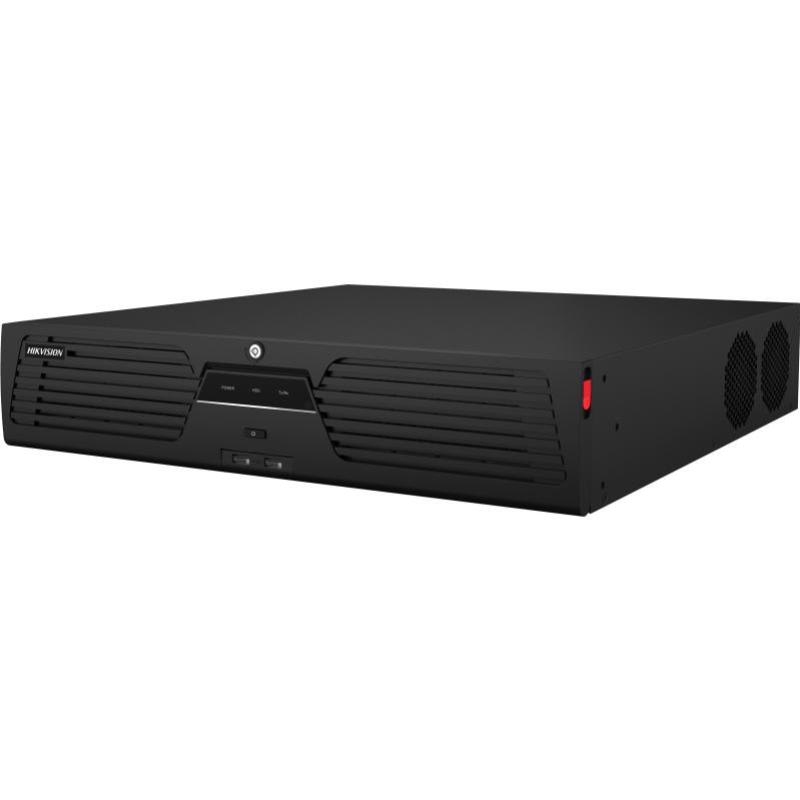

Hikvision DS-9664NI-M8 64-Channel 8K Network Video Recorder (No HDD)
The Hikvision DS-9664NI-M8 is a professional 64-channel M-Series Network Video Recorder designed for extensive surveillance setups requiring high resolution and advanced functionalities. This 2U rack-mounted NVR supports IP cameras up to 32MP resolution and delivers exceptional 8K video output capabilities, making it ideal for enterprise-grade security installations.
High-Resolution Recording and Playback
The DS-9664NI-M8 handles up to 64 IP camera inputs with impressive decoding capacity supporting 2 channels at 32MP, 2 channels at 24MP, 4 channels at 12MP, 8 channels at 8MP, 16 channels at 4MP, or 32 channels at 1080p. With 16-channel synchronous playback, you can efficiently review recorded footage from multiple cameras simultaneously.
-
Incoming/Outgoing Bandwidth: Up to 400 Mbps for smooth video transmission
-
Video Compression: H.265+, H.265, H.264+, and H.264 formats reduce storage by up to 75%
-
Recording Resolution: Supports cameras up to 32 megapixels
Stunning 8K Video Output
Experience ultra-high-definition monitoring with dual HDMI outputs supporting 8K resolution (7680 × 4320) at 30Hz on HDMI 1, or dual 4K outputs for flexible display configurations. The NVR also features two VGA outputs and a CVBS output for legacy display compatibility.
-
HDMI 1 Output: 8K (7680 × 4320)/30Hz, 4K/60Hz, 2K/60Hz, 1920 × 1080/60Hz
-
HDMI 2 Output: 4K (3840 × 2160)/60Hz, 2K/60Hz, 1920 × 1080/60Hz
-
VGA Outputs: Dual VGA at 1920 × 1080/60Hz
Massive Storage Capacity with RAID Support
Built for reliable long-term recording, the DS-9664NI-M8 features 8 SATA interfaces supporting HDDs up to 14TB each, for a maximum total capacity of 112TB (HDDs sold separately). An additional eSATA interface provides external storage expansion options.
-
RAID Support: RAID 0, 1, 5, 6, 10, and N+M hot spare for data redundancy
-
Storage Configuration: 8 internal SATA bays + 1 eSATA port
-
HDD Capacity: Up to 14TB per drive
Advanced Smart Features
The M-Series NVR supports specialized cameras and intelligent video analytics for enhanced security monitoring:
-
Special Camera Support: People counting, ANPR (automatic number plate recognition), and fisheye cameras
-
VCA Detection: Motion detection, line crossing, intrusion detection, heat mapping
-
Advanced Streaming Technology: Smooth live view even in poor network conditions
-
Two-Way Audio: 1-channel RCA audio input/output communication
-
IP Speaker Support: Connect up to 8-channel IP speakers
Universal Connectivity
- 2 × HDMI outputs (different sources)
- 2 × VGA outputs (different sources)
- 1 × CVBS output (BNC)
- 2 × RJ45 10/100/1000 Mbps Ethernet interfaces
- 2 × USB 2.0 ports
- 1 × USB 3.0 port
- 16 alarm inputs / 4 alarm outputs
- 2-channel audio output (RCA)
- 1-channel two-way audio (RCA)
- 8 × SATA HDD interfaces
- 1 × eSATA interface
What's in the Box
- Hikvision DS-9664NI-M8 Network Video Recorder
- Mouse
- Power Cable
- Ethernet Cable
- HDD Connection Wiring
- Quick Start Guide
- User Manual
Full Specifications
Video and Audio
| IP Video Input |
64 channels |
| Incoming Bandwidth |
400 Mbps |
| Outgoing Bandwidth |
400 Mbps |
| Video Compression |
H.265+, H.265, H.264+, H.264 |
| Maximum Recording Resolution |
Up to 32MP |
| Decoding Capacity |
2-ch@32MP/2-ch@24MP/4-ch@12MP/8-ch@8MP/16-ch@4MP/32-ch@1080p |
| Synchronous Playback |
16 channels |
| Audio Input/Output |
1/2 channels (RCA) |
| Two-Way Audio |
1 channel (RCA, 2.0 Vp-p, 1 kΩ) |
Display Outputs
| HDMI 1 Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output |
4K (3840 × 2160)/60Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| VGA 1 Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA 2 Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), PAL: 704 × 576, NTSC: 704 × 480 |
Storage
| SATA Interfaces |
8 interfaces |
| eSATA Interface |
1 interface |
| Maximum HDD Capacity |
Up to 14TB per drive (112TB total) |
| RAID Support |
RAID 0, 1, 5, 6, 10, and N+M hot spare |
Network and Interfaces
| Network Interface |
2 × RJ45 10/100/1000 Mbps self-adaptive Ethernet |
| USB Interface |
2 × USB 2.0, 1 × USB 3.0 |
| Alarm Input/Output |
16 inputs / 4 outputs |
| Controllable 12V DC Output |
1A power output for external alarm device |
Smart Features
| Special Camera Support |
People counting, ANPR, fisheye cameras |
| VCA Detection |
Motion, line crossing, intrusion, heat mapping |
| Streaming Technology |
Advanced streaming for smooth live view in poor network conditions |
| IP Speaker Support |
Up to 8 channels |
General
| Power Supply |
100 to 240V AC |
| Power Consumption |
< 50W (without HDD) |
| Working Temperature |
-10°C to 55°C (14°F to 131°F) |
| Working Humidity |
10% to 90% (non-condensing) |
| Chassis |
19-inch rack-mounted 2U |
| Dimensions (W × D × H) |
445 × 465 × 93 mm (17.5 × 18.3 × 3.7 inches) |
| Weight |
10 kg (22 lb) without HDD |
| Certifications |
CE, FCC Part 15 Subpart B |
Specifications are sourced from the manufacturer product page and may be updated.
