Hikvision KD8 Pro Modular Door Station with 2MP Fisheye Camera & PoE
The Hikvision DS-KD8003-IME1(B) KD8 Series Pro Modular Door Station is a professional video intercom and access control solution designed for residential and commercial applications. Featuring a 2MP fisheye camera with IR supplement lighting, this main unit delivers high-definition video with 146° horizontal and 82° vertical field of view for broad coverage. With IP65 weatherproof rating, two-way audio with noise suppression, and standard PoE power supply, it provides convenient and reliable door communication and security monitoring.
Key Features
-
2MP Fisheye Camera: High-definition video with 1920 × 1080 resolution and wide-angle fisheye lens for comprehensive coverage
-
IR Supplement Lighting: Enhanced visibility in low-light conditions for 24/7 monitoring
-
Two-Way Audio: Built-in omnidirectional microphone and loudspeaker (more than 85 dB within 20 cm) with noise suppression and echo cancellation
-
Two-Lock Control: Supports 2 relay outputs for controlling multiple access points (Max. 30 VDC, 2 A)
-
Standard PoE Power: IEEE 802.3af Power over Ethernet or 12 VDC power options for flexible installation
-
IP65 Protection: Weatherproof design suitable for outdoor installation in harsh environments
-
Modular System: Compatible with various add-on modules including keypad, card reader, nametag, and indicator modules
-
Web Configuration: Convenient remote configuration via web interface
Wide Field of View Coverage
The 2MP fisheye camera provides an ultra-wide 146° horizontal and 82° vertical field of view, ensuring comprehensive coverage of the entrance area. Combined with IR supplement lighting, the door station maintains clear visibility even in complete darkness, making it ideal for 24-hour security monitoring.
Professional Audio System
Equipped with a built-in omnidirectional microphone and high-output loudspeaker, the door station delivers crystal-clear two-way communication. Advanced noise suppression and echo cancellation technology ensures conversations remain clear even in noisy environments. H.264 video compression and 64 Kbps audio compression provide efficient bandwidth usage while maintaining quality.
Flexible Power and Connectivity
The door station supports both standard PoE (IEEE 802.3af) and 12 VDC power supply options, simplifying installation by combining power and data transmission through a single cable. The unit directly provides 12 V, 500 mA power output for one electronic lock without requiring additional power supply. With 10/100 Mbps self-adaptive Ethernet and TCP/IP, RTSP network protocols, integration into existing network infrastructure is seamless.
Modular Expandability
As part of the KD8 Series Pro system, the main unit supports easy expansion with various sub-modules:

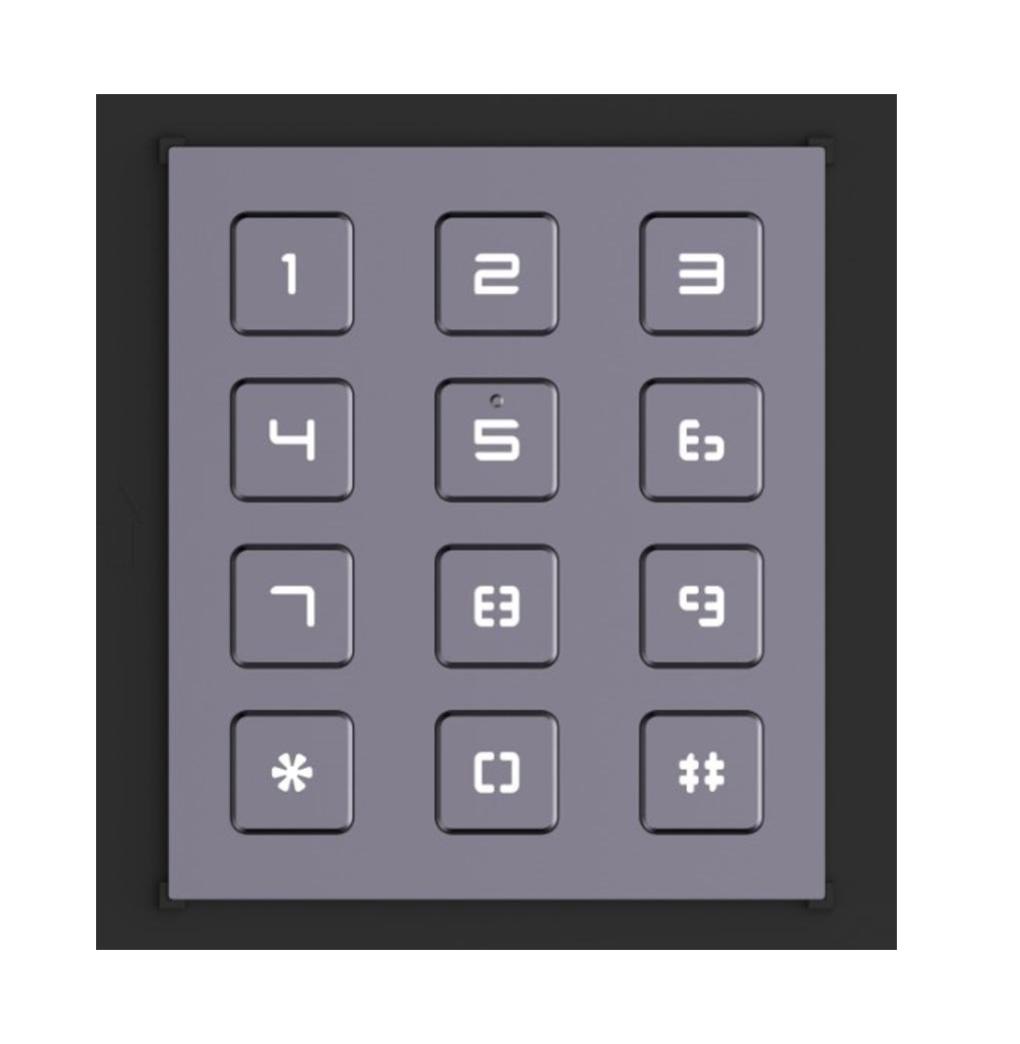

- Keypad Module (DS-KD-KP) for PIN code access
- Card Reader Module (DS-KD-M/DS-KD-E) for RFID card access
- Nametag Module (DS-KD-KK) with six call buttons
- Indicator Module (DS-KD-IN) for status display
- Blank Module (DS-KD-BK) for filling unused grid spaces
Advanced Access Control
The door station features comprehensive I/O capabilities with 4 alarm inputs and 2 relay outputs for controlling electronic locks and monitoring tampering. Operating on an embedded Linux system with 32 MB ROM and 256 MB RAM, the unit provides reliable performance for demanding security applications. The system operates in extreme temperatures from -40°C to 60°C and humidity levels from 10% to 95%.
What's in the Box
- DS-KD8003-IME1(B) Main Door Station Module
- Quick Start Guide
- Documentation
Full Specifications
System Parameters
| Processor |
Embedded high performance processor |
| Operating System |
Linux |
| ROM |
32 MB |
| RAM |
256 MB |
| Operation Method |
Physical button |
Video Parameters
| Camera |
2 MP HD fisheye camera |
| Resolution |
Main stream: 1920 × 1080, Sub stream: 720 × 480 |
| Field of View |
Horizontal: 146°, Vertical: 82° |
| Wide Dynamic Range |
Supported |
| Supplement Light |
Low illumination, IR supplement lights |
| Video Compression |
H.264 |
Audio Parameters
| Audio Input |
Built-in omnidirectional microphone |
| Audio Output |
Built-in loudspeaker (more than 85 dB within 20 cm) |
| Audio Compression Bitrate |
64 Kbps |
| Audio Quality |
Noise suppression and echo cancellation |
Network Parameters
| Ethernet |
10/100 Mbps self-adaptive Ethernet |
| Network Protocol |
TCP/IP, RTSP |
Device Interfaces
| Alarm Input |
Tampering alarm, 4-ch I/O input |
| I/O Output |
2 relay outputs |
| Lock Control |
2 relays, Max. 30 VDC, 2 A |
General Specifications
| Power Supply |
12 VDC, 500 mA or IEEE 802.3af PoE |
| Power Consumption |
≤ 5 W |
| Working Temperature |
-40°C to 60°C (-40°F to 140°F) |
| Working Humidity |
10% to 95% |
| Protective Level |
IP65 |
| Dimensions (L × W × H) |
98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65") |
| Weight |
0.38 kg (device only), 0.541 kg (with packaging) |
| Application Environment |
Outdoor |
| Languages |
English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Slovak |
Specifications are sourced from the manufacturer product page and may be updated.
