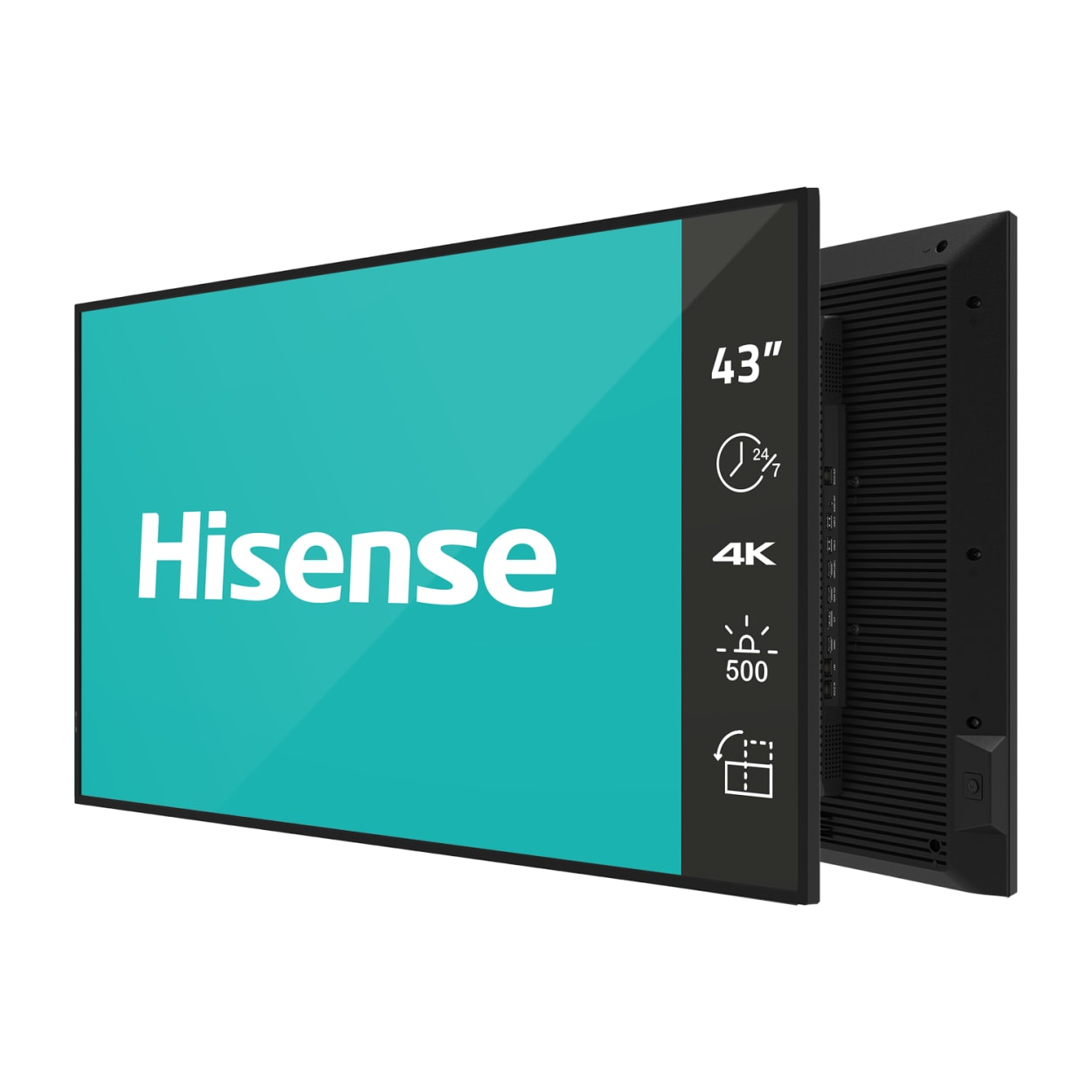

Hisense 43DM66D 43 Inch 4K UHD Digital Signage Display with Android 11
The Hisense 43DM66D is a professional-grade 43-inch 4K UHD digital signage display designed for continuous 24/7 operation in commercial environments. Featuring a stunning 3840 × 2160 IPS panel with 500 nits brightness, this display delivers crystal-clear visuals with wide viewing angles, making it ideal for retail stores, museums, transportation hubs, restaurants, corporate buildings, and any public space requiring reliable digital signage. Powered by Android 11, the 43DM66D offers smart content management capabilities and seamless wireless screen sharing through the built-in ScreenShare application.
Why Choose the Hisense 43DM66D Digital Signage Display?
-
24/7 Commercial-Grade Operation: Built for round-the-clock reliability in demanding business environments
-
4K UHD IPS Panel: Stunning 3840 × 2160 resolution with wide viewing angles ensures content looks perfect from any position
-
500 Nits Brightness: Superior visibility in various lighting conditions with anti-glare coating to reduce reflections
-
Android 11 Smart Platform: Run apps, manage content, and control multiple displays remotely via Hisense VisionInfo software
-
Wireless Screen Sharing Built-In: ScreenShare technology enables seamless content casting from laptops, smartphones, and tablets
-
Versatile Orientation: Supports both portrait and landscape mounting for maximum installation flexibility
Professional Display Technology for Business
The DM66D Series delivers powerful engagement from any device with real-time updates, data-driven insights, and visually appealing content. The IPS Direct-LED panel provides exceptional color accuracy across 178-degree viewing angles, while the 1200:1 contrast ratio ensures deep blacks and vibrant colors. With an 8ms response time and support for 1.07 billion colors, this display handles dynamic video content with ease.
Smart Features and Connectivity
Equipped with comprehensive connectivity options, the 43DM66D simplifies integration into existing AV infrastructure:
-
HDMI 2.0 inputs × 2: Connect media players, computers, and other HDMI sources
-
DisplayPort 1.2a × 1: Professional-grade digital video input
-
HDMI output × 1: Daisy-chain multiple displays from a single video source
-
USB 3.0 × 1 and USB 2.0 × 1: Play content directly from USB drives or connect peripherals
-
Dual-band Wi-Fi (2.4/5.0GHz): 802.11a/b/g/n/ac wireless connectivity
-
Bluetooth 5.1: Wireless audio and peripheral connectivity
-
LAN (RJ45): Ethernet connection for network management and content delivery
-
RS232 (RJ45): Professional control and automation integration
-
3.5mm audio output: External speaker connection
Intelligent Power Management and Ambient Sensing
The built-in ambient light sensor automatically adjusts screen brightness according to current lighting conditions, optimising visibility while reducing power consumption. Energy Star 8.0 certified, the 43DM66D helps businesses meet sustainability goals with intelligent power management. The display consumes 80W typical power (120W maximum) and features standby mode using less than 0.5W.
Slim Bezel Design and Easy Installation
With a narrow 10.1mm bezel on three sides, the 43DM66D offers a sleek, modern appearance perfect for video wall configurations and seamless multi-screen installations. All terminals face outward, ensuring the display mounts flush against the wall, saving space and simplifying cable management. The integrated cable holder keeps the back of the display tidy and uncluttered. VESA 300mm × 300mm mounting compatibility provides flexible installation options.
Built-In Audio and Content Management
The 43DM66D features dual 10W built-in speakers, eliminating the need for external audio in many installations. Content can be managed via Hisense VisionInfo, a cloud-based device management platform offering end-to-end control across all displays. Manage devices anytime from anywhere with this powerful, user-friendly CMS solution. The display supports quad split-screen functionality for enhanced versatility.
Commercial Durability and Protection
Engineered for demanding commercial use, the 43DM66D includes conformal coating to protect electronic components from moisture, dust, salt, chemicals, temperature changes, and mechanical abrasion. The IP5X rating ensures dust protection, while the anti-glare 25% haze coating reduces reflections without affecting image quality. Operating temperature range of 0°C to 40°C ensures reliable performance in diverse environments.
What's in the Box
- Hisense 43DM66D 43" Digital Signage Display
- Quick Setup Guide
- Warranty Card
- Power Cord
- Remote Controller
- 2 × AAA Batteries
- RS232 Converter Cable (RJ45)
Full Specifications
Display Panel
| Screen Size |
43 inches (109.2 cm diagonal) |
| Panel Type |
IPS LCD with Direct LED backlight |
| Native Resolution |
4K UHD (3840 × 2160 pixels) |
| Brightness (Typical) |
500 cd/m² (nits) |
| Contrast Ratio (Typical) |
1200:1 |
| Response Time (Typical) |
8 ms |
| Viewing Angle |
178° horizontal / 178° vertical |
| Color Depth |
1.07 billion colors (10-bit) |
| Refresh Rate |
60 Hz |
| Anti-Glare Coating |
25% haze level |
Smart System
| Operating System |
Android 11 |
| Processor |
Cortex A55 |
| Memory |
3 GB DDR4 SDRAM |
| Wireless Screen Sharing |
ScreenShare (built-in), supports quad split screen |
| Content Management |
Compatible with Hisense VisionInfo (cloud-based CMS) |
Connectivity
| Video Inputs |
2 × HDMI 2.0, 1 × DisplayPort 1.2a |
| Video Outputs |
1 × HDMI (for daisy-chaining) |
| USB Ports |
1 × USB 3.0 Type-A, 1 × USB 2.0 Type-A |
| Network |
1 × LAN (RJ45 Ethernet) |
| Control |
1 × RS232 input (RJ45), 1 × RS232 output (RJ45) |
| Audio Output |
1 × 3.5mm stereo jack |
| Wi-Fi |
Dual-band 2.4/5.0 GHz, 802.11a/b/g/n/ac |
| Bluetooth |
Bluetooth 5.1 |
Audio
| Built-In Speakers |
2 × 10W |
Power and Environment
| Power Supply |
AC 100-240V, 50/60Hz |
| Power Consumption (Typical) |
80W |
| Power Consumption (Maximum) |
120W |
| Standby Power |
Less than 0.5W |
| Operating Hours |
24/7 continuous operation |
| Operating Temperature |
0°C to 40°C |
| Operating Humidity |
10% to 80% (non-condensing) |
| Energy Star |
Energy Star 8.0 certified |
| Ambient Light Sensor |
Yes (auto brightness adjustment) |
Physical Specifications
| Bezel Color |
Black |
| Bezel Width |
10.1mm (top/left/right), 10.3mm (bottom) |
| Display Dimensions (W × H × D) |
970.4 × 557.5 × 62.8 mm (38.2 × 21.9 × 2.5 inches) |
| Net Weight |
8.5 kg (18.7 lbs) |
| Package Dimensions (W × H × D) |
1092 × 663 × 145 mm (43 × 26.1 × 5.7 inches) |
| Gross Weight |
12.5 kg (27.56 lbs) |
| VESA Mount |
300mm × 300mm |
| Orientation |
Portrait and landscape |
| IP Rating |
IP5X (dust protection) |
Certifications
| Safety Certifications |
CCC, CB, CE, FCC, cTUVus, UKCA, CEC, ERP |
| Safety Standard |
IEC 62368-1 |
Specifications are sourced from the manufacturer product page and may be updated.
