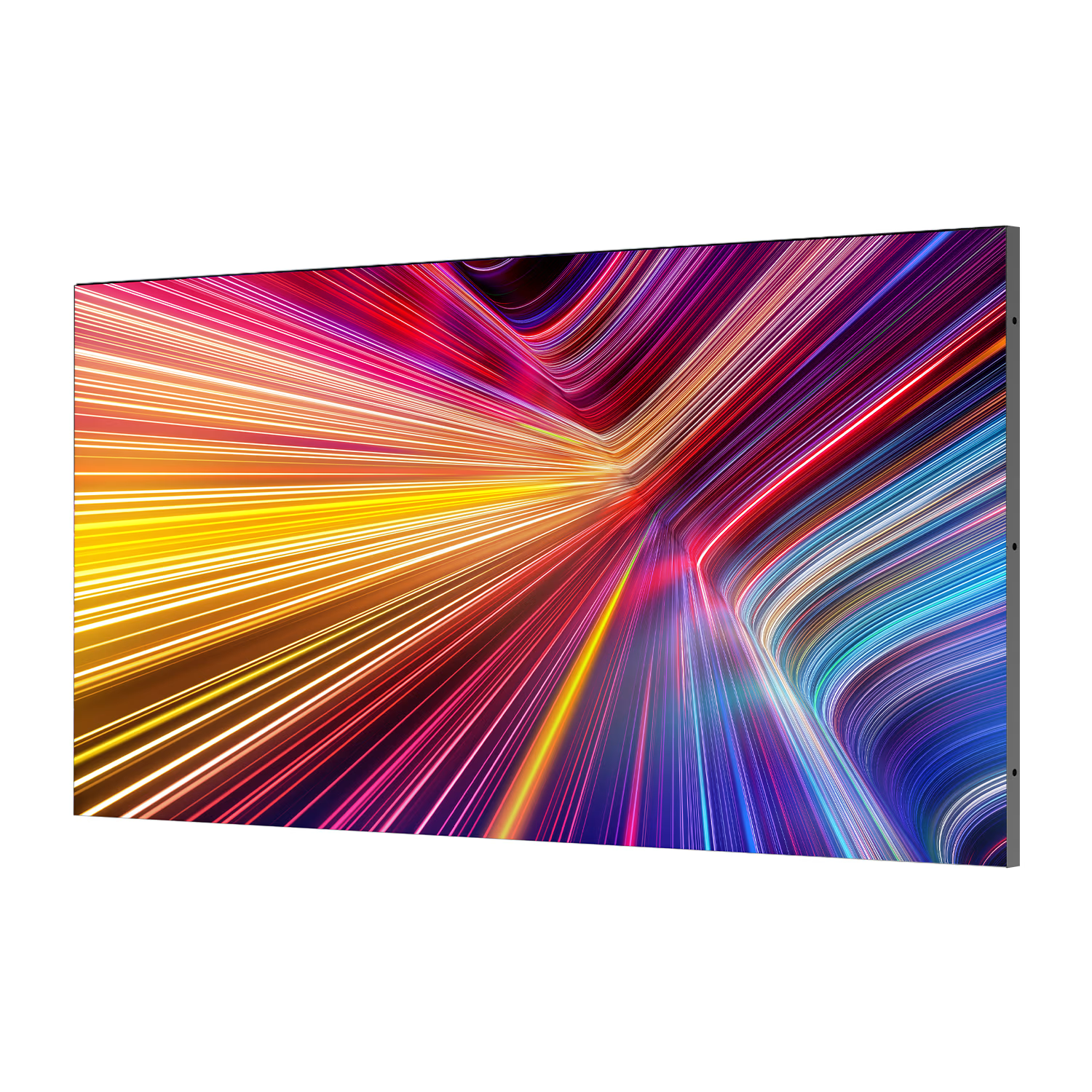

Hisense 54DS012FE 54" LED Digital Signage Display with ASIC Chipset
Transform your commercial space with the Hisense 54DS012FE, a revolutionary 54-inch LED digital signage display that delivers exceptional visual performance for mission-critical environments. Featuring an advanced ASIC chipset, this next-generation display offers 25,000:1 contrast ratio, up to 1200 nits peak brightness, and native 4K signal transmission via HDMI 2.0. Perfect for command centres, broadcast facilities, XR virtual production studios, conference venues, and exhibition spaces across Australia.
Key Features
-
Premium COB LED Technology: Full-flip Chip-on-Board display with 1.25mm pixel pitch delivers stunning clarity and zero-gap splicing for seamless video walls
-
Exceptional Brightness: 600 nits typical, 1000 nits max, 1200 nits peak brightness ensures visibility in any lighting condition
-
Advanced ASIC Architecture: Enables lossless 4K at 60Hz transmission, eliminating the need for external transmitter or receiver cards
-
HDMI Daisy-Chaining: Controller-free 1:1 pixel mapping for up to 4×4 LED wall configurations with effortless single-cable signal transmission
-
Ultra-Wide Colour Gamut: Over 100% DCI-P3 colour space with 14-bit colour depth for accurate, vibrant imagery
-
Energy Efficient: Up to 20% lower power consumption compared to previous generation, with maximum screen temperature below 40°C
Outstanding Picture Quality for Professional Applications
The Hisense 54DS012FE utilises a premium full-flip COB display that ensures zero-gap splicing while delivering a stunning 25,000:1 contrast ratio at 1000 nits. With 165° horizontal and 150° vertical viewing angles, your content remains visible from virtually any position. The display's native 4K resolution capability through HDMI 2.0 provides 16 times the bandwidth of conventional systems, ensuring every detail is reproduced with exceptional clarity. Ideal for control rooms, broadcast studios, and high-end corporate environments where visual accuracy is paramount.
Simplified Installation and Seamless Integration
Installation is up to three times faster than traditional LED displays thanks to the smart modular design featuring 16 large-size modules (150 × 337.5mm each). The display supports VESA 600 × 400 mounting, allowing you to reuse existing brackets for quick, plug-and-play installation. The innovative HDMI daisy-chaining feature eliminates complex controllers and cabling, enabling perfectly synchronized tiling with lossless image quality across entire LED walls. Carton-packaged units ensure safe handling while optimizing storage and logistics.
Integrated Cloud-Based Management
The 54DS012FE includes the Hisense VisionInfo CMS platform, an integrated cloud-based system offering comprehensive device control and management capabilities. Monitor and operate your displays remotely, schedule content, and manage multiple units seamlessly. Perfect for multi-site installations and environments requiring centralized content management.
Built for 24/7 Mission-Critical Operation
Engineered for unwavering reliability, this display excels in demanding environments with 100,000 hours lifetime. Certified to EMC Class B standards, it offers reduced electromagnetic interference and enhanced stability. The efficient power supply and 3-in-1 ASIC architecture with optimized common cathode drivers ensure low heat generation and maximum product durability, making it ideal for continuous operation in command centres, transportation hubs, and broadcast facilities.
Universal Connectivity
- 1 × HDMI 2.0 Input
- 1 × HDMI 2.0 Output (daisy-chain)
- 1 × LAN Input
- 1 × LAN Output
- 1 × USB 2.0
What's in the Box
- Hisense 54DS012FE LED Digital Signage Display
- 16 × LED Modules (150 × 337.5mm)
- Power Cable
- User Manual
- Quick Setup Guide
Full Specifications
Display
| Screen Size |
54 inches (diagonal) |
| Pixel Pitch |
1.25mm |
| Pixel Configuration |
Flip-chip COB (1 red, 1 green, 1 blue) |
| Screen Resolution (W × H) |
960 × 540 |
| Aspect Ratio |
16:9 |
| Brightness (Typical) |
600 nits |
| Brightness (Maximum) |
1000 nits |
| Brightness (Peak) |
1200 nits |
| Contrast Ratio |
25,000:1 @ 10lux 1000 nits / 15,000:1 @ 10lux 600 nits |
| Viewing Angle (H × V) |
165° × 150° |
| Bit Depth |
14-bit |
| Color Temperature |
6500K ± 500K |
| Color Gamut |
>100% DCI-P3 |
| Brightness Uniformity |
97% |
| Color Uniformity |
±0.003 Cx, Cy |
Physical
| Module Dimensions (W × H) |
150 × 337.5mm (5.91 × 13.29 inches) |
| Modules per Cabinet (W × H) |
8 × 2 |
| Screen Dimensions (W × H × D) |
1200 × 675 × 31.3mm (47.24 × 26.57 × 1.23 inches) |
| Screen Dimensions with Frame (W × H × D) |
1204 × 679 × 32.8mm (47.40 × 26.73 × 1.29 inches) |
| Cabinet Material |
Die-cast Aluminium |
| Net Weight |
18kg (39.68 lbs) |
| Gross Weight |
26.6kg (58.64 lbs) |
| VESA Mount |
600 × 400mm (M8 screws, hole depth 10mm) |
Connectivity
| HDMI 2.0 Input |
1 |
| HDMI 2.0 Output |
1 |
| LAN Input |
1 |
| LAN Output |
1 |
| USB 2.0 |
1 |
Power & Environment
| Max Power Consumption @ 1000 nits |
346 W/m² / 280 W/Cabinet |
| Max Power Consumption @ 600 nits |
247 W/m² / 200 W/Cabinet |
| Avg Power Consumption @ 1000 nits |
156 W/m² / 126 W/Cabinet |
| Avg Power Consumption @ 600 nits |
114 W/m² / 92 W/Cabinet |
| Operating Temperature / Humidity |
0~40°C / 10~85% RH |
| Storage Temperature / Humidity |
-20~60°C / 10~90% RH |
| Lifetime |
100,000 hours |
| Certification |
EMC Class B |
Packaging
| Packing Method |
Cardboard Box for Cabinets / Modules & Accessories |
| Packaging Dimensions (W × H × D) |
1320 × 969 × 263mm (51.97 × 38.14 × 10.35 inches) |
Specifications are sourced from the official manufacturer product page and may be updated.
