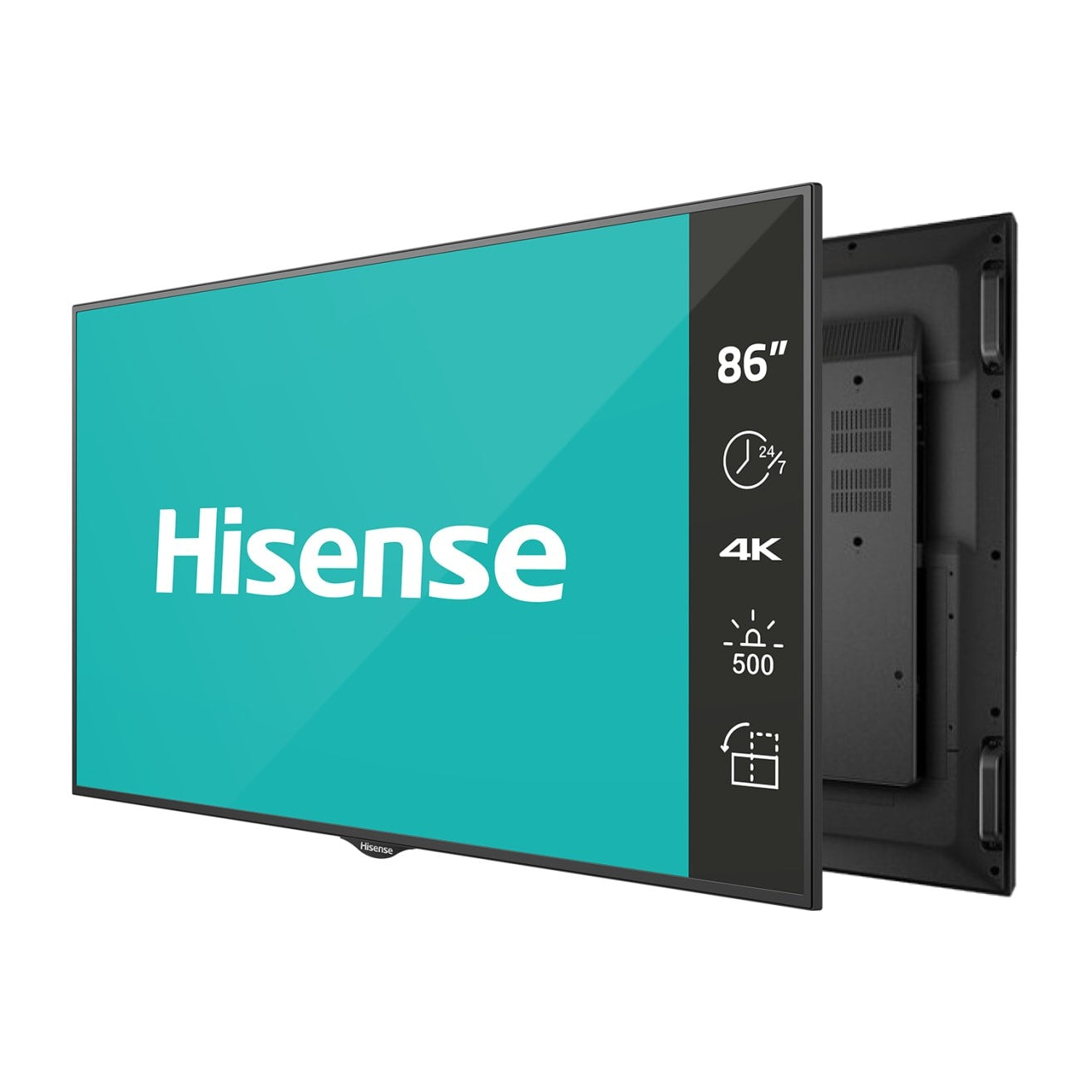

Hisense 86BM66AE 86" 4K UHD Digital Signage Display with 24/7 Operation
The Hisense 86BM66AE is an 86-inch 4K UHD digital signage display engineered for continuous 24/7 operation in commercial environments. With 500 nits brightness, IPS panel technology, and intelligent temperature control, this display is perfectly suited for retail locations, public transport hubs, restaurants, shopping malls, and office buildings. Featuring dual-core SoC technology for PC-less content management and an ultra-slim bezel design, the 86BM66AE delivers vibrant, reliable messaging around the clock.
Key Features
-
24/7 Continuous Operation: Built with dual-core System on Chip (SoC) technology for reliable round-the-clock digital signage in offline or cloud-based environments
-
Brilliant 4K UHD Picture: 3840 × 2160 resolution with IPS panel technology delivers vivid colours and wide 178° viewing angles
-
High Brightness Display: 500 nits typical brightness ensures content stands out even in well-lit commercial spaces
-
Smart Content Management: Android 9.0 OS with integrated CMS platform allows easy playlist editing and cloud-based content control
-
Intelligent Temperature Control: Automatic brightness adjustment at 75°C and standby mode at 100°C protects the display during extended operation
-
Ultra-Slim Bezels: 15.5mm bezels (0.60 inches) create an elegant, unobtrusive appearance that keeps focus on your content
Round-the-Clock Reliability
The BM66AE series is designed for mission-critical environments with zero downtime. Dual-core SoC technology enables both offline and cloud-based content management 24 hours a day, 7 days a week. The display features a 50,000-hour panel lifetime and 120Hz refresh rate for smooth motion reproduction. Intelligent ambient light sensors automatically adjust screen brightness to optimise energy usage and viewing comfort throughout the day.
Flexible Content Management
Hisense's integrated CMS platform makes content management easy and user-friendly. Edit and arrange playlists, schedule broadcasts by timezone, and monitor display status in real-time. The system supports all rich media content in synchronous playback across multiple commercial displays. Customise startup logos, animations, and wallpapers to create a uniform brand experience. The detachable Hisense logo enables seamless video wall configurations.
Comprehensive Connectivity
The 86BM66AE offers versatile input options for maximum compatibility:
- 2 × HDMI ports for digital video sources
- 1 × DisplayPort (DP) for high-resolution content
- 1 × DVI input for legacy computer connections
- 1 × VGA input for analogue devices
- 2 × USB ports (USB 2.0 and USB 3.0) for media playback
- 1 × RJ45 LAN port for network connectivity
- Wi-Fi support for wireless content delivery
- 1 × RS232 port (RJ45) for remote control and integration
- SD/TF card slot for offline content playback
- 1 × HDMI output for daisy-chaining displays
- 1 × Audio output
Perfect for Commercial Applications
Ideal for retail stores, transportation terminals, corporate lobbies, restaurants, museums, and stadiums. The slim body design blends seamlessly into any environment while making your on-screen messaging stand out. Landscape and portrait orientation support provides installation flexibility for various commercial settings. VESA 600 × 400mm mounting compatibility enables secure wall-mounting, hanging, or video wall configurations.
What's in the Box
- Hisense 86BM66AE 86" Digital Signage Display
- User manual
- Remote controller with battery
- Power cord
- Logo accessory
Full Specifications
Display Panel
| Screen Size |
86 inches |
| Panel Type |
IPS |
| Backlight |
ELED |
| Resolution |
3840 × 2160 (4K UHD) |
| Refresh Rate |
120Hz |
| Brightness |
500 nits (typical) |
| Contrast Ratio |
1100:1 (typical) |
| Viewing Angle |
178° (H) / 178° (V) |
| Orientation |
Landscape & Portrait |
| Panel Lifetime |
50,000 hours |
| Operation Hours |
24 hours × 7 days |
Smart System
| Operating System |
Android 9.0 |
| Processor |
ARM Cortex-A53 Quad core |
| GPU |
Mali-G52 |
| Language |
English / Chinese |
| OPS Compatible |
Yes |
Audio
| Built-in Speakers |
15W × 2 |
| External Audio |
Supported |
Connectivity
| HDMI Input |
2 × HDMI |
| DisplayPort |
1 × DP |
| DVI Input |
1 × DVI |
| VGA Input |
1 × VGA |
| USB |
2 × USB (USB 2.0 and USB 3.0) |
| LAN |
1 × RJ45 |
| Wi-Fi |
Yes |
| SD/TF Card Slot |
Yes |
| RS232 |
1 × RS232 (RJ45) |
| HDMI Output |
1 × HDMI |
| Audio Output |
1 × Audio |
Control Method
| Remote Control |
IR Remote |
| RS232 Control |
Yes (RJ45) |
Power
| Power Input |
AC 100V-240V @ 50-60Hz |
| Power Consumption (Max) |
300W |
| Standby Consumption |
<0.5W |
Physical Specifications
| Bezel Colour |
Black |
| Bezel Width |
15.5mm (0.60 inches) - T/B/L/R |
| Dimensions (W × H × D) |
1927.2 × 1098 × 72.1mm (75.9 × 43.2 × 2.8 inches) |
| Net Weight |
62kg (136.7 lbs) |
| Package Dimensions (W × H × D) |
2127 × 1312 × 297mm (83.7 × 51.7 × 11.7 inches) |
| Packed Weight |
76.1kg (167.8 lbs) |
| VESA Mount |
600mm × 400mm |
Certifications
| Standard Certification |
CB / CE / ErP / cTUVus / CEC / FCC / RCM |
Specifications are sourced from the manufacturer product page and may be updated.
