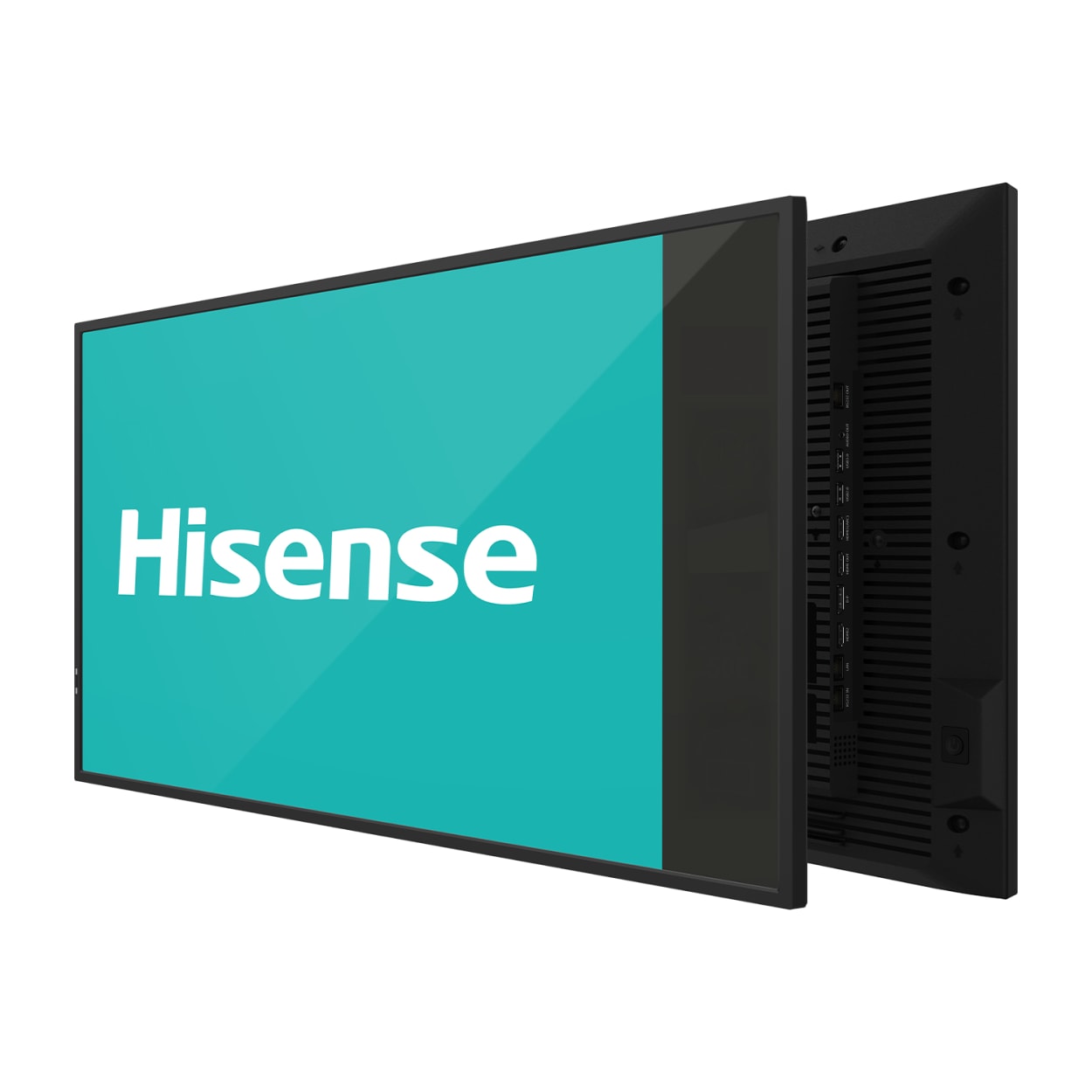

Hisense 86DM66GE 86" 4K UHD Digital Signage Display with Android 14
Transform your commercial space with the Hisense 86DM66GE, an 86-inch 4K UHD digital signage display engineered for continuous 24/7 operation. Ideal for high-traffic retail stores, corporate lobbies, restaurants, museums, transportation hubs, and educational institutions across Australia, this professional-grade display delivers 500-nit brightness for vivid, attention-grabbing content in any lighting condition. Powered by Android 14 and the integrated VisionInfo platform, the DM66GE provides seamless content management, remote monitoring, and real-time updates from anywhere, making it the perfect future-proof solution for mission-critical digital signage applications.
Why You'll Love the Hisense 86DM66GE
-
Stunning 4K UHD Resolution: 3840 × 2160 pixel display delivers four times the detail of Full HD for crystal-clear images, text, and video content
-
24/7 Commercial-Grade Reliability: Engineered for continuous operation with up to 50,000 hours of lifetime, perfect for always-on digital signage environments
-
500 Nit High Brightness: Ensures your content stands out and captures attention even in brightly lit retail and corporate spaces
-
Android 14 Smart Platform: Run apps directly on the display with flexible integration, seamless OTA updates, and user-friendly controls
-
VisionInfo Cloud Management: Control content, schedule updates, and monitor all your displays remotely from a single intuitive cloud platform
-
Enterprise Wireless Screen Sharing: Built-in low-latency cross-platform casting from laptops, tablets, and smartphones for dynamic workflows
Brilliant 4K UHD Picture Quality
The 86-inch ADS panel with Direct LED backlighting delivers exceptional image quality with 1200:1 contrast ratio and 72% NTSC colour gamut. With 1.07 billion colours (10-bit FRC), every image is rendered with lifelike accuracy and vibrant detail. The 178-degree viewing angles ensure your content looks perfect from any position, while the 25% anti-glare haze coating reduces reflections for optimal visibility in challenging lighting conditions.
Smart Content Management with Android 14
Powered by Android 14 operating system with an ARM Cortex-A73 quad-core processor, 4GB DDR4 RAM, and 32GB storage, the 86DM66GE offers a flexible, open ecosystem for third-party app installations. The integrated VisionInfo platform enables end-to-end cloud-based content management, scheduling, remote updates, and centralized device control. Manage your digital signage network from anywhere with real-time monitoring and seamless device management capabilities.
Built for Mission-Critical Environments
Designed for reliable 24/7 operation, the DM66GE features intelligent thermal management, IP5X dust protection, and conformal coating that protects electronic components from moisture, dust, salt, chemicals, and temperature changes. The Smart Power technology includes a built-in ambient light sensor that automatically adjusts brightness according to current lighting conditions, reducing power consumption and extending display lifetime. ENERGY STAR certified for reduced environmental impact and lower operating costs.
Versatile Installation and Connectivity
The narrow bezel design creates a sleek, modern appearance perfect for video wall installations or standalone use. Supports both portrait and landscape orientation with VESA 600 × 400mm mounting. All terminals face outwards for flush wall mounting, and the integrated cable management system keeps installations clean and professional.
Universal Connectivity
-
HDMI 2.0 × 2 inputs
-
DisplayPort 1.2a × 1 input
-
USB-A 2.0 × 1
-
USB-A 3.0 × 1
-
LAN (RJ45) × 1 for network control
-
RS-232 (RJ45) × 1 input for system integration
-
HDMI × 1 output for daisy-chaining displays
-
Audio Out (3.5mm) × 1
-
RS-232 (RJ45) × 1 output
-
Wi-Fi 6 (802.11 a/b/g/n/ac/ax) dual-band 2.4/5.0GHz
- Bluetooth 5.4
What's in the Box
- Hisense 86DM66GE 86" Digital Signage Display
- Quick Setup Guide
- Warranty Card
- Power Cord (Australian plug)
- IR Remote Controller
- Batteries for Remote
- RS232 Converter Cable
Full Specifications
Display
| Panel Size |
86 inches (diagonal) |
| Panel Type |
ADS (Advanced Super Dimension Switch) |
| Backlight |
Direct LED (DLED) |
| Resolution |
3840 × 2160 (4K UHD) |
| Refresh Rate |
60Hz |
| Brightness |
500 nits (typical) |
| Contrast Ratio |
1200:1 (typical) |
| Response Time |
8ms (typical) |
| Viewing Angle |
178° horizontal / 178° vertical |
| Colour Gamut |
72% NTSC (typical) |
| Colour Depth |
1.07 billion colours (8-bit + FRC) |
| Haze Level |
25% anti-glare |
| Orientation |
Landscape and Portrait |
| Lifetime |
Up to 50,000 hours |
| Operation Hours |
24/7 continuous |
Smart System
| Operating System |
Android 14 |
| CPU |
ARM Cortex-A73 Quad-core Processor |
| GPU |
Mali-G57 MC1 |
| Memory (RAM) |
4GB DDR4 |
| Storage (ROM) |
32GB EMMC |
Connectivity
| Wi-Fi |
Wi-Fi 6, 2.4/5.0GHz dual-band, 802.11 a/b/g/n/ac/ax |
| Bluetooth |
Bluetooth 5.4 |
| HDMI Input |
HDMI 2.0 × 2 |
| DisplayPort Input |
DisplayPort 1.2a × 1 |
| USB Input |
USB 2.0 (Type-A) × 1, USB 3.0 (Type-A) × 1 |
| RS-232 Input |
RS-232 (RJ45) × 1 |
| LAN |
RJ45 × 1 |
| HDMI Output |
HDMI × 1 |
| Audio Output |
3.5mm × 1 |
| RS-232 Output |
RS-232 (RJ45) × 1 |
Power and Environment
| Power Supply |
AC 100-240V, 50/60Hz |
| Power Consumption (Typical) |
Approx. 200-260W |
| Standby Consumption |
<0.5W |
| Certifications |
ENERGY STAR 8.0, CE, FCC, cTUVus, UKCA, CEC, ERP, CB, CCC |
| Dust Protection |
IP5X certified |
Physical Specifications
| Bezel Colour |
Black |
| Dimensions (W × H × D) |
1926.6 × 1095.5 × 64.2mm (75.9 × 43.1 × 2.5 inches) |
| Bezel Width |
10.3mm (top/left/right), 10.8mm (bottom) |
| Net Weight |
38.2kg (84.2 lbs) |
| Package Dimensions (W × H × D) |
2117 × 1298 × 269mm (83.3 × 51.1 × 10.6 inches) |
| Gross Weight |
59.5kg (131.2 lbs) |
| VESA Mount |
600 × 400mm |
What's in the Box
| Contents |
86DM66GE Display, Quick Setup Guide, Warranty Card, Power Cord, Remote Controller, Batteries, RS232 Converter Cable |
Specifications are sourced from the manufacturer product page and may be updated.
