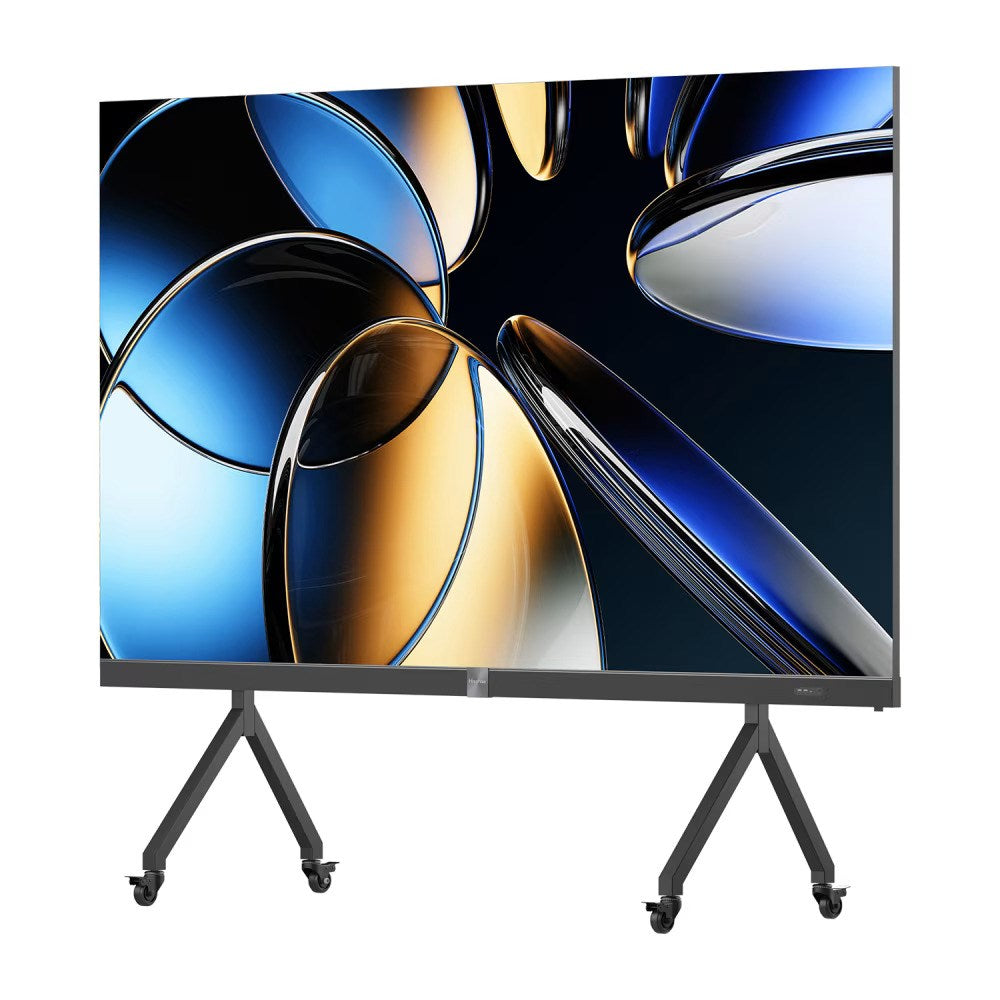

Hisense HAIO136 136" Full HD All-in-One LED Display
Create the ultimate immersive AV experience with the Hisense HAIO136 136" All-in-One LED Display. This innovative Full HD (1920 × 1080) commercial display simplifies large-format LED installations with an integrated video controller, built-in speakers, Wi-Fi, and Android 9.0 OS for standalone deployment. Perfect for boardrooms, galleries, retail spaces, conference rooms, and high-end meeting environments, the HAIO136 delivers vivid detail, exceptional color depth, and immersive stereo sound in one sleek, professional package.
Why You'll Love the Hisense HAIO136
-
Massive 136" Display: Full HD resolution with 1.56mm pixel pitch delivers lifelike colours and crystal-clear detail visible from any angle
-
All-in-One Design: Embedded video controller, six 10W speakers, Wi-Fi, and Android OS eliminate the need for external equipment
-
Smart Installation: Two people can complete installation in just 1.5 hours with included wall mount and simple power connection
-
AI Picture Quality: Hisense ASIC precision dimming controls each LED pixel for optimal brightness and chromaticity
-
Easy Maintenance: Front-access LED modules can be replaced in 1 minute with Smart Calibration, no recalibration needed
-
Flexible Connectivity: HDMI, USB-C, USB 2.0, LAN, Wi-Fi, and NFC make content sharing effortless
Stunning Visual Performance
The HAIO136 is equipped with Hisense's unique ASIC picture quality solution for precision dimming. This advanced technology controls each LED pixel to accurately express brightness and chromaticity information, significantly improving the brightness and contrast of the large screen. With adjustable brightness up to 600 nits, 5000:1 contrast ratio, and HDR support, the display adapts to your environment with smart light sensing that automatically adjusts brightness levels. The 160° viewing angle ensures perfect visibility for large groups viewing from different positions, while the 3840 Hz refresh rate delivers smooth, flicker-free motion ideal for video conferencing and dynamic content.
Immersive Audio Experience
Enjoy theater-like sound quality with six built-in 10W speakers delivering a total of 60W output power. The HAIO136 features Dolby and DTS audio dual decoding, multiple sound modes, and Hi-Fi stereo surround sound. For those who prefer external audio systems, the display includes HDMI ARC, optical SPDIF, and 3.5mm audio outputs for seamless integration with your existing room sound system.
Smart Display Features
Running on Android 9.0 with 3GB RAM and 64GB ROM, the HAIO136 offers intelligent screen management without additional devices. Smart features include:
-
Automatic Brightness Adjustment: Smart light sensing adapts to ambient conditions
-
Real-Time Monitoring: All-around screen status monitoring prevents short circuits and overheating
-
Intelligent Screen Casting: Wirelessly cast content from mobile devices via NFC or WPS connection
-
AI Picture Processing: AIPQ technology intelligently recognises content and adapts display parameters in real time
Universal Connectivity
Push content to the display effortlessly with comprehensive connectivity options:
-
2 × HDMI 2.0 inputs (one external, one internal)
-
1 × USB-C 3.0 input
-
2 × USB 2.0 Type-A ports
-
1 × LAN (Ethernet) port
-
1 × RS-232 (internal, for control)
-
Wi-Fi: 2.4G and 5G dual-band
- Bluetooth 5.0
-
NFC for quick wireless screen casting
-
Audio Outputs: SPDIF optical, 3.5mm audio out
-
OPS Slot: Optional upgrade modules supported
Sleek, Space-Saving Design

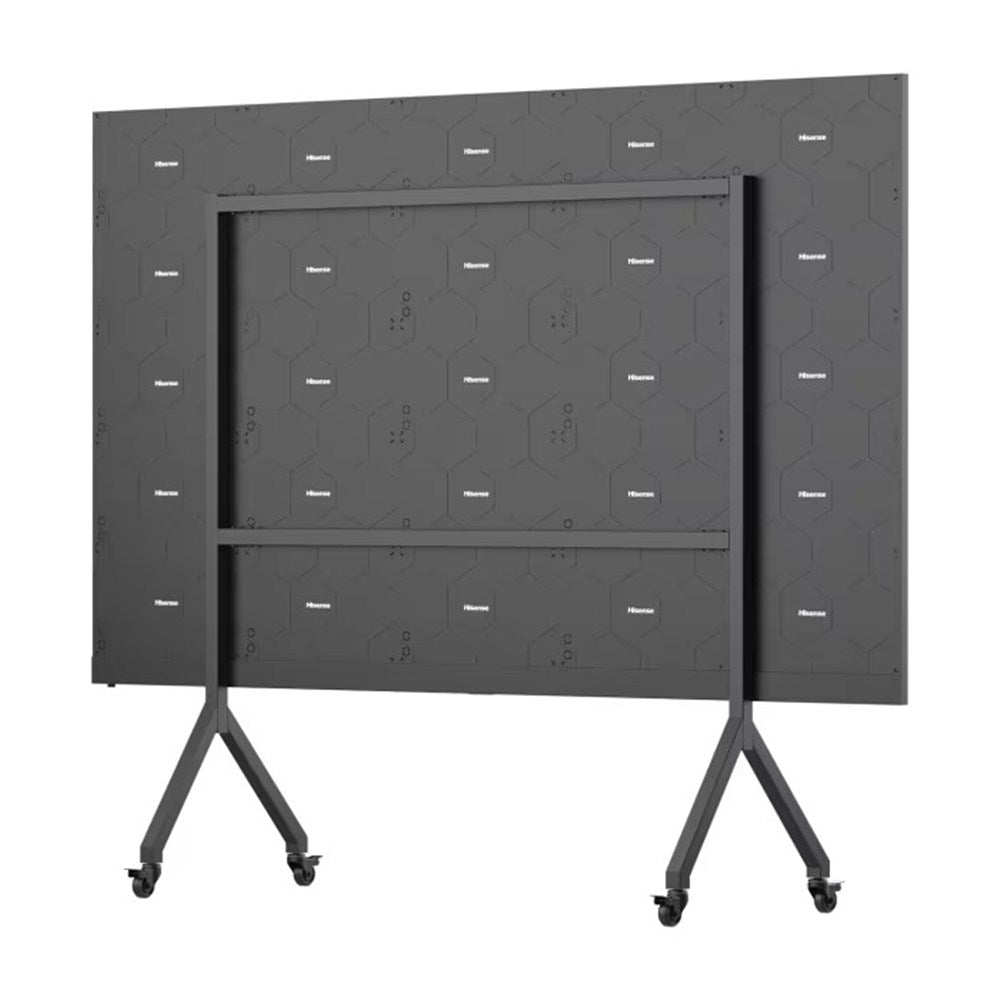

The HAIO136 features an industrial aesthetic minimalist design with an ultra-slim 32.3mm profile (including frame). The ultra-narrow bezel and 95% screen ratio create an elegant, nearly seamless visual experience. At just 110kg total weight, the lightweight construction allows flexible installation options with the included elegant wall bracket or optional mobile cart (sold separately).
Quick Installation & Easy Maintenance
Designed for two-person installation in just 1.5 hours, the HAIO136 includes everything you need: wall mount, fully automated configuration setup, and simple single-power-connection design. The display offers full front installation and maintenance to minimise installation space requirements. LED modules feature front-access replacement that can be completed in one minute with Smart Calibration, normalising the display on site without recalibration.
Built for Commercial Reliability
The HAIO136 is engineered for 24/7 commercial use in demanding environments. With an expected LED lifetime of 100,000 hours, operating temperature range of 0-40°C, and 3-year manufacturer warranty with swap service, this display is a long-term investment for professional applications including corporate boardrooms, retail digital signage, education, hospitality, and residential home cinema installations.
What's in the Box
- Hisense HAIO136 136" LED All-in-One Display (100 LED modules pre-installed: 20 × 5 configuration)
- Wall mounting bracket
- Power cable
- Remote control
- Quick start guide
- User manual
Full Specifications
Display
| Screen Size |
136" (diagonal) |
| Resolution |
Full HD 1920 × 1080 pixels |
| Pixel Pitch |
1.5625mm |
| Pixel Configuration |
3-in-1 SMD LED |
| Brightness |
100-600 nits (adjustable) |
| Contrast Ratio |
5000:1 |
| Viewing Angle (H × V) |
150° × 140° / 160° |
| Refresh Rate |
3840 Hz |
| HDR Support |
Yes |
| LED Grayscale |
14-bit |
| Expected LED Lifetime |
100,000 hours |
Physical Specifications
| Module Dimensions (W × H) |
150 × 337.5mm (5.9 × 13.3 inches) |
| Number of Modules |
20 × 5 (100 total modules) |
| Screen Dimensions (W × H × D) |
3004 × 1774.5 × 32.3mm (118.3 × 69.9 × 1.27 inches) with frame |
| Cabinet Dimensions (W × H × D) |
600 × 337.5 × 29.3mm per cabinet |
| Weight per Cabinet |
4kg (8.82 lbs) |
| Total Screen Weight |
110kg (242.5 lbs) |
| Pixel Density |
409,600 pixels/m² |
| Screen Ratio |
95% |
Audio
| Built-in Speakers |
6 × 10W (60W total output) |
| Audio Technology |
Hi-Fi stereo, Dolby Audio, DTS digital decoding |
| Audio Outputs |
HDMI ARC, SPDIF optical, 3.5mm audio out |
| Sound Modes |
Multiple modes available |
Smart System
| Operating System |
Android 9.0 |
| Processor |
CA73 × 4, 1.3GHz |
| GPU |
G52 MC1 |
| RAM |
3GB DDR |
| Storage |
64GB ROM |
| Languages |
English (default), Chinese, French, German, Spanish, Italian, Polish, Arabic, Russian |
Connectivity & I/O
| HDMI Inputs |
2 × HDMI 2.0 (1 external, 1 internal) |
| USB-C |
1 × USB 3.0 / Type-C (not full function) |
| USB-A |
2 × USB 2.0 Type-A |
| LAN |
1 × Ethernet (RJ45) |
| RS-232 |
1 × RS-232 (internal, for control) |
| Wi-Fi |
Dual-band 2.4GHz and 5GHz |
| Bluetooth |
Bluetooth 5.0 |
| NFC |
Yes, for wireless screen casting |
| OPS Slot |
Yes (optional upgrade modules) |
| Audio Output |
SPDIF optical, 3.5mm audio out |
Power & Environment
| Operating Temperature |
0 - 40°C |
| Operating Humidity |
10% - 90% RH (no frost) |
| Storage Temperature |
-20 - 40°C |
| Storage Humidity |
10% - 65% RH (no frost) |
| Power Connection |
Single power connection |
Installation & Warranty
| Installation Type |
Wall mount (included) or mobile cart (sold separately) |
| Installation Time |
1.5 hours (2 persons) |
| Module Access |
Front access for maintenance |
| Module Replacement Time |
1 minute with Smart Calibration |
| Warranty |
3 years with swap service |
What's in the Box
| Package Contents |
HAIO136 display (100 modules), wall bracket, power cable, remote control, user manual, quick start guide |
| Packing Method |
Flight case for cabinets/modules/wall bracket/accessories |
| Package Dimensions (W × H × D) |
1005 × 2055 × 765mm (39.56 × 80.90 × 30.12 inches) |
| Net / Gross Weight |
110kg / 200kg (242.5 lbs / 440.9 lbs) with wall bracket |
Specifications are sourced from the official manufacturer product page and may be updated.
