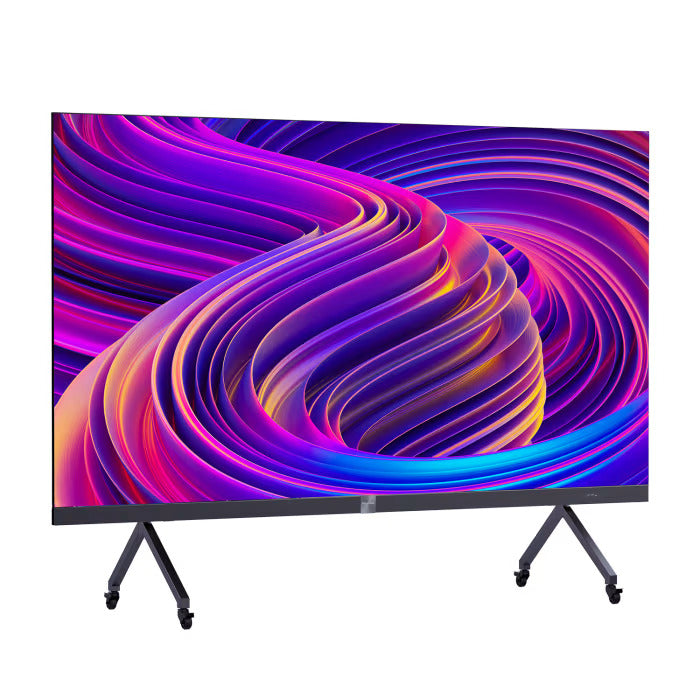

Hisense HAIO163 163" Full HD LED All-in-One Display
Transform your boardroom or commercial space with the Hisense HAIO163 163" Full HD LED All-in-One Display. This massive 163-inch LED video wall delivers stunning 1920 × 1080 Full HD resolution with 500 nits brightness and vivid, lifelike colors perfect for galleries, retail environments, conference rooms, and educational facilities. With everything you need built-in including an integrated video controller, 60W stereo speakers, Wi-Fi connectivity, and Android OS, the HAIO163 simplifies large-scale digital signage installation while delivering unmatched visual impact.
Key Features
-
163-inch immersive display: Create a captivating visual experience with a screen measuring 3605 × 2027mm
-
Full HD 1920 × 1080 resolution: Crystal-clear image quality with fine 1.875mm pixel pitch
-
500 nits brightness: Vivid imagery in any lighting condition, day or night
-
3000:1 contrast ratio: Deep blacks and bright whites with full array local dimming technology
-
160° wide viewing angle: Perfect visibility for large groups from diverse angles
-
All-in-one design: Embedded video controller, built-in speakers, Wi-Fi, and Android OS for stand-alone deployment
Ultra Picture Quality Technology
The HAIO163 is equipped with Hisense's exclusive ASIC picture quality solution for precision dimming that controls each LED pixel to accurately express brightness and chromaticity information. Advanced image processing includes color enhancement, multi-grayscale correction, MEMC motion smoothing, HDR support, and super resolution technologies for detailed, vivid imagery. Full array local dimming reduces backlight intensity in specific areas to dramatically improve contrast.
Smart Display Features
Intelligent automation makes the HAIO163 ideal for 24/7 commercial applications. Smart light sensing automatically adjusts brightness according to ambient light, while real-time monitoring tracks screen status to avoid short circuits and high temperatures. The display supports dual-core SOC technology for PC-less offline or cloud-based content management, ensuring reliable content delivery around the clock.
Effortless Installation and Maintenance
Designed for simplicity, the LED modules can be replaced easily with front access installation. With Smart Calibration, module replacement can be completed in one minute, and the display normalizes without recalibration on site. The ultra-slim 40mm depth minimizes space requirements, while the minimalist industrial design fits elegantly into any environment. The display is dustproof, waterproof, anti-static, anti-knock, and anti-salt spray rated for durability.
Immersive Audio Experience
Enjoy theater-quality sound with 60W stereo audio powered by four 15W speakers. The HAIO163 features Dolby and DTS audio dual decoding for shocking bass and bright treble. Headphone and line-level 3.5mm audio outputs are available if you prefer to connect an external sound system.
Universal Connectivity
-
2 × HDMI inputs: Connect media players, PCs, and AV sources
-
2 × USB-A ports: Play content directly from USB drives
-
LAN (Ethernet): Wired network connectivity for content management
-
Wi-Fi (integrated): Wireless screen casting and network connectivity
-
OPS slot: Optional upgrade modules for expanded functionality
-
3.5mm audio outputs: Headphone and line-level connections
Ideal Applications
The HAIO163 is perfect for corporate boardrooms, retail digital signage, galleries and museums, educational institutions, command and control centers, hospitality venues, and anywhere an immersive, large-format display is required. With Android OS built-in, you can run apps, display presentations, stream content, and manage digital signage without external devices.
What's in the Box
- Hisense HAIO163 163" LED All-in-One Display (fully assembled)
- Integrated video controller
- Built-in speakers (4 × 15W)
- Power cable
- User manual
- Installation accessories
Full Specifications
Display
| Screen Size |
163 inches (diagonal) |
| Resolution |
1920 × 1080 Full HD |
| Pixel Pitch |
1.875mm |
| Pixel Configuration |
3-in-1 SMD |
| Brightness |
500 nits (cd/m²) |
| Contrast Ratio |
3000:1 (static) |
| Viewing Angle |
160° (H) × 160° (V) |
| HDR Support |
Yes |
Physical
| Screen Dimensions (W × H × D) |
3605 × 2027 × 40mm (141.93 × 79.8 × 1.57 inches) |
| Module Dimensions (W × H) |
150 × 337.5mm (5.9 × 13.29 inches) |
| Cabinet Configuration |
6 × 6 cabinets per screen |
Smart System
| Operating System |
Android 9.0 |
| Processor |
Dual-core SOC technology |
| Smart Features |
Auto brightness adjustment, real-time monitoring, smart screen casting |
Audio
| Built-in Speakers |
4 × 15W (60W total) |
| Audio Decoding |
Dolby & DTS dual decoding |
| Audio Output |
3.5mm headphone & line-level outputs |
I/O Interfaces
| HDMI |
2 × HDMI inputs |
| USB |
2 × USB-A |
| Network |
LAN (Ethernet), Wi-Fi (integrated) |
| Expansion |
OPS slot for optional modules |
| Audio |
3.5mm headphone & line outputs |
Environmental
| Protection Rating |
Dustproof, waterproof, anti-static, anti-knock, anti-salt spray |
| Temperature Control |
Intelligent temperature monitoring |
| Installation Type |
Indoor use, wall mount or mobile cart (mount sold separately) |
Specifications are sourced from the official manufacturer product page and may be updated.
