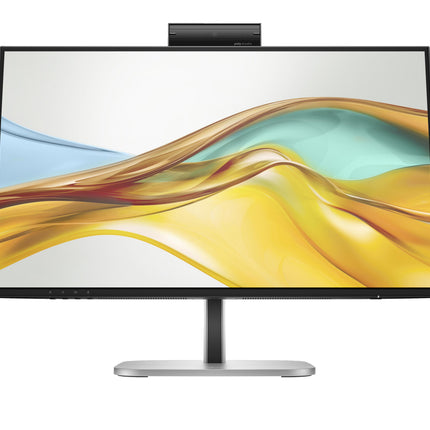

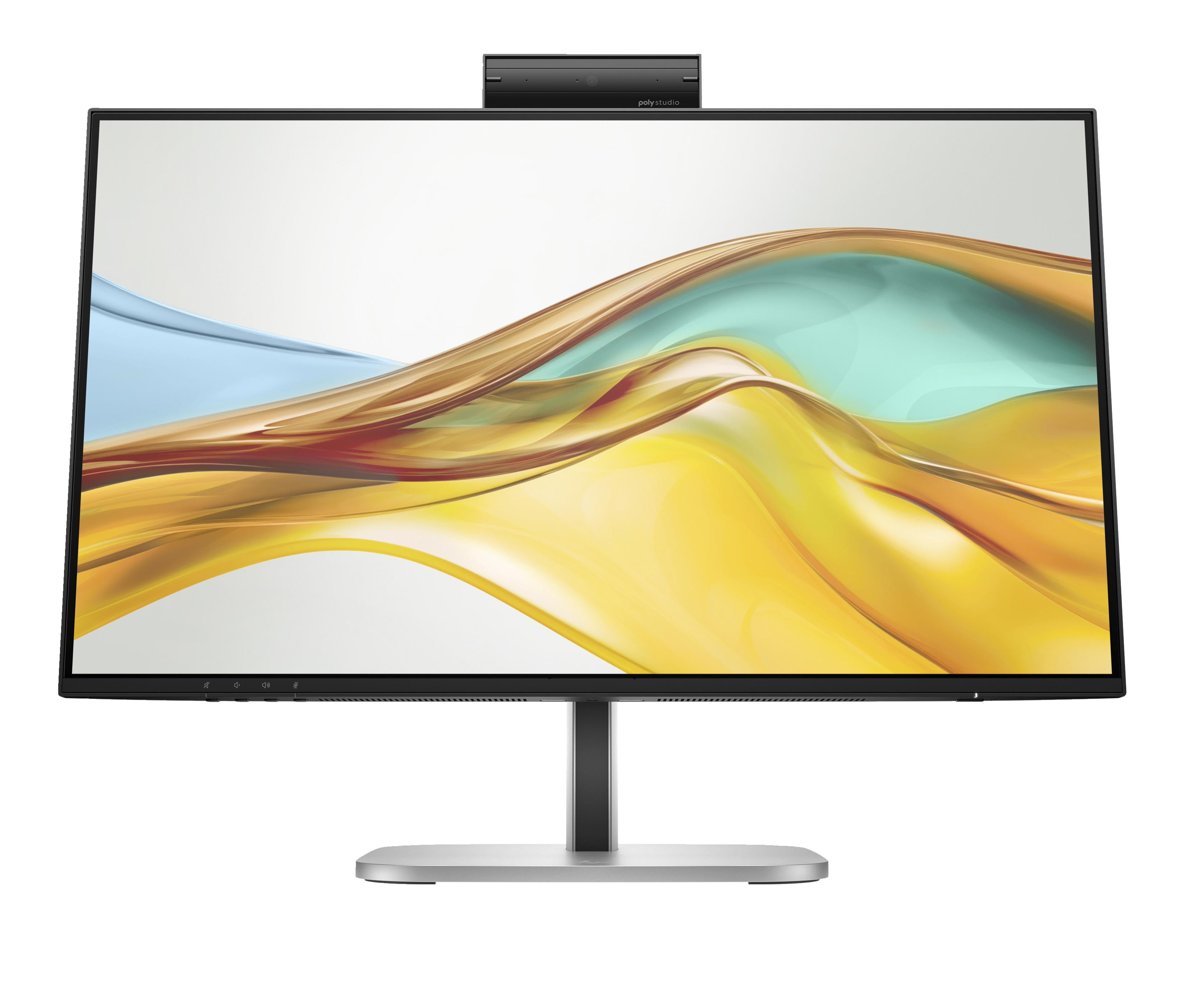

HP Series 5 Pro 524pm 23.8" FHD USB-C Conferencing Monitor with Webcam & AI Noise Reduction
The HP Series 5 Pro 524pm is a professional conferencing monitor designed for effortless collaboration from anywhere. This 23.8-inch Full HD (1920 × 1080) display features an integrated Poly Studio 5MP pop-up webcam with IR sensor, dual microphones with AI noise reduction, and 4 × 3W down-firing speakers for crystal-clear video calls. With 100W USB-C power delivery, you can connect your laptop with a single cable for video, data, and charging. Perfect for hybrid workspaces, home offices, and corporate environments, the 524pm combines productivity features like KVM switch, ambient light sensor, and HP Eye Ease technology in a sleek, sustainable design.
Key Features for Seamless Collaboration
-
Poly Studio 5MP Pop-Up Webcam: Tiltable camera (-20° to +5°) with Windows Hello support, auto framing, background blur, and pop-up privacy cover
-
AI Noise Reduction: Advanced filters block out dogs, sirens, construction noise, and other distractions so you're heard loud and clear
-
Integrated Audio System: 4 × 3W down-firing speakers and dual microphones with one-touch mute controls on the monitor bezel
-
100W USB-C Power Delivery: Connect, charge, and display from your laptop with a single cable
-
KVM Switch Functionality: Seamlessly switch between two computers while sharing keyboard, mouse, and peripherals
-
Microsoft Teams & Zoom Certified: Quick-access conferencing controls built into the display
Crystal-Clear FHD Picture Quality
Experience sharp, vibrant visuals with the 23.8-inch IPS panel delivering Full HD 1920 × 1080 resolution at 100 Hz. The display offers 350 nits brightness, 1500:1 static contrast ratio, and 100% sRGB color coverage with HP Progressive White Balance for consistent color across multiple monitors. The 3-sided micro-edge bezel design maximizes screen real estate, while TUV-certified HP Eye Ease reduces blue light and flicker for all-day comfort. An ambient light sensor automatically adjusts brightness to suit your environment.
Universal Connectivity & Docking Hub
-
1 × USB-C with DisplayPort Alt Mode and 100W power delivery
-
1 × HDMI 2.0 input
-
1 × DisplayPort 1.4 input
-
1 × DisplayPort 1.4 output for daisy-chaining additional monitors
-
1 × RJ-45 Gigabit Ethernet (10/100/1000 Mbps)
-
3 × USB-A 3.2 Gen 1 (5 Gbps), including one 15W charging port
-
1 × USB-B upstream port
- 1 × 3.5mm audio jack
4-Way Ergonomic Adjustability
Find your perfect viewing position with height, tilt, swivel, and pivot adjustability. The monitor can be rotated 90° in either direction for portrait mode viewing. HP Display Center software includes a step-by-step Ergonomic Setup Guide to help you optimize your workspace. The 100 × 100mm VESA mount provides flexible wall or arm mounting options.
Sustainable Design You Can Feel Good About
This EPEAT Gold with Climate+ registered and ENERGY STAR certified monitor features at least 85% recycled plastic content, 20% recycled glass in the panel, and 90% recycled aluminum in the stand. All paper-based packaging is 100% sustainably sourced. The monitor consumes just 14W in standard operation and 0.5W in standby mode.
What's in the Box
- HP Series 5 Pro 524pm Monitor
- DisplayPort 1.4 cable (1.8m)
- USB Type-C to Type-C cable
- USB Type-A to Type-B cable
- AC power cord
- Quick Setup Poster
- Warranty card
Full Specifications
Display
| Screen Size |
23.8 inches (60.5 cm diagonal) |
| Viewable Area |
23.8 inches (60.47 cm) |
| Panel Type |
IPS |
| Native Resolution |
Full HD (1920 × 1080) |
| Aspect Ratio |
16:9 |
| Refresh Rate |
100 Hz |
| Response Time |
5 ms |
| Brightness |
350 nits (cd/m²) |
| Contrast Ratio (Static) |
1500:1 |
| Contrast Ratio (Dynamic) |
10,000,000:1 |
| Color Gamut |
100% sRGB |
| Panel Bit Depth |
8-bit (6-bit + FRC) |
| Display Colors |
16.7 million |
| Pixel Pitch |
0.2745 × 0.2745 mm |
| Pixels Per Inch (PPI) |
93 PPI |
| Viewing Angles |
178° horizontal / 178° vertical |
| Surface Treatment |
Anti-glare / Matte (3H) |
| Bezel Design |
3-sided micro-edge borderless |
| Backlight |
Edge-lit LED |
| Backlight Life (to half brightness) |
30,000 hours minimum |
| Flicker Free |
Yes (TUV certified) |
| Blue Light Reduction |
HP Eye Ease (TUV Low Blue Light certified) |
| Ambient Light Sensor |
Yes |
| HP Progressive White Balance |
Yes |
Camera & Microphone
| Camera |
Poly Studio 5MP pop-up webcam |
| Camera Resolution |
2592 × 1944 at 30 fps |
| Camera Tilt Range |
-20° to +5° |
| Diagonal Field of View |
80° (RGB) |
| IR Sensor |
Yes (Windows Hello support) |
| Camera Features |
Auto framing, background blur, pop-up privacy cover, Auto Lock and Awake (Time of Flight proximity sensor) |
| Microphones |
Dual integrated microphones with AI noise reduction |
| Microphone Mute Button |
Yes (front bezel) |
| Conferencing Certification |
Microsoft Teams compatible, Zoom Certified |
Audio
| Integrated Speakers |
4 × 3W down-firing speakers (12W total) |
| Speaker Mute Button |
Yes (front bezel) |
| Volume Controls |
Volume up/down buttons (front bezel) |
| Audio Output |
3.5mm audio jack |
Connectivity & I/O
| USB-C (DP Alt Mode) |
1 × USB-C with DisplayPort Alt Mode and 100W power delivery |
| HDMI |
1 × HDMI 2.0 |
| DisplayPort Input |
1 × DisplayPort 1.4 |
| DisplayPort Output |
1 × DisplayPort 1.4 (for daisy-chaining) |
| Ethernet |
1 × RJ-45 (10/100/1000 Mbps Gigabit LAN) |
| USB-A Ports |
3 × USB-A 3.2 Gen 1 (5 Gbps), including 1 × 15W charging port |
| USB-B Upstream |
1 × USB-B 3.2 Gen 1 |
| Audio Jack |
1 × 3.5mm headphone/audio output |
| Security Lock Slot |
Kensington Security Cable Slot |
Smart Features
| KVM Switch |
Yes (switch between two computers) |
| Daisy Chain Support |
Yes (via DisplayPort output) |
| MAC Address Pass Through |
In-Band and Out-of-Band MAPT |
| Wake on LAN |
In-Band and Out-of-Band WoL |
| PXE Boot |
Yes |
| HP Display Center |
Yes (includes Ergonomic Setup Guide) |
| HP Client Management Script Library |
Supported |
Ergonomics & Mounting
| Height Adjustment |
Yes |
| Tilt Range |
Yes |
| Swivel Range |
Yes |
| Pivot |
Yes (90° rotation in either direction) |
| VESA Mount |
100 × 100 mm |
Power & Environment
| Input Voltage |
100 - 240 VAC, 50/60 Hz |
| Power Supply |
Internal |
| Power Consumption (On Mode SDR) |
14 W |
| Power Consumption (Standby) |
0.5 W |
| USB-C Power Delivery |
100W |
| USB-A Charging Port Power |
15W |
| ENERGY STAR Certified |
Yes |
| EPEAT Rating |
EPEAT Gold with Climate+ |
Physical Dimensions & Weight
| Dimensions (with stand) |
W × D × H: Product dimensions not specified in source |
| Dimensions (without stand) |
W × D × H: 21.24 × 1.86 × 12.37 cm |
| Weight (with stand) |
9.5 kg |
| Weight (without stand) |
4.99 kg |
| Package Dimensions |
62.1 × 14 × 39.3 cm |
| Package Weight |
9.5 kg |
| Color |
Jet Black / Natural Silver (stand) |
Sustainability
| Recycled Plastic Content |
At least 85% |
| Recycled Glass (panel) |
20% |
| Recycled Aluminum (stand) |
90% |
| Packaging |
100% sustainably sourced, certified, and recycled fibers |
| Recyclability |
94.9% recyclable at end of life |
Certifications & Compliance
| Certifications |
VCCI, BSMI, GS, NOM, TUV S, CB, CCC, PSB, FCC, KCC, WEEE, PSE Mark, ICES, cTUVus, CEC, EMF, KC, CECP, CEL, EAC, CEL Grade 1, ISC, RCM, SEPA, BIS, NRCS, UAE, Australian-New Zealand MEPS, Vietnam MEPS, Ukraine Energy Label, TGM, TUV Low Blue Light, TUV Flicker Free, Korea MEPS, Australian-New Zealand DoC |
| Windows Hello |
Compatible |
| Mac Compatibility |
Yes (verified across OS) |
Warranty
| Standard Warranty |
3-year HP limited warranty |
| Country of Origin |
Made in China and Thailand |
Specifications are sourced from the official HP product page and QuickSpecs documentation and may be updated by the manufacturer.
