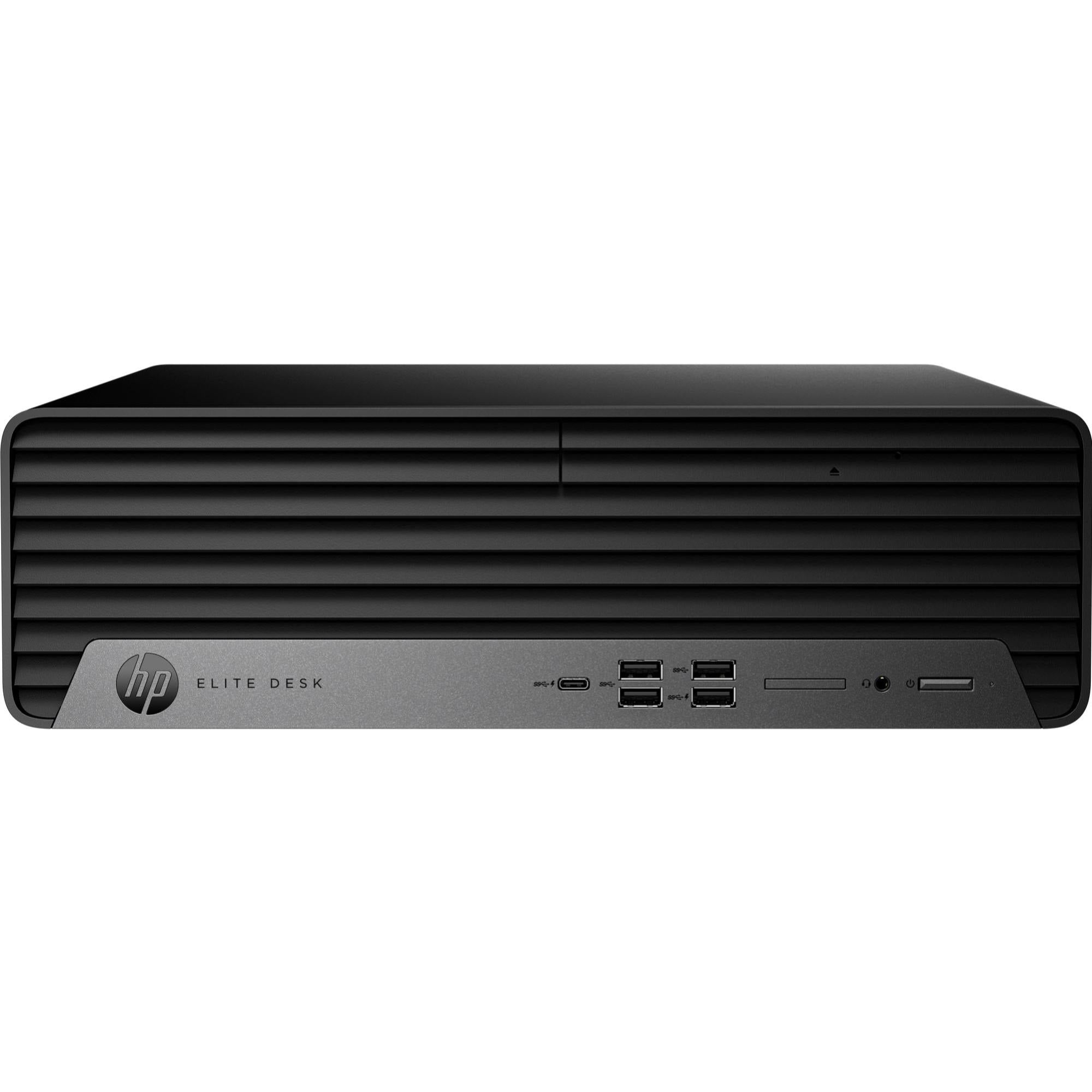

HP Elite 800 G9 Small Form Factor Desktop PC
The HP Elite 800 G9 SFF Desktop PC delivers uncompromising performance, expandability, and reliability in a compact, space-saving design. Powered by the Intel Core i5-14500 14th Gen processor with up to 5.0 GHz turbo frequency, this business-class desktop is engineered for power users who demand performance in smaller workspaces. With 16GB DDR5-4800 MHz RAM and 512GB PCIe Gen4 NVMe SSD storage, it handles multitasking, data-intensive applications, and everyday business workflows with ease.
Why Choose the HP Elite 800 G9?
Designed for Australian businesses and professionals, this SFF desktop combines the latest Intel technology with HP's renowned build quality and security features. Whether you're working in accounting, design, education, or corporate environments, the Elite 800 G9 provides the performance and expandability you need without taking up valuable desk space. Windows 11 Pro comes pre-installed, offering enhanced productivity and security features for business users.
Key Features
-
14th Gen Intel Performance: Intel Core i5-14500 processor with 14 cores (6 P-cores, 8 E-cores), 20 threads, and 24MB cache delivers exceptional multitasking and responsiveness
-
Fast DDR5 Memory: 16GB DDR5-4800 MHz RAM ensures smooth performance across multiple applications and browser tabs
-
High-Speed Storage: 512GB PCIe Gen4 NVMe M.2 SSD provides lightning-fast boot times and file access
-
Integrated Graphics: Intel UHD Graphics 770 supports up to 4 displays for enhanced productivity
-
Expandable Design: Multiple drive bays, PCIe slots, and configurable ports allow future upgrades
-
Business-Class Security: HP Wolf Security for Business with hardware-enforced protection keeps your data safe
Powerful Performance for Business
The Intel Core i5-14500 features a hybrid architecture with 6 Performance cores (up to 5.0 GHz) and 8 Efficient cores (up to 3.7 GHz), delivering the power you need for demanding applications while maintaining energy efficiency. The processor supports Intel vPro Technology for enhanced manageability and security in enterprise environments. Combined with fast DDR5 memory and PCIe Gen4 SSD technology, this desktop ensures minimal lag even when running resource-intensive software.
Versatile Connectivity
Stay connected with comprehensive I/O options designed for modern business needs:
-
Front Panel: USB-C SuperSpeed 20Gbps (with 5V/3A charging), 4 × USB-A SuperSpeed 10Gbps, combo audio jack
-
Rear Panel: 2 × DisplayPort 1.4a, HDMI 1.4b, 3 × USB-A SuperSpeed 5Gbps, 2 × USB-A Hi-Speed 480Mbps, audio line-out, Gigabit Ethernet
-
Optional Wireless: Configurable with Wi-Fi 7, Wi-Fi 6E, or Wi-Fi 6 and Bluetooth 5.4
-
Expansion: PCIe Gen4 x16 slot, PCIe Gen3 x16 (wired as x4), 2 × PCIe x1, M.2 slots for WLAN and storage
Built for Reliability & Sustainability
HP Elite desktops undergo 120,000 hours of rigorous testing and meet MIL-STD 810 military standards for durability. The Elite 800 G9 is constructed with at least 50% post-consumer recycled plastic and ships in 100% sustainably sourced packaging. Tested for 1000 cleanings, the exterior can be safely disinfected with common household wipes, making it ideal for shared office environments, healthcare, and education settings.
Whisper-Quiet Operation
Featuring HP Run Quiet Design, the Elite 800 G9 SFF intelligently manages fan speeds to minimize noise while maintaining optimal cooling. Select configurations have achieved TUV Ultra Low Noise Certification, ensuring a distraction-free workspace for concentration and collaboration.
Enterprise-Grade Security
Protect your business with HP Wolf Security for Business, which includes:
-
HP Sure Start Gen7: Automatic BIOS recovery and protection
-
HP Sure Run Gen5: Ensures critical security software stays running
-
HP Sure Recover Gen5: Network-based OS recovery
-
HP Sure Click Pro: Hardware-enforced protection against web-based threats
-
HP Client Security Manager Gen7: Centralized security management
Ideal For
- Corporate offices and professional workspaces
- Accounting, finance, and data analysis
- Education and training facilities
- Healthcare administration
- Engineering and CAD (with optional discrete graphics)
- Multi-monitor productivity setups
What's in the Box
- HP Elite 800 G9 SFF Desktop PC
- Power cord
- USB keyboard (select models)
- USB mouse (select models)
- Documentation and warranty information
Full Specifications
Processor & Chipset
| Processor |
Intel Core i5-14500 (14th Gen) |
| Cores / Threads |
14 cores (6 P-cores + 8 E-cores) / 20 threads |
| Base Frequency |
2.6 GHz (P-core), 1.9 GHz (E-core) |
| Max Turbo Frequency |
Up to 5.0 GHz (P-core), up to 3.7 GHz (E-core) |
| Cache |
24 MB L3 cache |
| Chipset |
Intel Q670 |
| vPro Support |
Yes |
Memory & Storage
| Memory |
16 GB DDR5-4800 MHz (1 × 16 GB) |
| Memory Slots |
2 DIMM slots (1 occupied) |
| Maximum Memory |
Up to 64 GB |
| Storage |
512 GB PCIe Gen4 NVMe M.2 SSD |
| Storage Expansion |
Additional M.2 2280 socket available |
| RAID Support |
RAID 0, RAID 1 |
Graphics & Display
| Graphics |
Intel UHD Graphics 770 (integrated) |
| Maximum Displays |
Up to 4 displays (UMA graphics) |
| Video Outputs |
2 × DisplayPort 1.4a, 1 × HDMI 1.4b |
| Discrete Graphics Support |
Yes (PCIe Gen4 x16 slot) |
Connectivity
| Ethernet |
Integrated 10/100/1000 Gigabit Ethernet |
| Wireless |
Optional Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6, or Wi-Fi 5 |
| Bluetooth |
Optional Bluetooth 5.4 (with wireless module) |
| Front USB |
1 × USB-C SuperSpeed 20Gbps (5V/3A charging)
4 × USB-A SuperSpeed 10Gbps (1 with charging) |
| Rear USB |
3 × USB-A SuperSpeed 5Gbps
2 × USB-A Hi-Speed 480Mbps (wake from S4/S5)
1 × USB-A Hi-Speed 480Mbps |
| Audio |
Front combo jack (CTIA/OMTP headset), rear line-out (re-taskable to line-in) |
| Optional Ports |
Configurable Flex I/O: Serial, VGA, DisplayPort 1.4a, HDMI 2.1, or USB-C with DP output |
Expansion
| PCIe Slots |
1 × PCIe Gen4 x16 (discrete graphics only)
1 × PCIe Gen3 x16 (wired as x4)
2 × PCIe x1 |
| M.2 Slots |
1 × M.2 2230 (WLAN/Bluetooth)
2 × M.2 2280 (storage) |
| Optical Drive Bay |
1 × Slim (optional) |
Power & Cooling
| Power Supply |
260W 85% or 92% efficient (configurable) |
| Cooling |
HP Run Quiet Design with intelligent fan management |
| Noise Certification |
TUV Ultra Low Noise (select configurations) |
Physical Specifications
| Form Factor |
Small Form Factor (SFF) |
| Dimensions (H × W × D) |
Approx. 338 × 100 × 340 mm |
| Weight |
Starting at 5.0 kg (varies by configuration) |
| Chassis Material |
≥50% post-consumer recycled plastic |
| Security |
Cable lock slot, padlock loop |
Operating System & Software
| Operating System |
Windows 11 Pro (64-bit) |
| Security Software |
HP Wolf Security for Business (3-year license on select SKUs) |
Environmental & Compliance
| EPEAT Rating |
EPEAT Gold registered |
| ENERGY STAR |
Certified |
| Recycled Content |
≥50% post-consumer recycled plastic |
| Testing Standards |
120,000 hours HP Total Test Process, MIL-STD 810 |
Warranty & Support
| Standard Warranty |
3 years (parts, labor, onsite) |
| Care Pack Options |
Extended warranty and support available |
Specifications are sourced from the manufacturer product page and may be updated. Configuration may vary. Not all features are available in all regions.
