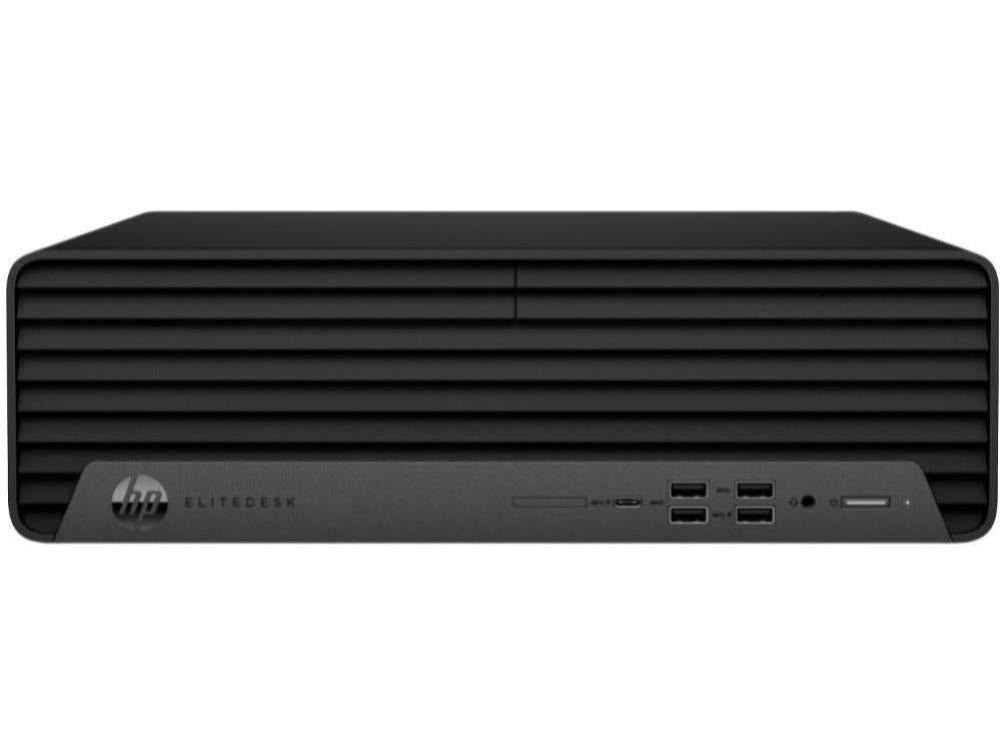

HP Elite 800 G9 SFF Desktop PC with Intel Core i7-14700 and 16GB DDR5
The HP Elite 800 G9 Small Form Factor Desktop PC delivers professional-grade performance in a compact, space-saving design. Powered by the 14th Gen Intel Core i7-14700 processor with up to 5.3 GHz max turbo frequency and 33 MB cache, this business desktop handles demanding applications and multitasking with ease. Equipped with 16GB DDR5-4800 MHz memory, integrated Intel UHD Graphics 770, and expandable storage options, the Elite 800 G9 is optimized for productivity, security, and expandability in modern workplaces.
Why Business Professionals Choose the HP Elite 800 G9
Designed for enterprise environments, the HP Elite 800 G9 combines powerful computing with advanced security and manageability. The small form factor fits seamlessly into offices, cubicles, and tight workspaces while delivering desktop-class performance. With HP Wolf Security built-in, vPro technology support, and tool-less chassis access, IT administrators can easily deploy, manage, and protect entire fleets of desktops.
Key Features
-
14th Gen Intel Core i7-14700: 20-core processor (8 P-cores + 12 E-cores) with up to 5.3 GHz turbo for exceptional multitasking and application performance
-
16GB DDR5-4800 MHz RAM: Fast memory for responsive computing, expandable up to 128GB across four DIMM slots
-
Intel UHD Graphics 770: Integrated graphics supporting up to four displays for enhanced productivity
-
Compact SFF Design: Space-saving 33.8 x 30.8 x 10 cm chassis fits under desks and in tight spaces
-
Enterprise-Grade Security: HP Wolf Security for Business with hardware-enforced protection against malware and cyber threats
-
Expandable & Upgradable: PCIe 4.0 x16 slot for discrete graphics, three M.2 storage slots, and multiple expansion options
Performance for Demanding Workloads
The Intel Core i7-14700 processor features hybrid architecture with 8 Performance cores handling intensive applications and 12 Efficient cores managing background tasks. This intelligent design delivers maximum performance when needed while maintaining energy efficiency. Paired with high-speed DDR5 memory running at 4800 MT/s, the Elite 800 G9 keeps up with data-intensive workflows including CAD, video conferencing, virtualization, content creation, and business analytics.
Multi-Monitor Productivity
Connect up to four displays using the integrated Intel UHD Graphics 770 via two DisplayPort 1.4 outputs, one HDMI 1.4 port, and an optional FlexPort. Multi-monitor support is ideal for financial analysts, designers, developers, and anyone requiring expanded screen real estate. Optional discrete graphics cards such as the NVIDIA T400 or AMD Radeon RX 6300 can be added via the PCIe slots for enhanced visual performance.
Universal Connectivity
Stay connected with comprehensive I/O options for modern and legacy peripherals:
-
Front Panel: 1 USB Type-C 20Gbps (with charging), 4 USB Type-A 10Gbps, 1 headphone/microphone combo jack
-
Rear Panel: 3 USB Type-A 5Gbps, 3 USB Type-A 480 Mbps, 2 DisplayPort 1.4, 1 HDMI 1.4, 1 RJ-45 Gigabit Ethernet, 1 audio line-out (supports line-in re-tasking)
-
Optional Ports: Serial, VGA, additional DisplayPort, or USB Type-C via FlexPort module
-
Wireless: Optional Wi-Fi 7 (802.11BE), Wi-Fi 6E, or Wi-Fi 6 with Bluetooth 5.3
Built for Expansion & Upgrades
The HP Elite 800 G9 SFF is designed for long-term scalability. The tool-less chassis provides easy access to internal components. Four DIMM slots support up to 128GB DDR5 memory. Three M.2 2280 slots accommodate up to 6TB total PCIe NVMe SSD storage. A PCIe 4.0 x16 slot supports discrete graphics cards, and additional PCIe 3.0 x1 and x16 (wired as x4) slots enable further expansion for specialized add-in cards.
Enterprise Security & Manageability
Protect your business data with HP Wolf Security for Business, including HP Sure Start Gen7 self-healing BIOS, HP Sure Run Gen5, HP Sure Recover Gen5, and HP Client Security Manager Gen7. The system supports Intel vPro Enterprise for remote management and troubleshooting. Manage deployments efficiently with HP Client Catalog, HP Driver Packs, HP Manageability Integration Kit, and Microsoft Endpoint Manager compatibility.
Reliable & Sustainable
Engineered to withstand the rigors of business use, the Elite 800 G9 undergoes 120,000 hours of HP Total Test Process and MIL-STD 810 testing. The system features a quiet cooling design with TUV Ultra Low Noise Certification on select configurations. HP is committed to sustainability with EPEAT Gold registered and ENERGY STAR certified designs, using recycled plastics and sustainably sourced packaging materials.
What's in the Box
- HP Elite 800 G9 SFF Desktop PC
- HP Wired USB Keyboard
- HP Wired USB Mouse
- Power Cord
- Documentation
Full Specifications
Processor & Chipset
| Processor |
Intel Core i7-14700 (8 P-cores, 12 E-cores, 20 cores, 28 threads) |
| Base Frequency |
1.5 GHz E-core, 2.1 GHz P-core |
| Max Turbo Frequency |
Up to 4.2 GHz E-core, up to 5.3 GHz P-core |
| Cache |
33 MB Intel Smart Cache |
| Integrated Graphics |
Intel UHD Graphics 770 |
| vPro Support |
Yes (Intel vPro Enterprise) |
Memory
| Standard Memory |
16GB DDR5-4800 MHz |
| Memory Slots |
4 DIMM slots |
| Maximum Memory |
Up to 128GB DDR5 (4 × 32GB) |
| Memory Type |
DDR5-4800 non-ECC UDIMM |
Storage
| Storage Slots |
2 × M.2 2280 (PCIe NVMe), 1 × M.2 2230 (WLAN) |
| Maximum Storage |
Up to 6TB total (3 × M.2 2280 slots) |
| Drive Bay |
1 slim optical drive bay or space for 2 × 3.5-inch HDDs |
| RAID Support |
RAID 0, RAID 1 |
Graphics & Display
| Integrated Graphics |
Intel UHD Graphics 770 |
| Discrete Graphics (Optional) |
NVIDIA T400 (4GB GDDR6), AMD Radeon RX 6300 (2GB GDDR6) |
| Maximum Displays |
Up to 4 displays (UMA configuration) |
| Video Outputs |
2 × DisplayPort 1.4, 1 × HDMI 1.4, optional FlexPort |
I/O & Connectivity
| Front Ports |
1 × USB Type-C 20Gbps (charging), 4 × USB Type-A 10Gbps (1 with charging), 1 × headphone/mic combo |
| Rear Ports |
3 × USB Type-A 5Gbps, 3 × USB Type-A 480 Mbps, 2 × DisplayPort 1.4, 1 × HDMI 1.4, 1 × RJ-45 Gigabit Ethernet, 1 × audio line-out |
| Optional Ports |
Serial, VGA, DisplayPort, USB Type-C via FlexPort module |
| Network |
Integrated 10/100/1000 Gigabit Ethernet |
| Wireless (Optional) |
Wi-Fi 7 (802.11BE), Wi-Fi 6E (802.11ax), Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac) with Bluetooth 5.3 |
Expansion
| PCIe Slots |
1 × PCIe 4.0 x16, 1 × PCIe 3.0 x16 (wired as x4), 2 × PCIe 3.0 x1 |
| M.2 Slots |
3 total (1 × M.2 2230 for WLAN, 2 × M.2 2280 for storage) |
Power & Operating System
| Power Supply |
260W or 400W internal PSU, up to 92% efficiency, active PFC |
| Operating System |
Windows 11 Pro (preinstalled) |
Security
| Security Features |
HP Wolf Security for Business, HP Sure Start Gen7, HP Sure Run Gen5, HP Sure Recover Gen5, HP Sure Sense Pro, HP Client Security Manager Gen7 |
| Trusted Platform Module |
TPM 2.0 (firmware-based) |
| Physical Security |
Cable lock slot, padlock loop |
Dimensions & Weight
| Dimensions (W × D × H) |
33.8 × 30.8 × 10 cm |
| Weight |
5.4 kg (varies by configuration) |
| Form Factor |
Small Form Factor (SFF) |
Environmental & Certifications
| Energy Efficiency |
ENERGY STAR certified, 80 PLUS Platinum PSU |
| Environmental |
EPEAT Gold registered |
| Noise Level |
TUV Ultra Low Noise Certification (select configurations) |
| Durability Testing |
120,000 hours HP Total Test Process, MIL-STD 810 tested |
Warranty & Support
| Standard Warranty |
1-year limited hardware warranty |
| Extended Care Packs |
Available (3-year or 5-year options with onsite support) |
Specifications are sourced from the manufacturer product page and may be updated. Configuration may vary. Not all features available in all regions.
