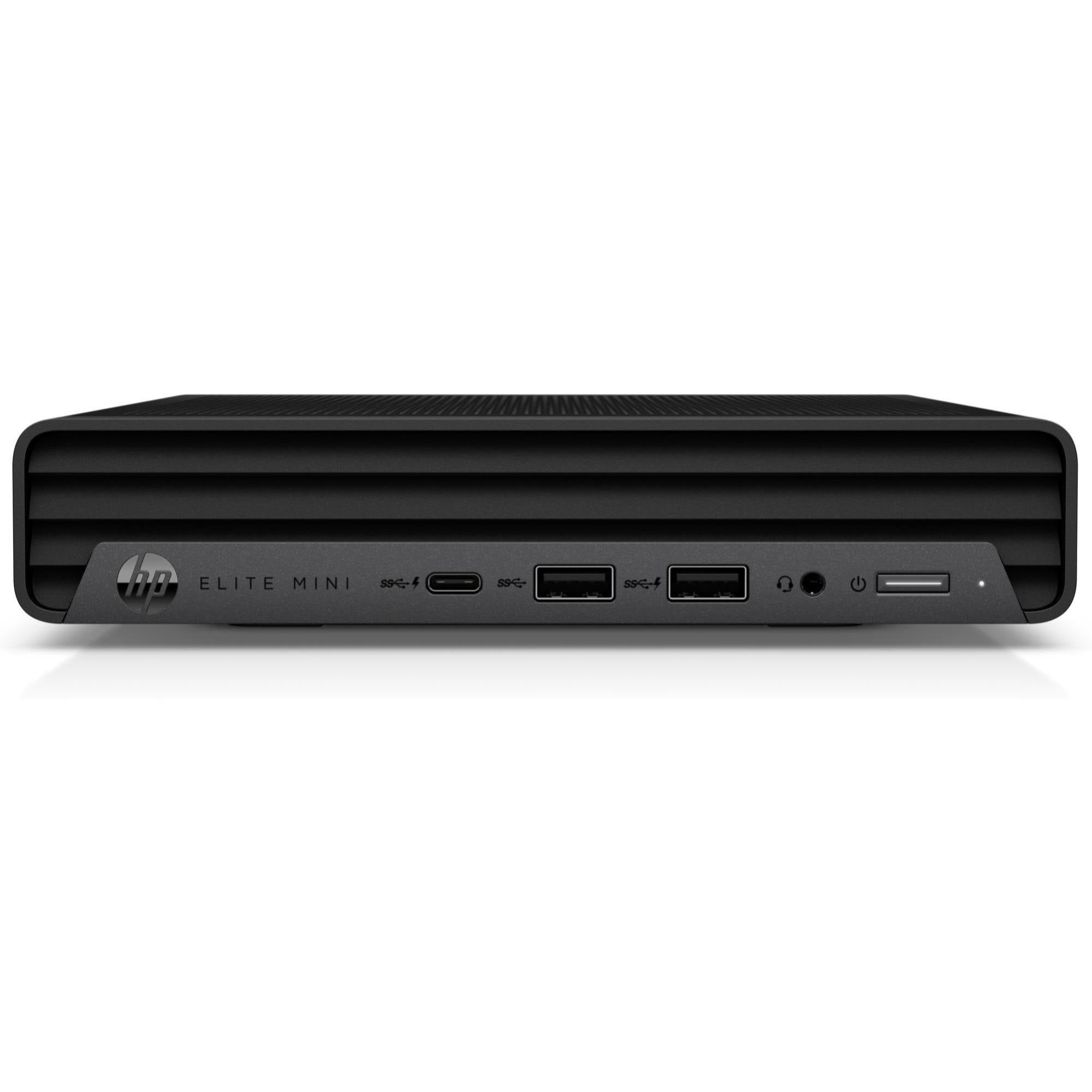

HP Elite Mini 800 G9 Desktop PC with Intel Core i7-14700T and 16GB DDR5 RAM
The HP Elite Mini 800 G9 is an ultra-compact business desktop designed for professionals who demand enterprise-class performance in minimal desk space. Powered by the 14th Gen Intel Core i7-14700T processor (20 cores, 28 threads, up to 5.0 GHz) and equipped with 16GB DDR5 RAM, this mini PC delivers exceptional speed and responsiveness for complex presentations, data analysis, and multitasking. Its whisper-quiet design, robust security features, and flexible deployment options make it the ideal choice for hybrid work environments, corporate offices, and space-constrained workspaces across Australia.
Key Features
-
14th Gen Intel Core i7-14700T Processor: 20-core hybrid architecture (8 P-cores and 12 E-cores) with up to 5.0 GHz turbo frequency and 33MB L3 cache for blazing-fast performance
-
16GB DDR5 RAM: High-speed memory supporting up to 5600 MT/s for smooth multitasking and responsive application performance
-
Intel UHD Graphics 770: Integrated graphics supporting up to 4 displays via dual DisplayPort 1.4 and HDMI 2.1 outputs
-
Ultra-compact form factor: Measures just 17.7 × 17.5 × 3.4 cm and weighs only 1.42 kg, perfect for VESA mounting behind monitors or fitting into small bags
-
Advanced connectivity: USB-C 20Gbps, multiple USB-A 10Gbps ports, Gigabit Ethernet, Wi-Fi 6E, and Bluetooth 5.3 for versatile wired and wireless options
-
HP Wolf Security for Business: Hardware-enforced, always-on protection with HP Sure Start Gen7, HP Sure Run Gen5, and HP Sure Click
Performance You Can Trust
Experience commercial-grade performance with the Intel Core i7-14700T, featuring an optimized hybrid core architecture that intelligently allocates tasks between performance cores and efficiency cores. With DDR5 memory and support for PCIe Gen 4 SSDs, the Elite Mini 800 G9 keeps up with today's demanding business requirements, from video conferencing and content creation to financial modeling and software development.
Designed for Flexibility and Portability
At just 1.42 kg, the HP Elite Mini 800 is one of the most portable business desktops available. Its compact footprint allows for VESA mounting behind compatible HP monitors, freeing up valuable desk space. The whisper-quiet HP Run Quiet Design finely tunes fan operation for minimal noise, making it ideal for open offices, libraries, classrooms, and conference rooms.
Universal Connectivity
Stay connected with an impressive array of ports designed for modern workflows:
-
Front: 1 × USB-C 20Gbps (with 5V/3A charging), 2 × USB-A 10Gbps (one with charging support), 1 × headset combo jack
-
Rear: 3 × USB-A 10Gbps, 2 × DisplayPort 1.4, 1 × HDMI 2.1, 1 × RJ-45 Gigabit Ethernet, 1 × external antenna connector, 1 × power connector
-
Wireless: Wi-Fi 6E (802.11ax) 2×2, Bluetooth 5.3
Enterprise Security and Manageability
The Elite Mini 800 G9 includes HP Wolf Security for Business, creating a hardware-enforced, always-on resilient defense from the BIOS to the browser. HP Sure Start Gen7 automatically recovers the BIOS from firmware attacks, while HP Sure Run Gen5 prevents unauthorized changes to security settings and identifies malware attempting to compromise critical processes. Built for IT departments, the PC supports remote management via HP Client Management tools and Microsoft Endpoint Manager integration.
Sustainable and Certified
HP is committed to sustainability. The Elite Mini 800 G9 is constructed with at least 45% post-consumer recycled plastic, and the outer box packaging is 100% sustainably sourced. The system is ENERGY STAR certified and EPEAT registered, helping businesses reduce their environmental impact without compromising performance.
What's in the Box
- HP Elite Mini 800 G9 Desktop PC
- External power adapter (120W, 180W, or 90W depending on configuration)
- Power cord
- Documentation and warranty card
Full Specifications
Processor
| Processor |
Intel Core i7-14700T (14th Gen) |
| Cores / Threads |
20 cores (8 P-cores + 12 E-cores) / 28 threads |
| Base Frequency |
1.3 GHz (P-core), 0.9 GHz (E-core) |
| Max Turbo Frequency |
Up to 5.0 GHz (P-core), up to 3.7 GHz (E-core) |
| Cache |
33 MB L3 |
| Graphics |
Intel UHD Graphics 770 |
| vPro Support |
Yes |
Memory
| Standard RAM |
16 GB DDR5 |
| Maximum RAM |
Up to 64 GB DDR5 |
| Memory Speed |
Up to 5600 MT/s (with 14th Gen processors) |
| Memory Slots |
2 SODIMM (customer accessible/upgradeable) |
Graphics and Display Support
| Integrated Graphics |
Intel UHD Graphics 770 |
| Maximum Displays Supported |
Up to 4 displays |
| Video Outputs |
2 × DisplayPort 1.4, 1 × HDMI 2.1 |
| Maximum External Resolution |
4K (3840 × 2160) @ 60Hz per display |
Connectivity
| Wireless |
Wi-Fi 6E (802.11ax) 2×2, Bluetooth 5.3 |
| Ethernet |
Integrated 10/100/1000 Gigabit Ethernet |
| Front Ports |
1 × USB-C 20Gbps (charging), 2 × USB-A 10Gbps (1 with charging), 1 × headset jack |
| Rear Ports |
3 × USB-A 10Gbps, 2 × DisplayPort 1.4, 1 × HDMI 2.1, 1 × RJ-45, 1 × antenna connector, 1 × power |
Power and Physical Specifications
| Power Supply |
120W, 180W, or 90W external power adapter (up to 89% efficiency, active PFC) |
| Dimensions (W × D × H) |
17.7 × 17.5 × 3.4 cm |
| Weight |
1.42 kg (exact weight depends on configuration) |
| Form Factor |
Mini Desktop (VESA mountable) |
Security and Management
| Security Features |
HP Wolf Security for Business, HP Sure Start Gen7, HP Sure Run Gen5, HP Sure Click, HP Client Security Manager Gen7, HP BIOSphere Gen6 |
| Management |
HP Client Catalog, HP Driver Packs, HP Image Assistant, HP Connect for Microsoft Endpoint Manager, HP Manageability Integration Kit, HP Patch Assistant |
Environmental and Certifications
| Recycled Content |
45% post-consumer recycled plastic |
| Packaging |
100% sustainably sourced outer box |
| Certifications |
ENERGY STAR certified, EPEAT registered, TCO Certified Generation 9 |
Specifications are sourced from the manufacturer product page and may be updated.
