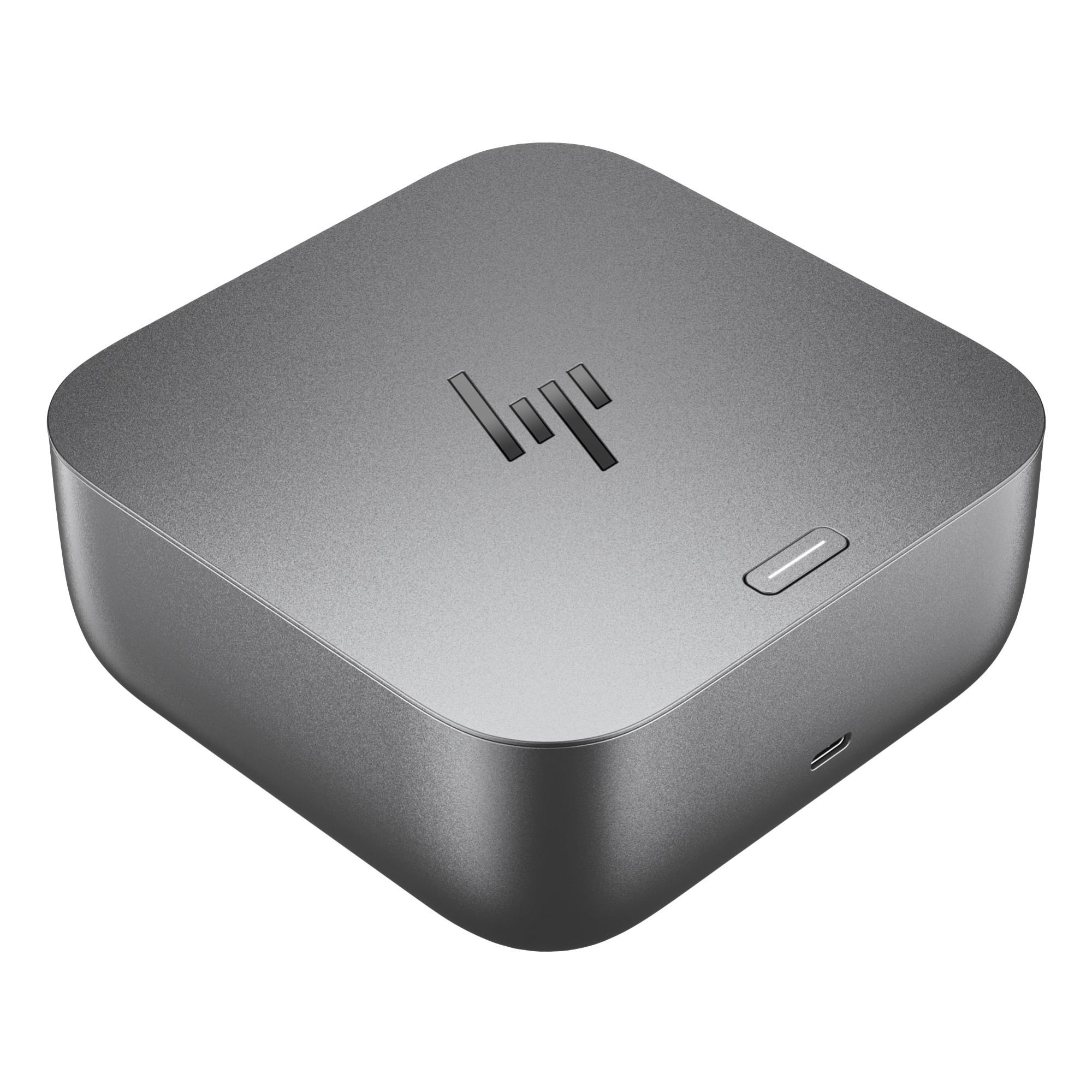

HP Thunderbolt 4 100W G6 Dock
The HP Thunderbolt 4 100W G6 Dock delivers professional-grade connectivity and power delivery for modern workspaces. With up to 100W laptop charging, support for up to four 4K displays at 60Hz (or one 5K display), and Thunderbolt 4 connectivity at 40 Gb/s, this universal docking station is ideal for demanding office environments, hybrid work setups, and power users who need seamless multi-device connectivity. Compatible with Windows, macOS, Linux, ChromeOS, and ThinPro systems, the G6 dock works with HP, Dell, Lenovo, and Apple laptops that support Thunderbolt 4 or USB-C with Power Delivery.
Why You'll Love It
-
Multi-display productivity: Drive up to four 4K displays simultaneously at 60Hz, or a single 5K display at 5120 × 2880 resolution for expansive workspace flexibility
-
100W Power Delivery: Keep your laptop charged with up to 100W of power via the single Thunderbolt 4 cable connection
-
Blazing-fast Thunderbolt 4: Transfer data at up to 40 Gb/s with bi-directional Thunderbolt 4 technology
-
Universal compatibility: Works with most USB-C or Thunderbolt-enabled laptops from HP, Dell, Lenovo, Apple, and other major brands
-
Extensive connectivity: Equipped with 1 Thunderbolt 4 port, 2 DisplayPort 1.4 outputs, 1 HDMI 2.1 port, 3 USB-A 3.2 ports, 2 USB-C 3.2 ports (with 15W charging), and 2.5 Gigabit Ethernet
-
Enterprise security & management: HP Wolf Security, HP Sure Start firmware protection, and cloud manageability via Poly Lens for IT administrators
Seamless Single-Cable Workflow
The HP Thunderbolt 4 100W G6 Dock transforms your laptop into a full desktop workstation with a single Thunderbolt 4 cable connection. Simply connect your laptop to the dock and instantly access all your peripherals, displays, network, and power. The HP Quick Connect feature (available on select HP G11 and G12 PCs with Bluetooth) automatically wakes your laptop as you approach your desk, so your workspace is ready when you are. Perfect for professionals working in corporate offices, creative studios, and home office setups.
Powerful Multi-Display Capabilities
Expand your visual workspace with outstanding display support. The G6 dock supports:
-
Single 5K display: Up to 5120 × 2880 at 60Hz
-
Dual 4K displays: Up to 3840 × 2160 at 60Hz each
-
Triple displays: Up to 2560 × 1440 at 60Hz each
-
Four displays: Up to 4K (3840 × 2160) at 60Hz via Thunderbolt daisy-chaining and dock outputs
Connect displays using 2 × DisplayPort 1.4, 1 × HDMI 2.1, or the Thunderbolt 4 downstream port for maximum flexibility. Note: Actual display support depends on your laptop's capabilities and graphics.
Enterprise-Ready Security & Cloud Management
Designed for IT professionals and enterprise deployments, the HP Thunderbolt 4 100W G6 Dock features HP Wolf Security for Business, integrating HP Sure Start self-healing firmware and a Zero Trust Framework for complete end-to-end security. Administrators can remotely manage firmware updates, monitor device telemetry, and optimize workspace performance via Poly Lens cloud management. Additional features include PXE Boot, Wake-on-LAN, MAC Address Pass-Through, and compatibility with Intel vPro Active Management Technology.
All the Ports You Need
The HP Thunderbolt 4 100W G6 Dock provides comprehensive connectivity for all your devices:
-
Front: 1 × USB-C 3.2 Gen 2 (10 Gbps, 15W charging), power button with LED indicator
-
Side: 1 × USB-A 3.2 Gen 2 (10 Gbps), 1 × USB-C 3.2 Gen 2 (10 Gbps, 15W charging), nano security lock slot
-
Rear: 1 × Thunderbolt 4 (40 Gb/s, bi-directional), 1 × USB-C 3.2 Gen 2 (DP Alt Mode + Power Delivery), 2 × USB-A 3.2 Gen 1, 2 × DisplayPort 1.4, 1 × HDMI 2.1, 1 × 2.5 Gigabit Ethernet (RJ-45), DC power input
Designed for Longevity & Sustainability
Built with the environment in mind, the HP Thunderbolt 4 100W G6 Dock features replaceable components to extend the product lifecycle, a built-in power consumption module to monitor energy usage, and plastic-free packaging. The compact 4.76" × 4.76" × 1.95" design keeps your desk clutter-free, and the rear-facing cable management ensures a clean workspace.
What's in the Box
- HP Thunderbolt 4 100W G6 Dock
- 120W power adapter
- Thunderbolt 4 cable (1 meter)
- Power cord
- Product notice
- Warranty card
Full Specifications
Connectivity
| Thunderbolt 4 Ports |
1 × Thunderbolt 4 (40 Gb/s, bi-directional, Power Delivery) |
| USB-C Ports |
3 total: 2 × USB-C 3.2 Gen 2 (10 Gbps, 15W charging), 1 × USB-C 3.2 Gen 2 (DP Alt Mode + Power Delivery) |
| USB-A Ports |
3 total: 1 × USB-A 3.2 Gen 2 (10 Gbps), 2 × USB-A 3.2 Gen 1 |
| DisplayPort |
2 × DisplayPort 1.4 |
| HDMI |
1 × HDMI 2.1 |
| Ethernet |
1 × RJ-45 (2.5 Gigabit Ethernet) |
| Security Lock Slot |
Nano lock slot (compatible with HP Nano locks) |
Power
| Power Delivery to Laptop |
Up to 100W via Thunderbolt 4 cable |
| Power Adapter |
120W external adapter (included) |
| USB-C Port Charging |
2 ports with 15W Power Delivery |
| Supported Output Voltages |
5V/3A, 9V/3A, 12V/5A, 15V/5A, 20V/5A |
Display Support
| Maximum Displays |
Up to 4 displays (configuration dependent on laptop capabilities) |
| Single Display |
Up to 5K (5120 × 2880) at 60Hz |
| Dual Displays |
Up to 4K (3840 × 2160) at 60Hz each |
| Triple Displays |
Up to 2560 × 1440 at 60Hz each |
| Quad Displays |
Up to 4K (3840 × 2160) at 60Hz (requires Thunderbolt daisy-chaining or MST) |
Physical Specifications
| Dimensions (H × W × D) |
1.95" × 4.76" × 4.76" (49.5mm × 121mm × 121mm) |
| Weight |
1.6 lbs (0.73 kg) |
| Color |
Meteor Silver |
| Design |
Compact square form factor with rear-facing cable management |
Compatibility
| Operating Systems |
Windows 10 (22H2 and up), Windows 11 (23H2 and up), Windows 10 IoT Enterprise LTSC 2021, macOS Sonoma 14, Ubuntu Linux 22.04 LTS (5.15 kernel), ChromeOS M133 and up, ThinPro OS 8.0 |
| Compatible Laptops |
Most USB-C or Thunderbolt 4-enabled laptops from HP, Dell, Lenovo, Apple, and other brands (full functionality requires Thunderbolt 4, DisplayPort Alt Mode, or USB4 support) |
| Required Software |
Thunderbolt software (minimum SW17.x) for Thunderbolt host systems |
Features & Management
| HP Quick Connect |
Yes (requires Bluetooth and compatible HP G11/G12 Intel or AMD PCs) |
| Cloud Management |
Poly Lens (subscription-based, not available on TAA versions) |
| Security |
HP Wolf Security for Business, HP Sure Start firmware protection, Zero Trust Framework, NIST 800-173 compliance, ability to disable RJ-45 port |
| Remote Management |
PXE Boot, Wake-on-LAN, MAC Address Pass-Through, Intel vPro AMT compatibility, Electronic Tag (eTag) asset management |
| LED Indicators |
Power button LED, front LED bar, on-screen display notifications (HDMI/DisplayPort only) |
| Cooling |
Internal fan (quiet operation, activates as needed) |
Environmental & Warranty
| Replaceable Components |
Yes (designed for longevity and serviceability) |
| Power Monitoring |
Built-in power consumption module |
| Packaging |
Plastic-free |
| Warranty |
3-year limited warranty with Next Business Day Advanced Exchange (restrictions apply) |
Specifications are sourced from the manufacturer product page and may be updated.
