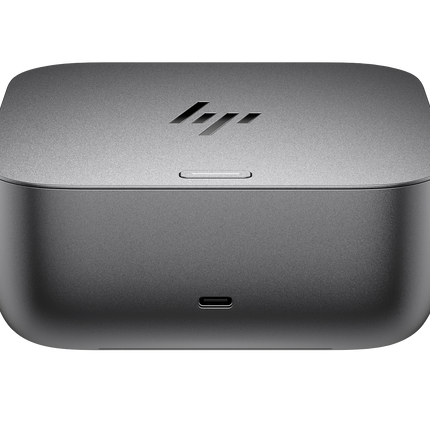

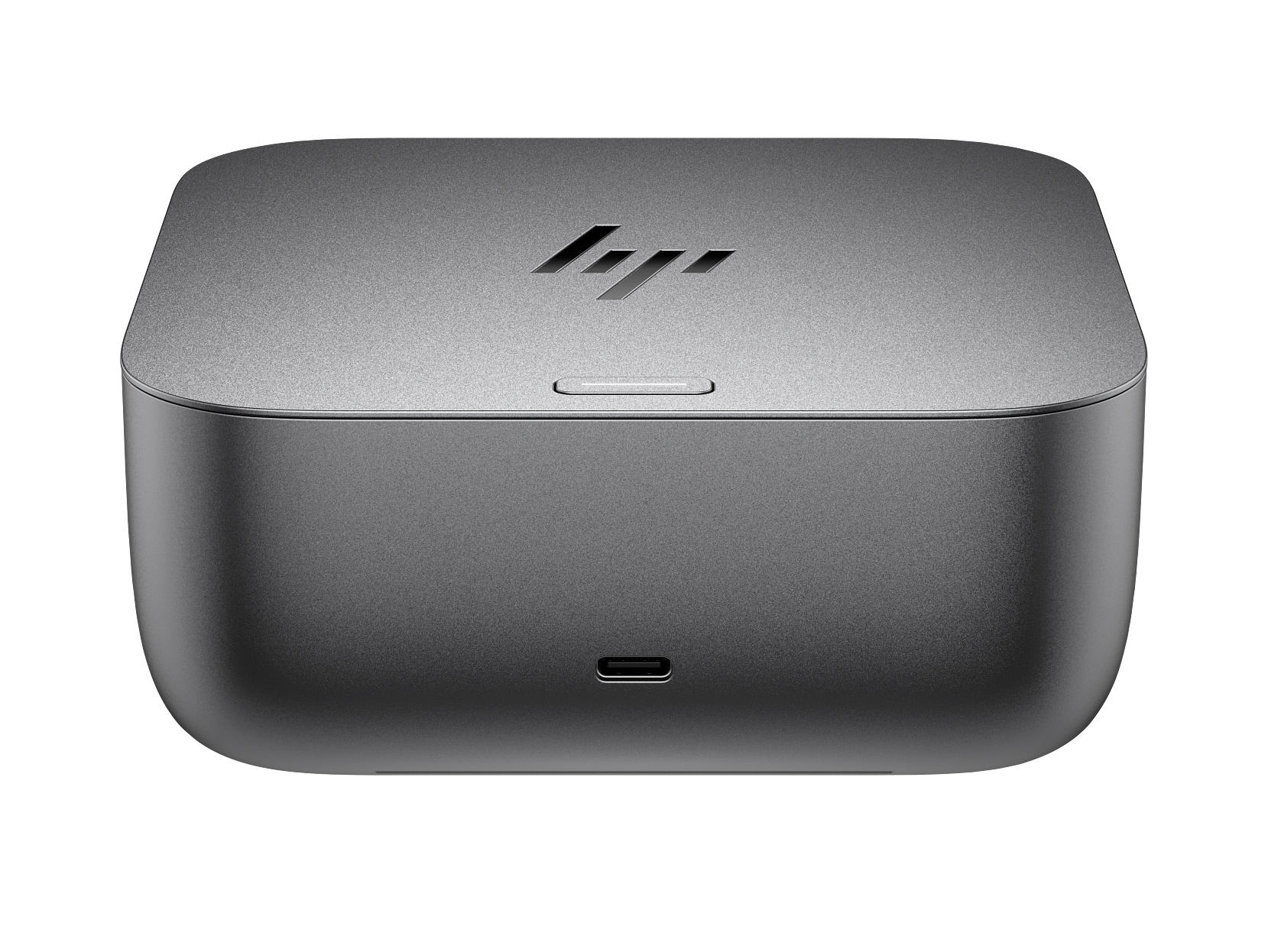

HP Thunderbolt 4 Ultra 180W G6 Dock
The HP Thunderbolt 4 Ultra 180W G6 Dock delivers ultimate power and connectivity for modern professionals, content creators, and hybrid workers. With up to 180W power delivery and 40 Gbps data transfer speeds via Thunderbolt 4 technology, this premium docking station transforms your laptop into a complete workstation with a single cable. Connect up to four 4K displays or one stunning 8K display, charge your laptop and peripherals, and enjoy enterprise-grade security with HP Wolf Security and HP Sure Start.
Key Features
-
180W Power Delivery: Charge demanding laptops including gaming notebooks and mobile workstations via USB-C with Power Delivery 3.1 (100W for non-EPR hosts)
-
40 Gbps Thunderbolt 4: Lightning-fast bidirectional data transfer speeds for large files, external storage, and high-resolution video
-
Multi-Display Support: Drive up to four 4K displays at 60Hz or one 8K display for expansive screen real estate
-
HP Quick Connect: Proximity sensing wakes your laptop before you even sit down, ready for instant Windows Hello login
-
13-in-1 Connectivity: Comprehensive port selection including HDMI 2.1, 2× DisplayPort 1.4, 2.5 Gbps Ethernet, 7 USB ports (Type-A and Type-C), and Thunderbolt 4
-
Enterprise Security: HP Wolf Security with HP Sure Start provides firmware integrity verification and Zero Trust Framework protection
Ultimate Power & High-Speed Connectivity
Designed for professionals who demand seamless performance, the HP Thunderbolt 4 Ultra 180W G6 Dock provides up to 180W of power delivery to laptops that support Power Delivery 3.1 standards. Even laptops without Extended Power Range (EPR) support receive up to 100W of charging power. The dock features a 1-metre Thunderbolt 4 cable that handles power, data, and video through a single connection, eliminating cable clutter on your desk.
Transfer large files, edit 4K video, and access external storage at blazing 40 Gbps speeds. The dock supports Thunderbolt 4, USB4, and Thunderbolt 3 host systems, as well as USB-C laptops with DisplayPort Alt Mode for maximum compatibility across HP, Dell, Lenovo, Apple, and other brands.
Expansive Multi-Display Support
Whether you're a creative professional, financial analyst, or software developer, the HP Thunderbolt 4 Ultra 180W G6 Dock provides the display flexibility you need. Connect up to four external 4K displays at 60Hz simultaneously, or drive a single 5K display at 60Hz for ultra-sharp detail. The dock supports multiple display configurations including:
-
1× 8K display at 60Hz for maximum resolution
-
4× 4K displays (3840 × 2160) at 60Hz
-
3× Full HD displays at 120Hz for smooth gaming and fast-paced content
-
1× Full HD display at 360Hz for competitive gaming
Display outputs include 1× HDMI 2.1, 2× DisplayPort 1.4, and 1× USB-C with DisplayPort Alt Mode. Video resolution and refresh rate support depends on your laptop's capabilities.
HP Quick Connect & Intelligent Wake
The G6 dock features HP Quick Connect, a proximity sensing technology that detects when you approach your workspace and automatically wakes your laptop from sleep. Combined with Windows Hello facial recognition, you can sit down and immediately start working without touching your keyboard. This intelligent feature is available on select HP G11 and G12 Intel and AMD laptops (requires Bluetooth and must be enabled in BIOS).
Comprehensive Connectivity
The HP Thunderbolt 4 Ultra 180W G6 Dock provides 13 ports for maximum flexibility:
Front & Right Side
-
1× USB-C 3.2 Gen 2 (10 Gbps, 15W charging) - front
-
1× USB-A 3.2 Gen 2 (10 Gbps, charging) - right
-
1× USB-C 3.2 Gen 2 (10 Gbps, 15W charging) - right
-
1× Nano security lock slot - right
Left Side
-
2× USB-A 3.2 Gen 2 (10 Gbps, charging)
Rear Panel
-
1× Thunderbolt 4 port (40 Gbps, connects to laptop via included 1m cable)
-
1× USB-C 3.2 Gen 2 (10 Gbps with Power Delivery and DisplayPort 1.4 Alt Mode)
-
2× USB-A 3.2 Gen 1 (5 Gbps)
- 1× HDMI 2.1
- 2× DisplayPort 1.4
- 1× 2.5 Gbps Ethernet (RJ-45)
-
1× Power input (230W AC adapter included)
Enterprise-Grade Security & Management
Protect your organisation from potential threats with HP Wolf Security for Business, which interlaces HP Sure Start firmware integrity verification with a Zero Trust Framework. The dock supports automatic firmware validation and recovery during startup and disconnect, ensuring your fleet stays secure.
IT administrators can remotely manage the dock fleet using Poly Lens cloud management software. Deploy automatic firmware updates, monitor telemetry and analytics, and optimise workspace configurations from anywhere - reducing support calls and maximising uptime.
Wide Platform Compatibility
The HP Thunderbolt 4 Ultra 180W G6 Dock works seamlessly with most USB-C and Thunderbolt-enabled laptops from HP, Dell, Lenovo, Apple, and other manufacturers. Supported operating systems include:
-
Windows 10 (22H2 and up) and Windows 11 (23H2 and up)
-
macOS Sonoma 14 and later
-
Ubuntu Linux 22.04 LTS (kernel 5.15)
-
ChromeOS M133 and up
- HP ThinPro OS 8.0
- Windows 10 IoT Enterprise LTSC 2021
The dock supports system network manageability in any power state, Wake-on-LAN, and MAC address pass-through on compatible HP notebooks.
Thoughtful Design & Sustainability
With a compact 121.2 × 121.2 × 50.5 mm footprint and weighing just 0.65-0.8 kg, the dock saves valuable desk space while looking professional in modern offices and home studios. The sleek gray finish matches contemporary laptop aesthetics.
The dock features RGB LED lighting on the mechanical power button and an LED light ring around the base that provides visual status notifications. On-screen display (OSD) notifications can also appear on connected monitors via HDMI, DisplayPort, or DisplayPort Alt Mode connections.
Built with longevity in mind, the dock features replaceable parts to extend your fleet's lifecycle and reduce e-waste. An integrated power consumption module monitors energy usage. The product arrives in plastic-free packaging as part of HP's sustainability commitment.
What's in the Box
- HP Thunderbolt 4 Ultra 180W G6 Dock
- Thunderbolt 4 cable (1 metre)
- 230W AC power adapter
- Power cord
- Product notice
- Warranty card
Full Specifications
Power
| Power Adapter |
230W external AC adapter (included) |
| Power to Host |
Up to 180W via Thunderbolt 4 (on PCs supporting PD 3.1 EPR); up to 100W on non-EPR hosts |
| USB-C Port Power |
Up to 15W charging on select USB-C ports |
Data & Connectivity
| Thunderbolt 4 Speed |
40 Gbps (bidirectional) |
| Cable Type |
Thunderbolt 4 (included, 1m / 3.2 ft) |
| Ethernet |
2.5 Gbps RJ-45 (requires infrastructure supporting 2.5GB speeds) |
| Bluetooth |
Yes (required for HP Quick Connect) |
Display Support
| Max Displays |
Up to 4 external displays (or 3 external + 1 PC display) |
| Max Resolution |
Up to 8K |
| Max Refresh Rate |
Up to 360Hz (dependent on laptop capability) |
| Display Outputs |
1× HDMI 2.1, 2× DisplayPort 1.4, 1× USB-C with DP Alt Mode |
| Example Configurations |
1× 8K @ 60Hz; 4× 4K @ 60Hz; 3× FHD @ 120Hz; 1× FHD @ 360Hz; 1× 5K @ 60Hz |
USB Ports
| USB-C Ports |
3× USB-C 3.2 Gen 2 (10 Gbps), 1× Thunderbolt 4 (40 Gbps) |
| USB-A Ports |
4× USB-A 3.2 Gen 2 (10 Gbps), 2× USB-A 3.2 Gen 1 (5 Gbps) |
| Total USB Ports |
7 (plus 1 Thunderbolt 4 host connection) |
Security & Management
| Security Features |
HP Wolf Security for Business, HP Sure Start firmware integrity |
| Management Software |
Poly Lens (cloud-based, automatic firmware updates) |
| Physical Security |
1× nano security lock slot (compatible with HP Nano Combination Cable Lock) |
| Network Management |
System network manageability in any power state (HP with HP) |
Physical Specifications
| Dimensions (H×W×D) |
50.5 × 121.2 × 121.2 mm (2 × 4.77 × 4.77 in) |
| Weight |
0.65 - 0.8 kg (1.43 - 1.76 lb) |
| Colour |
Gray |
| LED Indicators |
RGB LED power button, LED light ring (base) |
Compatibility
| Operating Systems |
Windows 10 (22H2+), Windows 11 (23H2+), macOS Sonoma 14+, Ubuntu Linux 22.04 LTS, ChromeOS M133+, ThinPro OS 8.0, Windows 10 IoT Enterprise LTSC 2021 |
| Supported Platforms |
HP commercial PCs, Dell, Lenovo, Apple, and select third-party systems with USB-C or Thunderbolt |
| Host Requirements |
USB-C with DisplayPort Alt Mode, Thunderbolt 3, Thunderbolt 4, or USB4 |
Environmental & Compliance
| Packaging |
Plastic-free |
| Serviceability |
Replaceable parts for extended lifecycle |
| Energy Monitoring |
Built-in power consumption module |
| Country of Origin |
China, Thailand, Mexico |
Warranty
| Standard Warranty |
3 years (manufacturer warranty) |
| Support Option |
HP 3-Year Next Business Day Response Advanced Exchange Docking Station HW Support (available separately) |
Specifications are sourced from the official HP product page and QuickSpecs documentation and may be updated. Performance, display configurations, and features may vary based on laptop capabilities and operating system.
