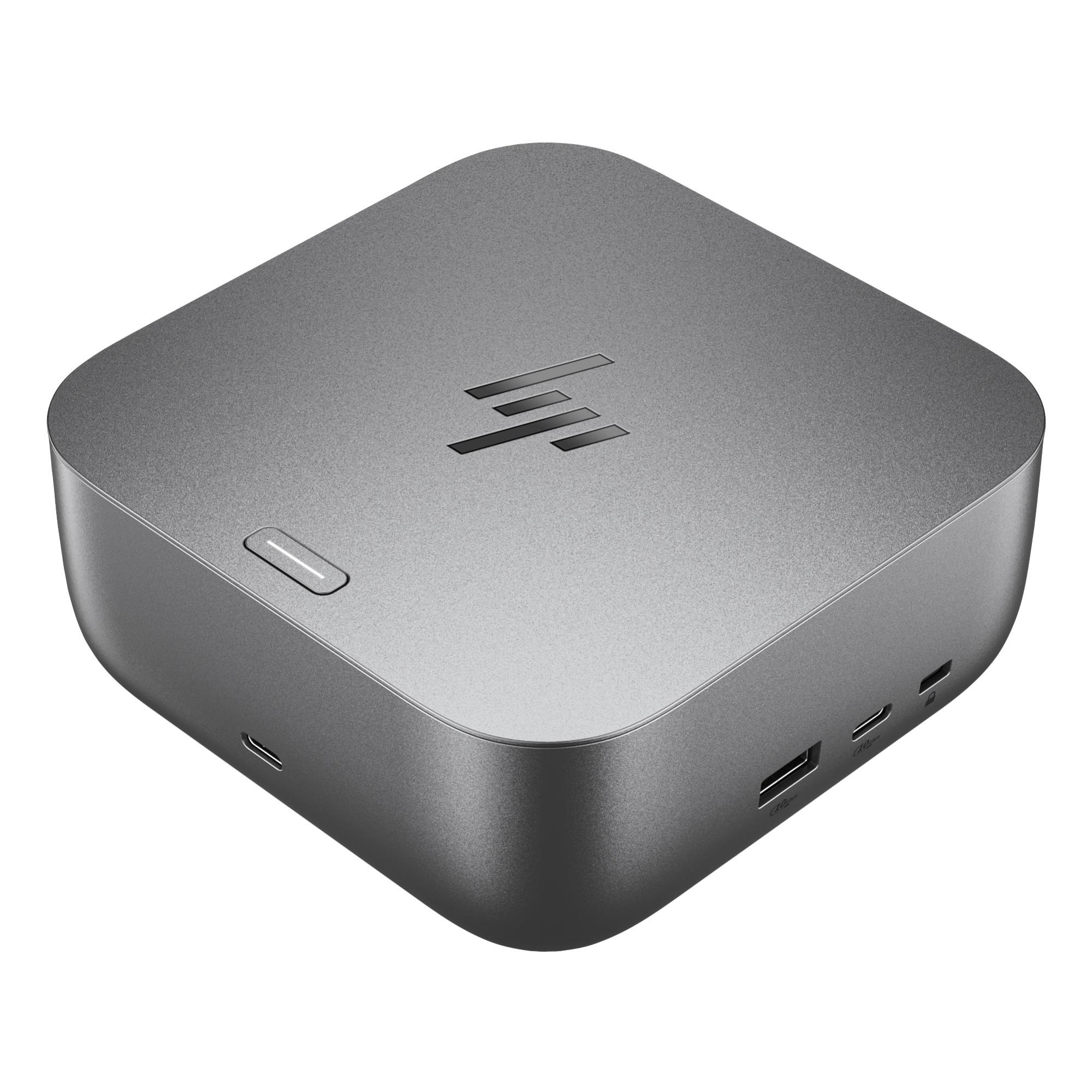

HP Thunderbolt 4 Ultra 280W G6 Dock
The HP Thunderbolt 4 Ultra 280W G6 Dock is a premium, enterprise-grade docking station engineered for maximum productivity and uninterrupted connectivity. Delivering up to 280W of power to compatible laptops via the included power barrel cable and 40 Gbps data transfer speeds through Thunderbolt 4, this dock is ideal for demanding professionals who need to power high-performance workstations, connect multiple 4K displays, and streamline their workflow with a single cable connection.
Key Features
-
Ultimate Power Delivery: Up to 280W total power delivery (180W via Thunderbolt 4 cable on PD 3.1 supported devices, or 100W on non-EPR devices)
-
Thunderbolt 4 Technology: Bi-directional 40 Gbps data transfer speeds for ultra-fast file transfers and seamless video streaming
-
Multi-Display Support: Supports up to four 4K displays at 60Hz, or one 5K display at 60Hz, perfect for creative professionals and multitaskers
-
Comprehensive Connectivity: 8 USB ports (USB-A 3.2 Gen 2, USB-A 3.2 Gen 1, USB-C 3.2 Gen 2), 2 DisplayPort 1.4, HDMI 2.1, and 2.5 Gigabit Ethernet
-
Advanced Security: HP Wolf Security with HP Sure Start auto-validates and self-heals firmware for enterprise-level protection
-
HP Quick Connect: Wakes your devices before you even sit down, keeping you connected and ready to work
Ultimate Power and Performance
Stay productive all day with up to 280W of power delivery to compatible HP and non-HP laptops. The dock supports Extended Power Range (EPR) for next-generation high-performance notebooks, delivering up to 180W through the Thunderbolt 4 cable on PD 3.1 supported hosts, and up to 100W for standard USB-C devices. The included 330W power adapter ensures your entire setup is powered efficiently.
Professional Multi-Display Productivity
Expand your workspace with support for up to four simultaneous 4K displays at 60Hz, or a single stunning 5K (5120 × 2880) display at 60Hz. Whether you're editing high-resolution video, managing complex spreadsheets, or running virtual meetings, the combination of 2 DisplayPort 1.4 outputs and 1 HDMI 2.1 port gives you the flexibility to configure your ideal multi-monitor setup.
Comprehensive Connectivity for Modern Workstations
The HP Thunderbolt 4 Ultra 280W G6 Dock features an extensive array of ports to connect all your essential devices:
-
Front: 2 × USB-A 3.2 Gen 2 (10 Gbps) charging ports, 1 × USB-C 3.2 Gen 2 (10 Gbps) with 15W power delivery
-
Side: 2 × USB-A 3.2 Gen 2 (10 Gbps), 1 × USB-C 3.2 Gen 2 (10 Gbps) with 15W power delivery, nano security slot
-
Rear: 1 × Thunderbolt 4 port (40 Gbps), 1 × USB-C 3.2 Gen 2 with DisplayPort Alt Mode, 2 × USB-A 3.2 Gen 1, 2 × DisplayPort 1.4, 1 × HDMI 2.1, 1 × RJ45 2.5 Gigabit Ethernet
Enterprise-Grade Security and Manageability
Protect your organisation from potential threats with HP Wolf Security, featuring HP Sure Start firmware integrity verification and self-healing capabilities. The dock is NIST 800-173 compliant and supports Poly Lens cloud manageability for hands-off firmware updates and remote monitoring. IT administrators can disable individual ports, control firmware updates, and maintain fleet-wide security with ease.
Wide Compatibility Across Platforms
Compatible with Windows 10 and 11, macOS, ChromeOS, Linux, and ThinPro OS, the HP Thunderbolt 4 Ultra 280W G6 Dock works seamlessly with HP commercial notebooks, ZBooks, and select third-party systems from Dell, Lenovo, and Apple. The dock supports both Thunderbolt 4 and USB-C connections, making it a versatile choice for mixed-device environments.
Built for Longevity and Sustainability
Designed with replaceable parts and a built-in power consumption monitoring module, this dock is engineered for long-term use and fleet lifecycle optimisation. The compact footprint (121.2 × 121.2 × 50.5 mm) makes it ideal for modern desk setups, while the included RGB LED power button and front LED bar provide clear status notifications.
What's in the Box
- HP Thunderbolt 4 Ultra 280W G6 Dock
- 330W power adapter
- Thunderbolt 4 and 4.5mm power barrel combination cable (1m)
- Power cord
- Product notice
- Warranty card
Full Specifications
General
| Part Number |
AW5M5UT |
| Dimensions (H × W × D) |
121.2 × 121.2 × 50.5 mm (4.77 × 4.77 × 2 in) |
| Weight |
0.65 - 0.8 kg (1.43 - 1.76 lb) |
| Cable Type |
Thunderbolt 4 and 4.5mm power barrel combination cable |
| Cable Length |
1 m (3.2 ft) |
| Power Adapter |
330W external power adapter |
| Warranty |
3 years |
Power Delivery
| Maximum Power Delivery |
Up to 280W (via 4.5mm power barrel) / Up to 180W (via Thunderbolt 4 cable on PD 3.1 devices) |
| USB-C Power Delivery |
15W on USB-C 3.2 Gen 2 ports |
| Supported Power Profiles |
5V/3A, 9V/3A, 12V/5A, 15V/5A, 20V/5A |
Connectivity & Ports
| Thunderbolt 4 |
1 × Thunderbolt 4 port (40 Gbps bi-directional) |
| USB-C Ports |
3 × USB-C 3.2 Gen 2 (10 Gbps), including 1 with DisplayPort Alt Mode |
| USB-A Ports |
4 × USB-A 3.2 Gen 2 (10 Gbps), 2 × USB-A 3.2 Gen 1 |
| Video Outputs |
2 × DisplayPort 1.4, 1 × HDMI 2.1 |
| Network |
1 × RJ45 2.5 Gigabit Ethernet |
| Audio |
1 × 3.5mm combo audio jack (headphone/microphone) |
| Security |
1 × Nano security slot |
Display Support
| Maximum Displays |
Up to 4 displays simultaneously |
| 4K Support |
Up to 4 × 4K (3840 × 2160) at 60Hz |
| 5K Support |
1 × 5K (5120 × 2880) at 60Hz |
| Display Stream Compression |
DSC ready (requires host platform support) |
Security
| Security Features |
HP Wolf Security with HP Sure Start |
| Firmware Protection |
Auto-validating and self-healing firmware |
| Compliance |
NIST 800-173 |
| Port Control |
Ability to disable RJ-45 Ethernet, BIOS MAPT authorised list |
Management
| Cloud Management |
Poly Lens (cloud-based device management) |
| Firmware Updates |
Automatic firmware updates (Windows-based hosts only) |
| myHP Application |
Single dashboard for device settings and management |
| Wake on LAN |
Supported on compatible HP notebooks |
| MAC Address Pass-Through |
Supported on compatible HP notebooks |
Operating System Support
| Windows |
Windows 10 (22H2 and up), Windows 11 (23H2 and up), Windows 10 IoT Enterprise LTSC 2021 |
| macOS |
macOS Sonoma 14 and up |
| Linux |
Ubuntu Linux 22.04 LTS with 5.15 kernel |
| ChromeOS |
ChromeOS M133 and up |
| ThinPro |
ThinPro OS 8.0 |
Environmental
| Power Consumption Monitoring |
Built-in power consumption module |
| Design |
Replaceable parts for extended lifecycle |
Specifications are sourced from the manufacturer product page and may be updated.
