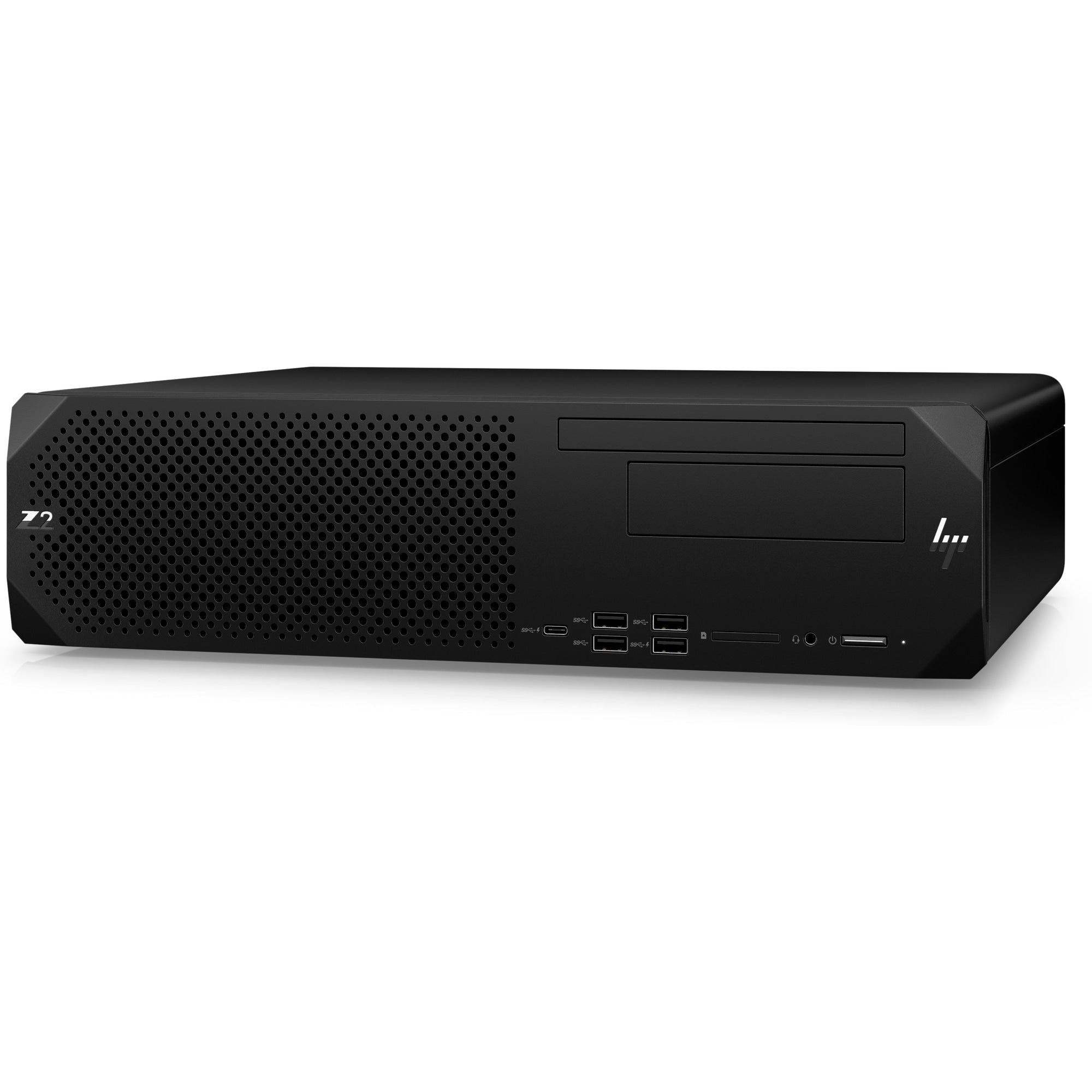

HP Z2 G9 SFF Workstation Intel i7-14700 16GB DDR5 512GB SSD Windows 11 Pro
The HP Z2 G9 Small Form Factor Workstation delivers professional-grade performance in a compact design. Powered by the Intel Core i7-14700 processor with 20 cores (8 P-cores and 12 E-cores) and 28 threads, this workstation is engineered for intensive workflows including 3D design, rendering, simulation, and real-time ray tracing. With 16GB DDR5 memory and a 512GB NVMe SSD, the Z2 G9 SFF provides the speed and reliability professionals demand for data analysis, creative applications, and efficient multitasking.
Key Features
-
Intel Core i7-14700 Processor: 20-core (8 P-cores, 12 E-cores), 28 threads with up to 5.3GHz max turbo frequency and 33MB L3 cache for exceptional multi-threaded performance
-
16GB DDR5 Memory: High-bandwidth DDR5 RAM delivers increased speed, improved multitasking, and lower power consumption
-
512GB NVMe SSD: Fast PCIe solid-state storage for rapid boot times and application loading
-
Compact SFF Design: Full-height, full-length graphics card support in a space-saving small form factor chassis
-
Professional Graphics Ready: Supports up to NVIDIA RTX 4000 Ada and AMD Radeon Pro W7600 professional graphics cards
-
Expandable Architecture: 4 DIMM slots supporting up to 192GB DDR5, 3 M.2 storage slots, and multiple PCIe expansion slots
-
Windows 11 Pro: Business-class operating system with advanced security and productivity features
Professional Performance You Can Trust
Re-engineered to fit full-height, full-length graphics while leaving room for upgrades and expansion, the Z2 SFF delivers tower-sized performance that defies space constraints. The Intel Core i7-14700 processor brings exceptional multi-core performance to professional applications, while DDR5 memory provides the bandwidth needed for complex design tasks and large datasets. The system supports HP's High Performance Mode in the BIOS, delivering up to 41% performance improvements for rendering and CPU-intensive workloads.
Built for Intensive Workflows
Whether you're working in CAD, 3D modeling, video editing, or software development, the Z2 G9 SFF is certified with leading software applications including AutoCAD, SolidWorks, Adobe Creative Cloud, and more. The workstation undergoes 360,000 hours of rigorous testing and military-standard testing to ensure reliability. With support for ECC memory on select configurations and professional-grade components, this is a workstation built to endure demanding production environments.
Exceptional Connectivity
-
Front Ports: USB-C 10Gbps, USB-A 5Gbps, headphone/microphone combo jack
-
Rear Ports: 2 × DisplayPort 1.4, Audio Line in/Line out, 1GbE LAN (RJ-45), 3 × USB-A 5Gbps, 3 × USB-A 480Mbps
-
Flex I/O Port: Configurable options including HDMI 2.0b, VGA, additional DisplayPort 1.4, USB-C 10Gbps with Power Delivery, Thunderbolt 3 with USB4 Type-C 40Gbps, or dual 1GbE LAN
-
Wireless Options: Intel Wi-Fi 6E AX211 and Bluetooth 5.3 available
Expandability and Serviceability
The Z2 G9 SFF features tool-less access to internal components, making upgrades and maintenance straightforward. The chassis supports up to 36TB total storage with 3 M.2 PCIe Gen4 slots and RAID 0/1 support. Four DIMM slots allow memory expansion up to 192GB DDR5. Multiple PCIe expansion slots provide flexibility for adding professional graphics cards, capture cards, or specialized I/O interfaces as your needs evolve.
Industry-Leading Security
Protect your work and your data with HP Wolf Security for Business, featuring hardware-enforced security below, in, and above the operating system. Includes HP Sure Start Gen7 self-healing BIOS, HP Sure Run to keep critical processes running, HP Sure Recover for OS recovery, and HP Sure Sense for advanced threat detection. Optional Computrace BIOS module and physical security lock provide additional protection for valuable workstation assets.
What's in the Box
- HP Z2 G9 SFF Workstation
- HP USB 320K Wired Keyboard
- HP 320M Wired Mouse
- Power Cord
- Documentation
Full Specifications
Processor
| Processor |
Intel Core i7-14700 (20-core: 8 P-cores, 12 E-cores, 28 threads) |
| Base Frequency |
2.1GHz P-Core, 1.5GHz E-Core |
| Max Turbo Frequency |
Up to 5.3GHz P-Core, up to 4.2GHz E-Core |
| Cache |
33MB L3 Cache |
Memory
| Memory |
16GB DDR5 |
| Memory Type |
DDR5-4800 (speed varies by configuration) |
| Memory Slots |
4 DIMM slots |
| Maximum Memory |
Up to 192GB DDR5 |
Storage
| Storage |
512GB PCIe NVMe SSD |
| Storage Bays |
3 × M.2 PCIe Gen4 slots, 1 × 3.5-inch bay (optional) |
| RAID Support |
RAID 0, 1 |
Graphics
| Integrated Graphics |
Intel UHD Graphics 770 |
| Discrete Graphics Support |
Up to NVIDIA RTX 4000 Ada, AMD Radeon Pro W7600 (configurable) |
Operating System
| Operating System |
Windows 11 Pro (64-bit) |
| Other OS Options |
Ubuntu 22.04 LTS, Windows 11 Home |
I/O and Connectivity
| Front I/O |
1 × USB-C 10Gbps, 1 × USB-A 5Gbps, 1 × headphone/mic combo jack |
| Rear I/O |
2 × DisplayPort 1.4, 1 × audio line in/out, 1 × 1GbE LAN (RJ-45), 3 × USB-A 5Gbps, 3 × USB-A 480Mbps |
| Flex I/O Port |
Configurable: HDMI 2.0b, VGA, DisplayPort 1.4, USB-C 10Gbps, Thunderbolt 3 USB4 40Gbps, or dual 1GbE LAN |
| Network |
Intel Ethernet I225-T1 1GbE LAN |
| Wireless (optional) |
Intel Wi-Fi 6E AX211 (2×2) and Bluetooth 5.3 |
Expansion
| PCIe Slots |
1 × PCIe 4.0 x16, 1 × PCIe 3.0 x4 (x16 connector), 1 × PCIe 3.0 x4, 1 × PCIe 3.0 x1 |
Power
| Power Supply |
450W 90% efficient, wide-ranging, active PFC (standard) |
| Power Supply Options |
550W 92% efficient (specific chassis required) |
Physical Specifications
| Form Factor |
Small Form Factor (SFF) |
| Dimensions (H × W × D) |
100mm × 384mm × 308mm (3.95" × 15.1" × 12.1") |
| Weight |
Starting at 5.0kg (11.1 lbs) - varies by configuration |
| Orientation |
Desktop (horizontal) or tower (vertical with optional stand) |
Environmental
| Operating Temperature |
5°C to 35°C (40°F to 95°F) |
| Operating Humidity |
8% to 85% RH, non-condensing |
Warranty and Support
| Warranty |
3 years limited warranty (parts and labor) |
| Certifications |
ISV certified, MIL-STD-810H tested, EPEAT Gold, ENERGY STAR |
Specifications are sourced from the manufacturer product page and may be updated. Configuration may vary. Not all features available in all editions or versions of Windows. System may require upgraded and/or separately purchased hardware, drivers, or software. For storage drives, GB = 1 billion bytes, TB = 1 trillion bytes; actual formatted capacity is less.
