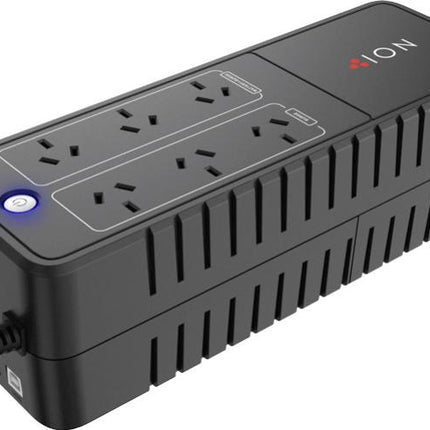

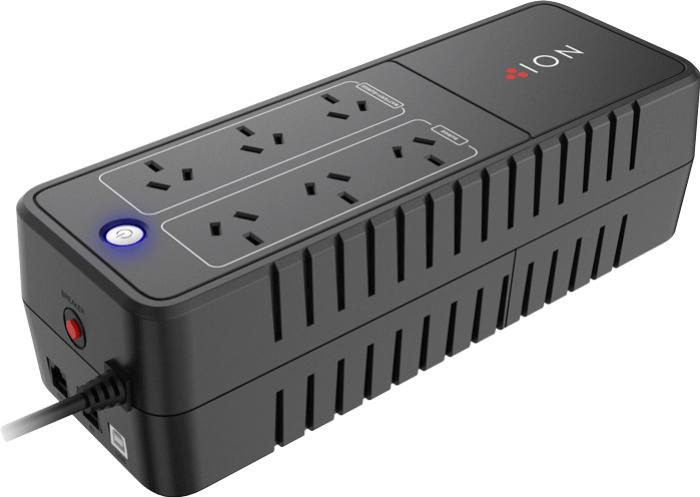

Ion F10 850VA Power Board UPS with Battery Backup & Surge Protection
The Ion F10 850VA Power Board UPS delivers affordable, compact power protection for your essential devices. With 490W/850VA capacity and six Australian 3-pin outlets (three with surge protection only, three with battery backup and surge protection), the F10 is the perfect solution for safeguarding Point of Sale systems, security equipment, home office workstations, routers, modems, home theatre setups, and gaming devices from power interruptions, surges, and data loss.
Key Features
-
850VA/490W Power Capacity: Ample capacity to protect multiple devices simultaneously
-
6 Australian 3-Pin Outlets: 3 surge-protected outlets plus 3 battery backup & surge-protected outlets for flexible device connection
-
Fanless Technology: Silent operation ideal for home offices, small businesses, and quiet environments
-
Simulated Sinewave Output: Clean, stable power during battery backup mode
-
USB Communication Port: Connect to your computer for intelligent power management and automatic safe shutdown
-
RJ-11/RJ-45 Protection: Safeguards phone lines, modems, fax machines, and network equipment from surges
Intelligent Power Management
The Ion F10 is packed with smart features that make power protection effortless. Auto-restart and auto-charge functionality ensures seamless recovery after power outages, while the cold start function allows you to power devices directly from battery even when mains power is unavailable. An intelligent LED indicator provides clear, at-a-glance status information, and the unit supports APFC (Active Power Factor Correction) equipment commonly found in modern computers and electronics.
Wide Input Voltage Range & Fast Transfer
With an input voltage range of 180-270Vac, the F10 handles voltage fluctuations without switching to battery mode, extending battery life and reducing wear. When mains power does fail, the 4ms typical transfer time ensures your equipment stays online without interruption. The unit automatically senses 50/60Hz frequency, making it versatile for various power environments.
Compact & Versatile Mounting
Measuring just 110mm wide × 309mm deep × 90mm high and weighing 3kg, the F10 fits neatly on desks, counters, media stands, or can be wall-mounted to save space. Its compact power board design makes it ideal for installations where space is at a premium, from retail counters to home entertainment centres.
Ideal Applications
- Point of Sale (POS) systems and retail terminals
- Security cameras, DVRs, and alarm systems
- Small office/home office (SOHO) PCs and workstations
- Networking equipment: routers, modems, switches
- Storage devices and NAS units
- Home theatre and gaming equipment
- Telecommunications equipment
What's in the Box
- Ion F10 850VA UPS power board unit
- User manual
- USB cable (for communication with PC)
Full Specifications
Output
| Output Power Capacity |
490W / 850VA |
| Max Configurable Power |
490W / 850VA |
| Nominal Voltage (Battery Mode) |
220-240Vac |
| Frequency (Battery Mode) |
50/60 ±1% Hz |
| Waveform (Battery Mode) |
Simulated Sinewave |
| THDv |
≤3% at linear load, ≤5% at non-linear load |
| Transfer Time |
4ms typical |
| Overload Protection |
Circuit breaker or inner firmware protection |
Input
| Nominal Input Voltage |
220-240Vac |
| Voltage Range |
180-270Vac |
| Frequency |
50/60Hz (Auto sensing) |
Battery
| Battery Voltage |
12V |
| Battery Type |
Sealed Lead Acid (SLA) 5.6AH |
| Total Battery Quantity |
1 |
| Recharge Time (to 90%) |
8 hours |
| Charger Current |
0.7A |
Communication & Protection
| USB Communication Port |
Yes |
| RJ-11/RJ-45 Protection |
Yes (phone line & network protection) |
| LED Indicator |
Intelligent status display |
| Audible Alarm |
Battery mode, low battery, overload, fault alerts |
Management Features
| Auto Recharge |
Yes |
| Auto Restart |
Yes |
| Cold Start Function |
Yes (battery mode) |
| Power Management Software |
Compatible |
Physical & Environment
| Dimensions (W × D × H) |
110mm × 309mm × 90mm |
| Net Weight |
3kg |
| Outlets |
6 × Australian 3-pin (3 surge only + 3 surge & battery backup) |
| Mounting Options |
Desktop or wall-mountable |
| Cooling |
Fanless (silent operation) |
| Operating Temperature |
0-40°C |
| Operating Humidity |
0-90% non-condensing |
Warranty & Support
| Standard Warranty |
2 years advanced replacement |
| Manufacturer Support |
Ion UPS Australia - 1300 700 805 |
Specifications are sourced from the manufacturer product page and may be updated.
