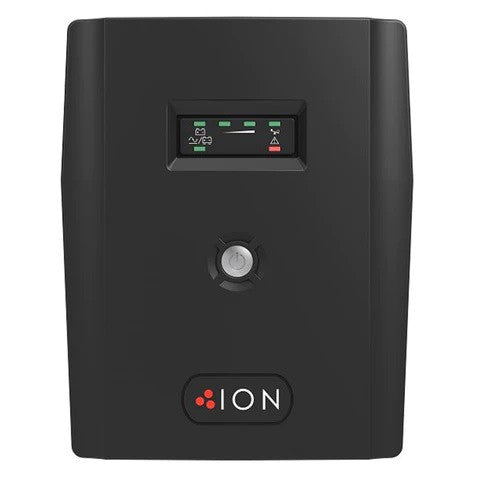

Ion F11-2200 2200VA Line Interactive Tower UPS with AVR
The Ion F11-2200 is a 2200VA/1200W line interactive tower UPS designed to protect computers, POS systems, and small business equipment from power surges, voltage fluctuations, and outages. Featuring Automatic Voltage Regulation (AVR) with boost and buck functionality, this UPS delivers clean, stable power without draining the battery unnecessarily. With 4 Australian 3-pin outlets, an LCD display, and USB connectivity for monitoring and safe shutdown, the F11-2200 is ideal for home offices, retail environments, and small businesses that need reliable backup power protection.
Key Features
-
2200VA/1200W capacity: Reliable backup power for multiple devices including computers, monitors, networking equipment, and POS terminals
-
Line Interactive with AVR: Boost and buck voltage regulation stabilises fluctuating power, extending battery life and protecting sensitive electronics
-
4 Australian 3-pin outlets: Multiple receptacles for connecting essential equipment
-
LCD display: Real-time monitoring of input/output voltage, load, and battery status
-
USB HID interface: No software installation required - native OS support for monitoring and automatic safe shutdown
-
3-year advanced replacement warranty: Coverage for both UPS electronics and batteries
Power Protection You Can Rely On
The Ion F11-2200 protects your valuable equipment from a wide range of power problems. The line interactive topology with AVR corrects voltage sags and spikes without switching to battery, ensuring continuous operation and longer battery service life. When mains power fails, the UPS switches to battery backup in just 4-8 milliseconds, preventing data loss and equipment damage. Discharge, overcharge, and overload protection safeguards both your UPS and connected devices.
Smart Monitoring & Management
The F11-2200 features a built-in LCD display for at-a-glance status monitoring, showing input and output voltage, load percentage, battery level, and alarms. The USB HID interface connects to your computer for real-time monitoring and automatic safe shutdown when battery runs low. Small Load Sensing (SLS) technology optimises power consumption. Free software is included for advanced monitoring and scheduled shutdown of connected equipment.
Designed for Australian Conditions
With 4 Australian 3-pin outlets, the F11-2200 is ready for deployment in Australian and New Zealand homes and businesses without adapters. The compact tower design fits neatly under desks or in tight spaces. The user-replaceable battery makes maintenance simple and cost-effective, extending the life of your investment. Auto-restart functionality ensures your equipment powers back on automatically when mains power is restored after an outage.
What's in the Box
- Ion F11-2200 UPS unit
- 2m IEC to Australian 3-pin power cable
- USB cable
- User manual
- Monitoring software (download)
Full Specifications
Output
| Output Power Capacity |
1200 Watts / 2200VA |
| Max Configurable Power |
1200 Watts / 2200VA |
| Nominal Output Voltage |
230VAC |
| Output Voltage Distortion |
Less than 5% at full load |
| Output Frequency |
47-53 Hz for 50 Hz nominal, 57-63 Hz for 60 Hz nominal |
| Topology |
Line Interactive |
| Waveform Type |
Modified Sine Wave |
| Output Connections |
4 × Australian 3-pin 10A outlets |
| Transfer Time |
4-8 ms typical |
Input
| Nominal Input Voltage |
230VAC |
| Input Frequency |
50/60 Hz ±3 Hz (auto sensing) |
| Input Connections |
2m IEC to Australian 3-pin plug |
| Input Voltage Range |
170-280VAC |
Battery
| Battery Type |
Sealed Lead Acid (SLA), maintenance-free |
| User Replaceable |
Yes |
Communications & Management
| Interface |
USB (HID - Human Interface Device) |
| Display |
LCD panel with input/output voltage, load, battery status, and alarms |
| Software |
Free monitoring and safe shutdown software included |
| Small Load Sensing (SLS) |
Yes |
Protection
| Surge Protection |
Yes |
| Voltage Regulation |
Automatic Voltage Regulation (AVR) - Boost and Buck |
| Overload Protection |
Yes |
| Overcharge Protection |
Yes |
| Discharge Protection |
Yes |
| Modem/Phone Line Protection |
Yes |
Physical
| Form Factor |
Tower |
| Dimensions (W × H × D) |
140mm × 360mm × 195mm |
| Weight |
10.3kg |
Warranty & Compliance
| Warranty |
3 years advanced replacement (UPS and batteries) |
| Warranty Upgrade Available |
Optional 5-year Platinum warranty |
Specifications are sourced from the manufacturer product page and may be updated. Battery runtimes are approximate and may vary with equipment, configuration, battery age, and temperature.
