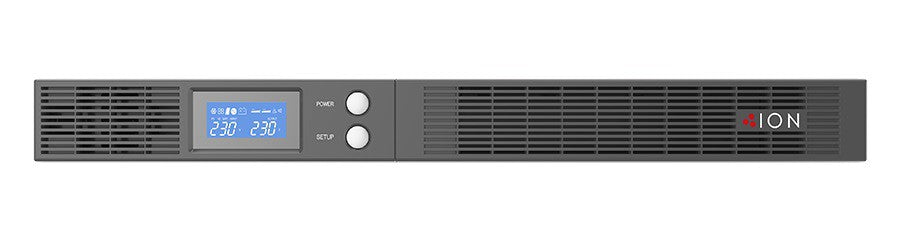

Ion F15R 650VA 390W Line Interactive 1RU Rackmount UPS with LCD Display
The Ion F15R 650VA Line Interactive UPS delivers high-density power protection in a compact 1RU rackmount form factor. Engineered with pure sine wave output and Automatic Voltage Regulation (AVR), this UPS is the ideal solution for protecting servers, switches, routers, security systems, and storage devices from data loss, corruption, and costly downtime. With its 390W/650VA capacity, fanless operation, and user-friendly LCD display, the F15R provides reliable, silent power protection for small to medium-sized rack installations and tower deployments.
Why Choose the Ion F15R 650VA UPS?
-
Pure Sine Wave Output: Clean, stable power protects sensitive equipment from voltage fluctuations and ensures compatibility with all devices
-
Fanless Design: Silent operation makes it perfect for office environments, small server rooms, and noise-sensitive installations
-
Line Interactive Technology with AVR: Automatic voltage regulation corrects brownouts and overvoltages without switching to battery, extending battery life
-
Compact 1RU Form Factor: Shallow depth (216mm) design fits short-depth racks and tight spaces, with included rail kit for easy installation
-
User-Friendly LCD Display: Monitor power status, battery capacity, load levels, and operating mode at a glance
-
3-Year Advanced Replacement Warranty: Australian-backed support with fast replacement service (1300 700 805)
Reliable Power Protection for Critical Equipment
The F15R's line interactive topology with AVR provides superior protection against power anomalies. With a 4ms typical transfer time and 165-290Vac input range, your equipment stays protected during brownouts, overvoltages, and complete power failures. The 12Vdc battery system (2 × 6V 7AH batteries) recharges to 90% capacity in just 4 hours, ensuring your systems are ready for the next outage.
Flexible Connectivity and Management
The Ion F15R includes 4 × IEC C13 outlets to power multiple devices from a single UPS. HID USB and RS232 connectivity enable seamless integration with Power Master management software for remote monitoring, scheduled shutdowns, and event logging. Optional SNMP cards (sold separately) add network management capabilities, while optional Wi-Fi cards provide wireless monitoring for maximum flexibility.
Smart Features for Business Continuity
-
Cold Start Function: Power on connected equipment even when utility power is unavailable
-
Auto-Restart: Automatically restarts after extended power outages when utility power returns
-
Auto-Charge: Begins charging batteries immediately when plugged in, even when the UPS is off
-
Energy Saving Technology: High-efficiency operation reduces energy consumption and operating costs
-
EPO (Emergency Power Off): Built-in emergency power off function for safety-critical situations
-
Optional Conformal Coating: Available for harsh environments and industrial applications
Ideal Applications
The F15R 650VA is perfect for protecting:
- Small business servers and workstations
- Network switches, routers, and firewalls
- Security systems, CCTV recorders, and access control
- Point-of-sale (POS) systems and retail equipment
- NAS storage devices and data backup systems
- VoIP phone systems and communication equipment
- Short-depth rack applications and tower deployments
What's in the Box
- Ion F15R 650VA 1RU UPS Unit
- Rackmount Rail Kit
- IEC Power Cord
- USB Cable
- User Manual
Full Specifications
Output
| Output Power Capacity |
390W / 650VA |
| Output Voltage |
220-240Vac |
| Waveform (Battery Mode) |
Pure Sine Wave |
| Transfer Time |
4ms typical |
| AC Voltage Regulation (Battery Mode) |
±10% |
| Frequency Range (Battery Mode) |
50/60Hz ±1% |
| Outlet Quantity |
4 × IEC C13 |
| THDv |
<5% at Linear Load |
| Overload Protection |
Overload, short circuit, over discharge, and over charge protection |
Input
| Input Voltage |
220-240Vac |
| Voltage Range |
165-290Vac |
| Frequency Range |
50/60Hz (Auto sensing) |
| Input Type |
IEC 320 C14 |
| Boost Ratio (AVR) |
118% |
| Buck Ratio (AVR) |
85% |
| Input Fuse |
Yes |
Battery
| Battery Voltage |
12Vdc |
| Battery Type & Quantity |
2 × 6V 7AH sealed lead-acid |
| Recharge Time (to 90%) |
4 hours |
| Charging Current |
1A |
| Battery Replacement |
User-replaceable |
Communication & Management
| Connectivity Ports |
HID USB, RS232 |
| Management Software |
Power Master (free download) |
| Optional Network Management |
SNMP card, SNMP Wi-Fi card (sold separately) |
| EPO Function |
Yes |
Physical & Environment
| Dimensions (W × H × D) |
443mm × 44mm × 216mm (1RU) |
| Weight |
8.6kg |
| Form Factor |
1RU Rackmount / Tower |
| Cooling |
Fanless (silent operation) |
| Noise Level |
Less than 40dB |
| Operating Humidity |
0-90% RH at 0-40°C (non-condensing) |
Warranty & Support
| Standard Warranty |
3 years advanced replacement (UPS electronics and batteries) |
| Extended Warranty Options |
Platinum 4-year and 5-year upgrades available |
| Australian Support Line |
1300 700 805 |
Specifications are sourced from the manufacturer product page and may be updated. For warranty and DOA claims, contact Ion UPS Warranty Support Line at 1300 700 805.
