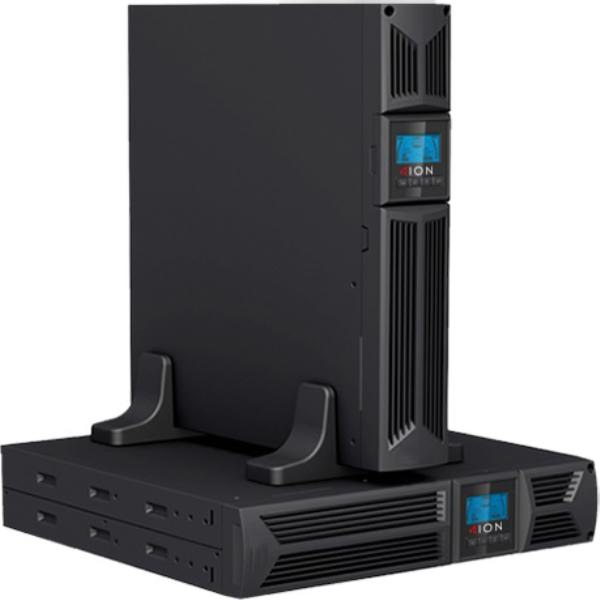

Ion F16-1000 1000VA/900W Line Interactive 2U Rack/Tower UPS Pure Sine
The Ion F16-1000 is a 1000VA/900W line-interactive rack/tower UPS that delivers reliable power protection for servers, storage systems, VoIP equipment, and network infrastructure. Featuring pure sine wave output, 0.9 power factor, and an intuitive rotatable LCD display, the F16-1000 provides enterprise-grade backup power in a flexible 2U form factor that can be mounted in a rack or positioned as a tower unit.
Why Choose the Ion F16-1000 UPS?
-
Line-interactive topology: High efficiency and automatic voltage regulation protect against power fluctuations
-
Pure sine wave output: Clean, stable power for sensitive IT equipment and servers
-
0.9 power factor: Delivers 900W of usable power from 1000VA capacity
-
Flexible installation: 2U rack-mountable or tower configuration with included rail kit
-
Rotatable LCD display: Easy monitoring in any orientation
-
Expandable runtime: Optional external battery modules available for extended backup time
Enterprise-Grade Power Protection
The Ion F16-1000 provides line-interactive backup power with high power factor performance, making it ideal for protecting critical IT infrastructure in server rooms, data centres, and telecommunications environments. The wide input voltage range of 161-276VAC ensures your equipment stays online even during significant power fluctuations, while automatic voltage regulation maintains stable output without draining the battery.
Smart Management & Monitoring
Keep track of your UPS status with the intuitive LCD display that shows real-time information including input/output voltage, battery status, and load level. The display rotates to accommodate both rack and tower installations. Optional SNMP and relay cards enable remote monitoring and management, while included power management software provides automatic shutdown capabilities for connected systems.
Grouped Programmable Outlets
The F16-1000 features 8 × IEC C13 outlets arranged in two groups of four, allowing you to configure different shutdown sequences or prioritize critical equipment. This intelligent outlet grouping helps extend battery runtime for essential devices while safely shutting down non-critical equipment first.
Easy Battery Maintenance
User-replaceable batteries make maintenance simple and cost-effective. The hot-swappable battery design allows replacement without powering down connected equipment, minimizing downtime. Optional external battery modules extend runtime for applications requiring longer backup periods.
Connectivity & Protection
-
RS-232 port: Serial communication for management and monitoring
-
USB port: Easy connection to servers and workstations
-
EPO (Emergency Power Off): Remote emergency shutdown capability
-
Modem/Network surge protection: Protects phone lines and network connections
-
SNMP port: Optional network management card support
-
Dry-contact relay port: Integration with building management systems
Advanced Features
-
Self-monitoring and fault diagnosis: Automated system checks and alerts
-
Optional Wi-Fi communication module: Wireless monitoring and management
-
Generator compatible: Works with backup generators (40-70Hz frequency range)
-
High efficiency design: Reduces operating costs and heat generation
-
3-year advanced replacement warranty: Peace of mind with comprehensive coverage
What's in the Box
- Ion F16-1000 UPS unit
- Rack-mount rail kit
- Tower stand/feet
- Power cord
- USB cable
- RS-232 cable
- Power management software CD
- User manual
Full Specifications
Power
| Capacity |
1000VA / 900W |
| Output Power Factor |
0.9 |
| Topology |
Line Interactive |
| Waveform Type |
Pure Sine Wave |
Input
| Input Voltage Range |
161-276VAC |
| Input Frequency Range (Normal Mode) |
50/60Hz ±5Hz |
| Input Frequency Range (Generator Mode) |
40-70Hz |
| Nominal Input Voltage |
220/230/240VAC |
Output
| Output Voltage |
220/230/240VAC |
| Voltage Regulation |
±5% (Battery mode) |
| Output Connections |
8 × IEC C13 (Two groups of 4 × C13) |
| Outlet Groups |
2 programmable groups |
Battery & Runtime
| Battery Type |
Sealed Lead Acid (maintenance-free) |
| Battery Replacement |
User-replaceable, hot-swappable |
| Recharge Time |
Approximately 4-6 hours to 90% capacity |
| External Battery Support |
Yes (optional FEBM-360 module) |
Communications & Management
| LCD Display |
Rotatable multi-function display |
| RS-232 Port |
Yes |
| USB Port |
Yes |
| SNMP Port |
Yes (card optional) |
| EPO Port |
Yes (Emergency Power Off) |
| Dry-Contact Relay Port |
Yes |
| Power Management Software |
Included |
| Optional Accessories |
SNMP card, relay card, Wi-Fi module, environmental monitoring probe |
Protection
| Surge Protection |
Modem/Network (phone/Ethernet line protection) |
| Overload Protection |
Yes |
| Short Circuit Protection |
Yes |
| Self-Monitoring |
Yes (automatic fault diagnosis) |
Physical
| Dimensions (W × D × H) |
440 × 435 × 86 mm |
| Rack Height |
2U |
| Weight |
24.3 kg |
| Form Factor |
Rack/Tower convertible |
| Cooling |
Fan-cooled with intelligent temperature control |
Environmental & Compliance
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-15°C to 45°C |
| Humidity |
0-95% non-condensing |
Warranty
| Standard Warranty |
3 years advanced replacement |
| Extended Warranty Options |
Platinum upgrade to 4 or 5 years available |
Specifications are sourced from the manufacturer product page and may be updated.
