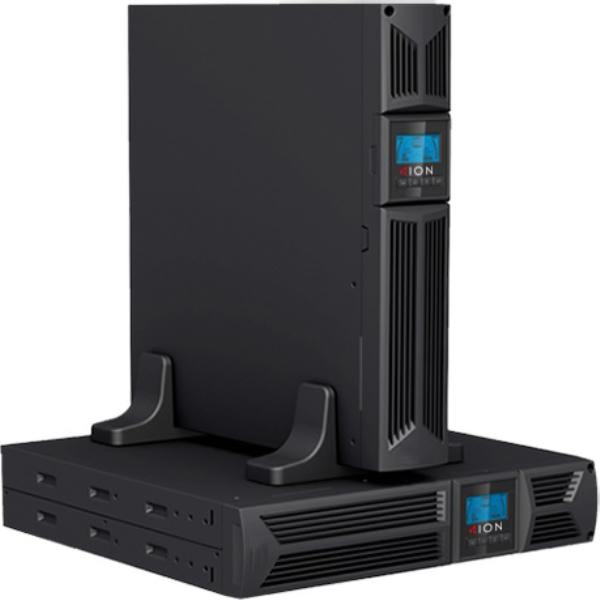

Ion F16-2000 2000VA / 1800W Line Interactive 2U Rack/Tower UPS
The Ion F16-2000 is a professional-grade line interactive UPS delivering 2000VA / 1800W of reliable backup power for servers, network equipment, storage systems, and VoIP infrastructure. Featuring a 2U rack or tower convertible design, pure sine wave output, and expandable battery runtime, the F16-2000 is the ideal power protection solution for Australian businesses and IT professionals seeking reliable, flexible UPS performance.
Key Features
-
2000VA / 1800W capacity: High power factor (0.9) for demanding server and network loads
-
Pure sine wave output: Clean power with less than 3% THDV for sensitive electronics
-
Rotatable LCD display: Intuitive interface for monitoring and configuration in rack or tower mode
-
Expandable battery runtime: Compatible with external battery modules for extended backup time
-
Dual outlet groups: 8 × C13 outputs arranged in two switchable groups of 4
-
3-year advanced replacement warranty: Premium Australian support and coverage
Line Interactive Power Protection
The F16-2000 uses line interactive topology with automatic voltage regulation (AVR) to protect your critical equipment from power fluctuations, brownouts, and blackouts. With an input voltage range of 161-276VAC, the UPS efficiently manages varying power conditions without draining the battery, extending battery life and reducing energy costs.
Flexible Rack or Tower Installation
Designed for versatility, the F16-2000 ships with rail kit included and can be installed in a standard 2U rack enclosure or deployed as a freestanding tower unit. The rotatable LCD display ensures easy viewing and control in either orientation, making it perfect for server rooms, data closets, and office environments.
Connectivity and Management
Stay connected with comprehensive communication options including USB, RS-232, and optional SNMP card for remote monitoring and management. The F16-2000 integrates seamlessly with major UPS management software, enabling automated shutdown, battery testing, and real-time status monitoring across your network.
Scalable Runtime for Mission-Critical Applications
Need more backup time? The F16-2000 supports external battery modules (FEBM-360 and FEBM-720) to dramatically extend runtime for servers, storage arrays, and telecommunications equipment. Whether you need a few extra minutes for safe shutdown or hours of continuous operation, the F16 scales to meet your business continuity requirements.
What's in the Box
- Ion F16-2000 UPS unit
- Rail kit for 2U rack mounting
- Power cord
- USB cable
- RS-232 cable
- User manual
- Quick start guide
Full Specifications
Power
| Capacity |
2000VA / 1800W |
| Output Power Factor |
0.9 |
| Topology |
Line Interactive |
| Waveform |
Pure Sine Wave |
| Output Voltage |
220/230/240VAC |
| Voltage Regulation |
±5% |
| Output THDV |
Less than 3% |
| Input Voltage Range |
161-276VAC |
| Input Frequency Range |
50/60Hz ±5Hz (Normal Mode), 40-70Hz (Generator Mode) |
Battery & Runtime
| Battery Type |
Sealed Lead Acid (maintenance-free) |
| Battery Recharge Time |
Approximately 48 hours to full charge |
| Expandable Runtime |
Yes, via external battery modules (FEBM-360, FEBM-720) |
Outputs
| Output Connectors |
8 × IEC C13 (two groups of 4) |
| Outlet Groups |
2 switchable groups |
Communication & Management
| Interface Ports |
USB, RS-232, EPO (Emergency Power Off) |
| Optional |
SNMP card (F-SNMP) for network management |
| LCD Display |
Rotatable, multi-function |
Physical
| Form Factor |
2U Rack/Tower convertible |
| Dimensions (W × D × H) |
440 × 435 × 86 mm |
| Weight |
24.3 kg |
| Rack Mounting |
Rail kit included |
Environment & Safety
| Operating Temperature |
0°C to 40°C |
| Certifications |
CE, RCM |
Warranty & Support
| Standard Warranty |
3 years advanced replacement |
| Extended Warranty |
Optional 4-year or 5-year platinum upgrades available |
Specifications are sourced from the manufacturer product page and may be updated. Battery runtimes are approximate and vary with equipment, configuration, battery age, and environmental conditions.
