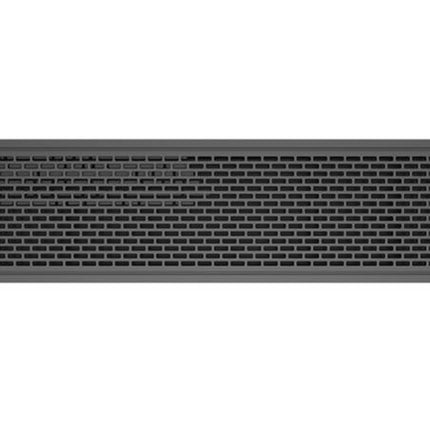

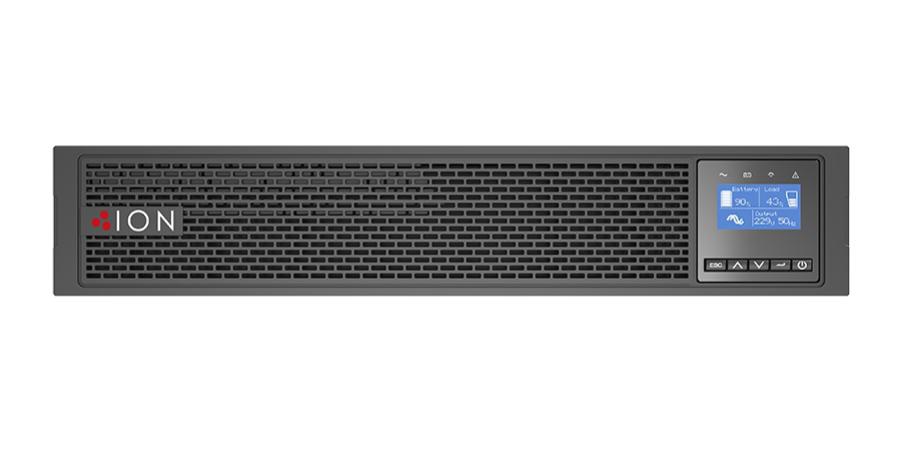

ION F18 IOT 10000VA/10000W Unity Power Factor Online UPS 2U Rack/Tower
The ION F18 IOT 10KW UPS delivers enterprise-grade power protection with true double conversion online topology and unity 1.0 power factor, meaning the full 10,000VA capacity translates to a full 10,000 watts of real power. Designed for rack servers, data networks, storage systems, and critical IT equipment, this 2U rack/tower convertible unit combines high-density power protection with cutting-edge IoT connectivity for remote cloud monitoring from any internet-connected device.
Key Features
-
Unity Power Factor (1.0 PF): Full 10,000W output from 10,000VA capacity for maximum efficiency
-
True Double Conversion Online: Pure sine wave output with zero transfer time to battery backup
-
IoT Cloud Connectivity: Monitor and manage your UPS remotely via any internet-connected device
-
High Efficiency: Greater than 98% efficiency rating reduces energy costs and heat generation
-
Compact 2U Design: Packs 10kW of power into just 2 rack units of space
-
Hardwired Input/Output: Professional installation with L/N/PE terminal connections for high-power applications
-
LCD User Interface: Easy monitoring and configuration with integrated display
-
3-Year Advanced Replacement Warranty: Peace of mind with manufacturer-backed protection
Enterprise Power Protection
The F18 IOT series provides high-density, true double conversion online power protection for both IT (Information Technology) and OT (Operational Technology) applications. With its pure sine wave output and continuous power conditioning, this UPS isolates connected equipment from input power issues including surges, sags, spikes, and frequency variations. The double conversion topology ensures zero transfer time when switching to battery power, protecting even the most sensitive equipment from momentary interruptions.
Unity Power Factor Advantage
Unlike traditional UPS systems with 0.9 or lower power factors, the F18 IOT delivers unity 1.0 power factor, meaning you get the full rated wattage from the VA capacity. This translates to more usable power for modern IT equipment with active power factor correction, allowing you to protect more servers and equipment without oversizing the UPS.
Smart IoT Connectivity
Built-in IoT communication capabilities allow you to connect the F18 IOT to the cloud for real-time monitoring and management from anywhere in the world. The system supports multiple communication ports and is compatible with optional SNMP cards, relay cards, and Wi-Fi modules for flexible integration into existing network management systems.
Flexible Deployment Options
The F18 IOT 10KW is designed for maximum flexibility with rack/tower convertible form factor. Mount it in a standard 19-inch rack using just 2U of space, or deploy it as a tower unit using the included tower feet. The hardwired input and output connections support high-current applications and are ideal for data centre and mission-critical installations.
Advanced Power Management
-
Wide Input Voltage Range: Operates on mains power across a broad voltage range (160-275V at full load, 110-160V with linear derating to 50% load)
-
Automatic Battery Detection: Automatically detects the number of external battery modules for extended runtime
-
Digital Charger: Adjustable charging current from 2-12A optimizes battery charging
-
Dual Input Capability: Optional dual input for enhanced reliability
-
Maintenance Bypass: Optional maintenance bypass module allows servicing without powering down connected loads
Designed for Extended Runtime
The F18 IOT 10KW model requires a minimum of one external battery module (F18-IOT-EBM-240V-RT) for operation, and supports additional battery modules for extended runtime solutions. The automatic battery detection system simplifies configuration and ensures optimal charging.
What's in the Box
- ION F18 IOT 10KW UPS unit (2U rack/tower)
- Tower feet for standalone installation
- User manual
- 3-Year Advanced Replacement Warranty
Full Specifications
Output
| Output Power Capacity |
10,000 Watts / 10,000 VA |
| Power Factor |
Unity 1.0 PF |
| Nominal Output Voltage |
220 / 230 / 240 VAC |
| Voltage Accuracy |
±1% |
| Output Frequency |
50 Hz / 60 Hz |
| Waveform Type |
Pure Sine Wave |
| Topology |
Double Conversion Online |
| Output Connections |
Hardwired L/N/PE terminal connection |
Input
| Nominal Input Voltage |
220 / 230 / 240 VAC |
| Input Frequency Range |
50 Hz / 60 Hz |
| Input Voltage Range |
160-275V at 100% load, 110-160V with linear derating to 50% load |
| Input Connections |
Hardwired L/N/PE terminal connection |
Performance
| Efficiency |
>98% |
| Transfer Time |
Zero (online double conversion) |
| Overload Capacity (Line Mode) |
100-105% continuous, 105-125% for 10 minutes, 125-150% for 30 seconds, >150% for 500ms |
Battery & Runtime
| Internal Batteries |
None (requires external battery modules) |
| Minimum Battery Requirement |
One (1) F18-IOT-EBM-240V-RT external battery module |
| Charging Current |
2-12A adjustable (digital charger) |
| Automatic Battery Detection |
Yes |
Communications & Management
| LCD Display |
Yes |
| IoT Communication Port |
Included |
| Cloud Connectivity |
Yes |
| Power Management Software |
Included |
| Optional Communication |
SNMP card, relay card, Wi-Fi module (all optional) |
Protection & Special Features
| HID Coating |
Yes (PCBA conformal coating) |
| Maintenance Bypass Module |
Optional |
| Dual Input |
Yes |
| Parallel Capability |
1+1 parallel, up to 3 units |
Physical
| Form Factor |
2U Rack/Tower convertible |
| Rack Units |
2U |
| Installation Type |
19-inch rack mount or tower (feet included) |
Warranty & Compliance
| Standard Warranty |
3 Years Advanced Replacement (UPS electronics and batteries) |
| Warranty Upgrade Available |
4 Years with Platinum Warranty uplift (optional) |
| Applications |
IT and OT (Operational Technology) |
Specifications are sourced from the manufacturer product page and may be updated. The F18 IOT 10KW model requires external battery modules for operation. Contact us for runtime calculations and battery configuration guidance.
