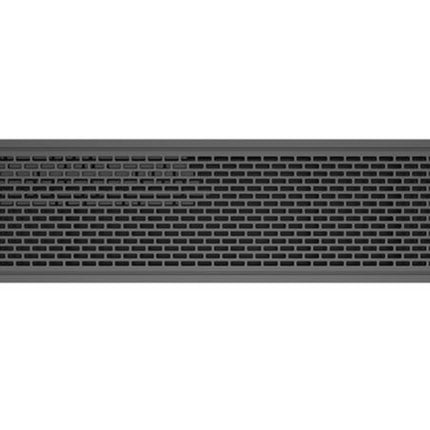

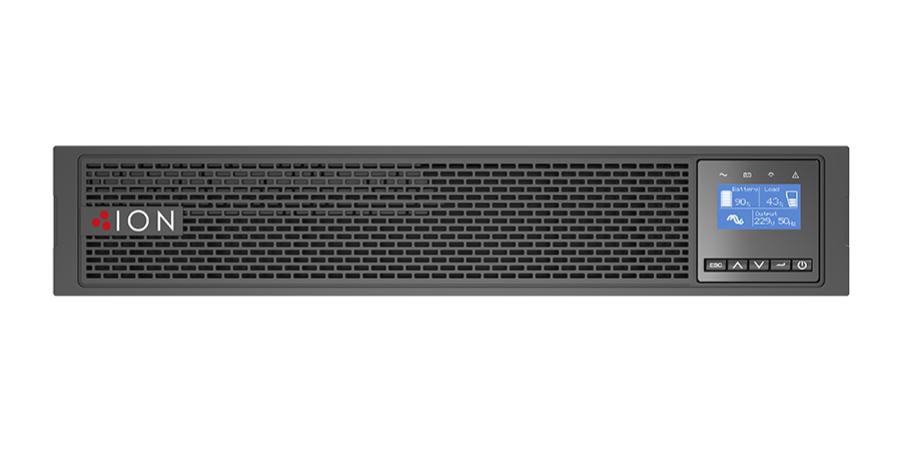

ION F18-IOT 2000VA/2000W Unity Online UPS with Cloud Connectivity
The ION F18-IOT 2000VA/2000W Rack/Tower UPS delivers high-density, true double-conversion online power protection for IT and OT applications. With a unity 1.0 power factor, this UPS provides 2000W of real output power from a compact 2U form factor. Featuring cloud connectivity for remote monitoring and advanced IoT communication capabilities, the F18-IOT is the perfect solution for commercial data centres, servers, networking equipment, medical devices, and industrial systems.
Key Features
-
True Online Double Conversion: Ensures pure sine wave output and continuous power conditioning with zero transfer time to battery backup
-
Unity Power Factor (1.0): Delivers full 2000W output power, optimising power usage and protecting more equipment
-
Cloud Connectivity: Future-proof IoT communication port enables seamless cloud connection for remote monitoring via any internet-connected device
-
High Efficiency: Greater than 95% efficiency rating reduces energy costs and heat generation
-
Flexible Rack/Tower Design: Compact 2U form factor with included tower feet for versatile installation options
-
Wide Voltage Input Range: Protects against voltage fluctuations without switching to battery power
Advanced Power Protection
The F18-IOT series utilises true online double-conversion topology to isolate connected equipment from any power issues on the input line. This provides the highest level of protection against surges, sags, spikes, and electrical noise. The LCD user interface simplifies monitoring of load, battery, input, and output parameters at a glance.
Scalable Battery Runtime
Extend backup time with optional external battery modules (EBM) that automatically detect and configure themselves. The digital charger features adjustable charging current (0-4A) to optimise battery life. Hot-swappable batteries allow for easy replacement without powering down the system, ensuring continuous protection.
Enterprise-Class Connectivity
The F18-IOT comes equipped with multiple communication ports and includes power management software. Optional SNMP and relay cards provide advanced monitoring capabilities, while the optional Wi-Fi communication module enables wireless connectivity. The UPS supports 1+1 parallel configuration for up to 3 units, providing redundancy and scalability.
Perfect For
- Commercial data centres and server rooms
- High-end servers, switches, and routers
- Networking and wireless devices
- PLC and industrial control systems
- Medical equipment requiring continuous power
- Security and surveillance systems
- Data storage systems and NAS devices
- VoIP and telecommunications equipment
Outlets & Input
-
8 x IEC C13 outlets arranged in two programmable groups (4 outlets per group)
-
IEC C14 input connection
- Dual input capability for enhanced reliability
- Optional maintenance bypass module available
What's in the Box
- ION F18-IOT 2000VA/2000W UPS unit
- Tower feet for desktop installation
- Power cable
- USB communication cable
- Power management software
- User manual
- 3-year advanced replacement warranty card
Full Specifications
Power
| Capacity |
2000VA / 2000W |
| Power Factor |
Unity 1.0 |
| Topology |
True Online Double Conversion |
| Efficiency |
>95% (up to 97% in ECO mode) |
| Input Voltage Range |
Wide voltage input range |
| Output Waveform |
Pure Sine Wave |
| Transfer Time |
0ms (online topology) |
Battery
| Battery Type |
Sealed Lead Acid (hot-swappable) |
| Charging Current |
0-4A adjustable (digital charger) |
| Runtime |
Scalable with optional external battery modules |
| EBM Detection |
Automatic detection of connected battery modules |
Protection
| Protection Features |
Surge, overload, and short circuit protection |
| Bypass |
Optional maintenance bypass module |
Communication & Monitoring
| IoT Communication |
Cloud connectivity enabled |
| Display |
LCD user interface |
| Software |
Power management software included |
| Communication Ports |
Multiple ports (USB, RS-232) |
| Optional Cards |
SNMP, relay cards, Wi-Fi module |
| Parallel Operation |
1+1 parallel capacity up to 3 units |
Outlets
| Output Outlets |
8 × IEC C13 (two groups of 4) |
| Input Connection |
IEC C14 |
| Outlet Programming |
Grouped programmable outlets |
| Dual Input |
Yes |
Physical
| Form Factor |
2U Rack/Tower convertible |
| Dimensions (W × D × H) |
440mm × 435mm × 86mm |
| Weight |
19.7kg (approximate) |
| Mounting |
Rack mount (2U) or tower (feet included) |
| Conformal Coating |
HID and PCBA conformal coating |
Environmental
| Operating Temperature |
0°C to 40°C |
| Design |
Smallest footprint in its class |
Warranty & Support
| Warranty |
3 years advanced replacement warranty |
| Extended Warranty |
Optional 4-year platinum warranty upgrade available |
| Support |
ION Warranty Support Line - 1300 700 805 |
Specifications are sourced from the manufacturer product page and may be updated.
