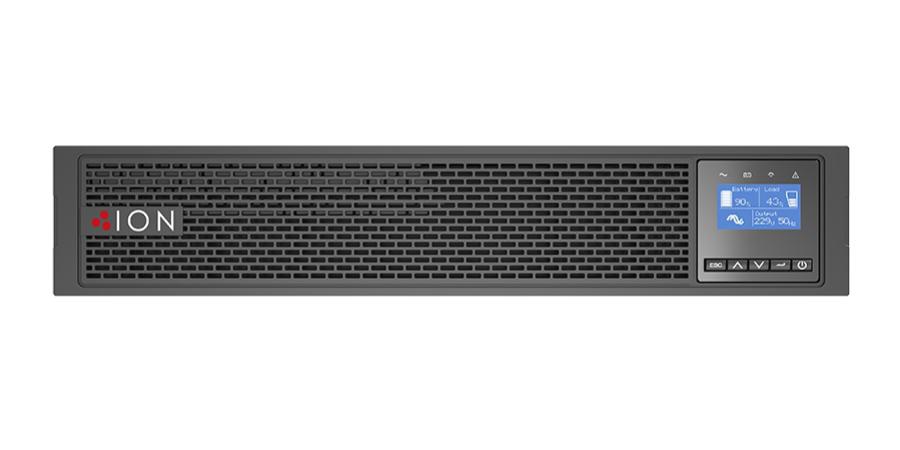

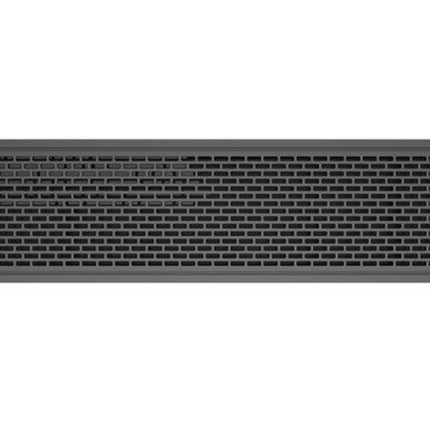

Ion F18 IOT 3000VA / 3000W Online Double Conversion UPS with Cloud Connectivity
The Ion F18 IOT 3000VA/3000W UPS delivers enterprise-grade power protection in a compact 2U rack/tower convertible form factor. This true online double-conversion UPS features unity 1.0 power factor, future-proof cloud connectivity, and advanced battery management, making it the ideal solution for protecting high-end servers, networking equipment, data storage systems, and mission-critical industrial applications across Australia.
Why Choose the Ion F18 IOT?
-
True Online Double Conversion: Zero transfer time to battery backup with pure sine wave output and continuous power conditioning
-
Unity Power Factor: 3000VA delivers full 3000W of real power, maximising efficiency and equipment compatibility
-
Cloud Connectivity: Monitor and manage your UPS remotely through any internet-connected device with seamless cloud integration
-
High Efficiency: Up to 97% efficiency in ECO mode reduces energy costs and heat generation
-
Compact 2U Design: Smallest footprint in its class fits both rack and tower installations
-
3-Year Advanced Replacement Warranty: Peace of mind with comprehensive manufacturer support
Enterprise-Grade Power Protection
The F18 IOT series utilises true double-conversion topology to provide the highest level of power protection by completely isolating connected equipment from all input power issues. With zero transfer time to battery backup, your critical systems remain protected from surges, sags, spikes, brownouts, and blackouts without interruption.
Smart Battery Management
Advanced features include automatic detection of external battery modules, adjustable charging current (0-4A), and support for optional extended battery modules to increase runtime. The digital charger optimises battery health and longevity while the wide voltage input range minimises unnecessary battery usage.
Versatile Connectivity & Expandability
Equipped with 8 x C13 outlets (two groups of 4) and 1 x C19 outlet, the F18 IOT provides flexible power distribution. The IOT communication port enables integration with building management systems, while optional SNMP cards, relay cards, and Wi-Fi modules expand monitoring capabilities. Supports dual input and 1+1 parallel configuration for redundancy.
Perfect For
- Commercial data centres and server rooms
- High-end servers, switches, routers, and networking equipment
- Data storage systems and NAS devices
- Manufacturing and industrial control systems (PLC systems)
- Medical equipment requiring reliable power
- Telecom, VoIP, and communication systems
- Security and surveillance systems
Advanced Management
Includes comprehensive power management software for monitoring, scheduling, and automated shutdown procedures. The built-in IOT communication port provides multiple protocol support, while optional maintenance bypass allows for safe servicing without powering down protected equipment.
What's in the Box
- Ion F18 IOT 3000VA/3000W UPS unit
- Power cable
- Rack mounting brackets
- Tower conversion feet (model dependent)
- USB communication cable
- Power management software CD
- User manual and quick start guide
Full Specifications
Power
| Capacity |
3000VA / 3000W |
| Power Factor |
Unity 1.0 |
| Topology |
True Online Double Conversion |
| Output Waveform |
Pure Sine Wave |
| Transfer Time |
Zero (0ms) |
| Efficiency |
Up to 97% (ECO mode) |
Physical
| Form Factor |
2U Rack / Tower Convertible |
| Mounting |
19-inch rack or tower (with optional feet) |
Outlets & Connectivity
| Output Outlets |
8 x C13 (two groups of 4) + 1 x C19 |
| Input |
C14 or C20 (model dependent) |
| Communication Ports |
IOT communication port, USB, optional SNMP/relay cards |
Features
| Cloud Connectivity |
Yes, with remote monitoring capability |
| Battery Management |
Automatic EBM detection, adjustable charging (0-4A) |
| Parallel Capability |
1+1 parallel, up to 3 units |
| Optional Modules |
SNMP card, relay card, Wi-Fi module, maintenance bypass |
| Software |
Power management software included |
Protection & Safety
| Protection |
Surge, overload, short circuit protection |
| Conformal Coating |
HID and PCBA conformal coating |
| Input Voltage Range |
Wide voltage input range |
Warranty & Support
| Warranty |
3 Year Advanced Replacement Warranty |
| Manufacturer |
Ion UPS (Australian manufacturer) |
Specifications are sourced from the manufacturer product page and may be updated. This UPS is designed and supported by Ion UPS, Australia's leading manufacturer of innovative power supply systems.
