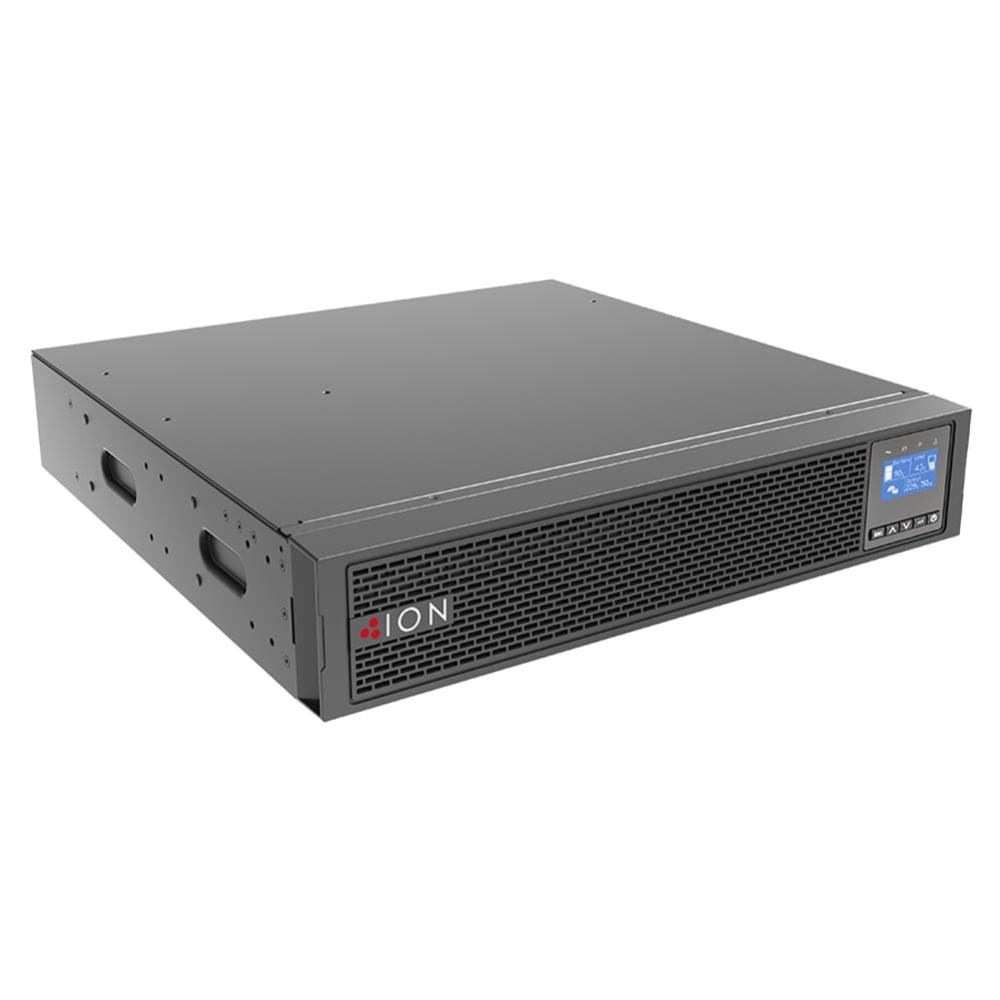

ION F18 IOT 6000VA / 6000W Unity Power Factor Online Double-Conversion UPS
The ION F18 IOT 6000VA / 6000W is a high-density, true double-conversion online UPS designed to deliver enterprise-grade power protection for mission-critical IT and OT applications. With Unity 1.0 Power Factor, this UPS maximises usable power output, delivering a full 6000 watts from 6000VA capacity. Featuring IOT cloud connectivity, the F18 IOT enables seamless remote monitoring through any internet-connected device, making it ideal for data centres, server rooms, industrial systems, and telecom infrastructure across Australia.
Why Choose the ION F18 IOT 6000W UPS?
-
True Online Double-Conversion Topology: Provides continuous power conditioning with zero transfer time to battery backup, ensuring uninterrupted protection against surges, sags, and outages
-
Unity 1.0 Power Factor: Output power in watts equals VA rating, optimising power efficiency and supporting modern high-power-factor IT loads
-
IOT Cloud Connectivity: Monitor UPS status, battery health, and power conditions remotely via cloud-based platforms from anywhere in the world
-
High Efficiency >98%: Reduces energy costs and heat generation, making it an eco-friendly choice for 24/7 operation
-
Compact 2U Rack/Tower Design: Fits seamlessly into standard 19-inch racks or operates as a standalone tower unit, maximising space efficiency
-
Scalable Runtime: Super Charger design allows connection of external battery modules (F18-IOT-EBM-240V-RT) for extended backup times tailored to your requirements
Enterprise-Grade Power Protection
The F18 IOT 6000W uses true double-conversion online topology to continuously convert incoming AC power to DC, then back to clean, stable AC output. This process isolates connected equipment from all input power anomalies including voltage fluctuations, frequency variations, harmonics, and electrical noise. The result is a pure sine wave output with ±1% voltage accuracy, ensuring optimal performance and longevity for sensitive servers, storage systems, networking equipment, and industrial controllers.
Smart IOT Communication and Monitoring
Built for the modern connected data centre, the F18 IOT includes an integrated IOT communication port as standard, enabling seamless integration with cloud monitoring platforms. The intuitive LCD user interface provides at-a-glance status updates, while multiple communication ports support power management software, optional SNMP cards, Wi-Fi modules, and relay cards. The unit also features HID and PCBA conformal coating for enhanced reliability in harsh industrial environments.
Flexible Configuration and Scalability
Designed for maximum flexibility, the F18 IOT 6000W supports:
-
Dual Input: Separate primary and bypass power inputs for enhanced availability
-
1+1 Parallel Capability: Connect up to 3 units in parallel for redundancy or increased capacity
-
Wide Input Voltage Range: 160-275V at full load, 110-160V with linear derating to 50% load
-
Hardwired Input/Output: L/N/PE terminal connections for permanent installation (Note: NO BATTERIES INCLUDED - requires minimum one F18-IOT-EBM-240V-RT external battery module)
-
Automatic EBM Detection: Automatically detects the number of connected external battery modules
-
Digital Charger: Adjustable charging current from 2-12A for optimised battery management
-
Optional Maintenance Bypass Module: Allows safe servicing without powering down critical loads
Ideal Applications
The ION F18 IOT 6000W is perfect for protecting:
- High-end rack servers and blade systems
- Network switches, routers, and firewall appliances
- Data storage systems and NAS devices
- VoIP and telecommunications equipment
- Industrial PLCs and automation controllers
- Medical diagnostic and monitoring equipment
- Security and surveillance systems
- Commercial data centres and server rooms
What's in the Box
- ION F18 IOT 6000VA/6000W UPS unit (2U rack/tower chassis)
- Tower feet for standalone operation
- User manual and quick start guide
- Power management software
Note: This is a Super Charger model supplied WITHOUT BATTERIES. Requires a minimum of one (1) F18-IOT-EBM-240V-RT External Battery Module (sold separately) for operation. Hardwired input and output connections required.
Full Specifications
Output
| Output Power Capacity |
6000 Watts / 6000VA |
| Max Configurable Power |
6000 Watts / 6000VA |
| Power Factor |
Unity 1.0 |
| Nominal Output Voltage |
220 / 230 / 240VAC (selectable) |
| Voltage Accuracy |
±1% |
| Frequency |
50Hz / 60Hz (auto-sensing) |
| Topology |
Double Conversion Online |
| Waveform Type |
Pure Sine Wave |
| Output Connections |
L/N/PE hardwired terminal connection |
Input
| Nominal Input Voltage |
220 / 230 / 240VAC |
| Input Frequency Range |
50Hz / 60Hz (auto-sensing) |
| Input Connections |
L/N/PE hardwired terminal connection |
| Input Voltage Range |
160-275V at 100% load; 110-160V derating to 50% load linearly |
Performance
| Efficiency |
>98% |
| Transfer Time |
Zero (continuous online operation) |
| Overload Capacity (Line Mode) |
100-105% continuous; 105-125% for 10 minutes; 125-150% for 30 seconds; >150% for 500ms |
Battery
| Battery Type |
External battery module required (F18-IOT-EBM-240V-RT) |
| Charger Type |
Digital charger with adjustable current 2-12A |
| Auto Detection |
Automatic detection of number of connected EBMs |
Communications & Management
| Standard Communication |
IOT communication port with cloud connectivity |
| User Interface |
LCD display panel |
| Software |
Power management software included |
| Optional Communication |
SNMP card, relay cards, Wi-Fi module (sold separately) |
| Parallel Capability |
1+1 parallel, expandable up to 3 units |
| Dual Input |
Yes |
Protection
| Surge Protection |
Yes |
| Overload Protection |
Yes |
| Short Circuit Protection |
Yes |
| Environmental Protection |
HID and PCBA conformal coating |
Physical
| Form Factor |
2U Rack/Tower convertible |
| Dimensions (W × D × H) |
438mm × 559mm × 129mm |
| Weight |
60.5kg (without batteries) |
| Mounting |
19-inch rack mount or tower (feet included) |
Environmental & Standards
| Operating Temperature |
0°C to 40°C |
| Storage Temperature |
-15°C to 60°C |
| Relative Humidity |
0-95% non-condensing |
Warranty & Support
| Standard Warranty |
3 years advanced replacement warranty |
| Warranty Coverage |
UPS electronics (batteries sold separately) |
| Optional Warranty |
Platinum 4-year upgrade available |
Specifications are sourced from the official ION UPS manufacturer product page and may be updated. Please refer to ionups.com.au for the latest technical documentation.
