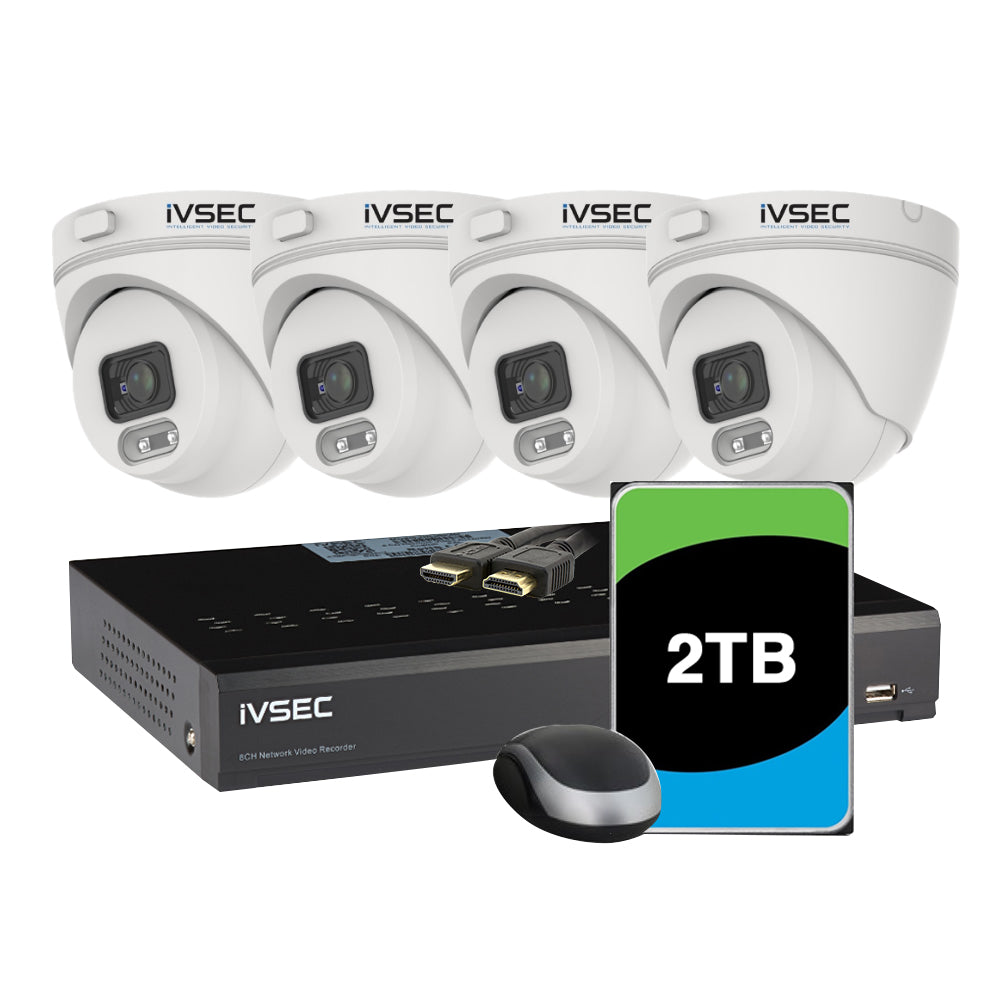

IVSEC LVK-000 LX-Series 4MP 4-Channel Security Camera Kit with 4 IP Cameras & 2TB NVR
Complete video surveillance solution featuring 4 x NC000XA 4MP IP cameras and a 4-channel NR004XB-2TB network video recorder with built-in PoE. This all-in-one security kit delivers high-quality 4-megapixel video resolution, intelligent Smart Motion Detection, and weather-resistant IP66 construction, perfect for protecting homes, offices, retail spaces, and small business premises across Australia.
Why Choose the IVSEC LX-Series Security Kit
The IVSEC LVK-000 is an affordable, professional-grade surveillance system that combines cost-effective cameras with advanced detection features. Smart Motion Detection intelligently identifies humans and vehicles to reduce false alarms, while the free IVSEC X mobile app enables remote monitoring from anywhere. Setup is simple with Power over Ethernet (PoE) supplying both power and data over a single cable, and the kit includes everything you need to get started.
Key Features
-
4MP High Resolution: Each NC000XA camera captures clear 2560 x 1440 video for excellent image clarity
-
Smart Motion Detection: AI-powered detection distinguishes between humans and vehicles to minimize false alerts
-
Advanced IVS Detection: Perimeter intrusion detection, line crossing detection, and sound detection built-in
-
IP66 Weatherproof: All cameras rated for indoor and outdoor use in Australian conditions
-
Built-in PoE+: 4 PoE+ ports on the NVR simplify installation with single-cable power and data
-
2TB Pre-installed Storage: Includes 2TB Seagate SkyHawk surveillance-grade HDD, expandable to 16TB
-
Night Vision: 20-metre infrared illumination for clear monitoring in complete darkness
-
Remote Monitoring: Free IVSEC X mobile app for iOS and Android with QR code setup
NC000XA 4MP IP Camera Specifications
Each camera in the kit features a 1/2.7-inch progressive CMOS sensor with 4-megapixel resolution and a 2.8mm fixed lens delivering an 88-degree horizontal field of view. The turret-style dome design offers flexible installation, while the built-in microphone and SD card slot provide edge recording options. H.265 video compression technology maximizes storage efficiency and reduces bandwidth usage.
NR004XB-2TB Network Video Recorder
The included NR004XB-2TB NVR supports up to 4 IP cameras and records at resolutions up to 8MP (4K). With 4 built-in PoE+ ports, the recorder supplies IEEE 802.3af power directly to cameras via standard Cat5e or Cat6 network cable. The NVR features advanced detection capabilities including Motion Detection, Face Recognition, Human & Vehicle Detection, Line Crossing Detection, Stationary Object Detection, Crossing Counting, Heat Map, Crowd Density Detection, Queue Length Detection, License Plate Detection, and Video Tampering alerts. Output is via 4K HDMI or HD 1080p, and the NVR supports H.265+, H.265, H.264+, H.264, and MJPEG compression formats.
Simple Installation & Remote Access
Installation is straightforward with plug-and-play compatibility when using IVSEC cameras. Run a single Cat5e or Cat6 cable from each camera to the NVR's PoE ports, connect the NVR to your network and monitor, and scan the QR code with the free IVSEC X app to begin remote viewing. The system is ONVIF Profile S/G/T compliant for compatibility with third-party cameras and VMS software.
What's in the Box
- 4 x IVSEC NC000XA 4MP IP Turret Cameras
- 1 x IVSEC NR004XB-2TB 4-Channel Network Video Recorder
- 1 x 2TB Seagate SkyHawk Surveillance HDD (pre-installed)
- 1 x HDMI Cable
- 1 x USB Mouse
- Camera mounting hardware
- Power adapter
- Quick start guide
Full Specifications
NC000XA Camera Specifications
| Camera Type |
Turret Dome IP Camera |
| Image Sensor |
1/2.7-inch Progressive CMOS |
| Resolution |
4MP (2560 x 1440) |
| Lens |
2.8mm Fixed |
| Field of View |
88° Horizontal |
| Frame Rate |
25 fps @ 4MP |
| Night Vision |
20m Infrared Distance |
| Video Compression |
H.265, H.264, MJPEG |
| Audio |
Built-in Microphone |
| Storage |
Micro SD/SDHC Card Slot |
| Smart Detection |
Smart Motion Detection, Perimeter Intrusion, Line Crossing, Sound Detection |
| IP Rating |
IP66 Weatherproof |
| Operating Temperature |
-10°C to 55°C |
| Humidity |
20% to 80% RH |
| Power |
PoE (IEEE 802.3af) or DC 12V |
| Power Consumption |
Less than 4W |
| Dimensions |
100 x 100mm |
| Weight |
0.22kg |
| Protocols |
TCP/IP, UDP, HTTP, HTTPS, DHCP, FTP, RTP/RTSP |
| ONVIF |
Profile S/G/T (firmware 21.12 or greater) |
NR004XB-2TB NVR Specifications
| Model |
NR004XB-2TB |
| Channels |
4 |
| Recording Resolution |
Up to 8MP (4K) |
| PoE Ports |
4 x PoE+ (IEEE 802.3af) |
| Storage Bays |
1 x SATA Bay (up to 16TB per HDD) |
| Pre-installed HDD |
2TB Seagate SkyHawk Surveillance-Grade |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Video Output |
4K HDMI, HD 1080p |
| Detection Features |
Motion Detection, IVS Perimeter Intrusion, Face Recognition, Human & Vehicle Detection, Line Crossing, Stationary Object, Crossing Counting, Heat Map, Crowd Density, Queue Length, License Plate, Rare Sound Detection, Video Tampering |
| Network Interface |
RJ-45 Ethernet |
| Remote Access |
IVSEC X Mobile App (iOS/Android), Web Browser, VMS/CMS Software |
| ONVIF |
Profile S/G/T Compatible |
Specifications are sourced from the manufacturer product page and may be updated.
