IVSEC LX Series 8 Camera 4MP IP Security Kit with 8 Channel PoE NVR and 2TB Storage
The IVSEC LX Series Kit is a complete IP video surveillance solution designed for homes, offices, and retail environments. This comprehensive package includes 8 x NC000XA 4MP IP cameras with Smart Motion Detection and an NR008XB-2TB 8-channel PoE NVR with pre-installed 2TB SkyHawk surveillance hard drive. With Power over Ethernet technology, installation is simplified using a single cable for both power and data, making it perfect for small to medium-scale security setups that demand reliability and ease of use.
Why Choose This Security Camera Kit
-
Complete 8-Camera System: Ready-to-install kit with all components included for immediate deployment
-
4MP High Resolution: Crystal-clear 2560 × 1440 video captures fine details for evidence and identification
-
Smart Motion Detection: AI-powered detection identifies humans and vehicles, reducing false alarms from pets or debris
-
8 Built-in PoE+ Ports: Simplified wiring with power and data transmitted over a single Ethernet cable per camera
-
2TB Pre-installed Storage: Ready out of the box with SkyHawk surveillance-grade HDD, expandable up to 16TB
-
4K HDMI Output: View live and recorded footage in stunning clarity on 4K monitors
-
Free Remote Access: IVSEC X mobile app with QR code setup for instant viewing from anywhere
-
Weatherproof Design: IP66-rated cameras withstand harsh Australian weather conditions
NC000XA 4MP IP Cameras - Cost-Effective Performance
Each of the 8 included NC000XA turret dome cameras delivers professional-grade surveillance at an affordable price point. Featuring a 1/2.7 inch progressive CMOS sensor and 2.8mm fixed lens with an 88° horizontal field of view, these cameras provide wide-area coverage with excellent image clarity. The built-in infrared illumination enables night vision up to 20 metres, ensuring 24/7 monitoring capability.
Advanced features include SD card slot for edge recording backup, built-in microphone for audio monitoring, and comprehensive Intelligent Video Surveillance (IVS) functions such as perimeter intrusion detection, line crossing detection, and sound detection. The cameras support H.265 video compression technology for reduced bandwidth and storage requirements without sacrificing quality.
NR008XB-2TB Network Video Recorder - Powerful Recording Hub
The IVSEC NR008XB-2TB NVR is an 8-channel PoE network video recorder engineered for seamless surveillance and monitoring. Supporting up to 8 IP cameras at resolutions up to 12MP, this compact yet powerful NVR includes a pre-installed 2TB SkyHawk surveillance HDD optimized for continuous 24/7 recording workloads. Storage capacity can be expanded with a single hard drive up to 16TB for extended footage retention.
The NVR features 8 built-in PoE+ ports delivering both power and data to cameras, eliminating the need for separate power supplies. Advanced H.265+/H.265 compression technology maximizes storage efficiency while maintaining high video quality. Multiple search methods including event-triggered, time-lapse, and intelligent analytics filters make finding specific footage quick and intuitive.
Remote Access & Management
Stay connected to your security system from anywhere with the free IVSEC X mobile app for iOS and Android devices. Simply scan the QR code on the NVR for instant setup without complicated configuration. The Video Management System (VMS) software for PC and Mac provides comprehensive control and multi-site management capabilities. Remote viewing supports both live monitoring and recorded playback with two-way audio streaming when used with compatible cameras.
Intelligent Video Analytics
When used together, the cameras and NVR unlock powerful intelligent features including:
-
Smart Motion Detection (SMD): Differentiates between humans, vehicles, and other objects
-
Perimeter Intrusion Detection: Alerts when subjects cross defined boundaries
-
Line Crossing Detection: Triggers events when lines are crossed in specified directions
-
Sound Detection: Alerts on unusual audio events
-
Face Detection: Identifies human faces within the frame
-
Heat Map & Crowd Density: Analytics for retail and high-traffic areas

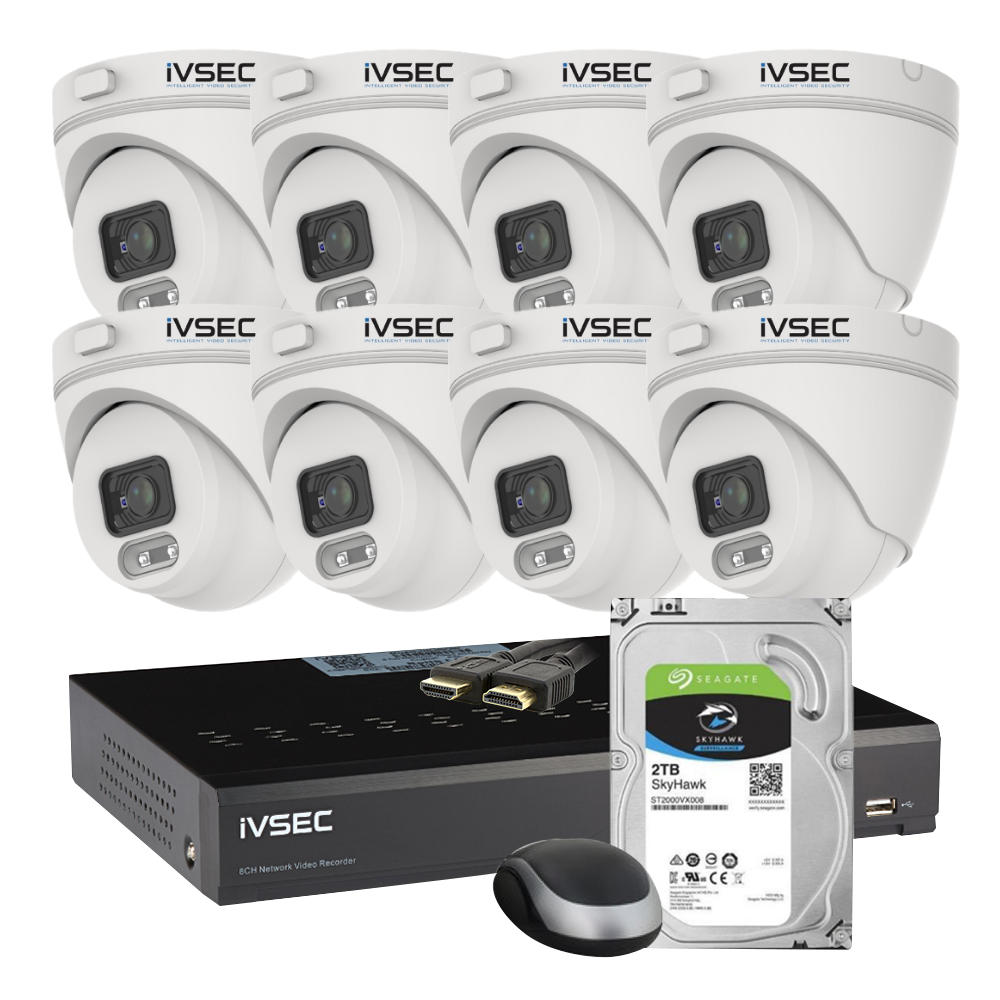

What's in the Box
- 8 × IVSEC NC000XA 4MP IP Turret Dome Cameras
- 1 × IVSEC NR008XB-2TB 8-Channel PoE NVR
- 1 × 2TB SkyHawk Surveillance HDD (pre-installed in NVR)
- 1 × HDMI Cable
- 1 × USB Mouse
- Power adapters and mounting hardware for cameras
- Quick start guide
Full Specifications
NC000XA IP Camera Specifications
| Camera Type |
Turret Dome |
| Image Sensor |
1/2.7 inch Progressive CMOS |
| Maximum Resolution |
4MP (2560 × 1440) |
| Lens |
2.8mm fixed (H.FOV: 88°) |
| Frame Rate |
25 fps @ 4MP |
| Night Vision |
IR illumination up to 20m |
| Video Compression |
H.265, H.264, MJPEG |
| Audio |
Built-in microphone |
| Storage |
MicroSD card slot |
| Smart Features |
Smart Motion Detection, Perimeter Intrusion, Line Crossing, Sound Detection |
| Protocols |
ONVIF (Profile S/G/T) 21.12 or greater, HTTP API |
| Weather Resistance |
IP66 |
| Operating Temperature |
-10°C to 55°C |
| Humidity |
20% - 80% RH |
| Power Supply |
PoE IEEE 802.3af or DC 12V |
| Power Consumption |
Less than 4W |
| Dimensions |
100 × 100mm |
| Weight |
0.22kg per camera |
NR008XB-2TB NVR Specifications
| Channels |
8 |
| Maximum Camera Resolution |
12MP |
| Incoming Bandwidth |
128 Mbps |
| PoE Ports |
8 × PoE+ (IEEE 802.3af/at) |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Storage |
1 × 3.5 inch SATA HDD bay (up to 16TB) |
| Pre-installed HDD |
2TB SkyHawk Surveillance HDD |
| Video Output |
4K HDMI, VGA |
| Audio |
Two-way audio streaming support |
| Network |
Gigabit Ethernet (RJ-45) |
| USB |
USB ports for mouse and backup |
| Mobile App |
IVSEC X (iOS & Android) |
| PC Software |
Video Management System (VMS) for Windows & Mac |
| Remote Access |
P2P via QR code, DDNS, HTTPS |
| Intelligent Features |
Motion Detection, IVS, Face Detection, Human & Vehicle Detection, Line Crossing, Perimeter Protection |
| Search Methods |
Time/Date, Event, Analytics-based |
Specifications are sourced from the manufacturer product page and may be updated.
