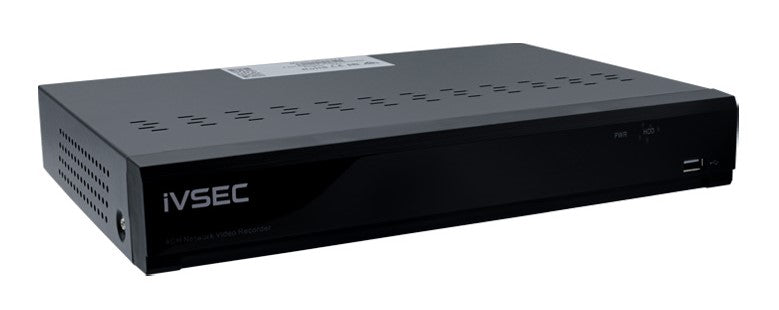

IVSEC NR004XB 4-Channel Network Video Recorder with PoE & 4K HDMI
The IVSEC NR004XB is a compact yet powerful 4-channel Network Video Recorder (NVR) designed for small to medium-scale surveillance systems. Featuring 4 built-in Power over Ethernet (PoE) ports, this NVR simplifies installation by delivering both power and data to compatible IP cameras over a single Ethernet cable. It supports recording at resolutions up to 12MP, with 4K HDMI output for crisp playback and live monitoring. Perfect for homes, small businesses, retail stores, and office environments seeking reliable, high-definition security.
Key Features
-
4 PoE Ports Built-In: Power and connect up to 4 IP cameras with plug-and-play simplicity using standard CAT5/CAT6 cables
-
12MP Recording Support: Capture ultra-high-definition video from compatible IVSEC IP cameras
-
4K HDMI & HD 1080p Video Output: Enjoy crystal-clear live viewing and playback on modern displays
-
H.265+ Video Compression: Advanced compression technology saves storage space and bandwidth without sacrificing quality
-
1 SATA Bay: Supports a single HDD up to 16TB for extended footage retention
-
Basic IVS (Intelligent Video Surveillance): Includes smart motion detection, perimeter intrusion, and line crossing detection to reduce false alarms
Advanced Video Compression & Storage
The NR004XB features H.265+, H.265, H.264+, H.264, and MJPEG video compression formats, ensuring maximum storage efficiency. The recorder supports a single SATA hard drive bay with capacity up to 16TB, allowing weeks or even months of continuous recording depending on camera resolution and frame rates. Australian retailers recommend using surveillance-grade HDDs such as Seagate SkyHawk for optimal reliability.
Remote Access & Management
Remotely view live footage or playback recordings from anywhere using the free IVSEC X mobile app (iOS and Android), compatible web browsers, or the Video Management System (VMS) software for Windows and Mac. Simply scan the QR code on your NVR to set up remote access in seconds. Manage camera settings, receive intelligent alerts, and review footage on the go with intuitive, user-friendly controls.
Intelligent Video Analytics
When paired with compatible IVSEC X-series cameras, the NR004XB supports Basic IVS (Intelligent Video Surveillance) features including:
- Smart Motion Detection (human and vehicle recognition)
- Perimeter Intrusion Detection
- Line Crossing Detection
- Stationary Object Detection
- Face Detection
- Video Tampering Alerts
These AI-powered analytics drastically reduce false alarms caused by animals, weather, or moving foliage, ensuring you're only alerted to genuine security events.
Plug & Play with IVSEC Cameras
The NR004XB is designed for seamless compatibility with the IVSEC X-series IP cameras. Installation is truly plug-and-play: connect your cameras to the PoE ports, and the NVR automatically detects and configures them. No complex network setup required. The system is also ONVIF Profile S/G/T compliant, enabling compatibility with many third-party IP cameras.
Connectivity & Interfaces
-
4 × PoE Ports: IEEE 802.3af/at for powering IP cameras
-
1 × HDMI Output: 4K resolution for high-definition display
-
1 × VGA Output: HD 1080p (optional secondary display)
-
1 × LAN Port: Gigabit Ethernet for network and remote access
-
1 × USB Port: For mouse control and data backup
-
Audio In/Out: Support for two-way audio (camera dependent)
What's in the Box
- 1 × IVSEC NR004XB 4-Channel PoE NVR
- 1 × HDMI Cable
- 1 × USB Mouse
- 1 × Power Adapter
- Quick Start Guide
Full Specifications
| Model |
IVSEC NR004XB |
| Channels |
4 |
| Maximum Recording Resolution |
12MP |
| PoE Ports |
4 × IEEE 802.3af/at |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Video Output |
4K HDMI, HD 1080p VGA |
| Storage Bays |
1 × SATA (up to 16TB per HDD) |
| Network Interface |
1 × Gigabit Ethernet (RJ-45) |
| IVS Features |
Smart Motion Detection, Perimeter Intrusion, Line Crossing, Face Detection, Stationary Object Detection |
| Remote Access |
IVSEC X Mobile App (iOS/Android), VMS Software (Windows/Mac), Web Browser |
| ONVIF Compliance |
ONVIF Profile S/G/T |
| Operating Temperature |
-10°C to +55°C |
| Power Supply |
12V DC adapter (included) |
| Warranty |
2 Years |
Specifications are sourced from the manufacturer product page and may be updated.
