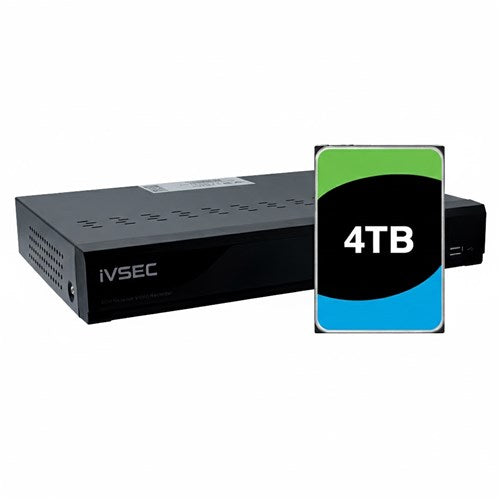

IVSEC NR004XB 4-Channel Network Video Recorder with Built-In PoE
The IVSEC NR004XB is a compact yet powerful 4-channel network video recorder designed for everyday surveillance needs in homes, small businesses, and commercial security setups. With support for up to 4 IP cameras at 12MP resolution, built-in 4-port PoE switch, and H.265+ video compression, this NVR delivers professional-grade recording and monitoring in a space-saving package. Record in stunning 4K UHD quality via HDMI output, and enjoy extended footage retention with support for up to 16TB storage (available with pre-installed 4TB option).
Why Choose the IVSEC NR004XB NVR
-
4 Channels, 12MP Recording: Supports up to 4 IP security cameras with recording at up to 12-megapixel resolution for crystal-clear footage
-
Built-In 4-Port PoE Switch: Simplifies installation by delivering both power and data over a single Ethernet cable to each camera, eliminating the need for separate power supplies
-
Massive Storage Capacity: Single HDD bay supports up to 16TB for extended retention of crucial surveillance footage
-
Advanced H.265+ Compression: Reduces file sizes by up to 50% compared to H.264, maximising storage efficiency without sacrificing video quality
-
4K HDMI Output: Monitor your cameras in stunning 4K UHD clarity on compatible displays
-
Basic IVS (Intelligent Video Surveillance): Includes smart detection features like motion detection, perimeter intrusion, line crossing, and more to reduce false alarms
-
Easy Remote Access: View live footage and playback recordings from anywhere using the free IVSEC X mobile app (iOS and Android) or VMS software for PC/Mac
-
Plug-and-Play with IVSEC Cameras: Seamlessly integrates with IVSEC X-series IP cameras for hassle-free setup
Perfect for Australian Homes and Businesses
Whether you're securing your home, retail store, warehouse, or office, the NR004XB provides reliable, high-definition surveillance recording with professional features. The NVR's efficient PoE design makes it ideal for retrofit installations and new builds alike, while the intuitive IVSEC X app allows you to monitor your property from your smartphone, tablet, or computer - perfect for Australian business owners and homeowners who need peace of mind on the go.
Advanced Video Compression and Recording
The NR004XB features H.265+, H.265, H.264+, H.264, and MJPEG video compression formats, with H.265+ offering the most efficient storage usage. This means you can record weeks or even months of footage on a single hard drive, making it a cost-effective solution for long-term surveillance storage. The NVR supports continuous, scheduled, and motion-triggered recording modes to suit your security needs.
Remote Monitoring Made Simple
Access your security cameras from anywhere in Australia or overseas with the free IVSEC X mobile app. Simply scan the QR code on the NVR to connect your smartphone or tablet in seconds. The app provides live view, playback, push notifications for events, and full control over NVR settings. For desktop monitoring, use the included VMS (Video Management Software) for Windows or Mac to manage multiple NVRs and cameras from a single interface.
Intelligent Video Surveillance Features
The NR004XB includes Basic IVS functionality when paired with compatible IVSEC cameras, offering advanced detection capabilities including:
- Motion Detection with human and vehicle classification
- Perimeter Intrusion Detection
- Line Crossing Detection
- Stationary Object Detection
- Face Recognition (camera dependent)
- Crossing Counting
- Heat Map
- Video Tampering Detection
Universal Connectivity
-
4 x PoE Ports: IEEE 802.3af/at compliant for powering IP cameras
-
HDMI Output: 4K UHD (3840 × 2160) and Full HD 1080p display output
-
VGA Output: For legacy monitor compatibility
-
Network Port: Gigabit Ethernet for network connectivity and remote access
-
USB Ports: For mouse control and video export
-
Audio In/Out: For camera microphones and external speakers
What's in the Box
- IVSEC NR004XB 4-Channel Network Video Recorder
- Hard Drive (if purchased with pre-installed 2TB or 4TB model)
- HDMI Cable
- USB Mouse
- Power Adapter
- Mounting Screws
- Quick Start Guide
Full Specifications
Recording & Playback
| Channels |
4 |
| Maximum Resolution |
12MP (4000 × 3000) |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Recording Modes |
Continuous, Scheduled, Motion Detection, IVS Events |
| Playback Channels |
Up to 4 channels simultaneously |
Storage
| HDD Bays |
1 × SATA (3.5") |
| Maximum Capacity |
Up to 16TB per bay |
| Pre-installed HDD |
Available with 2TB or 4TB Seagate SkyHawk surveillance-grade HDD (model dependent) |
Network & PoE
| PoE Ports |
4 × 10/100 Mbps RJ45 (IEEE 802.3af/at) |
| PoE Power Budget |
Supports standard PoE and PoE+ cameras |
| Network Interface |
1 × RJ45 10/100/1000 Mbps |
| Network Protocols |
TCP/IP, DHCP, DNS, DDNS, NTP, RTSP, HTTP, HTTPS |
Video Output
| HDMI |
1 × HDMI (up to 4K UHD 3840 × 2160, Full HD 1920 × 1080) |
| VGA |
1 × VGA (up to 1920 × 1080) |
Intelligent Features
| IVS Functions |
Basic IVS: Motion Detection, Perimeter Intrusion, Line Crossing, Stationary Object, Face Recognition, Crossing Counting, Heat Map, Video Tampering (camera dependent) |
Remote Access
| Mobile App |
IVSEC X (iOS and Android) - free download |
| Desktop Software |
VMS (Video Management Software) for Windows and Mac |
| Web Browser |
Chrome, Firefox, Safari, Edge |
| Voice Control |
Amazon Alexa, Google Assistant |
| Integration |
Control4 compatible |
General
| Power Supply |
DC 48V (included) |
| Warranty |
2-Year Australian Manufacturer's Warranty |
| Certifications |
CE, FCC, RCM |
Specifications are sourced from the manufacturer product page and may be updated. Hard drive capacity and pre-installation varies by model (NR004XB, NR004XB-2TB, NR004XB-4TB). Always check with seller for included configuration.
