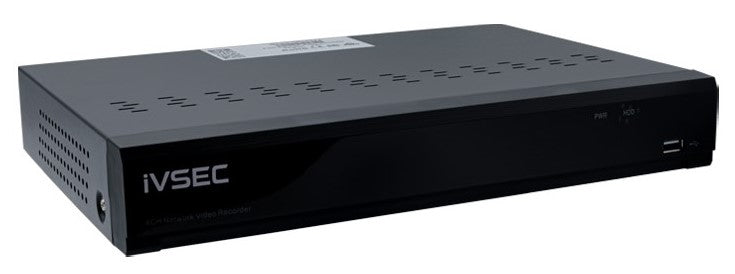

IVSEC NR008XB 8-Channel Network Video Recorder with PoE and 4K HDMI Output
The IVSEC NR008XB is a compact yet powerful 8-channel Network Video Recorder engineered for seamless surveillance and monitoring of up to 8 IP cameras. Designed for residential and small to medium-sized business applications, this NVR delivers high-definition recording up to 12MP resolution with advanced H.265+ video compression that reduces storage space and network bandwidth without compromising video quality. With 8 built-in PoE+ ports, a single 3.5-inch SATA bay supporting up to 16TB, and 4K HDMI output, the NR008XB offers reliable, feature-rich surveillance recording for modern security systems.
Key Features
-
8-Channel Recording: Supports up to 8 IP cameras with maximum resolution of 12MP for crystal-clear footage
-
Built-In PoE+ Ports: 8 Power over Ethernet ports simplify installation by delivering both power and data through a single cable
-
Advanced H.265+ Compression: Significantly reduces storage requirements and bandwidth consumption while maintaining video quality
-
4K HDMI & VGA Outputs: View your surveillance footage in stunning 4K resolution on compatible displays
-
Expandable Storage: Single HDD bay supports up to 16TB for extended retention of crucial footage
-
Remote Access: Free IVSEC X mobile app and VMS software for PC and Mac enable viewing from anywhere
Intelligent Video Features for Enhanced Security
The NR008XB supports a comprehensive range of intelligent video analytics (camera-dependent), including motion detection, perimeter intrusion detection, face recognition, human and vehicle detection, and line crossing detection. Multiple search methods such as event-triggered searches and time-lapse make it easy to find specific footage quickly. The unit also supports two-way audio streaming for interactive communication with camera locations.
Plug-and-Play Setup with Remote Control
Remote access and management are made effortless with the free IVSEC X mobile app and VMS software for Windows and Mac. Simply scan the QR code on the NVR to connect and view live or recorded footage from anywhere with an internet connection. The plug-and-play functionality with IVSEC X range cameras and user-friendly interface ensure a straightforward installation and setup process. Broad protocol support includes ONVIF Profile S/G/T, HTTPS for enhanced cybersecurity, DDNS, NTP, and P2P connectivity.
Perfect for Small Business and Home Security
Built for small business, SOHO, and residential surveillance deployments, the IVSEC NR008XB delivers robust performance and flexibility. Connect and power up to 8 IP cameras using built-in PoE, record in high definition, and view footage locally via 4K HDMI output. With smart search and playback tools including time-based and event/IVS-filtered search, you can size storage to suit your requirements - ideal for multi-camera installations that need reliable recording and easy playback.
Universal Connectivity
-
8 × PoE+ Ports: IEEE 802.3af/at compliant, up to 30W per port for powering IP cameras
-
1 × HDMI Output: 4K (3840 × 2160) resolution support
-
1 × VGA Output: For secondary display options
-
1 × RJ45 Gigabit Ethernet Port: Network connectivity
-
USB Ports: For backup and firmware updates
-
Audio In/Out: Two-way audio streaming support
What's in the Box
- IVSEC NR008XB Network Video Recorder (HDD not included in base model)
- Power adapter
- Ethernet cable
- Mouse
- Quick start guide
- Mounting accessories
Full Specifications
Video & Recording
| Maximum Channels |
8 |
| Maximum Resolution |
12MP |
| Video Compression |
H.265+, H.265, H.264+, H.264, MJPEG |
| Incoming Bandwidth |
80 Mbps |
| Recording Modes |
Manual, Schedule, Motion Detection, IVS |
Network & Connectivity
| PoE Ports |
8 × IEEE 802.3af/at (PoE+), up to 30W per port |
| Network Interface |
1 × RJ45 Gigabit Ethernet |
| Protocol Support |
ONVIF Profile S/G/T, HTTPS, DDNS, NTP, P2P |
| Remote Access |
IVSEC X mobile app (iOS/Android), VMS for PC/Mac, web browser |
Storage
| HDD Bays |
1 × 3.5-inch SATA |
| Maximum Capacity |
16TB per bay |
Display Outputs
| HDMI Output |
1 × HDMI, 4K (3840 × 2160) @ 30fps |
| VGA Output |
1 × VGA, 1920 × 1080 @ 60fps |
Intelligent Features
| Video Analytics |
Motion detection, perimeter intrusion, face detection, human & vehicle detection, line crossing (camera-dependent) |
| Search Methods |
Time/date, event-triggered, IVS-filtered, time-lapse |
| Two-Way Audio |
Yes (camera-dependent) |
Physical & Environmental
| Dimensions |
Compact 1U rack-mountable design |
| Operating Temperature |
-10°C to +55°C |
| Power Supply |
12V DC adapter (included) |
| Warranty |
2 years |
What's in the Box
| Package Contents |
NVR unit, power adapter, Ethernet cable, mouse, quick start guide, mounting accessories |
Specifications are sourced from the manufacturer product page and may be updated. Note: Hard disk drive is not included in the base NR008XB model. For a ready-to-go solution, see the NR008XB-2TB with pre-installed 2TB Seagate SkyHawk surveillance HDD.
