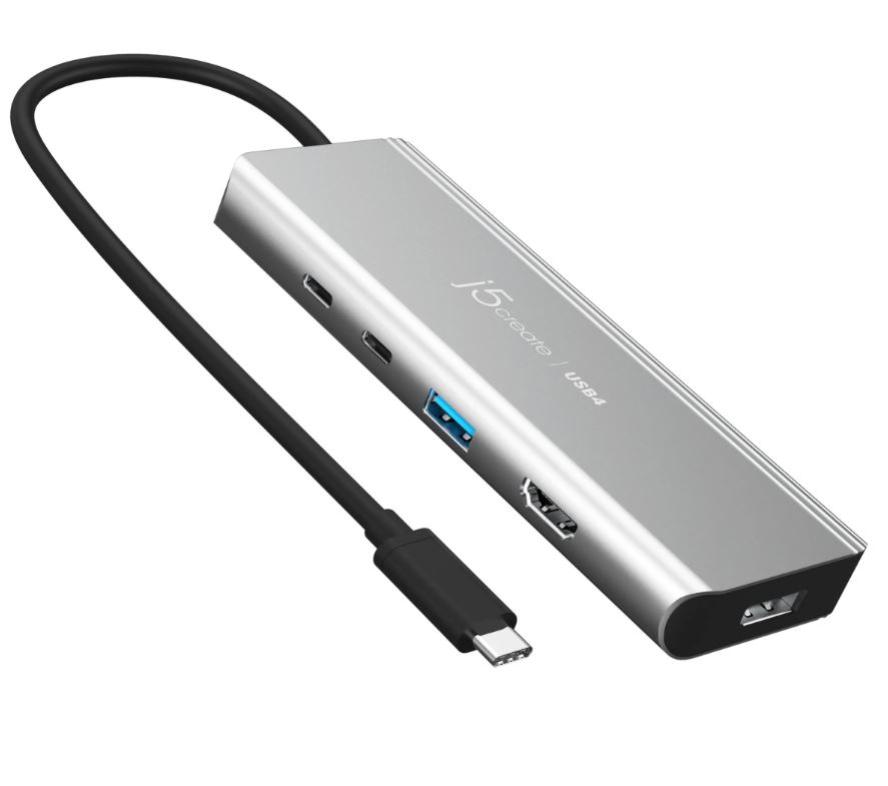

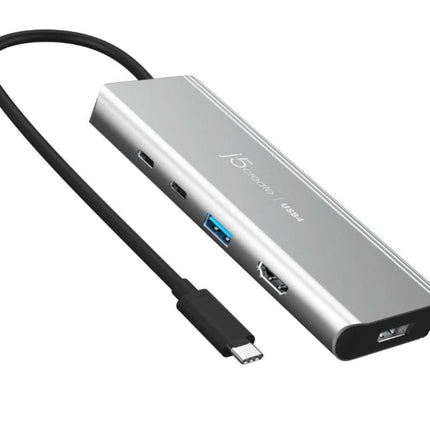

J5create JCD401 USB4 Dual 4K Multi-Port Hub with Intel USB4 Controller
Experience next-generation connectivity with the J5create JCD401 USB4 Dual 4K Multi-Port Hub, the first USB-C hub to feature Intel's cutting-edge USB4 controller. Perfect for creative professionals, remote workers, and anyone needing a powerful dual-monitor setup, this 5-in-1 hub delivers up to 20Gbps throughput, flexible 4K display outputs, and 85W Power Delivery pass-through charging. Compatible with Thunderbolt 3, Thunderbolt 4, and USB4 devices, it transforms your laptop into a complete workstation with seamless plug-and-play installation.
Why You'll Love the J5create JCD401
-
Intel USB4 Controller: Industry-leading quality ensures reliable, high-speed data and display performance
-
Dual 4K Display Support: Connect two 4K monitors at 30Hz or a single display at 60Hz via HDMI, DisplayPort, or USB-C
-
20Gbps Bandwidth: Dynamic bandwidth allocation optimizes data flow for simultaneous display and file transfers
-
Fast Data Ports: One USB-C and one USB-A port, both SuperSpeed+ 10Gbps, for peripherals and charging
-
85W Power Delivery: Keep your laptop charged and power connected devices through a single USB-C PD 3.0 port
-
Plug-and-Play: No drivers required, works instantly with Windows, macOS, and ChromeOS
Dual 4K Monitor Setup for Maximum Productivity
The JCD401 makes it easy to expand your workspace with dual 4K displays. Choose from flexible combinations: DisplayPort + HDMI, USB-C + DisplayPort, or USB-C + HDMI. Enjoy extended desktop mode on both Windows and macOS for multitasking across spreadsheets, video editing timelines, design software, and more. Whether you're working from home, editing 4K video, or gaming on the ROG Ally, this hub delivers crystal-clear visuals without compromising system performance.
Blazing-Fast Data Transfer
With up to 10Gbps data transfer speeds on both the USB-C and USB-A ports, you can quickly move large files, connect external hard drives, and sync devices in seconds. The multifunctional USB-C downstream port supports both data transmission and DisplayPort alt mode for 4K @ 60Hz video output, giving you even more flexibility to connect hubs, docks, flash drives, or an additional display.
Premium Aluminium Design Built to Last
Crafted from high-quality aluminium housing in a sleek space grey finish, the JCD401 is designed for both portability and durability. Built-in ventilation slots and heat fins ensure efficient heat dissipation during intensive use. The compact design measures just 135 x 51 x 15mm and weighs approximately 109g, making it perfect for travel or a clean desktop setup.
Universal Connectivity
-
Host Connection: 1 × USB4 Male (200mm captive cable)
-
Video Outputs: 1 × HDMI Female, 1 × DisplayPort Female, 1 × USB-C with DisplayPort alt mode
-
Data Ports: 1 × USB-C SuperSpeed+ 10Gbps (downstream), 1 × USB-A 3.2 Gen 2 SuperSpeed+ 10Gbps
-
Power Input: 1 × USB-C Power Delivery 3.0 (up to 85W pass-through)
Wide Compatibility
The JCD401 works seamlessly with Windows 10/11, macOS 11 and later, and ChromeOS. Compatible with a wide range of devices including Microsoft Surface, Google Pixelbook, Samsung Galaxy Tab, HP, Razer Blade, Huawei, and any USB-C laptop with Thunderbolt 3, Thunderbolt 4, or USB4 support. Note: Dual display may not be supported on certain Apple M1 or M2 Macs; contact your manufacturer to verify compatibility.
What's in the Box
- 1 × J5create JCD401 USB4 Dual 4K Multi-Port Hub
- 1 × Quick Installation Guide
Full Specifications
Performance
| USB4 Throughput |
Up to 20Gbps |
| USB Data Transfer Speed |
10Gbps (USB-C & USB-A ports) |
| Power Delivery |
USB-C PD 3.0, up to 85W pass-through |
Display
| Maximum Resolution (Single Display) |
4K @ 60Hz |
| Maximum Resolution (Dual Display) |
4K @ 30Hz (both displays) |
| Video Outputs |
1 × HDMI, 1 × DisplayPort, 1 × USB-C (DP alt mode) |
| DisplayPort Version |
1.4 |
Ports & Interfaces
| Host Connector |
1 × USB4 Male (200mm cable) |
| USB-C Downstream Port |
1 × USB 3.2 Gen 2 (10Gbps data + DP 1.4 alt mode) |
| USB-A Port |
1 × USB 3.2 Gen 2 Type-A (10Gbps) |
| HDMI Output |
1 × HDMI Female |
| DisplayPort Output |
1 × DisplayPort Female |
| USB-C PD Input |
1 × USB-C Power Delivery 3.0 (85W max) |
Physical
| Dimensions |
135 x 51 x 15mm (5.3 x 2.0 x 0.59 in) |
| Weight |
109g (3.84 oz) |
| Cable Length |
200mm (7.87 in) |
| Enclosure Material |
Aluminium with ventilation slots |
| Colour |
Space Grey / Black |
System Requirements & Compatibility
| Required |
USB-C port with Thunderbolt 4, Thunderbolt 3, or USB4 support |
| Operating Systems |
Windows 10/11, macOS 11+, ChromeOS |
| Driver Installation |
Plug-and-Play (no drivers required) |
| Power Source |
Bus-powered or self-powered via USB-C PD adapter |
Warranty & Support
Specifications are sourced from the manufacturer product page and may be updated.
